SIEMENS TELEPERM XP FUM 230 SIMATIC CONTROL MODULE 6DP1230-8CC Ready For Ship, China SIEMENS TELEPERM XP FUM 230 SIMATIC CONTROL MODULE 6DP1230-8CC Ready For Ship Manufacturers, Suppliers, Factory

Overview

Brand Name:	SIEMENS
Model Number:	6DP1230-8CC
Country of Origin:	GERMANY
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Manufacturer	Siemens
Model Number	6DP1230-8CC (also referred to as FUM 230 / FUM230C)
Product Type	Analog Transmitter Signal Conditioning Module
System Compatibility	TELEPERM XP Automation System / AS 620 B
Analog Inputs	Up to 16 channels, 0/4 … 20 mA
Transducer Supply	24 V DC, short-circuit and overload-proof, max. 120 mA per channel
Input Load (Standard)	10 Ω
Input Load (HART)	250 Ω (requires external 240 Ω resistor)
A/D Conversion Resolution	14 bits
Accuracy	±0.1% of full scale
Signal Processing	Software smoothing, scaling, square rooting, multiplication via correction factor
Limit Value Generation	Up to 4 configurable threshold values per channel, with adjustable hysteresis
Redundancy Support	Yes (two modules can be connected in parallel)
HART® Compatibility	Yes (protocol not interpreted by module)
Diagnostics	Wire break detection, over-range / under-range monitoring, transducer supply monitoring, internal module self-diagnostics
Operating Temperature	0 °C … +60 °C
Storage Temperature	-40 °C … +70 °C
Humidity	5 … 95 % non-condensing
Module Format	Extended double Eurocard 233 mm × 220 mm for ES 902C
Backplane Connectors	Upper X1 (96-pin, bus interface), Lower X5 (64-pin, I/O interface)
Fuse	FF 4A (very quick), replaceable from front panel
Weight	approx. 150 g
Order Number	6DP1230-8CC

Description

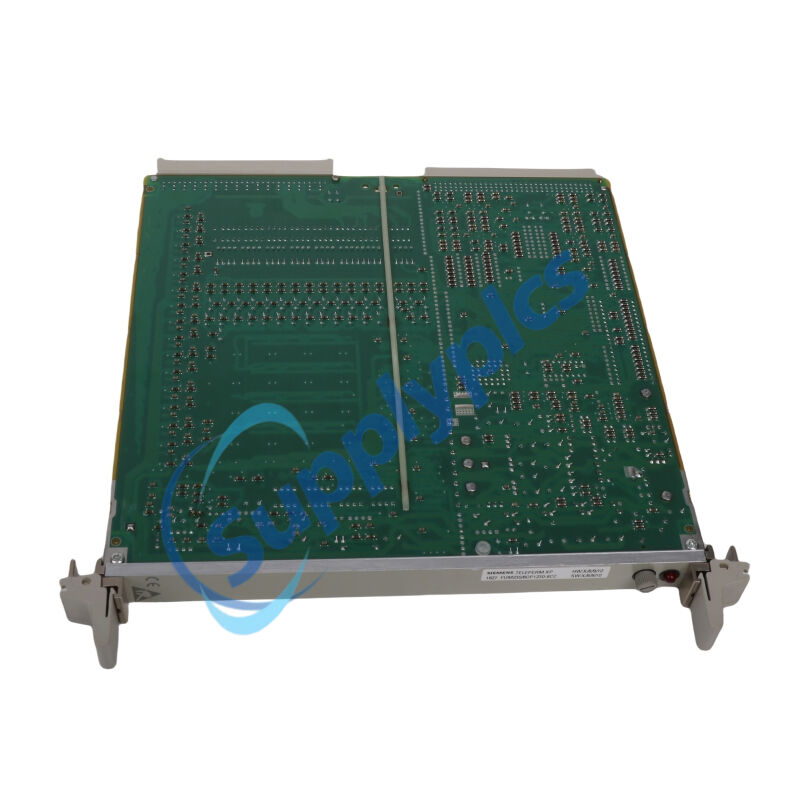

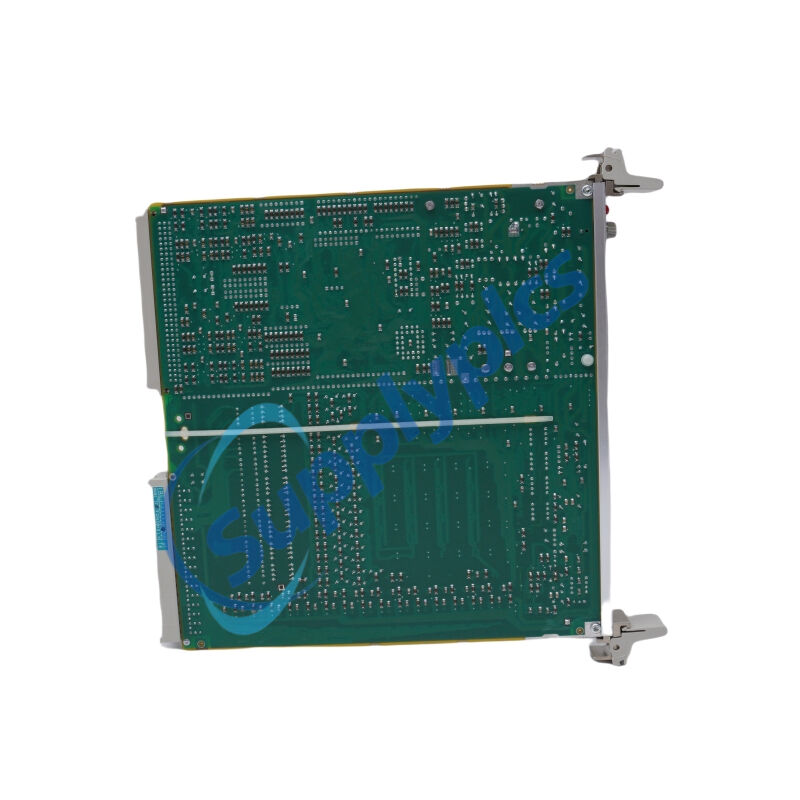

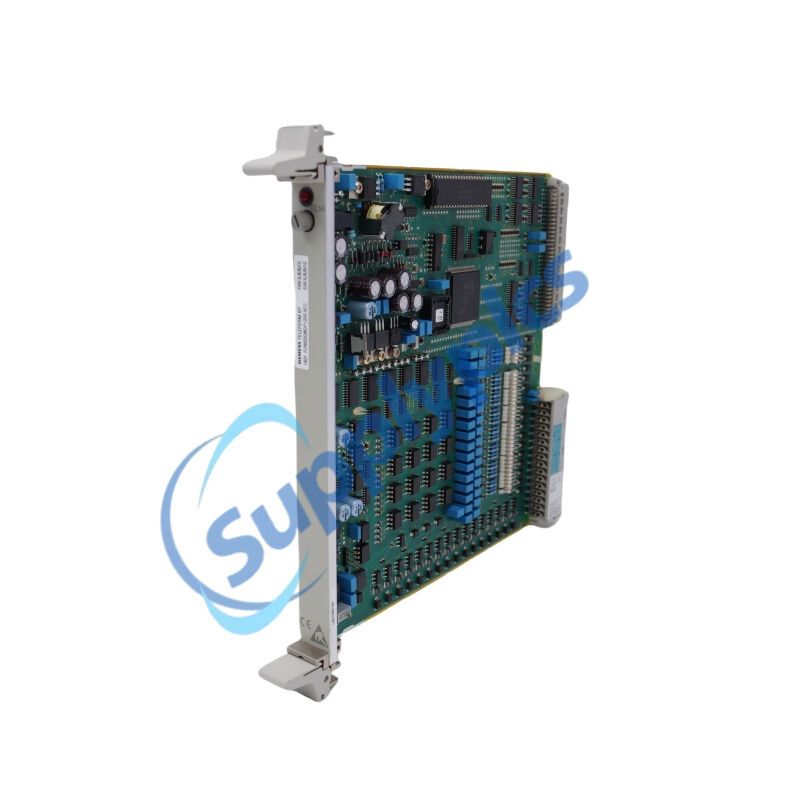

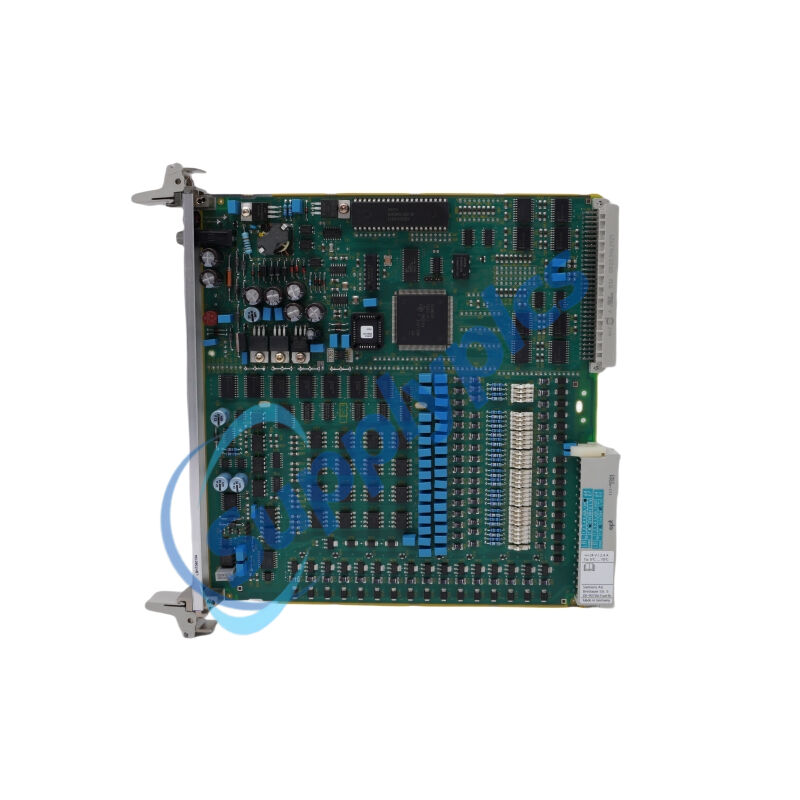

The Siemens 6DP1230-8CC is an analog transmitter signal conditioning module within the TELEPERM XP FUM 230 series. Designed for the AS 620 B automation system, it handles up to 16 current signals (0/4 to 20 mA) with 14-bit resolution and supports both 2-wire and 4-wire transducers. The module includes a short-circuit-proof 24 V DC transducer supply, configurable limit values per channel, and HART compatibility. Redundant configurations are supported by connecting two modules in parallel.

Applications

Power Generation & Distribution

Chemical & Petrochemical Processing

Oil & Gas Industry (pipeline monitoring, compressor stations)

Water & Wastewater Treatment

Pharmaceutical Manufacturing

Metals & Mining (high-temperature processes)

Food & Beverage Production

General Industrial Process Automation

Features

Up to 16 analog input channels (0/4 to 20 mA)

Built-in 24 V DC transducer supply with short-circuit protection

Redundancy-ready (parallel module connection)

HART® transducer compatible (protocol pass-through)

Configurable limit values per channel (max. 4)

Signal conditioning: scaling, square rooting, multiplication via correction factor

Software smoothing (0.1 … 10 s, first-order)

Comprehensive diagnostics: wire break, over/under range, supply monitoring

Hot-swappable design for minimal downtime

DS diagnosis system support for fault tracking

Functions

Analog signal acquisition (0/4 to 20 mA) with 14-bit A/D conversion

Transducer power supply (24 V DC / 120 mA per channel)

Redundant operation via parallel connection for high availability

Limit value generation (up to 4 thresholds per channel, configurable hysteresis)

Signal modification (multiplication with correction factor, square rooting)

Software smoothing for noise suppression

Analog signal simulation via software functions

Time-tagged data (TTD) generation for time-critical event logging

Backplane communication via dual redundant bus interfaces (X1, 96-pin)

Sensor supply fault monitoring (overload, short-circuit, wire break detection)

FAQ

Q1: How many analog inputs does the Siemens 6DP1230-8CC support?
A1: The 6DP1230-8CC supports up to 16 analog inputs for 0/4 to 20 mA current signals.

Q2: Does the Siemens 6DP1230-8CC support HART transducers?
A2: Yes, the 6DP1230-8CC is compatible with HART transducers, though the module does not interpret the HART protocol itself.

Q3: Can the Siemens 6DP1230-8CC be used in a redundant configuration?
A3: Yes, the 6DP1230-8CC supports redundancy by connecting two modules in parallel for increased availability.

Q4: Does the Siemens 6DP1230-8CC provide 24 V DC for transducers?
A4: Yes, the 6DP1230-8CC includes an integrated short-circuit-proof 24 V DC transducer supply up to 120 mA per channel.

Q5: How many limit values can be configured per channel on the Siemens 6DP1230-8CC?
A5: The 6DP1230-8CC allows up to 4 configurable limit values per channel with adjustable hysteresis.
