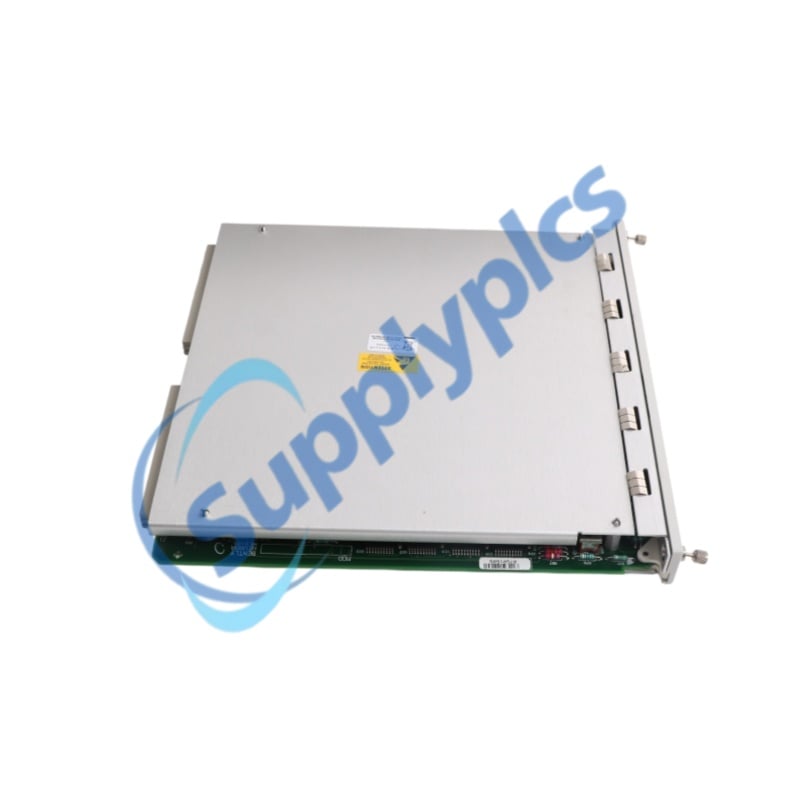

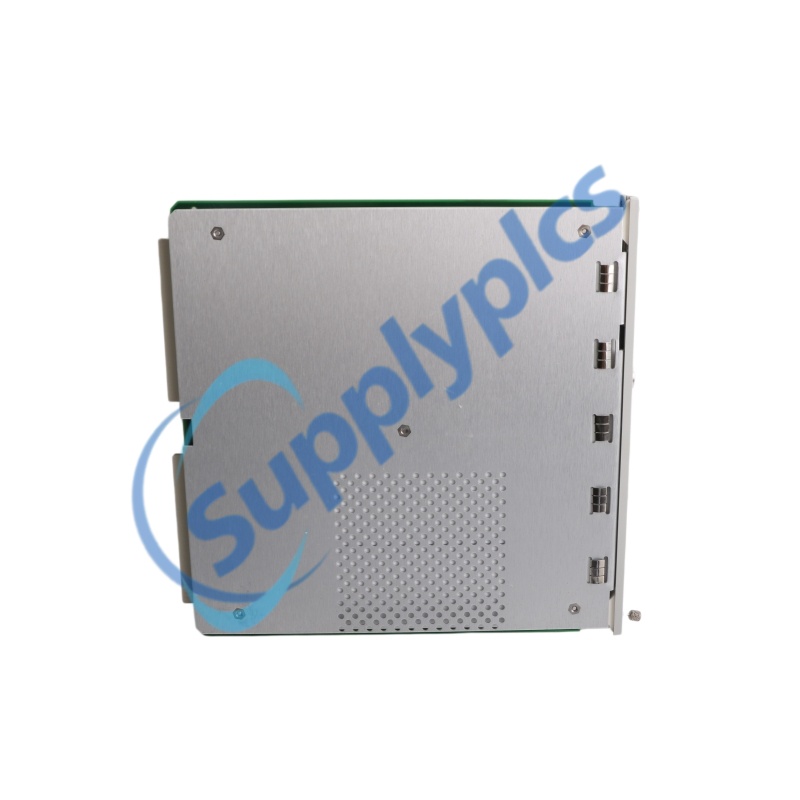

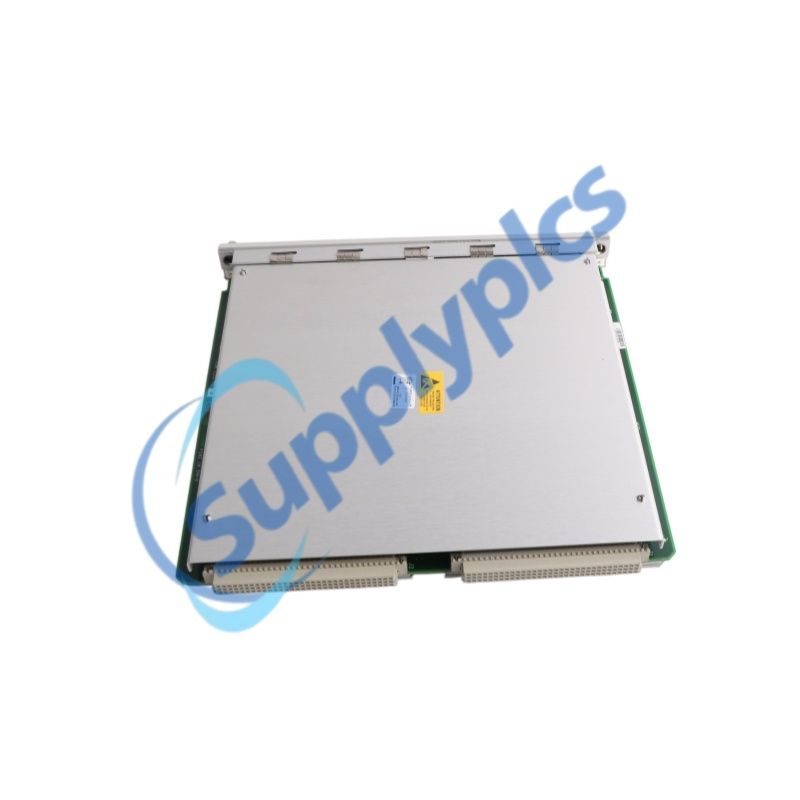

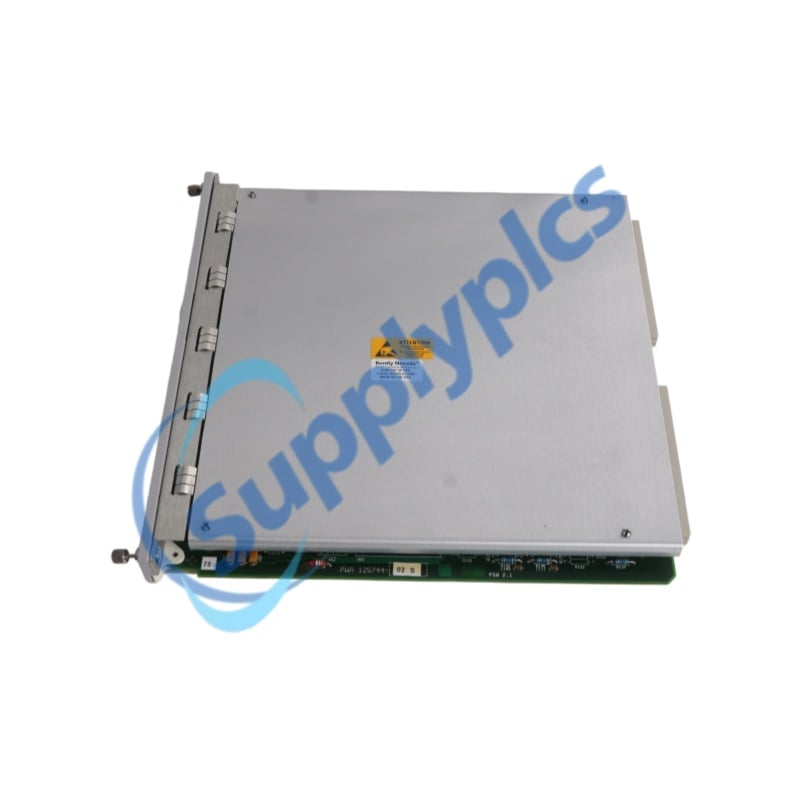

Bently Nevada IO Module

Overview

Brand Name:	Bently Nevada
Model Number:	3500/20
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	3500/20 Rack Interface Module (RIM)
Function	Primary communication and configuration interface for 3500 racks
Power Consumption	4.75 W typical
Front Communication Port	RS232 serial communication
Communication Speed	Up to 38.4 kbaud
Supported Interfaces	RS232, RS422, Modem, Data Manager
Rack Position	Slot 1, adjacent to power supplies
Relay Rating	5A @ 24 VDC / 120 VAC
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	95% non-condensing
Maximum RS232 Distance	30 m (100 ft)
Maximum RS422 Distance	1200 m (4000 ft)
Protocol	Bently Nevada Proprietary Protocol
Dimensions	Approx. 241 × 24.4 × 242 mm
Weight	Approx. 0.45 kg

Description

The Bently Nevada 3500/20 Rack Interface Module (RIM) serves as the central communication gateway within the 3500 Machinery Protection System, providing seamless interaction between rack components and host software. Designed for reliable industrial monitoring environments, the 3500/20 enables efficient rack configuration, data acquisition, and system diagnostics while maintaining stable communication across connected monitoring modules.

As a critical system interface, the 3500/20 supports multiple communication options including RS232, RS422, modem, and data management interfaces. It is compatible with external communication processors and monitoring platforms, allowing users to access machine condition data, alarm information, and configuration parameters from local or remote locations.

For high-availability applications, the 3500/20 is also available in a Triple Modular Redundant configuration. Together with related modules such as 3500/22M, 3500/25, and 3500/32, it forms a scalable machinery protection solution for turbines, compressors, generators, and other critical rotating equipment in demanding industrial environments.

Applications

Power plants: Used for turbine monitoring systems, generator protection, and machinery health management.
Substations: Supports critical equipment monitoring, alarm communication, and condition-based maintenance.
Chemical plants: Integrates process machinery protection and centralized vibration monitoring systems.
Steel mills: Provides reliable communication for rotating equipment protection in harsh industrial environments.
Oil & gas facilities: Monitors compressors, pumps, and turbines to improve operational reliability.
Paper mills: Supports continuous machinery condition monitoring and predictive maintenance programs.
Water treatment plants: Enables centralized monitoring of motors, pumps, and drive systems.
Machinery manufacturing plants: Facilitates equipment testing, diagnostics, and production line monitoring.

Features

Central communication interface for the 3500 monitoring platform.
Supports RS232, RS422, modem, and Data Manager communications.
Enables local and remote rack configuration.
Integrated configuration keylock for security management.
Provides rack reset, alarm inhibit, and trip multiply functions.
Supports daisy-chain networking of multiple 3500 racks.
Compatible with TMR (Triple Modular Redundant) architectures.
Front-panel LED indicators simplify diagnostics and maintenance.
Long-distance RS422 communication up to 1200 meters.
Designed for continuous operation in harsh industrial environments.

Functions

Rack configuration management and parameter setup.
Machinery monitoring data collection and transmission.
Communication gateway between monitoring modules and host software.
Alarm status monitoring and event reporting.
System diagnostics and operational health indication.
Remote maintenance and troubleshooting support.
TMR monitor comparison and fault detection.
Secure control of rack operating modes.

FAQ

Q1: What is the main purpose of the 3500/20 module?
A1: The 3500/20 serves as the primary communication and configuration interface for the Bently Nevada 3500 monitoring system.

Q2: Can the 3500/20 support remote rack configuration?
A2: Yes, it allows both local and remote configuration through supported communication interfaces.

Q3: Does the 3500/20 support redundant monitoring systems?
A3: Yes, a TMR version is available for Triple Modular Redundant applications requiring enhanced reliability.

Q4: What communication protocols are available on the 3500/20?
A4: The module supports proprietary Bently Nevada communications through RS232, RS422, modem, and Data Manager interfaces.

Q5: Where is the 3500/20 installed within the rack?
A5: The module must be installed in Slot 1 of the 3500 rack next to the power supply modules.

Spares

Number	Description
148722-01	3300 XL Test Plug with three color-coded 1-meter leads and banana plugs for testing Proximitor Sensor performance without disconnecting field wiring.
04310310	3300 XL Proximitor Sensor panel-mount screw, 6-32 UNC thread-forming type. Four screws required per sensor installation.
03200006	Silicone self-fusing tape, 9.1 m (10 yd) roll, providing electrical insulation and environmental protection for connectors.
40113-02	Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools.
136536-01	Connector protector adapter for compatibility with pre-1998 installation tools used with 75Ω ClickLoc connectors.
40180-02	Package containing 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables.
03839410	75Ω triaxial male connector protector for extension cable connections, providing environmental protection against moisture and contaminants.
03839420	75Ω triaxial female connector protector for probe and extension cable connections, providing environmental sealing and connector protection.
04301007	3/8-24 probe lock nut with dual safety-wire holes for secure probe mounting in vibration-prone applications.
04301008	M10 × 1 probe lock nut with dual safety-wire holes for secure installation and retention of proximity probes.
330153-01	3300 XL Connector Kit containing male and female ClickLoc connectors, color-coded sleeves, FEP tubing, and silicone tape for cable termination and maintenance.
