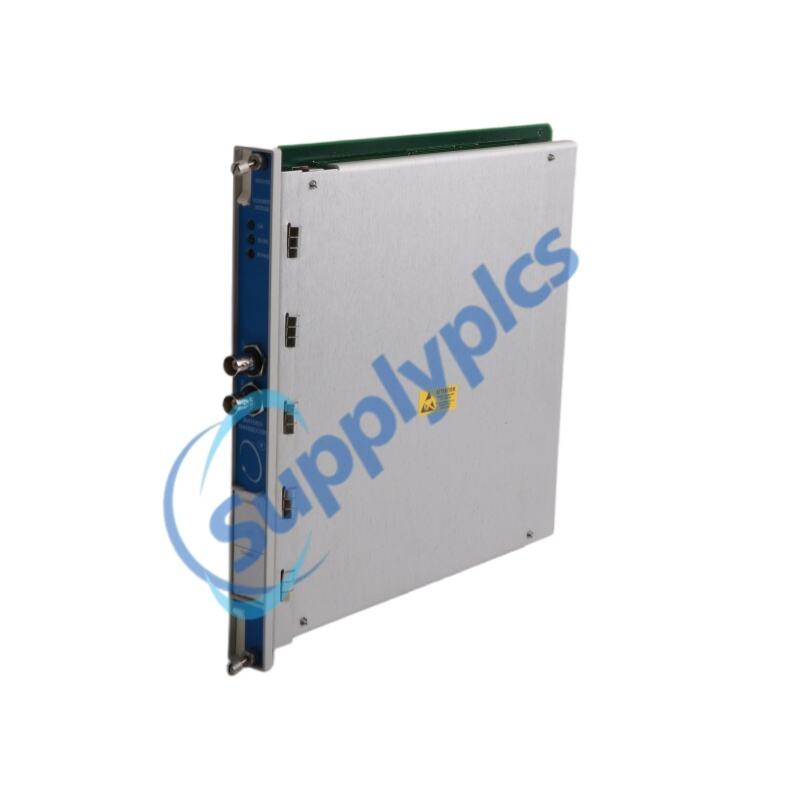

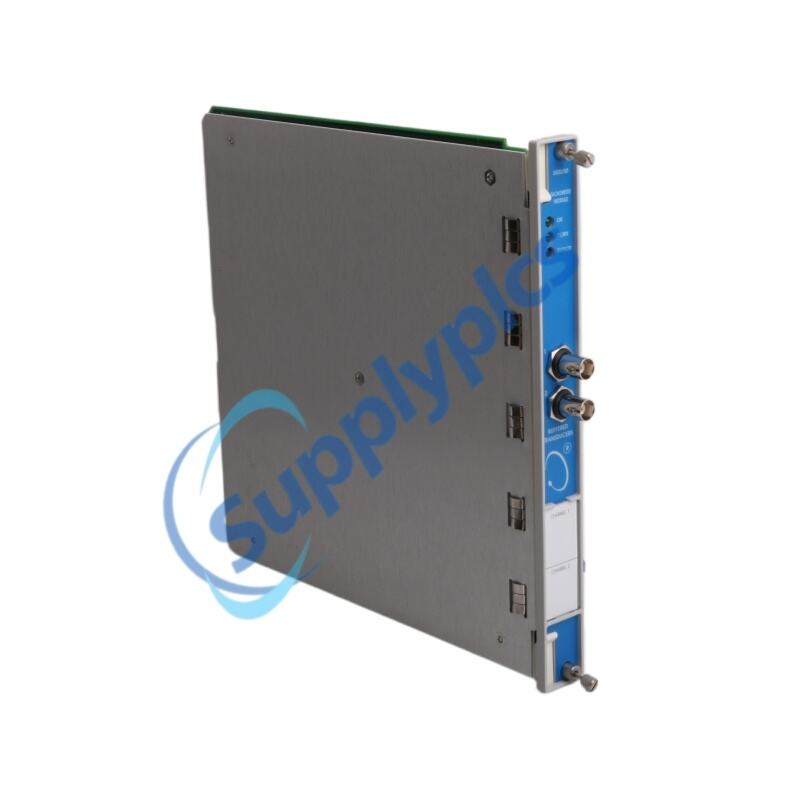

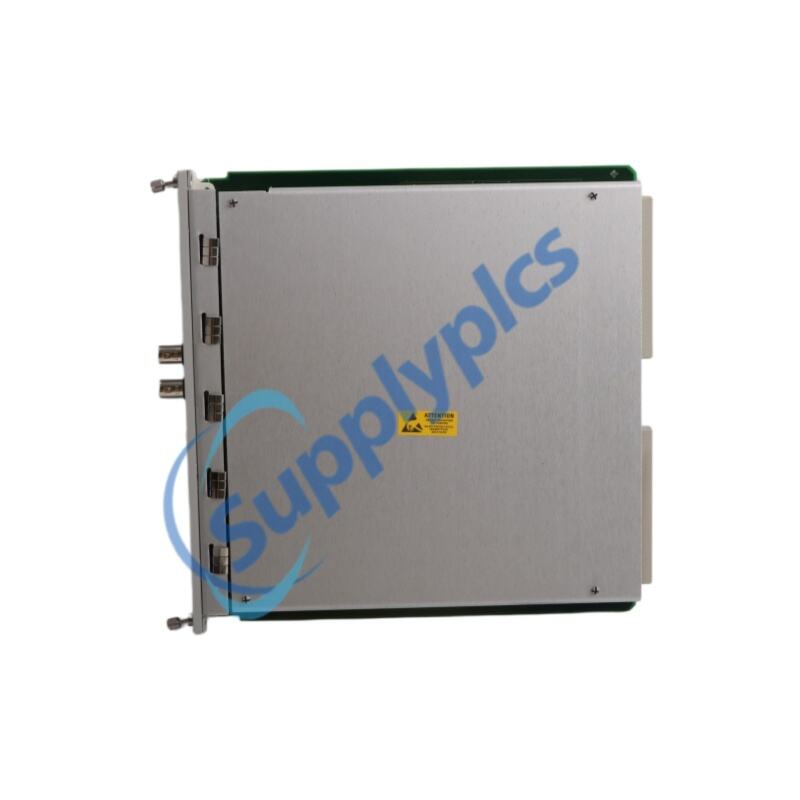

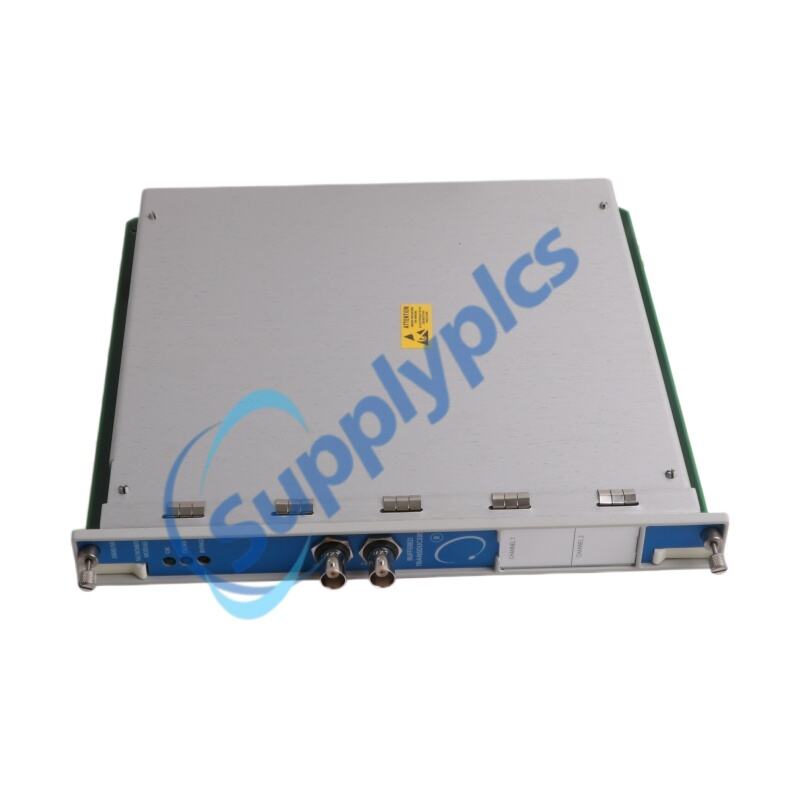

Bently Nevada 3500/50 133388-02 Tachometer Module Ready For Ship, China Bently Nevada 3500/50 133388-02 Tachometer Module Ready For Ship Manufacturers, Suppliers, Factory

Overview

Brand Name:	Bently Nevada
Model Number:	3500/50 133388-02
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Model	3500/50 133388-02
Product Type	Tachometer Monitoring Module
Input Channels	2 Channels
Input Signal Range	+10 V to -24 V
Input Impedance	20 kΩ Standard
Power Consumption	5.8 W Typical
Speed Measurement Range	Up to 99,999 rpm
Maximum Input Frequency	20 kHz
Recorder Output	4–20 mA proportional output
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	95% non-condensing
Monitor Module Dimensions	2.5x25.5x24cm
I/O Module Dimensions	241.3 × 24.4 × 99.1 mm
Monitor Module Weight	0.82 kg
I/O Module Weight	0.20 kg
Rack Space Requirement	1 Full-height front slot
Communication	Compatible with 3500 Rack System
Certifications	CE, CSA/NRTL/C

Description

Bently Nevada3500/50 133388-02Tachometer Module is a high-performance machinery monitoring solution engineered for accurate shaft speed, rotor acceleration, reverse rotation, and zero-speed detection in critical rotating equipment. Designed for integration within the3500 Seriesmonitoring platform, the module accepts signals from proximity probes or magnetic pickups and delivers stable speed measurement with configurable alarm protection for industrial applications.

The3500/50 133388-02module supports programmable alarm thresholds, speed band monitoring, and conditioned Keyphasor® signal distribution through the rack backplane, reducing the need for additional dedicated modules. Its dual-channel architecture enhances operational flexibility while supporting turbine, compressor, motor, and pump monitoring systems in demanding process industries.

Compatible with models such as3500/50-01-00and otherBently Nevada 3500 Seriesmonitoring modules, this tachometer module provides reliable performance, fast signal processing, and seamless integration for predictive maintenance and machinery protection strategies across power generation, oil & gas, petrochemical, and heavy manufacturing facilities.

Applications

Power plants: Used for turbine shaft speed monitoring, overspeed alarming, and generator rotor condition supervision.
Oil & gas facilities: Supports compressor, pump, and turbo-expander rotational speed protection systems.
Petrochemical plants: Provides continuous tachometer monitoring for critical rotating machinery and process reliability.
Steel mills: Enables heavy-duty motor and rolling equipment speed measurement under harsh industrial environments.
Machinery manufacturing plants: Integrated into automated production equipment for precise rotational monitoring and fault detection.
Marine industry: Suitable for propulsion system monitoring and rotating equipment diagnostics onboard vessels.
Water treatment facilities: Monitors pump rotational performance and operational stability in continuous-duty systems.

Features

Dual-channel tachometer monitoring capability
Supports proximity probes and magnetic pickups
Configurable speed, acceleration, and reverse rotation alarms
Built-in conditioned Keyphasor® signal output
High-speed signal processing up to 20 kHz
Programmable alarm delays and thresholds
Front-panel status LEDs for diagnostics
Buffered transducer outputs for analysis tools
Compact rack-mounted industrial design
Compatible with Bently Nevada 3500 monitoring systems

Functions

Measures shaft rotational speed with high accuracy
Detects rotor acceleration and deceleration conditions
Provides reverse rotation notification and monitoring
Supports zero-speed detection for machinery safety
Generates programmable alarm outputs for protection systems
Delivers proportional 4–20 mA recorder outputs
Supplies conditioned Keyphasor® signals to rack backplane
Assists predictive maintenance and machinery diagnostics
Enhances operational reliability of rotating equipment

FAQ

Q1:What is the main function of the3500/50 133388-02module?
A1:It is designed to monitor shaft speed, rotor acceleration, reverse rotation, and zero-speed conditions in rotating machinery.

Q2:Can the3500/50 133388-02work with magnetic pickups?
A2:Yes, the module supports magnetic pickups, except for certain reverse rotation applications.

Q3:What industries commonly use the3500/50 133388-02?
A3:It is widely used in power generation, oil & gas, petrochemical, steel, and manufacturing industries.

Q4:Does the module support alarm configuration?
A4:Yes, users can program multiple alarm setpoints and delay times through the 3500 configuration software.

Q5:Is the3500/50 133388-02compatible with other 3500 Series modules?
A5:Yes, it integrates seamlessly with other Bently Nevada 3500 rack monitoring components.

Spares

Number	Describe
133388-02	3500/50 Tachometer Module
133442-01	I/O Module with Internal Terminations
136703-01	Discrete Internal Barrier I/O Module with Internal Terminations
133434-01	I/O Module with External Terminations
133450-01	TMR I/O Module with External Terminations
134938-01	3500/50 Tachometer Manual
134130-01	3500/50 Firmware IC
04425545	Grounding Wrist Strap (single use only)
04400037	IC Removal Tool
00580434	Connector Header, Internal Termination, 8-position, Green
00580436	Connector Header, Internal Termination, 6-position, Green
00502133	Connector Header, Internal Termination, 12-position, Blue
