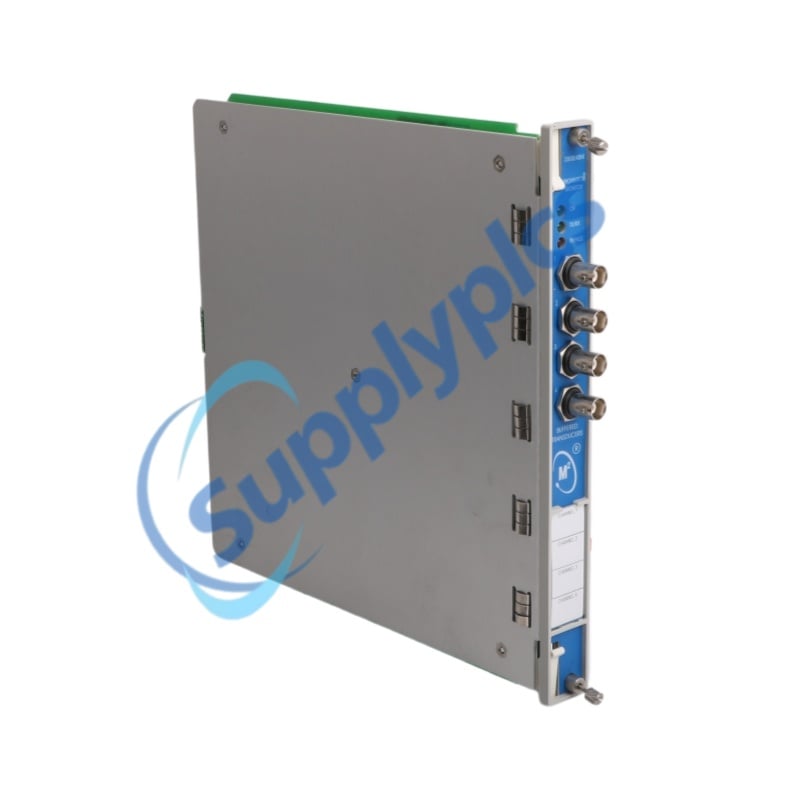

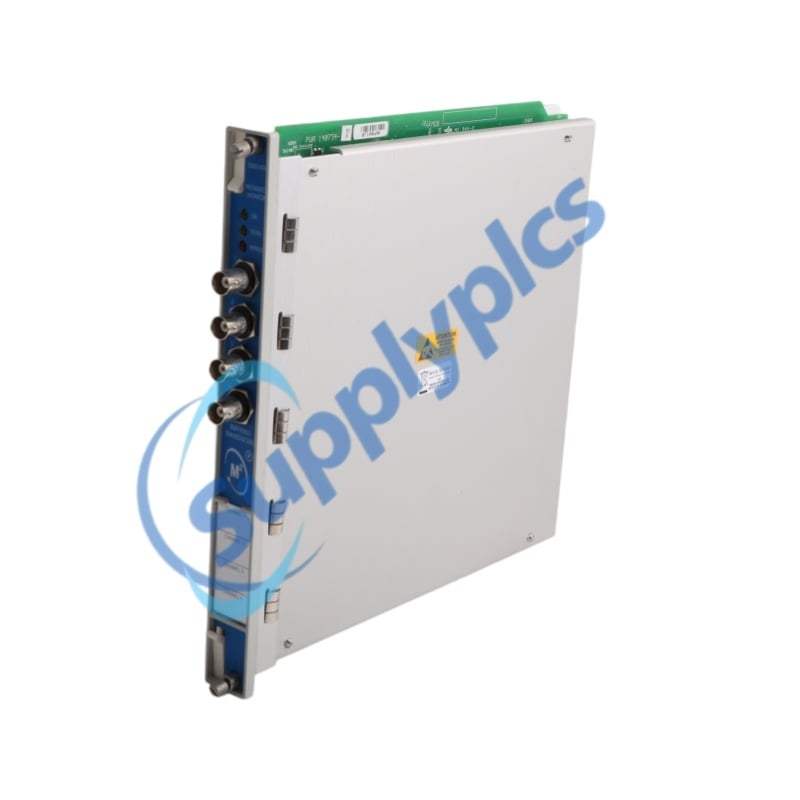

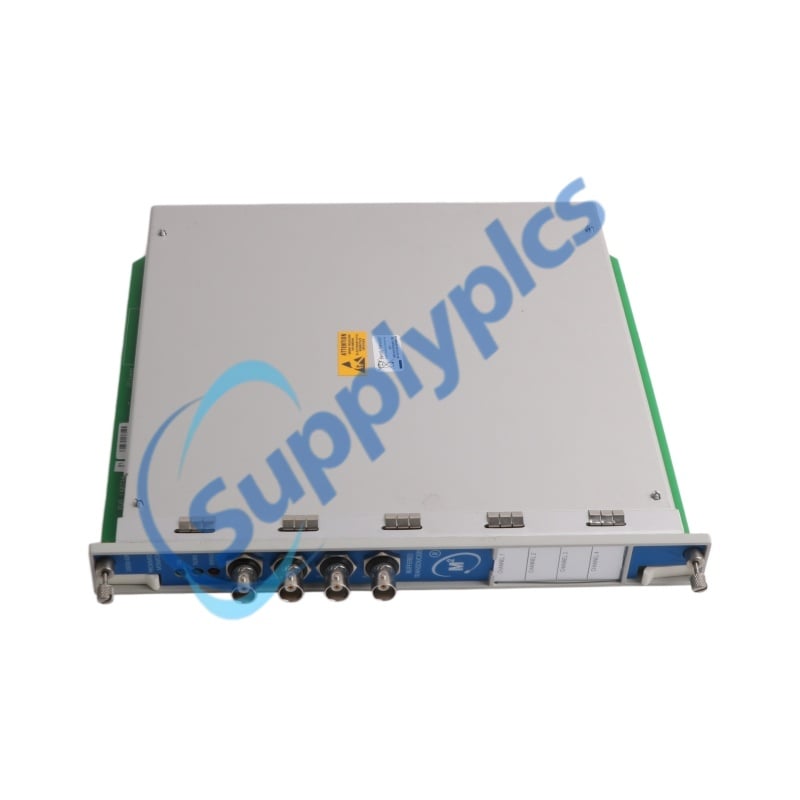

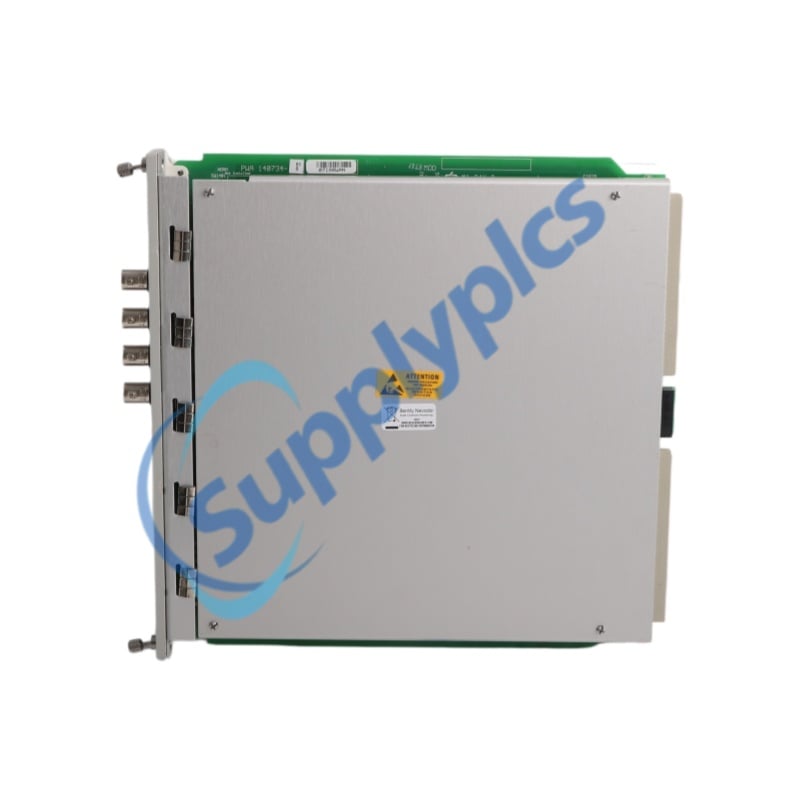

Bently Nevada Monitor

Overview

Brand Name:	Bently Nevada
Model Number:	3500/64M
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Product Type	Dynamic Pressure Monitor, four-channel machinery protection module
Input Signals	Accepts 1 to 4 high-temperature pressure transducer inputs
Dynamic Pressure Sensitivity	100 mV/psi (1.45 mV/mBar)
Input Impedance (3-wire)	10 kΩ
Input Impedance (2-wire)	1.5 MΩ to 3.5 MΩ typical
Recorder Output	+4 to +20 mA proportional output for each channel
Recorder Load Resistance	0 to 600 Ω
Signal Filtering	Configurable bandpass filtering with optional notch filter
Low Mode Frequency Range	5 Hz to 4 kHz (up to 5.285 kHz without LP filter)
High Mode Frequency Range	10 Hz to 14.75 kHz
Alarm Setpoints	Adjustable from 0 to 100% of full scale
Alarm Delay	Alert: 1–60 s, Danger: 0.1–60 s
Update Rate	Approximately 100 ms or less
Transducer Supply (3-wire)	-24 VDC
Transducer Supply (2-wire)	3.3 mA current source at 22 VDC nominal
Operating Temperature	-30°C to +65°C
Storage Temperature	-40°C to +85°C
Humidity	95% non-condensing
Main Module Dimensions	241.3 × 24.4 × 241.8 mm
Main Module Weight	0.82 kg
I/O Module Dimensions (Non-barrier)	241.3 × 24.4 × 99.1 mm
I/O Module Weight (Non-barrier)	0.20 kg
I/O Module Dimensions (Barrier)	241.3 × 24.4 × 163.1 mm
I/O Module Weight (Barrier)	0.46 kg

Description

The 3500/64M Dynamic Pressure Monitor is a high-performance four-channel monitoring module engineered for continuous dynamic pressure measurement in critical rotating machinery applications. Designed to work with high-temperature pressure transducers, 3500/64M delivers accurate bandpass dynamic pressure analysis while supporting advanced machinery protection strategies. Within the Bently Nevada 3500 Series, including modules such as 3500/20, 3500/32, and 3500/60, it provides reliable real-time monitoring for demanding industrial environments.

Using configurable signal processing, the 3500/64M enables users to customize bandpass filter settings, notch filtering, and alarm thresholds through 3500 Rack Configuration Software. The module converts pressure signals into actionable diagnostic information, helping operators detect abnormal process conditions before they escalate into equipment failures.

For turbines, compressors, pumps, and process machinery, the 3500/64M supplies continuous condition monitoring, alarm management, and recorder outputs for integration with plant control systems. Its flexible filtering architecture and multi-channel capability make it an essential component in modern predictive maintenance and machinery protection programs.

Applications

Power plants: Used for turbine dynamic pressure monitoring, combustion stability analysis, and machinery protection.
Oil & gas facilities: Monitors compressor pulsation, pipeline pressure fluctuations, and process equipment health.
Chemical plants: Provides dynamic pressure measurement for critical process units and rotating equipment.
Steel mills: Supports condition monitoring of blowers, compressors, and heavy-duty industrial machinery.
Machinery manufacturing plants: Enables performance verification and pressure diagnostics during equipment testing.
Petrochemical facilities: Detects abnormal pressure oscillations and enhances predictive maintenance programs.
Refineries: Improves reliability of pumps, compressors, and turbine-driven systems through continuous monitoring.

Features

Four-channel dynamic pressure monitoring capability.
Compatible with high-temperature pressure transducers.
Configurable bandpass and notch filtering functions.
Independent recorder output for each channel.
Flexible alarm and danger setpoint configuration.
Cascade Mode allows one transducer input to feed multiple channels.
High-speed signal processing for real-time diagnostics.
Integration with Bently Nevada 3500 monitoring systems.
Industrial-grade design for harsh operating environments.

Functions

Continuously measures dynamic pressure signals.
Compares process values against configured alarm limits.
Generates alert and danger alarms for machinery protection.
Supplies recorder outputs for DCS and control system integration.
Performs advanced signal conditioning and filtering.
Supports machinery health assessment and troubleshooting.
Assists predictive maintenance and condition-based monitoring strategies.

FAQ

q1: What is the primary purpose of the 3500/64M Dynamic Pressure Monitor?
A1: The 3500/64M continuously measures dynamic pressure signals from pressure transducers, helping protect critical rotating equipment by generating configurable alert and danger alarms.

q2: How many pressure transducer inputs does the 3500/64M support?
A2: The 3500/64M supports up to four pressure transducer inputs, allowing simultaneous monitoring of multiple pressure measurement points within a machinery protection system.

q3: Does the 3500/64M provide recorder outputs for external systems?
A3: Yes, the module provides individual 4–20 mA recorder outputs for each channel, enabling seamless integration with DCS, PLC, and plant monitoring systems.

q4: What is the Cascade Mode feature of the 3500/64M?
A4: Cascade Mode allows a single pressure transducer signal to be distributed across multiple channels, enabling different filter settings and measurement ranges from one sensor input.

q5: In which industries is the 3500/64M commonly used?
A5: The 3500/64M is widely deployed in power generation, oil and gas, petrochemical, chemical processing, compressor stations, and other industrial facilities requiring advanced machinery condition monitoring.

Spares

Number	Description
148722-01	3300 XL Test Plug with three color-coded 1-meter leads and banana plugs for testing Proximitor Sensor performance without disconnecting field wiring.
04310310	3300 XL Proximitor Sensor panel-mount screw, 6-32 UNC thread-forming type. Four screws required per sensor installation.
03200006	Silicone self-fusing tape, 9.1 m (10 yd) roll, providing electrical insulation and environmental protection for connectors.
40113-02	Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools.
136536-01	Connector protector adapter for compatibility with pre-1998 installation tools used with 75Ω ClickLoc connectors.
40180-02	Package containing 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables.
03839410	75Ω triaxial male connector protector for extension cable connections, providing environmental protection against moisture and contaminants.
03839420	75Ω triaxial female connector protector for probe and extension cable connections, providing environmental sealing and connector protection.
04301007	3/8-24 probe lock nut with dual safety-wire holes for secure probe mounting in vibration-prone applications.
04301008	M10 × 1 probe lock nut with dual safety-wire holes for secure installation and retention of proximity probes.
330153-01	3300 XL Connector Kit containing male and female ClickLoc connectors, color-coded sleeves, FEP tubing, and silicone tape for cable termination and maintenance.
