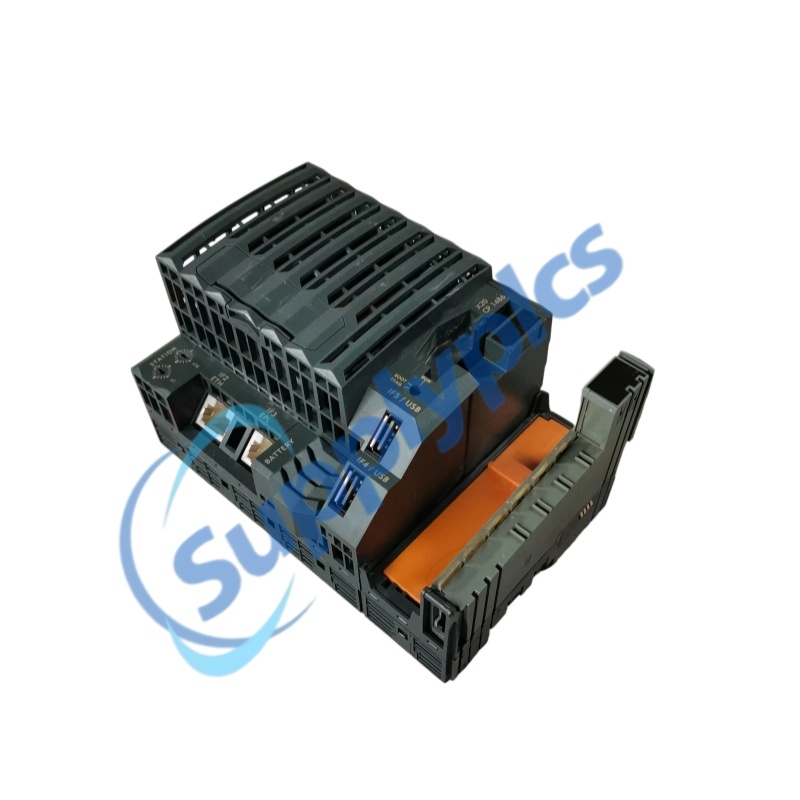

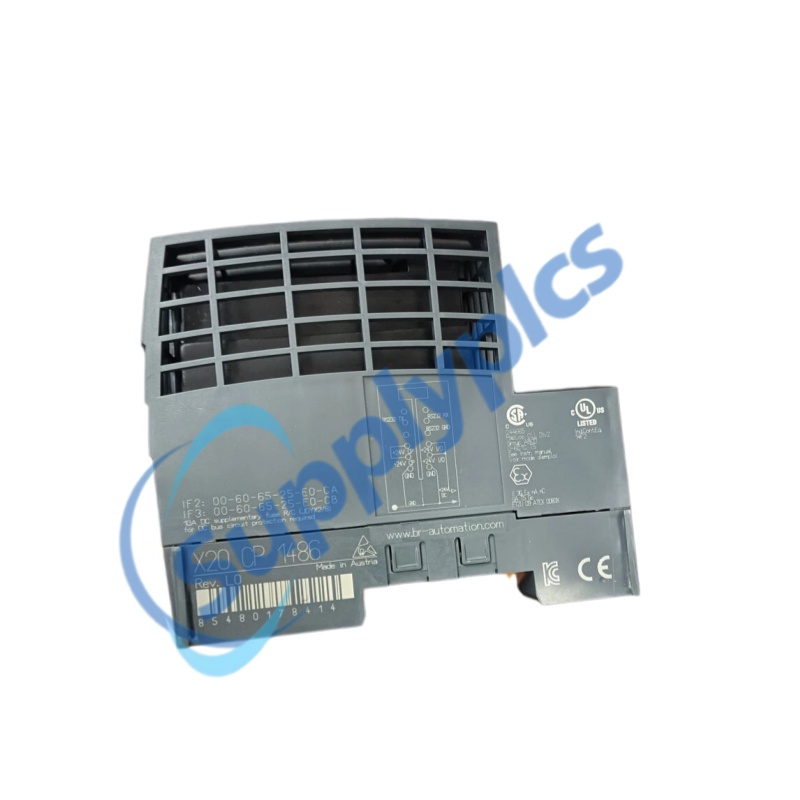

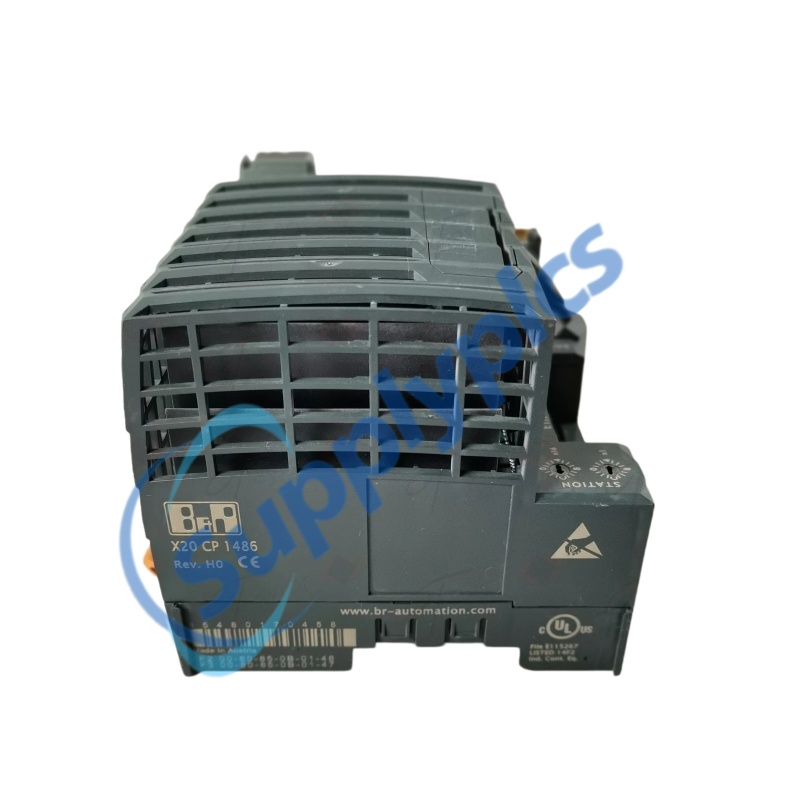

Product Name: X20 CPU
Brand Name: B&R
Model Number:X20CP1486
Country of Origin:Austria
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
B&R Industrial Automation |
Model Number: |
X20CP1486 |
Country of Origin: |
Austria |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
The X20CP1486 stands as the flagship CPU within B&R's X20 Celeron-based processor lineup, engineered for high-performance automation demands. Powered by an Intel Celeron 650 processor, the X20CP1486 delivers a class-leading 200 µs task cycle time, making it ideal for high-speed robotics and complex process control applications. The X20CP1486 integrates comprehensive onboard connectivity including Ethernet, POWERLINK V1/V2, USB, and RS232 interfaces, complemented by a single slot for modular expansion. Its fanless design with optional replaceable fan ensures operational flexibility across the full temperature spectrum.
High-Speed Logic Execution: 200 µs minimum task class cycle time for real-time control.
Parallel I/O Processing: Integrated I/O processor handles data point communication in the background, offloading the main CPU.
Real-Time Communication: Onboard POWERLINK V1/V2 interface for deterministic fieldbus connectivity.
Seamless Networking: Ethernet 10/100 Base-T interface for TCP/IP and INA2000 communication.
Data Persistence: Nonvolatile real-time clock and battery-backed remanent variables (up to 256 kB).
Diagnostic Monitoring: Comprehensive LED status indicators for CPU, battery, Ethernet, POWERLINK, CompactFlash, overtemperature, and fan.
Modular Expandability: One slot for X20 interface modules to adapt to various bus systems.
Motion Control Ready: Full ACOPOS drive system compatibility.
Top-Tier Celeron 650 Performance: Delivers 200 µs minimum cycle time and 0.0034 µs instruction cycle for demanding applications.
Flexible Cooling Architecture: Fanless operation up to 45°C; replaceable fan enables full 0–55°C range operation.

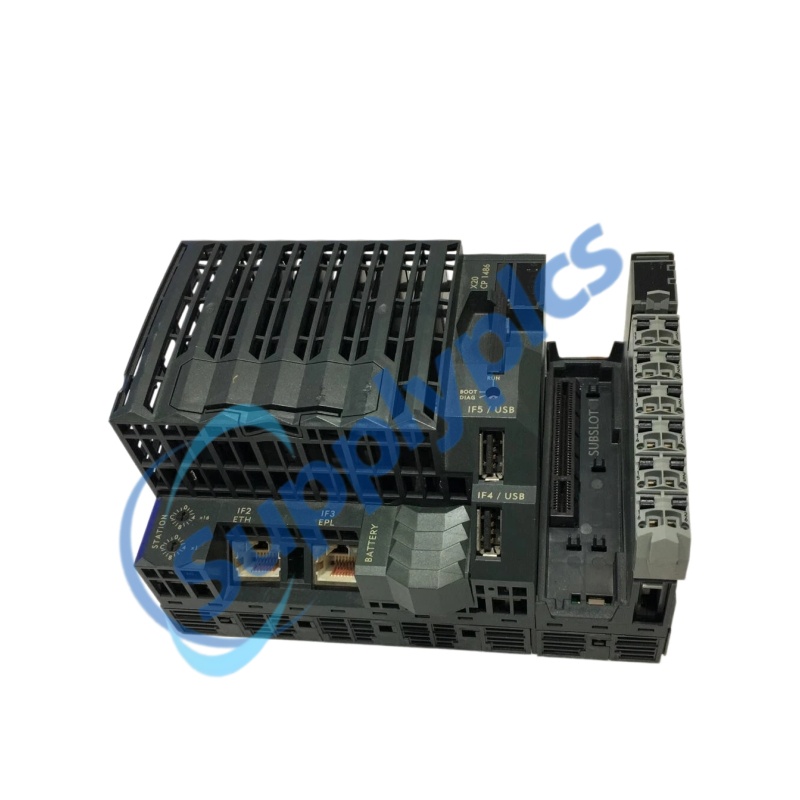

Comprehensive Connectivity: Onboard Ethernet, POWERLINK V1/V2, dual USB, RS232, and X2X Link interfaces.
Removable Application Memory: CompactFlash slot for convenient program storage and exchange.
Integrated Power Supply: Built-in 24 VDC supply with X2X Link and I/O power distribution.
Robust Industrial Certifications: ATEX Zone 2, HazLoc Class I Division 2, and major marine approvals (DNV, LR, ABS, BV, CCS, KR).
Fan Health Monitoring: Software-based fan diagnostics for predictive maintenance.
Over-Temperature Protection: Automatic shut-off at 100°C to prevent hardware damage.
The X20CP1486 functions as the central processing unit within B&R's X20 automation architecture. Upon power application, the CPU boots from the CompactFlash application memory, loading the Automation Runtime operating system alongside the user-defined control project. The Intel Celeron 650 processor executes the control logic cyclically with a minimum task class cycle time of 200 µs, while an integrated I/O processor simultaneously manages data point communication in the background, effectively parallelizing control and I/O tasks. The X2X Link interface provides high-speed, deterministic communication with local I/O modules, whereas Ethernet and POWERLINK facilitate real-time data exchange with remote stations and field devices. Remanent variables and the real-time clock are sustained by the lithium backup battery during power interruptions. An integrated power supply module distributes 24 VDC to the CPU, X2X Link, and internal I/O bus, with electrical isolation between the CPU/X2X Link supply and the I/O supply. Thermal management is achieved through passive cooling with optional fan assistance, and an over-temperature shut-off mechanism triggers at 100°C to protect the hardware.
Q1: What differentiates the X20CP1486 from the X20CP1484 and X20CP1485?
A1: The X20CP1486 features the fastest processor (Celeron 650 vs. 266 and 400), delivering a 200 µs cycle time compared to 800 µs and 400 µs respectively. It also offers 64 MB DRAM (vs. 32 MB) and supports a replaceable fan for full-temperature operation.
Q2: Is a fan required for operating the X20CP1486?
A2: No. The X20CP1486 operates fanless up to 45°C. For operation up to 55°C, the optional replaceable fan (order number X20AC0EF1) is required.
Q3: Does the CPU include a CompactFlash card?
A3: No. The CompactFlash application memory must be ordered separately as an accessory.
Q4: What is the purpose of the integrated I/O processor?
A4: The integrated I/O processor handles I/O data point communication in the background, offloading the main Celeron 650 CPU to ensure maximum processing power is dedicated to control logic execution.
Q5: How often should the backup battery be replaced?
A5: The lithium battery should be replaced every 4 years under normal operating conditions to ensure reliable data and real-time clock retention.
