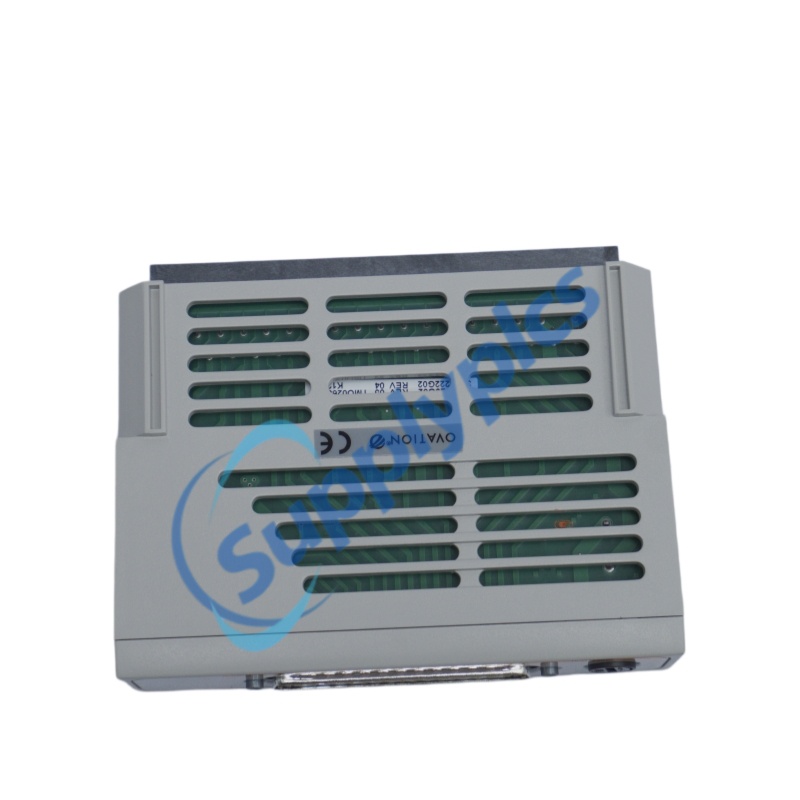

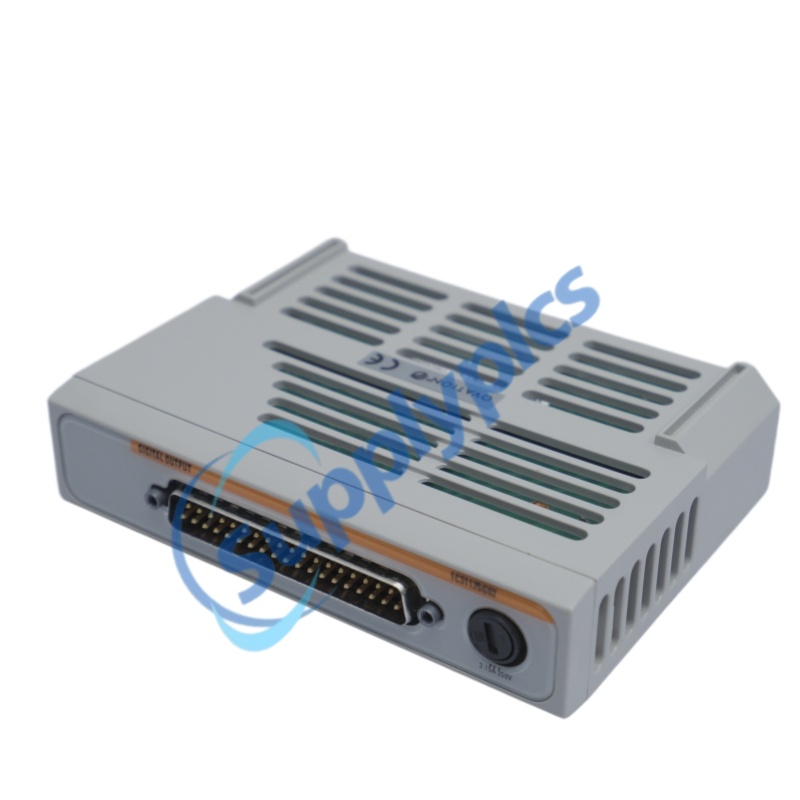

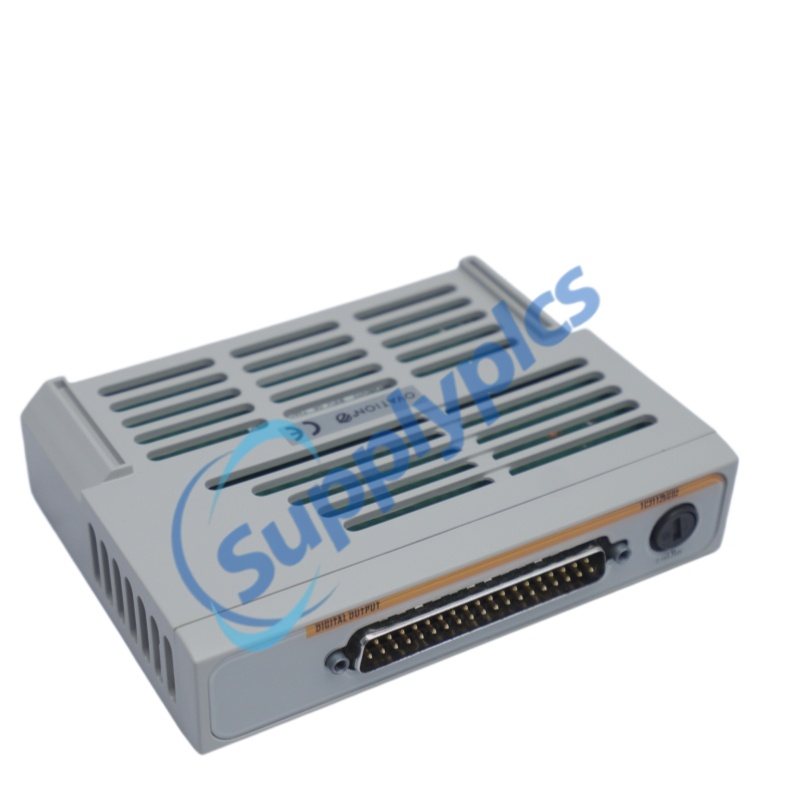

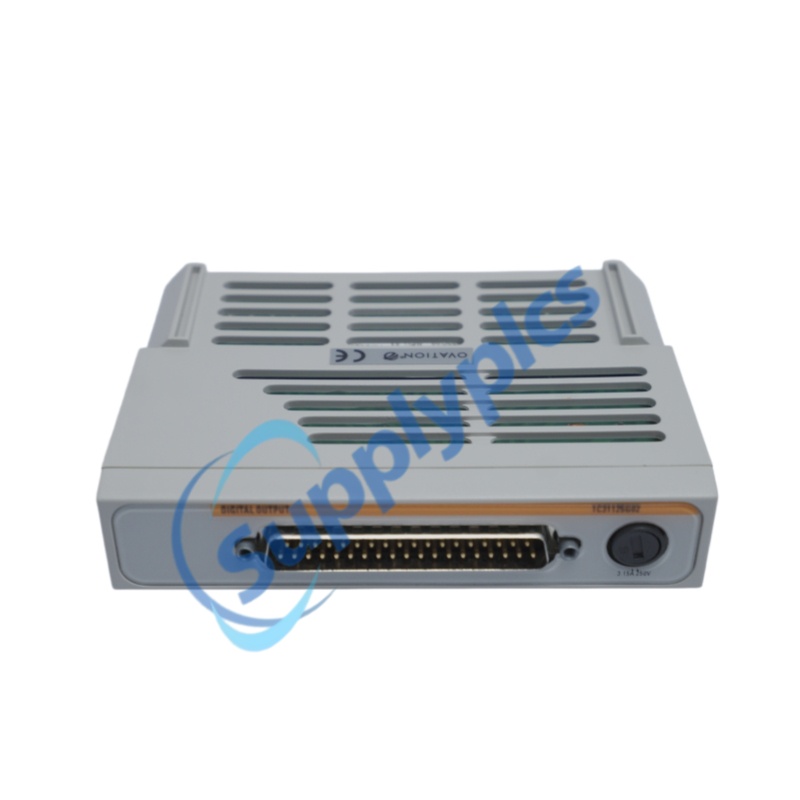

Product Name:Personality Module
Brand Name: EMERSON Westinghouse
Model Number: 1C31125G02
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Westinghouse |
Model Number: |
1C31125G02 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Type |
Personality Module (Pmod) for Digital Output Module |
|
Compatible Electronics Module |
1C31122G01 |
|
Primary Function |
Interface to relay modules (Solid State, G2R, KUEP) |
|
Power Source |
Local auxiliary power supply (from I/O backplane) |
|
Max Combined Output Current (All 16 Outputs) |
2.2 A maximum |
|
Fuse Rating (Per Channel/Module) |
3.15A; 250V; Fast acting (5x20mm cartridge) |
|
Output Voltage Range |
15V to 60V DC (field supply) |
|
Dielectric Isolation |
1000V AC/DC (channel to logic) |
The 1C31125G02 is a Personality Module engineered for the Ovation Digital Output Module (1C31122G01) . It acts as the primary interface for driving external relay panels—including Solid State, G2R, and KUEP types—when local power is sourced directly from the I/O backplane auxiliary supply. This configuration facilitates high-current AC/DC switching while ensuring 1000V isolation between logic and field circuits. The 1C31125G02 is essential for robust control of industrial actuators, solenoids, and indicators.
Driving Solid State Relay Panels (5A22410G01/G02).
Interfacing with G2R Electromechanical Relay Panels (5A22411G01).
Controlling KUEP High-Power Relay Panels (5A22412G01/G02/G03).
Local power distribution within Ovation cabinets.
Switching loads for motor starters, solenoid valves, and alarm indicators.
Relay Panel Compatibility: Specifically tailored for Ovation’s standard relay panel lineup.
Local Power Sourcing: Eliminates external power wiring by drawing auxiliary power from the backplane.
High Current Capacity: Supports up to 2.2A combined current across all 16 output channels.
Diagnostic Integration: Includes built-in blown fuse detection for field supply monitoring.
Galvanic Isolation: Provides 1000V AC/DC isolation for enhanced noise immunity.
Hot-Swap Ready: Supports online replacement without system shutdown (with appropriate base unit).
Ecosystem Optimization: Provides seamless, plug-and-play functionality with Ovation electronics and relay panels, reducing integration time.
Cost-Effective Infrastructure: Local power sourcing reduces cabinet complexity and material costs by removing the need for dedicated external power supplies for relay interfaces.
Proactive Maintenance: Embedded fuse monitoring allows for rapid fault identification, significantly reducing diagnostic downtime.
Industrial-Grade Durability: Built with high-isolation components to withstand harsh power plant and process environments.
Q1: What is the main purpose of the 1C31125G02?
A: It is a Personality Module that interfaces the Ovation Digital Output Module (1C31122G01) with external relay panels when local power is used.
Q2: What is the total current limit for this module?
A: The maximum combined output current across all 16 channels is 2.2A.
Q3: Which relay panels are compatible with this module?
A: It supports Solid State (5A22410), G2R (5A22411), and KUEP (5A22412) relay panels.
Q4: How does this differ from the 1C31125G03 variant?
A: The 1C31125G02 utilizes local power from the backplane, whereas the 1C31125G03 is configured for remote field power supplied directly via the relay modules.
Q5: What fuse type is required for replacement?
A: It uses a 3.15A, 250V, fast-acting 5x20mm cartridge fuse (EX06101).
