Product Name: Personality Modules
Brand Name: EMERSON Westinghouse
Model Number: 1C31150G01
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Westinghouse |
Model Number: |
1C31150G01 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

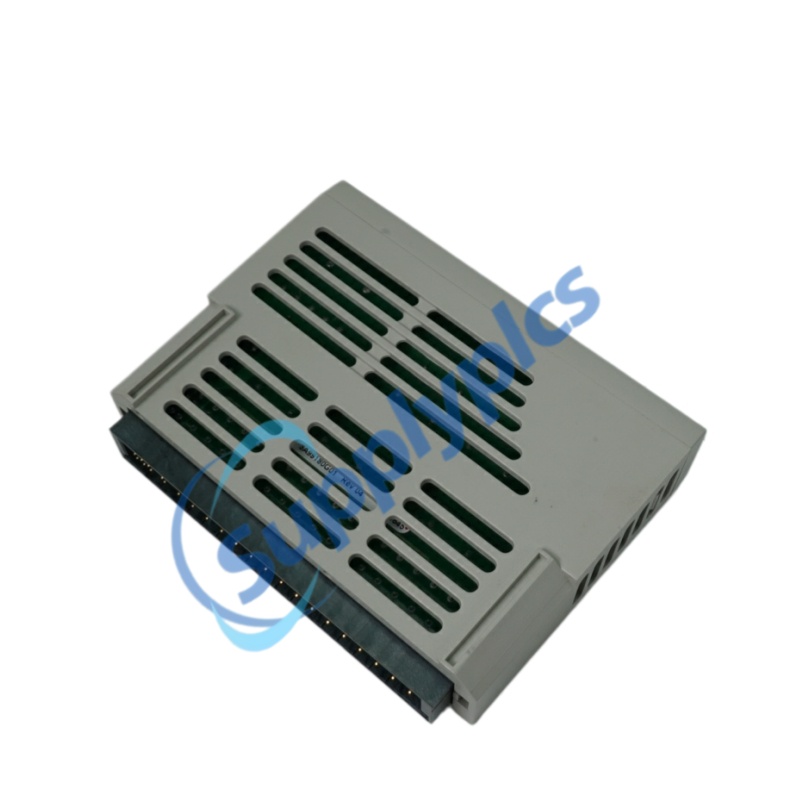

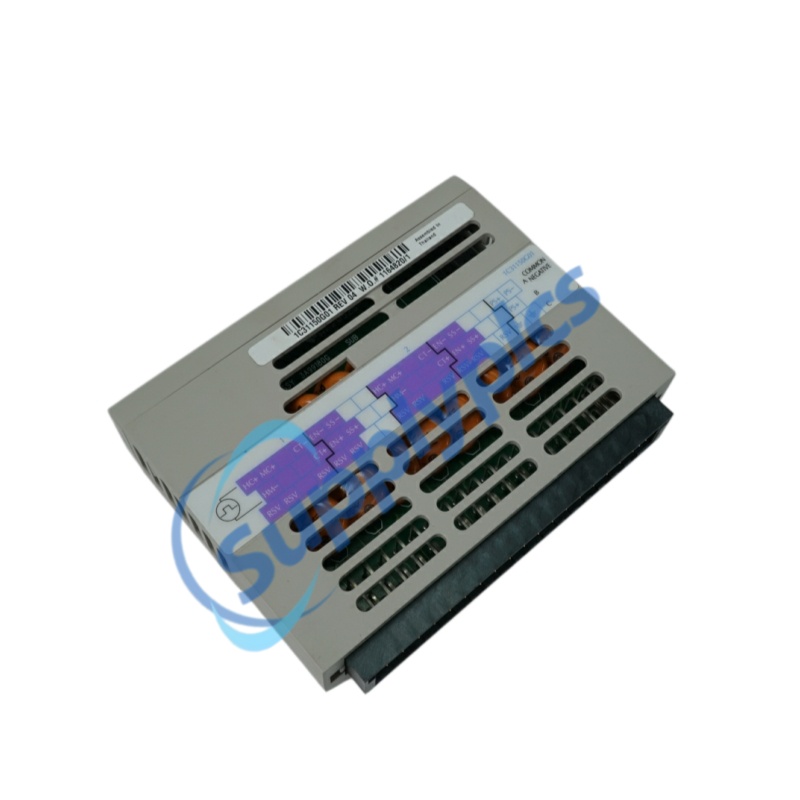

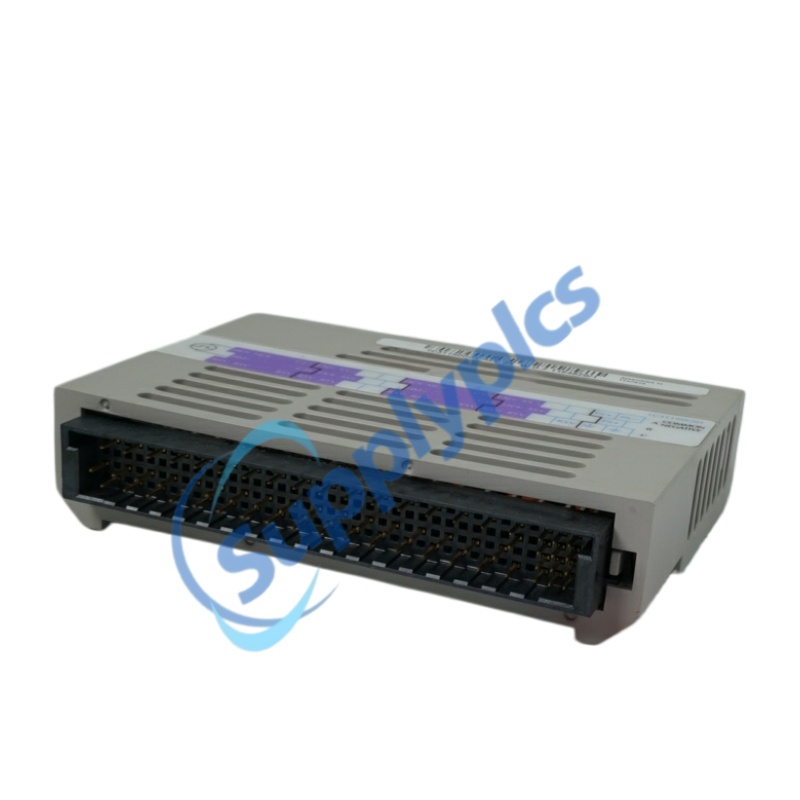

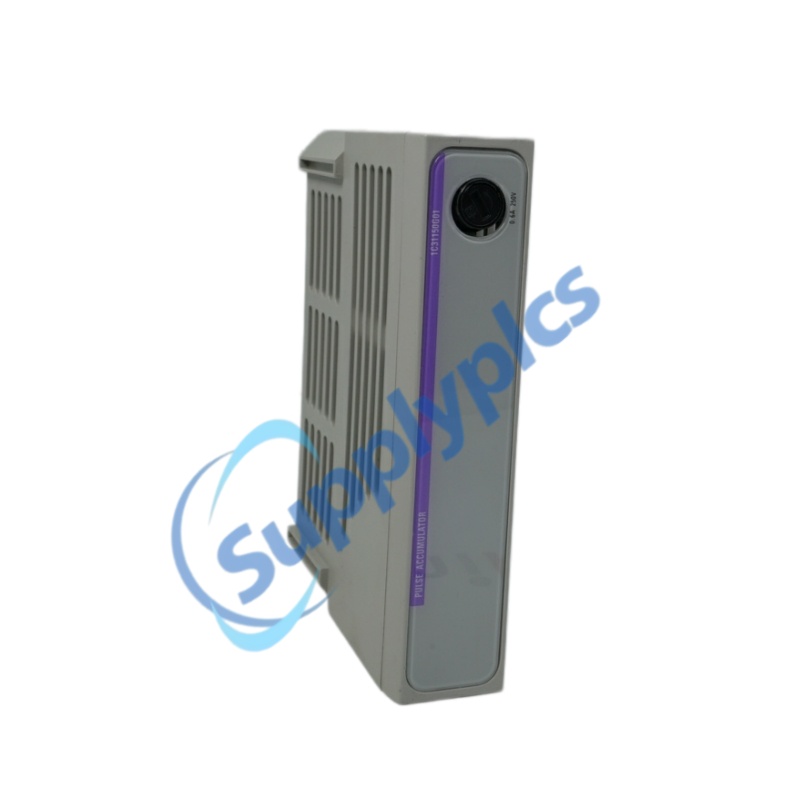

The 1C31150G01 is a Personality Module (PMOD) engineered for the Emerson Ovation Distributed Control System, functioning as the critical signal-conditioning interface for the 1C31147G01 Pulse Accumulator Electronics Module. This 1C31150G01 module provides voltage-specific termination, current limiting, surge protection, and local excitation power distribution for two independent pulse input channels. Configured for common-negative local power operation, the 1C31150G01 accepts 24/48 VDC count and control inputs from dry contacts or open-collector transistor drivers. Mounted directly beneath its companion EMOD in a standard Ovation I/O base, this 1C31150G01 personality module enables reliable pulse accumulation for flow meters, turbine meters, and rotary encoders within the Ovation DCS architecture.
Power Generation – Turbine speed monitoring, generator synchronization, auxiliary equipment tracking
Flow Measurement & Totalization – Water/wastewater treatment, chemical dosing verification
Process Manufacturing – Batch counting, production line monitoring, quality control event logging
Oil & Gas – Pump stroke counting, pipeline monitoring systems
Industrial Automation – Pulse counting from motors, pumps, and rotary encoders
Two Independent Input Channels – Simultaneous pulse accumulation with isolated signal paths
24/48 VDC Input Compatibility – Accepts count and control inputs from dry contacts or open-collector drivers
Common-Negative Configuration – Referenced to branch internal auxiliary power supply return for simplified wiring
Local Power Distribution – Supplies excitation voltage to field pulse devices without external power dependency
Integrated Surge Protection – Transient voltage suppression and noise filtering protect sensitive EMOD electronics
Plug-in Modular Design – Directly mounts beneath EMOD in standard Ovation I/O base units
The 1C31150G01 Personality Module serves as the field interface layer between the 1C31147G01 Pulse Accumulator Electronics Module and external pulse-generating field devices. When a field device (such as a flow meter or encoder) generates pulse signals, the 1C31150G01 conditions these signals through current-limiting resistors and transient suppression circuitry. The module sources local excitation voltage to the field device and senses returning signals referenced to the common-negative return. Conditioned signals are then passed to the 1C31147G01 EMOD, where 32-bit counters, filtering algorithms, and communication interfaces process the data for transmission to the Ovation Controller via the I/O bus. This modular separation allows the same electronics platform to serve diverse sensor types through appropriate personality module selection.
Q1: What is the difference between 1C31150G01, 1C31150G02, and 1C31150G03?
The 1C31150G01 is configured for common-negative local power operation (low-true signals referenced to auxiliary return). The 1C31150G02 is configured for common-positive operation (high-true signals referenced to positive rail). The 1C31150G03 provides dedicated external field input power via separate terminal block connections (DSA/DSB).
Q2: Can the 1C31150G01 module be hot-swapped?
Yes, the 1C31150G01 personality module can be replaced while the system is online. Standard Ovation I/O modules support hot-swapping capabilities for streamlined maintenance without system shutdown.
Q3: What types of field devices are compatible with the 1C31150G01?
The 1C31150G01 accepts pulse inputs from dry contact switches, open-collector transistor drivers, flow meters, turbine meters, rotary encoders, and proximity switches.
Q4: What is the maximum pulse frequency the 1C31150G01 can handle?
The maximum counting frequency is 10 kHz per channel when used with the 1C31147G01 Electronics Module. Higher-speed pulse inputs (5V high speed) are supported through different EMOD configurations.
Q5: What algorithms are required in the Ovation Controller to use this module?
The RPACNT (for pulse counting/ frequency measurement) or RPAWIDTH (for pulse width measurement) algorithms must reside in the Ovation Controller.
