Product Name: POWER BOARD
Brand Name: GE
Model Number: 531X121PCRALG1
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
531X121PCRALG1 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Manufacturer |
General Electric (GE) |
|
Series |
531X Series |
|
Part Number |
531X121PCRALG1 |
|
Product Type |
Power Connection Card / Power Connect PCB |
|
System Application |
GE DC-300 Drive & Exciter Control Systems |
|
Function |
Power distribution and connection for drive control modules |
|
Input Power |
115 VAC (fuse-protected input) |
|
Voltage Compatibility |
190–500 V DC system architecture (drive-dependent) |
|
Board Role |
Power routing and distribution between control system modules |
|
Mounting Type |
Cabinet-mounted / rack-installed PCB |
|
Interface |
Multi-point terminal board / connector interface |
|
Protection |
Built-in fuse protection on input circuit |
|
Design Type |
Modular plug-in industrial PCB |
|
Installation |
Installed inside GE drive control cabinets |
|
Maintenance |
Replaceable module within 531X system architecture |
|
Operating Temperature |
0°C to +60°C |
|
Storage Temperature |
-20°C to +70°C |
|
Humidity |
5%–95% non-condensing |
|
Typical Applications |
Industrial drive systems, turbine control, excitation systems |
|
Dimensions |
27.8x21.2x2.5cm |
|
Weight |
0.58kg |

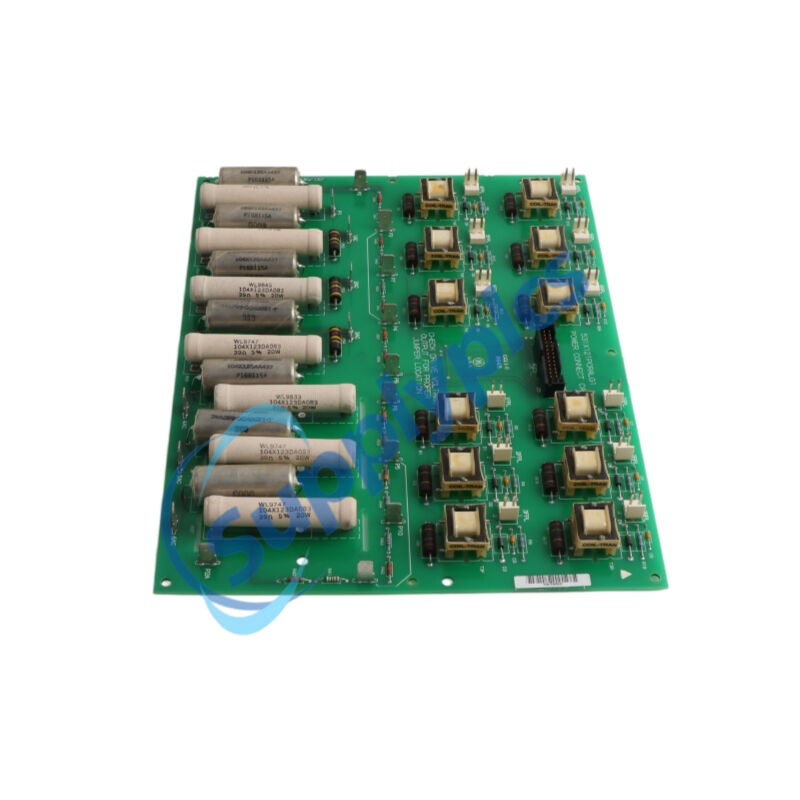

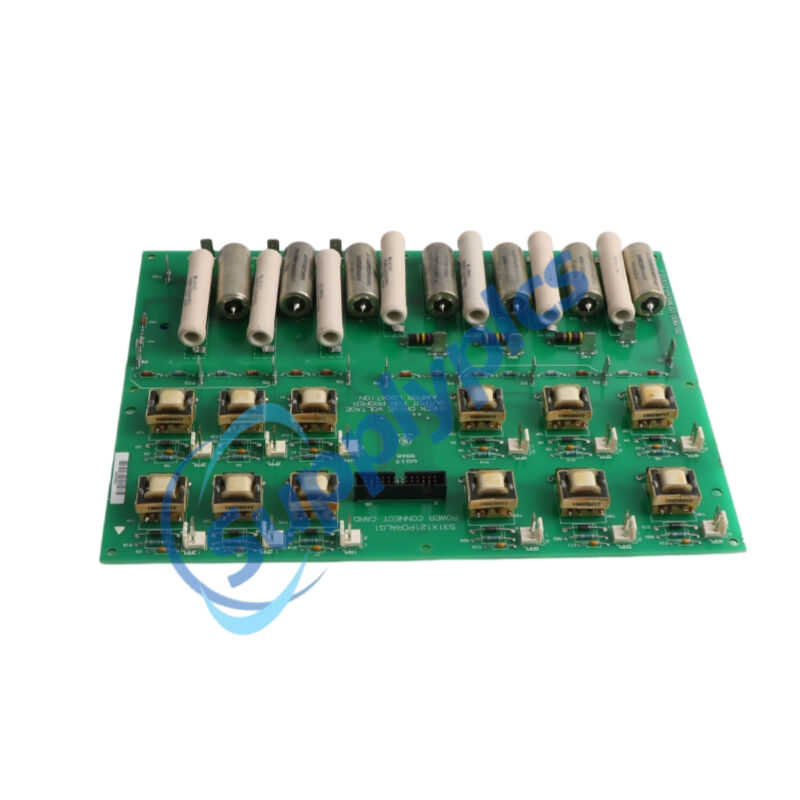

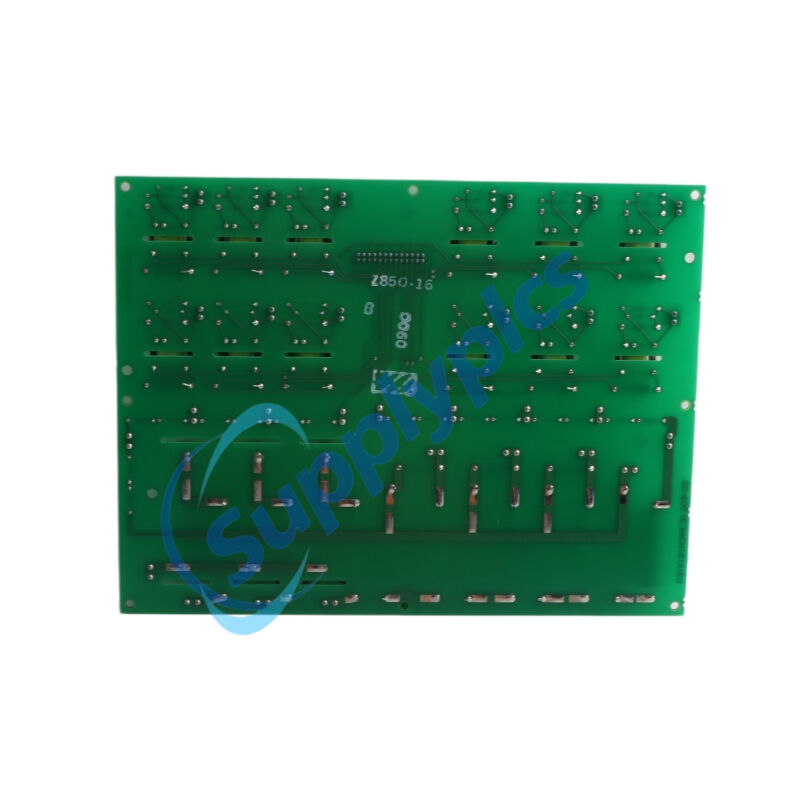

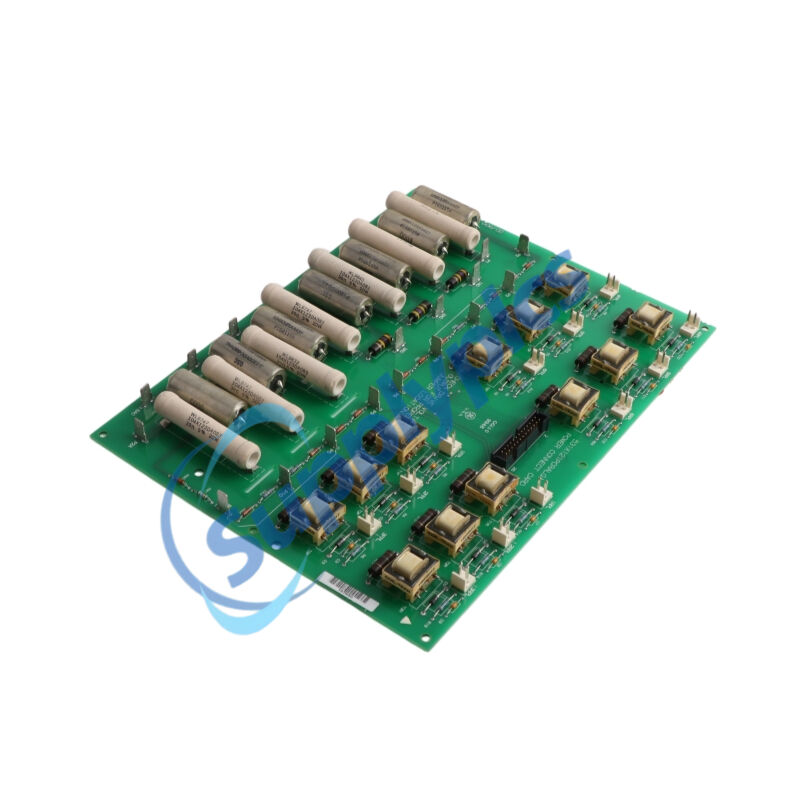

The GE 531X121PCRALG1 is a power connection card used in the 531X drive system for industrial control applications. It provides stable power distribution, supports multiple input types, and ensures reliable operation of control modules in demanding industrial environments.
Industrial drive control systems (GE 531X platform)
Motor control cabinets in manufacturing plants
Turbine and exciter control systems
Power distribution within automation control racks
Retrofit and replacement of legacy GE drive systems
Modular design for easy installation and maintenance
Supports AC and DC power input options
Stable power output for multiple control modules
Overload protection to prevent system damage
High efficiency and low energy consumption design
Compatible with industrial communication interfaces
Complies with industrial safety and EMC standards
Distributes regulated power to system modules
Supports multiple device power supply requirements
Protects equipment through overload shutdown function
Enables flexible integration in control cabinets
Facilitates system expansion via modular architecture
Supports monitoring and communication with control systems
Q1: What is the function of GE 531X121PCRALG1?
A1: GE 531X121PCRALG1 is a power connection card used to distribute and manage power within GE 531X drive and control systems.
Q2: Where is GE 531X121PCRALG1 typically installed?
A2: GE 531X121PCRALG1 is installed inside GE drive cabinets, commonly in industrial control and excitation systems.
Q3: What type of power input does GE 531X121PCRALG1 support?
A3: GE 531X121PCRALG1 typically uses a fuse-protected 115 VAC input for system power distribution.
Q4: What systems are compatible with GE 531X121PCRALG1?
A4: GE 531X121PCRALG1 is compatible with GE 531X series drive systems, including DC-300 and related control platforms.
Q5: What is the main advantage of GE 531X121PCRALG1?
A5: GE 531X121PCRALG1 provides reliable and stable power routing to multiple control modules in industrial automation systems.
