Product Name: Discrete Input Module
Brand Name: General Electric
Model Number: IC693MDL752
Place of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
Sales |
||
Jim Pei |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |

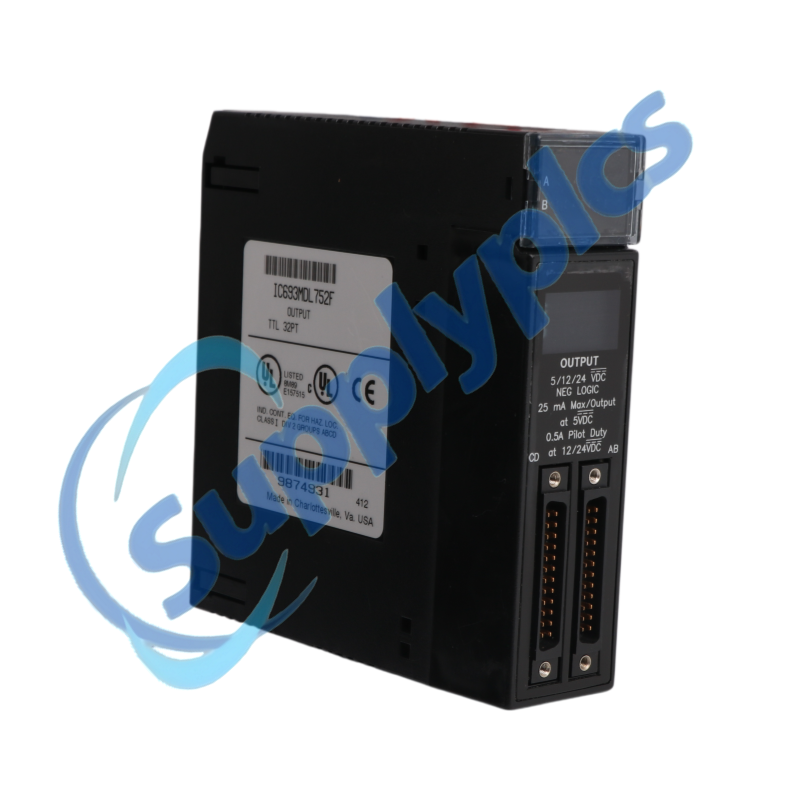

The GE IC693MDL752 is a 32-point discrete output module designed for the GE Fanuc Series 90-30 Programmable Logic Controller system. It provides high-density digital output control using negative logic (sinking) operation, enabling reliable switching of external loads in industrial automation environments. Manufactured by General Electric, the module is engineered for flexible voltage operation and stable performance in both low-voltage TTL and industrial DC applications.
This module supports two operating modes, allowing it to switch loads in either 5 V DC TTL logic or 12–24 V DC industrial environments. With four isolated output groups and robust electrical protection, it is suitable for complex control systems requiring high channel density, fast response, and reliable signal isolation.
| Product Name | GE IC693MDL752 Discrete Input Module |
| Manufacturer | General Electric |
| Product Type | Discrete Input Module |
| Part Number | IC693MDL752 |
| Weight | 0.24kg |
| Estimated shipping dimensions | 3.5x13x13.5cm |
| Place of shipment | Xiamen, China |
| Country of origin | USA |
| Rated Voltage | 5, and 12 through 24 volts DC, negative logic |
| Output Voltage Range | 4.75 to 5.25 volts DC (TTL mode)10.2 to 28.8 volts DC (12/24V mode) |
| Outputs per Module | 32 |
| Isolation | 1500 volts between field side and logic side250 volts between groups |
| Inrush Current | 4.6 amps for 10 ms |
| On-state (active low) | 0.4 volts DC |
| Voltage Drop | 0.24 volts DC |
| Off-state Leakage Current | 0.1 mA maximum |
| On Response Time | 0.5 ms maximum |
| Off Response Time | 0.5 ms maximum |
Very high output density: 32 points provide significantly more control capacity than standard 8- or 16-point modules
Dual-mode flexibility: supports both TTL and 12/24 V DC operation, unlike many single-voltage modules
Strong isolation design: 1500 V field-to-logic and 250 V group isolation improves system safety
Fast switching performance: 0.5 ms response time ensures rapid control execution
Higher system flexibility: suitable for both low-power electronic systems and industrial load control
Compared with similar products: offers broader voltage compatibility and higher channel density than typical discrete output modules
Compared with similar discrete output modules, the IC693MDL752 delivers higher channel density, dual-voltage flexibility, faster response time, and stronger isolation design, making it more suitable for complex and high-performance PLC control systems.
The IC693MDL752 is fully compatible with GE Fanuc Series 90-30 PLC systems and integrates directly into the standard backplane architecture alongside CPU and other I/O modules. It supports synchronized operation within modular PLC configurations, ensuring consistent communication and control across system components.
It also interoperates with a wide range of field devices operating in both TTL and 12–24 V DC environments, allowing seamless integration into mixed-voltage industrial control systems. Its isolated group structure and standardized interface design enable stable connectivity in complex automation networks, supporting scalable and flexible system expansion.
