GE PACSystems RX7i

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Product Parameters

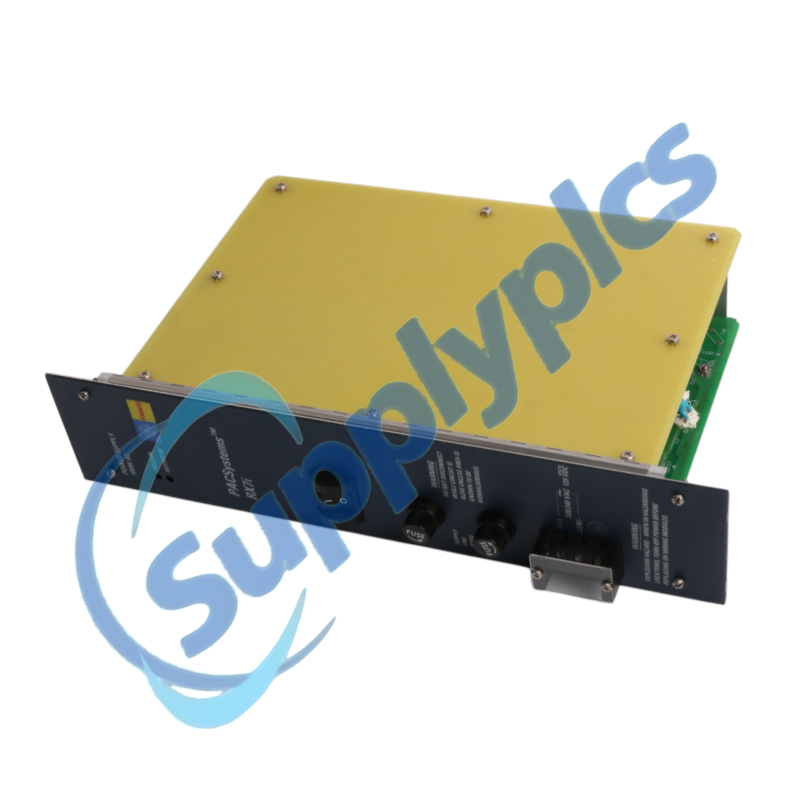

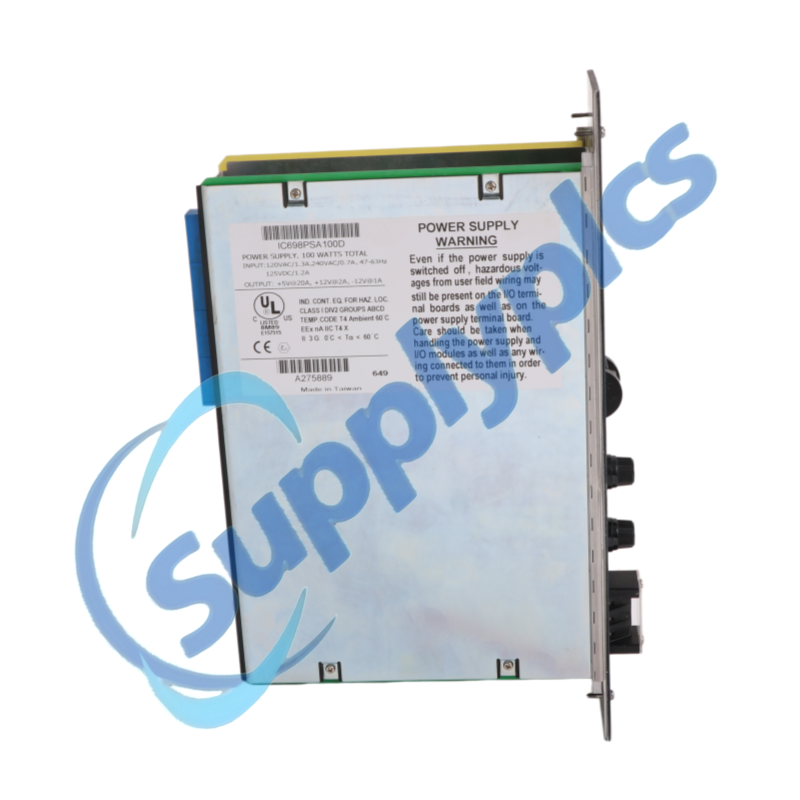

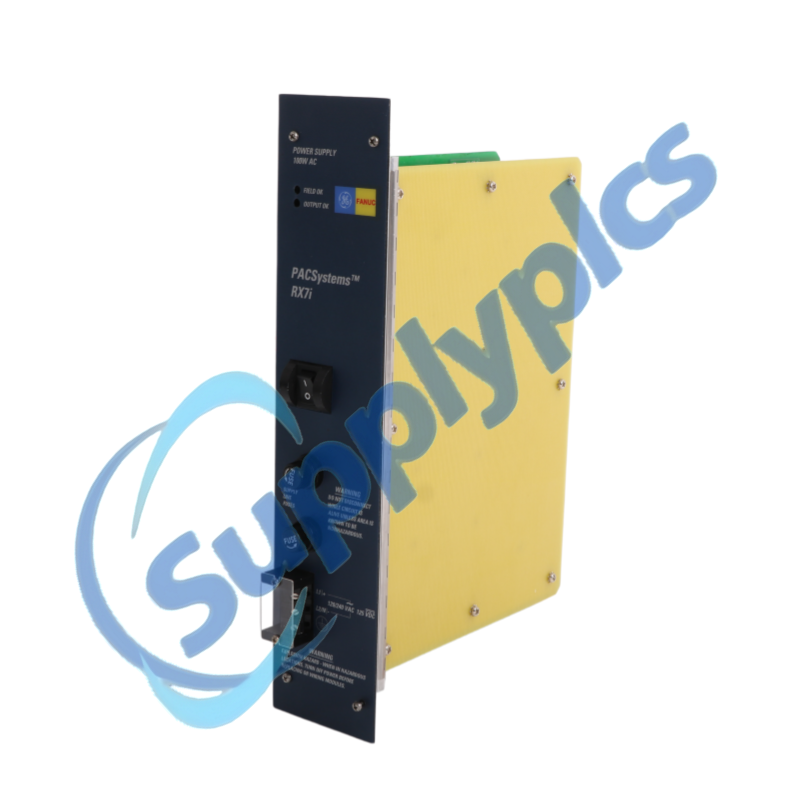

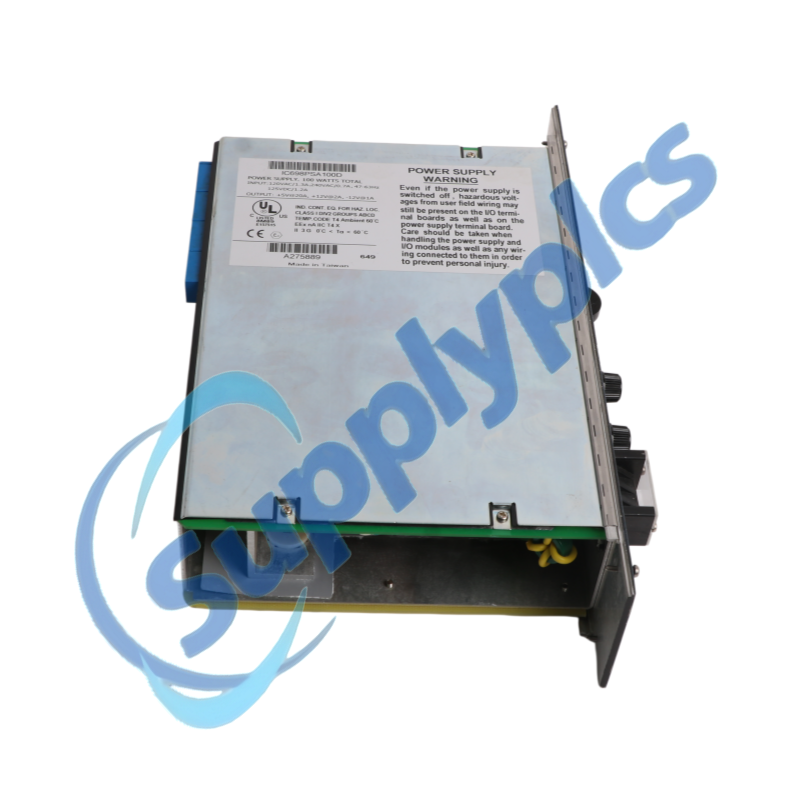

Product Name	GE IC698PSA100 Power Supply Module
Manufacturer	General Electric
Product Type	Power Supply Module
Part Number	IC698PSA100
Weight	1.92kg
Estimated shipping dimensions	6.4x19x29.2cm
Place of shipment	Xiamen, China
Country of origin	USA
Output Power	100 Watts on total Three (3) outputs
Operating Temperature	0-60 degrees Celsius
Output Protection	Overvoltage; Overcurrent
Input Power	125 Watts, typical; 150 Watts, maximum
Output Voltage	5.1 VDC; +12 VDC; - 12VDC
Output Current	5.1 VDC: 0-20 Amperes +12 VDC: 0-2 Amperes - 12VDC: 0-1 Ampere
Wiring Terminals	Input Terminals: AWG #16 (1.3 mm2) GND Terminals: #12 AWG (3.3 mm2)
Ride through time	15 ms
Slot Assignment	Slot 0
Voltage	120/240 Volts AC, 125 Volts DC
Mounting	Leftmost slot
Input Voltage Range	85 to 264 VAC; 100-150VDC
Power Rating	125 Watts
Nominal Input frequency	120/240 VAC, 125VDC
Output Voltage	5/12, -12 Volts DC
AC Input Frequency	47-63 Hz
Power Factor	0.99 min
Isolation	1500 Volts
Holdup Time	5 ms
Ride Through	15 milliseconds

Introduction

The GE IC698PSA100 Power Supply Module is a high-reliability industrial power unit designed for PACSystems RX7i PLC systems. It provides regulated DC power to multiple system components, ensuring stable and continuous operation of controllers, I/O modules, and communication modules. With a total output power of 100 watts across three independent voltage rails (+5.1 VDC, +12 VDC, and -12 VDC), the IC698PSA100 delivers efficient and consistent power distribution for demanding automation environments.

Engineered for industrial-grade performance, the IC698PSA100 supports a wide input voltage range of 85–264 VAC or 100–150 VDC, making it suitable for diverse power infrastructures. It includes built-in protection features such as overvoltage and overcurrent protection, along with high isolation of 1500 V for enhanced system safety. With strong power factor performance and ride-through capability, the IC698PSA100 ensures uninterrupted operation even under unstable power conditions, making it ideal for mission-critical control systems.

Functions

Supplies regulated DC power to PACSystems RX7i PLC components.
Converts AC or DC input power into multiple output voltage rails.
Provides +5.1 VDC, +12 VDC, and -12 VDC outputs for system operation.
Distributes power to CPU, I/O, and communication modules.
Maintains stable voltage under varying load conditions.
Protects system components through overvoltage protection.
Prevents damage using overcurrent protection mechanisms.
Ensures continuous operation through ride-through capability.
Maintains system stability during short power interruptions.
Supports grounding and safe electrical distribution within PLC racks.
Provides high-efficiency power conversion for industrial automation systems.

Features

Provides three regulated DC outputs: +5.1 VDC, +12 VDC, and -12 VDC
Total output power capacity of 100 W across all channels
+5.1 VDC output supports up to 20 A load capability
+12 VDC output supports up to 2 A load capability
-12 VDC output supports up to 1 A load capability
Wide input voltage range of 85–264 VAC or 100–150 VDC
Nominal AC input: 120/240 VAC, 47–63 Hz
High power factor ≥ 0.99 for efficient power usage
Input power consumption: 125 W typical, 150 W maximum
Built-in overvoltage protection for system safety
Built-in overcurrent protection for load protection
High isolation rating of 1500 V for enhanced electrical safety
Ride-through time up to 15 ms for short power disturbances
Holdup time of approximately 5 ms for stable operation
Installed in Slot 0 (leftmost position) of RX7i rack
Supports stable and continuous power delivery to PLC modules
Industrial-grade construction for harsh environments
Operating temperature range: 0°C to 60°C
Compatible with PACSystems RX7i architecture
Supports reliable long-term operation in automation systems
Compact, rugged design for industrial control cabinets
Provides centralized power distribution for CPU and I/O modules

Advantage

Compared with standard industrial power supply modules, the IC698PSA100 offers higher reliability, multi-voltage output flexibility, and superior power stability for PLC systems.

Provides three regulated voltage outputs in a single module, reducing system complexity.
Supports wide input voltage ranges for global industrial compatibility.
Ensures stable power delivery for sensitive PLC components.
Includes built-in overvoltage and overcurrent protection for enhanced safety.
High power factor (≥0.99) improves energy efficiency.
Strong isolation (1500 V) increases system protection and reliability.
Ride-through and holdup capabilities maintain operation during power fluctuations.
Designed specifically for PACSystems RX7i integration, ensuring seamless compatibility.
Supports continuous operation in demanding industrial environments.
Reduces downtime risk through stable and protected power distribution.

FAQ

Q: What output voltages does the IC698PSA100 provide?
A: The IC698PSA100 provides +5.1 VDC, +12 VDC, and -12 VDC outputs.

Q: What is the input voltage range of the IC698PSA100?
A: The IC698PSA100 supports an input range of 85–264 VAC or 100–150 VDC.

Q: Does the IC698PSA100 include protection features?
A: Yes, the IC698PSA100 includes overvoltage and overcurrent protection for safe operation.

Q: What is the ride-through capability of the IC698PSA100?
A: The IC698PSA100 offers a ride-through time of up to 15 ms to maintain operation during brief power interruptions.

Q: What is the operating temperature range of the IC698PSA100?
A: The IC698PSA100 operates within 0°C to 60°C.

Q: Where is the IC698PSA100 installed in the rack?
A: The IC698PSA100 is installed in the leftmost slot (Slot 0) of the PACSystems RX7i rack.

Q: Why is the IC698PSA100 important in PLC systems?
A: The IC698PSA100 ensures stable and reliable power distribution, which is critical for maintaining continuous and safe operation of PLC control systems.
