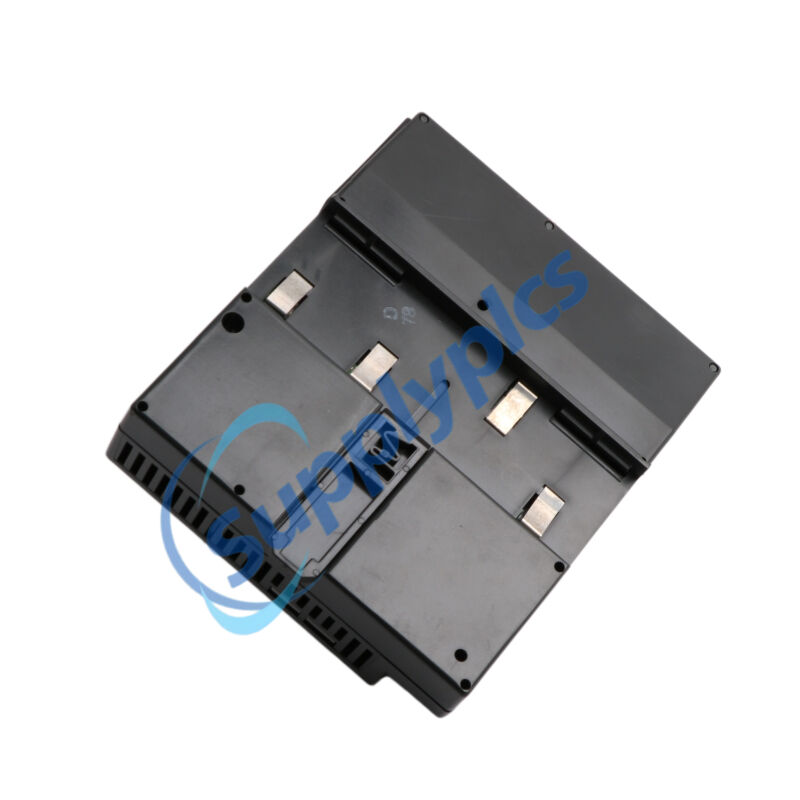

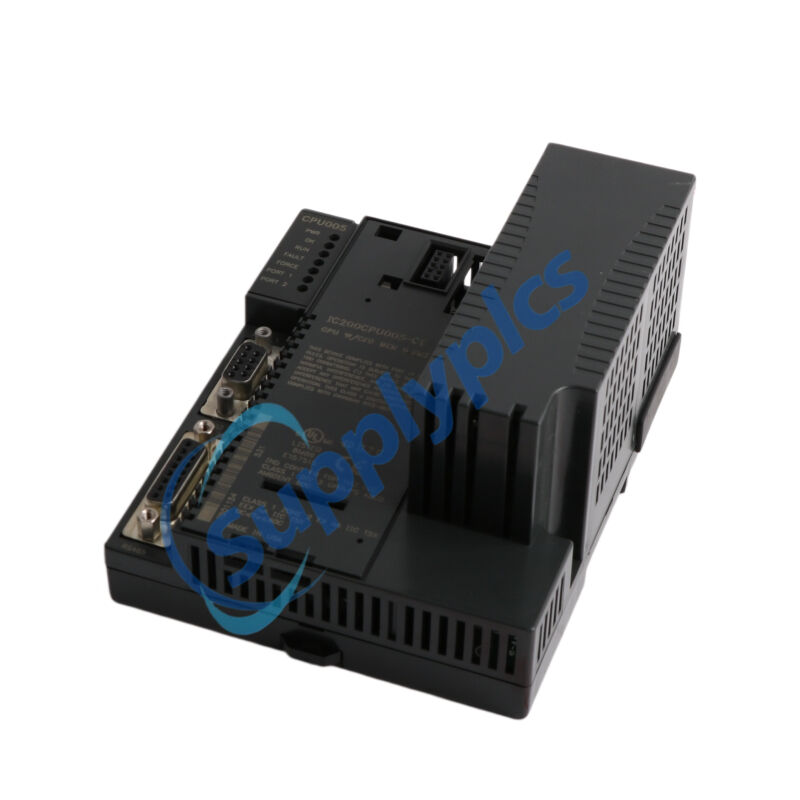

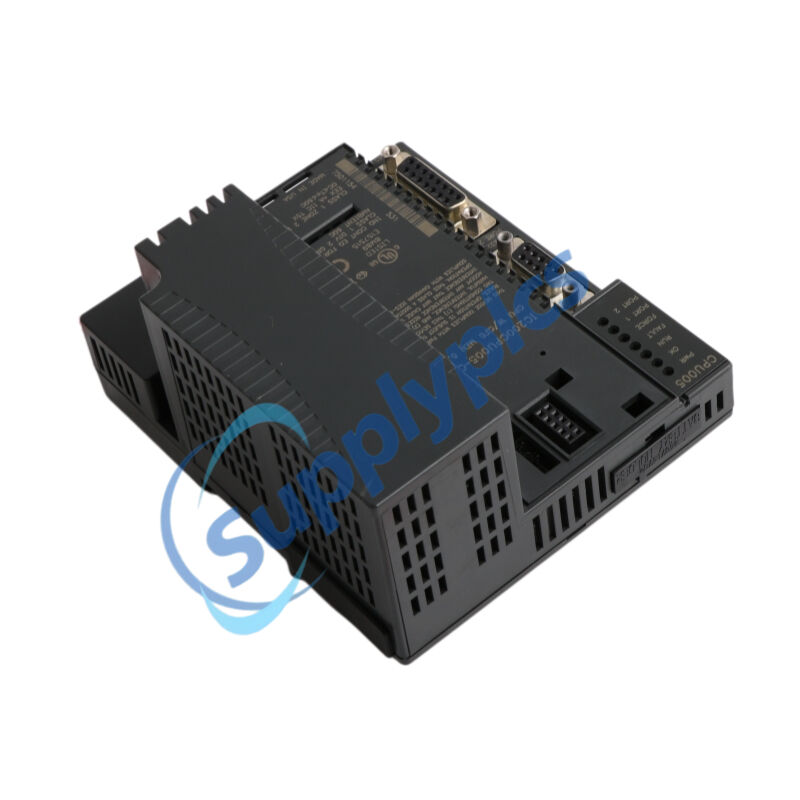

GE VersaMax IC200

Overview

Brand Name:	General Electric
Model Number:	IC200CPU005
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Manufacturer	GE Fanuc / Emerson
Product Series	VersaMax
Part Number	IC200CPU005
Product Type	Central Processing Unit (CPU) for PLC
Firmware Version (Latest)	2.31 (CPU005-AD)
User Configurable Memory	64 Kbytes
Program Storage	Non-volatile flash memory; battery-backed RAM
Max I/O Points Supported	Up to 2048
Max Modules Supported	Up to 64
Boolean Execution Speed	0.8 ms/K (typical)
Programming Languages	Ladder Diagram, Instruction List

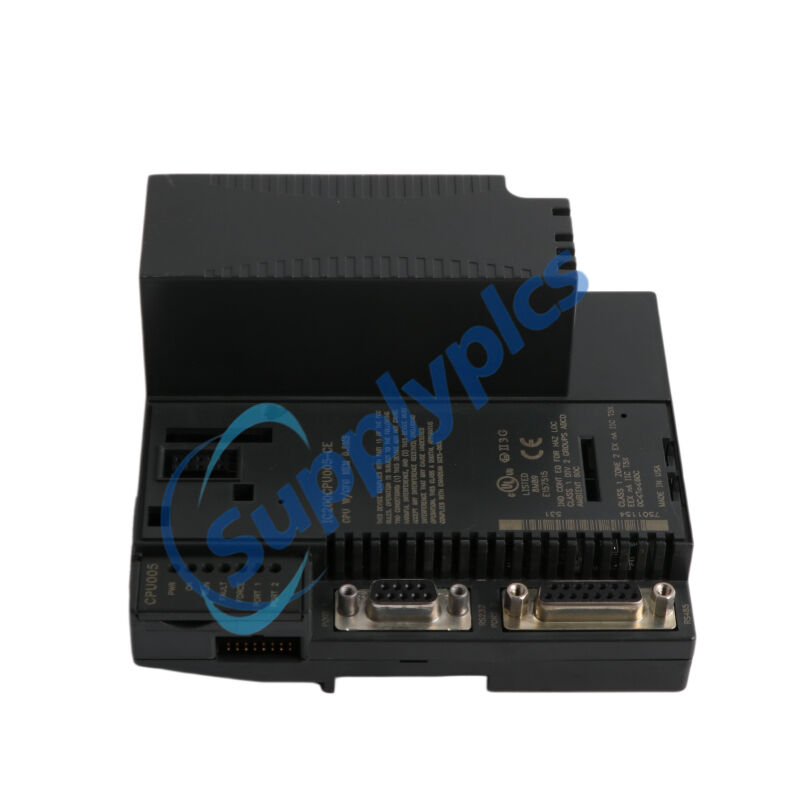

Embedded Communications	Port 1: RS-232 (9-pin female D-sub), Port 2: RS-485 (15-pin female D-sub)
Supported Protocols	Modbus RTU (Master/Slave), SNP (Slave), Serial I/O
Power Supply	From backplane: 5V and 3.3V outputs
Backplane Current Consumption	w/o Converter: 5V@35mA, 3.3V@300mA; w/ Converter: 5V@135mA, 3.3V@300mA
Real-Time Clock Accuracy	Timer: 100ppm (±9 sec/day); TOD: 23ppm (±2 sec/day @ 30°C)
Battery Backup	Removable BR2032 coin cell (ships activated with pull-tab; replaceable)
Memory Backup	Supercapacitor: 1 hour (no battery); Battery: Up to 6 months
Dimensions (W x L x D)	10.5x13x7cm
Depth on DIN Rail	70mm (with power supply attached)
Operating Temperature	0°C to +60°C
Mounting	Horizontal or vertical DIN rail (module must be at bottom if vertical)
Special Features	Floating point math, Run/Stop switch, LED diagnostics (PWR, OK, RUN, FAULT, FORCE), EZ Program Store Support (IC200ACC003)
Hardware Compatibility	Requires specific revision modules for expansion racks (see PDF for details)
Firmware Upgrade	Via serial download from PC on Port 1

Description

The IC200CPU005 is a compact central processing unit engineered by GE Fanuc for its modular VersaMax PLC platform. Designed to serve as the primary system controller, the IC200CPU005 offers 64 KB of configurable memory capable of storing the application logic, hardware configuration, registers, and analog points. This processor supports both Ladder Diagram and Instruction List programming, enabling flexible implementation for a wide range of automation tasks. For reliable connectivity, the IC200CPU005 includes both RS-232 and RS-485 ports, supporting robust industrial protocols like Modbus RTU Master and SNP. With its integrated floating-point math functions, a convenient Run/Stop switch, and a tool-free DIN-rail mounting design, the IC200CPU005 provides a scalable and powerful solution for sophisticated industrial control architectures.

Applications

Industrial Automation: Assembly line, pick-and-place system, conveyor control, packaging equipment
Process Control: Chemical plant batch reactor, petroleum refining, pharmaceutical production monitoring
Water & Wastewater: Pumping station logic, filtration automation, distribution network SCADA integration
Power Generation: Boiler and turbine auxiliary controls, substation automation
Building Automation: HVAC, lighting control, energy management systems
Material Handling: Automated storage, robotic cell coordination

Features

Auto-Configurable: System hardware can be automatically configured by the CPU or manually via programming software.
High-Speed Processing: Boolean execution speed of 0.8 ms/K ensures fast and deterministic control loop response.
Dual Communications: Onboard RS-232 and RS-485 ports support Modbus RTU, SNP, and Serial I/O protocols for versatile industrial networking.
Integrated Backup: A non-volatile flash memory stores the program, while a replaceable battery provides up to 6 months of data and real-time clock retention.
Flexible Programming: Supports standard languages (Ladder Diagram, Instruction List) and includes a floating point math engine for high-precision calculations.
Manual Override: Physical Run/Stop switch on the module allows for local control of processor state and memory protection.
Hot-Swap Capability: Supports EZ Program Store device and allows for module insertion/removal while powered under specific conditions.
Diagnostics: Front-panel LEDs (PWR, OK, RUN, FAULT, FORCE) provide immediate visual system status.

Functions

Execute stored Ladder Diagram (LD) and Instruction List (IL) control logic.
Scan and update the states of all connected local and remote I/O modules.
Manage data tables for inputs, outputs, variables, and analog signal registers.
Process floating-point mathematical operations (real numbers) for precision control algorithms.
Host a time-of-day clock for event scheduling, time-stamped logging, and timer functions.
Communicate with HMIs, SCADA systems, and other PLCs via its built-in RS-232/485 ports.

FAQ

Q1: How much memory does the IC200CPU005 have for user logic?
A1: The IC200CPU005 has 64 Kbytes of user-configurable memory for the application program, hardware configuration, and analog values.

Q2: Can the IC200CPU005 communicate with Modbus devices?
A2: Yes. The IC200CPU005 fully supports Modbus RTU protocol and can operate as either a Master or a Slave on its onboard RS-232 and RS-485 ports.

Q3: What programming software is compatible with the IC200CPU005?
A3: It is compatible with VersaPro software (version 2.0 or later) and the current Proficy Machine Edition Logic Developer software.

Q4: Does the IC200CPU005 have a real-time clock for time-based functions?
A4: Yes. The IC200CPU005 is equipped with a real-time clock, backed up by a battery or supercapacitor, which is essential for timer functions and event logging.

Q5: How do I check the current firmware version on my IC200CPU005?
A5: You can go online to the CPU using Proficy Machine Edition, then navigate to Target > Online Commands > Show Status; the software revision is displayed under Device Information.
