Product Name: VersaMax Micro PLC Expansion Units
Brand Name: GE
Model Number:IC200UEX211
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
General Electric |
Model Number: |
IC200UEX211 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Manufacturer |
GE Fanuc Automation (now part of Emerson) |
|
Part Number |
IC200UEX211 |
|
Product Series |
VersaMax Micro |
|
Product Type |
PLC Expansion Unit (I/O Expansion Module) |
|
Total I/O Points |
28 |
|
Inputs |
16 configurable 24 VDC positive/negative logic input circuits |
|
Outputs |
12 normally-open Form A (SPST) relay outputs, rated 2 Amps each (resistive load) |
|
Output Switching Capacity |
5 to 30 VDC or 5 to 250 VAC |
|
Output Inrush Current |
5 Amps per half cycle |
|
Output Response Time |
ON/OFF: 15 ms maximum |
|
Output Contact Life |
Mechanical: 20 × 10⁶ operations; Electrical: 200,000 operations at rated load |
|
Input Current |
7.5 mA typical at 24 VDC |
|
Input Impedance |
2.8 kΩ |
|
Input Threshold Voltage |
ON: 15 VDC minimum, OFF: 5 VDC maximum |
|
Input Isolation |
1500 V RMS field side to logic side, 500 V RMS between groups |
|
Power Supply (Expansion Unit) |
100–15% to 240 +10% VAC, 50–5% to 60 +5% Hz |
|
Power Supply Inrush |
30 A max at 200 VAC; 40 A max at 265 VAC |
|
Power Supply Rating |
26 VA |
|
Output Power Supply |
+24 VDC, 200 mA maximum (for input circuits and user devices) |
|
Hold-up Time |
10 ms at 85–100 VAC; 20 ms at 100–265 VAC |
|
Operating Temperature |
0°C to +55°C (ambient) |
|
Storage Temperature |
–40°C to +85°C |
|
Mounting |
DIN rail or panel mount |
|
Dimensions (H × W × D) |
15x9x7.5cm |
|
Weight |
0.56kg |
|
Expansion Cable |
0.1 m ribbon cable (IC200CBL501) included; 0.5 m and 1 m cables available |
|
Maximum Distance from CPU |
2 meters (expansion cable total length) |
|
Compatibility |
Connects to any VersaMax Micro PLC (14, 23, 28, or 64 points) |
|
Standards |
UL508, CSA C22.2 No. 142-M1987, CE (EN 55011, EN 50082-2) |
|
Agency Approvals |
UL, cUL, CE |
|
Country of Origin |
USA |

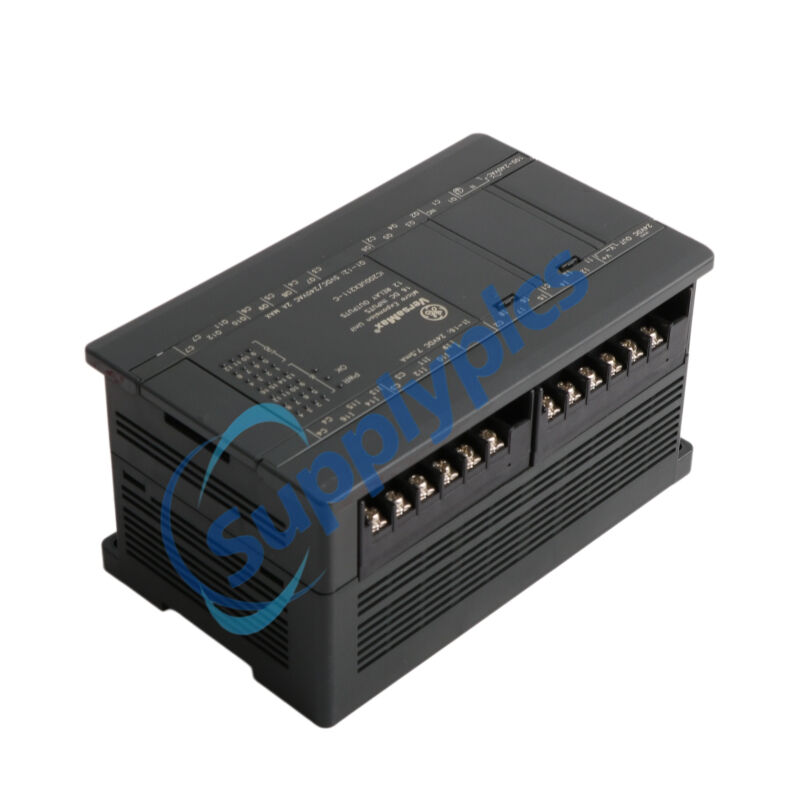

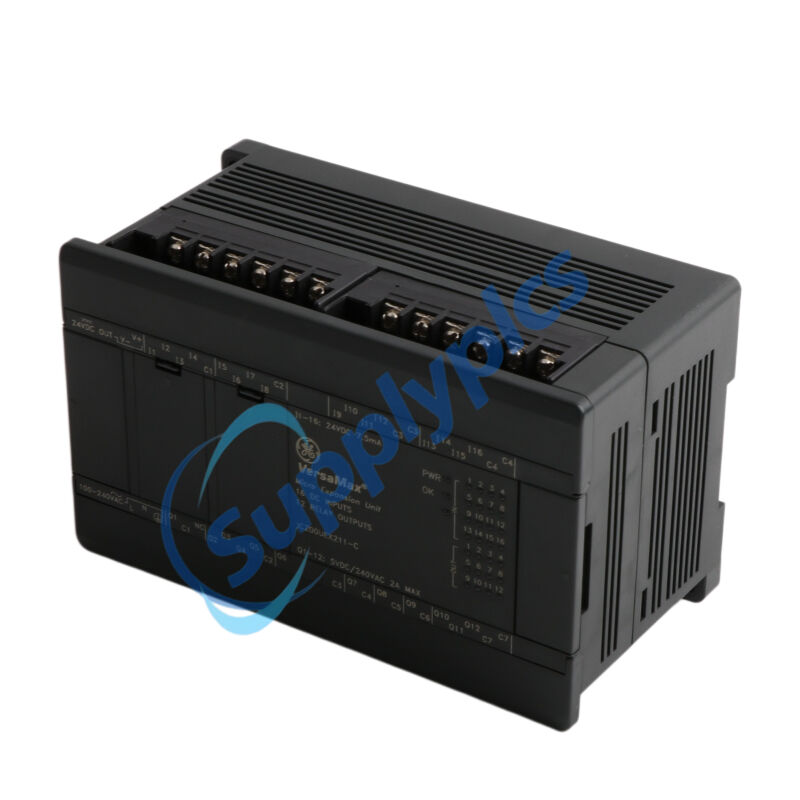

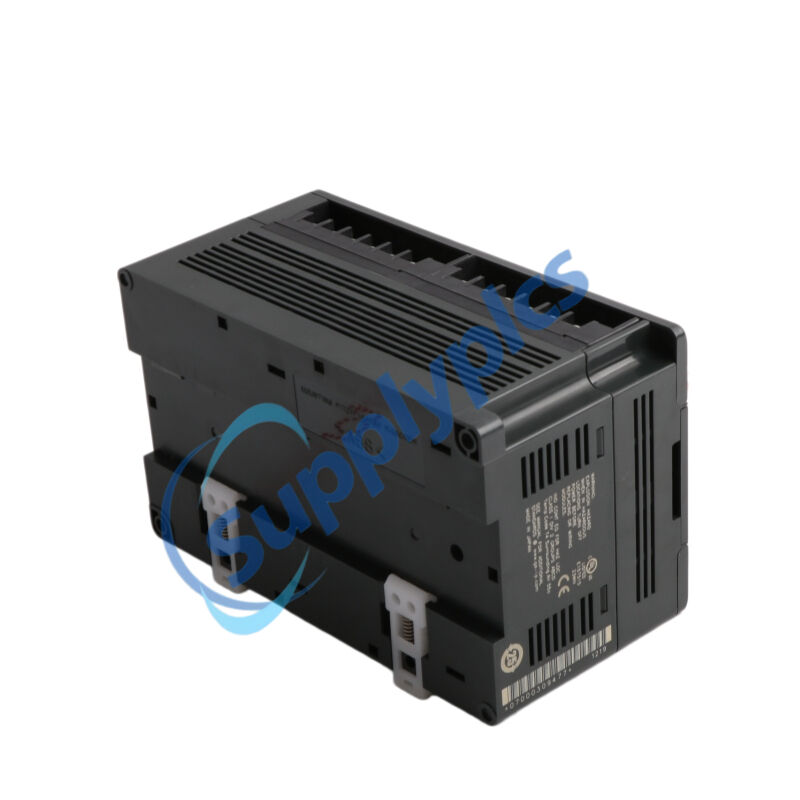

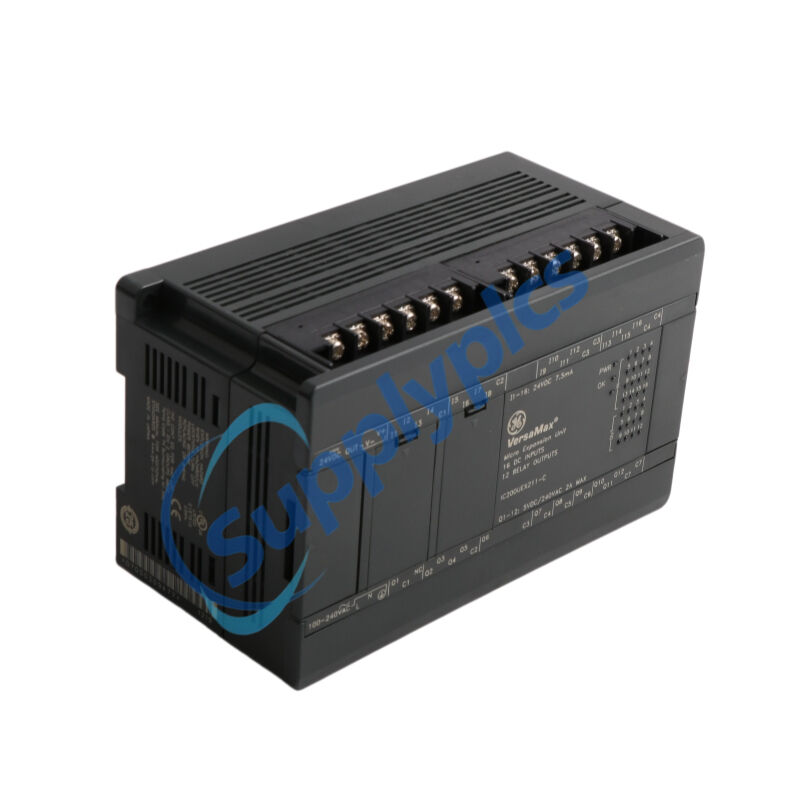

The GE Fanuc IC200UEX211 is a 28‑point discrete expansion unit designed for the VersaMax Micro PLC family. The GE Fanuc IC200UEX211 adds 16 configurable 24 VDC inputs and 12 reliable 2 Amp Form A relay outputs to a base Micro CPU, significantly increasing its I/O capacity. Powered by an integrated 120/240 VAC supply, the GE Fanuc IC200UEX211 is a compact, standalone module that connects directly to a Micro PLC via a ribbon cable. This expansion unit allows engineers to scale their control systems for a wide variety of industrial automation tasks without replacing the main controller, making it a cost-effective and flexible solution for expanding discrete I/O points.
Industrial automation – machine control, packaging lines, conveyor systems
Manufacturing – assembly stations, material handling, sorting equipment
Building automation – HVAC control, lighting management, access control systems
Process industries – pump control, valve sequencing, chemical dosing
Factory expansion projects – adding I/O capacity to existing VersaMax systems without replacing the base CPU
16 configurable DC inputs – supports both positive and negative logic; each input is compatible with pushbuttons, limit switches, and proximity sensors
12 Form A relay outputs – each rated at 2 Amps; capable of switching both AC and DC loads (5–30 VDC or 5–250 VAC)
Integrated AC power supply – accepts 100–240 VAC, 50/60 Hz; simplifies installation by eliminating the need for a separate power module
Onboard 24 VDC sensor power – provides up to 200 mA to power input devices and field circuits
Removable terminal strips – hinged, screw‑down barrier‑style terminals; wiring can be removed without disconnecting individual wires
DIN rail or panel mounting – flexible installation options to suit different cabinet layouts
LED status indicators – Power and OK LEDs provide immediate visual confirmation of module health
Fully enclosed design – protected by hinged terminal covers for safety and dust resistance
High noise immunity – 1500 V RMS isolation between field and logic sides; 500 V RMS between groups
Expands discrete I/O capacity – increases the total input and output point count of a VersaMax Micro PLC system
Acquires field input signals – reads states from up to 16 discrete field devices (sensors, switches) and transfers the data to the base CPU via the expansion cable
Controls output devices – drives up to 12 field loads (contactors, solenoids, indicators) through its 2 Amp relay outputs based on commands from the PLC program
Supplies sensor power – provides 24 VDC at 200 mA to power input field devices, reducing the need for an external power supply
Routes internal diagnostics – communicates its operational status (Power, OK) to the base PLC; faults are logged in the PLC fault table
Q1: Is the IC200UEX211 an AC‑powered expansion unit?
A1: Yes. The IC200UEX211 accepts 100–240 VAC input power and provides 24 VDC internally for its input circuits and field sensors.
Q2: What is the current rating of the relay outputs?
A2: Each of the 12 relay outputs on the IC200UEX211 is rated at 2 Amps for resistive loads at 24 VDC or 240 VAC.
Q3: How many IC200UEX211 expansion units can be connected to a Micro PLC?
A3: Up to four VersaMax Micro PLC Expansion Units of any type, including the IC200UEX211, can be connected in any sequence to a single Micro PLC base unit.
Q4: What is the purpose of the 24 VDC output power supply on the IC200UEX211?
A4: The integrated 24 VDC supply provides up to 200 mA to power the DC input circuits and connected field devices such as proximity switches, eliminating the need for an external DC power source.
Q5: What cable is supplied with the IC200UEX211, and what is the maximum distance from the CPU?
A5: The IC200UEX211 includes a 0.1‑meter ribbon cable (IC200CBL501). Optional cables are available in 0.5‑meter (IC200CBL505) and 1‑meter (IC200CBL510) lengths. The maximum total expansion cable length is 2 meters.
