HIMA F3000 Series F3330 8 fold output module Ready For Ship, China HIMA F3000 Series F3330 8 fold output module Ready For Ship Manufacturers, Suppliers, Factory

Overview

Brand Name:	HIMA
Model Number:	F3330
Country of Origin:	GERMANY
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model	F3330 (Order No. 984333002)
Product Series	HIMatrix / H41q / H51q
Number of Channels	8
Output Type	Digital Output, safety-related
Operating Voltage	24 V DC
Output Voltage	24 V DC
Output Current per Channel	500 mA, short-circuit proof
Load Capacity (Resistive / Inductive)	Up to 500 mA (12 W)
Load Capacity (Lamp)	Up to 4 W
Internal Voltage Drop	Max. 2 V at 500 mA load
Admissible Line Resistance	Max. 11 Ohm
Undervoltage Tripping	≤ 16 V
Short-Circuit Current Operating Point	0.75 – 1.5 A
Output Leakage Current	Max. 350 μA
Output Voltage (Reset)	Max. 1.5 V
Test Signal Duration	Max. 200 μs
Space Requirement	4 TE
Operating Data	5 V DC: 110 mA; 24 V DC: 180 mA (plus load)
Operating Temperature	0 °C to +60 °C (Extended available for specific versions)
Safety Integrity	SIL 3 (IEC 61508), SIL 4 in redundant H51q config, AK 1 – 6
Certifications	TÜV Rheinland SIL3/AK6, ATEX Zone 2, UL/CSA, FM Class I Div 2
Dimensions (W×H×D)	Approx. 22.9 × 128 × 228 mm (4 TE)
Weight	0.14kg

Description

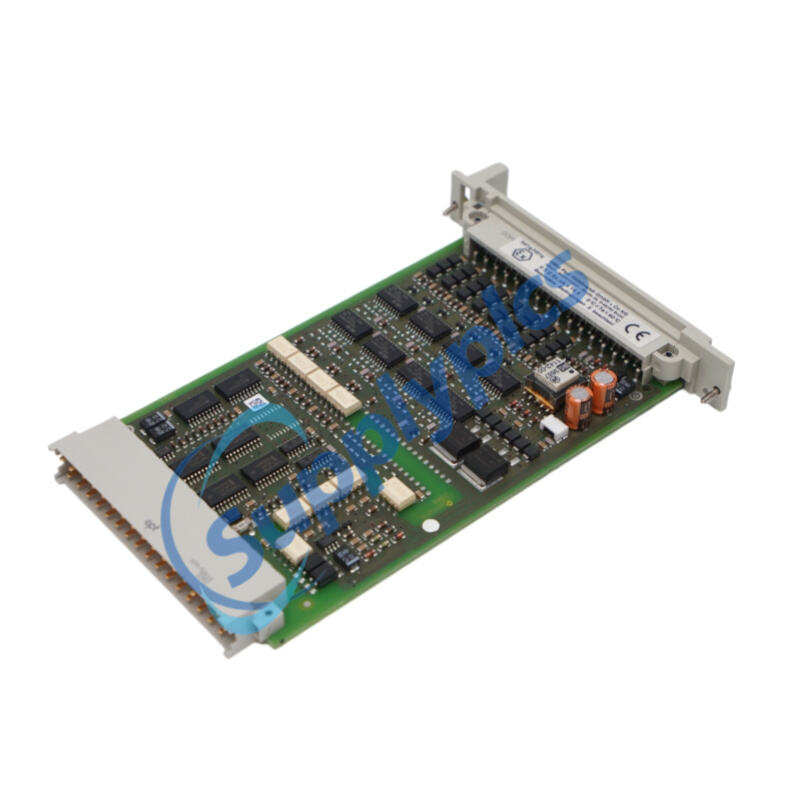

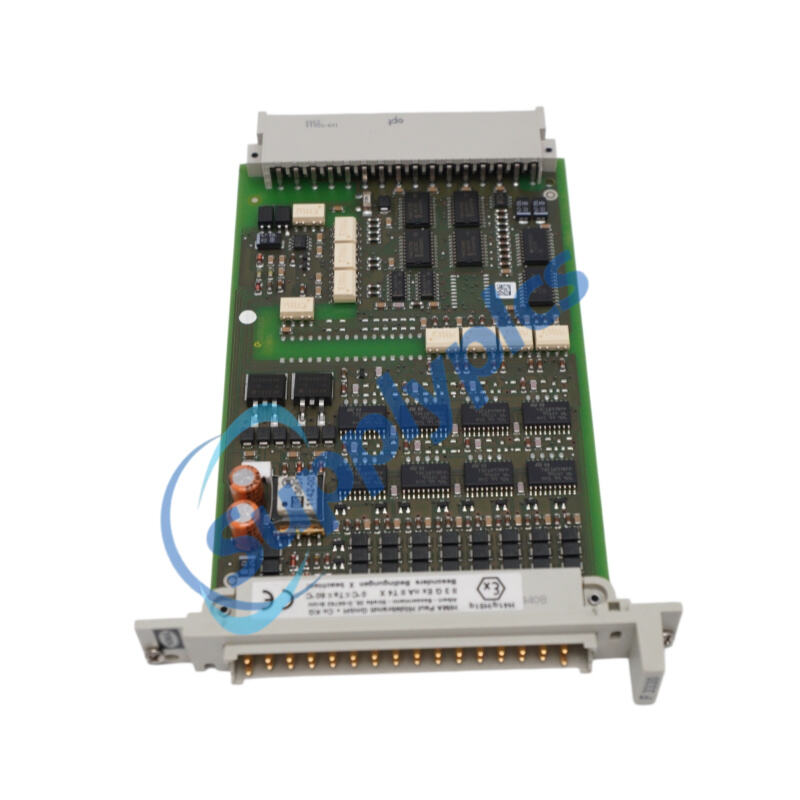

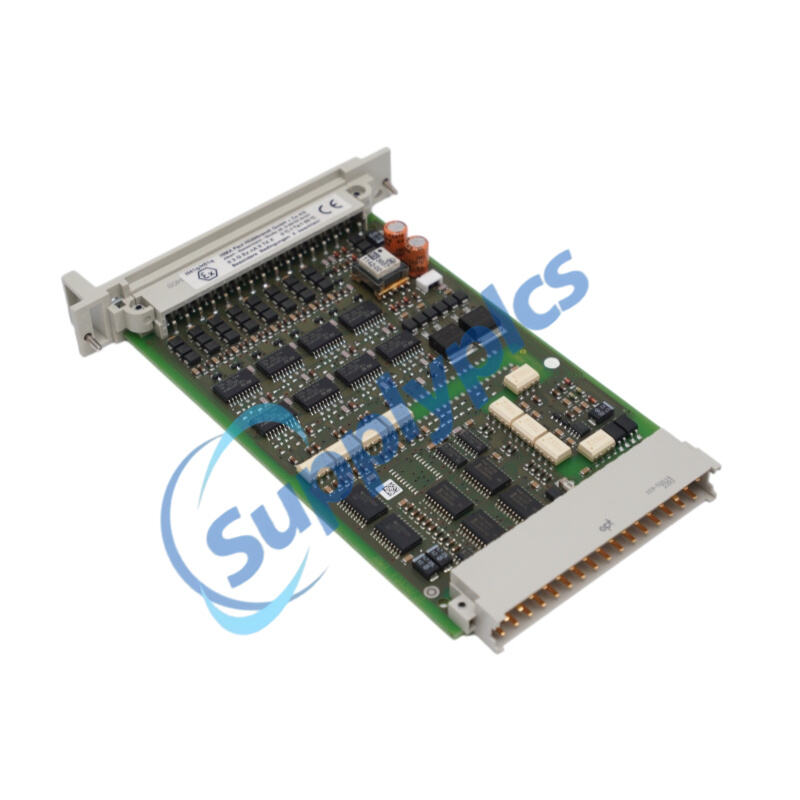

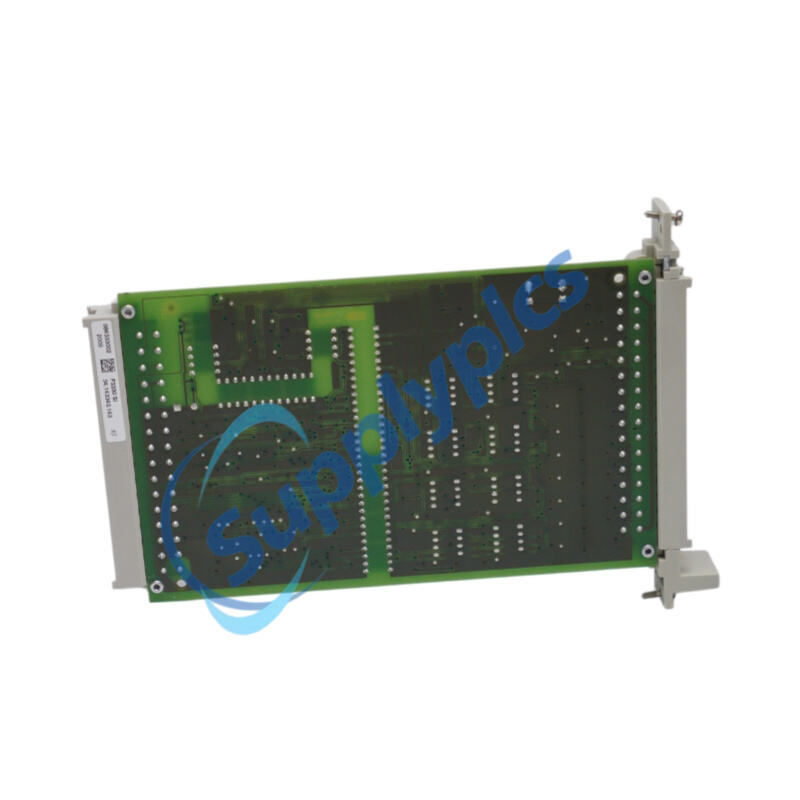

The HIMA F3330 is an 8-channel safety-related output module designed for HIMA HIMatrix and H41q / H51q safety systems. Suitable for SIL 3 applications per IEC 61508, it drives resistive or inductive loads up to 500 mA (12 W) and lamp loads up to 4 W. Features include integrated safety shutdown, safe channel isolation, and automatic operational self-test routines. Compact and reliable, the HIMA F3330 is the ideal choice for safety-critical final-element control .

Applications

Emergency Shutdown Systems (ESD)

Burner Management Systems and Combustion control

Fire & Gas (F&G) protection and deluge valve actuation

Turbine / compressor emergency trip circuits

Safety interlock systems in Oil & Gas, Chemical, Power generation

Railway signaling and safety control

Features

8 independent safety outputs

Integrated safety shutdown circuit, redundant architecture

Safe isolation with ≥ 1500 V isolation strength

Automatic self-test during operation (read-back, walking-bit test)

Short-circuit proof and overload protected

Undervoltage tripping protection

Supports high-side switch outputs with continuous readback monitoring

Compact 4 TE form factor

Hot-swappable (where system supported)

Wide temperature range models available

Functions

Converts control logic commands into reliable switch signals for final actuators（solenoid valves, relays, contactors）

Provides continuous readback and comparison of commanded state vs actual output

Executes integrated safety shutdown when channel fault is detected

Performs automatic "walking-bit" cross-check tests to detect channel shorts or crosstalk

Drives both resistive and inductive loads up to 500 mA（12 W）as well as lamp loads up to 4 W

FAQ

Q1: What safety certifications does the HIMA F3330 output module hold?
A1: The HIMA F3330 is TÜV-certified for SIL 3 per IEC 61508 / IEC 61511, achieving AK 6 in burner safety applications. In a redundant H51q configuration, the module can be deployed up to SIL 4. It also holds ATEX Zone 2, UL/CSA, and FM Class I Div 2 certifications, making it suitable for explosive atmospheres .

Q2: How many channels does the HIMA F3330 offer, and what loads can it drive?
A2: The HIMA F3330 features eight independent, short-circuit-proof digital output channels. Each channel can drive resistive or inductive loads up to 500 mA（12 W）and lamp loads up to 4 W. The internal voltage drop at full load is only 2 V, and the undervoltage trip protection activates at ≤ 16 V to prevent erratic operation .

Q3: How does the HIMA F3330 detect output faults during operation?
A3: The HIMA F3330 performs continuous automatic self-test routines. The primary diagnostics include read-back of output signals（0-signal threshold ≤ 6.5 V）and a walking-bit test, which verifies switching capability and detects cross-talking between channels. If a mismatch is found, the module forces the affected channel to its safe, de-energized state within the safety reaction time .

Q4: What system platforms are compatible with the HIMA F3330?
A4: The HIMA F3330 is designed for HIMA HIMatrix, H41q, and H51q safety-related control systems. It supports redundant 1oo2 or 2oo4 configurations within the H51q platform, where two modules can be paired for SIL 4 fault-tolerant architectures. The module also integrates with standard industrial buses such as PROFIBUS DP and Modbus TCP, ensuring seamless communication .

Q5: What is the physical footprint of the HIMA F3330, and does it support hot-swap maintenance?
A5: The HIMA F3330 requires only 4 TE of rack space（approx. 22.9 mm width）and can be hot-swapped on supported backplanes without powering down the entire chassis. This modular design significantly reduces system downtime during replacement or maintenance. The total module power consumption is ≤ 5 W plus the sum of load currents .
