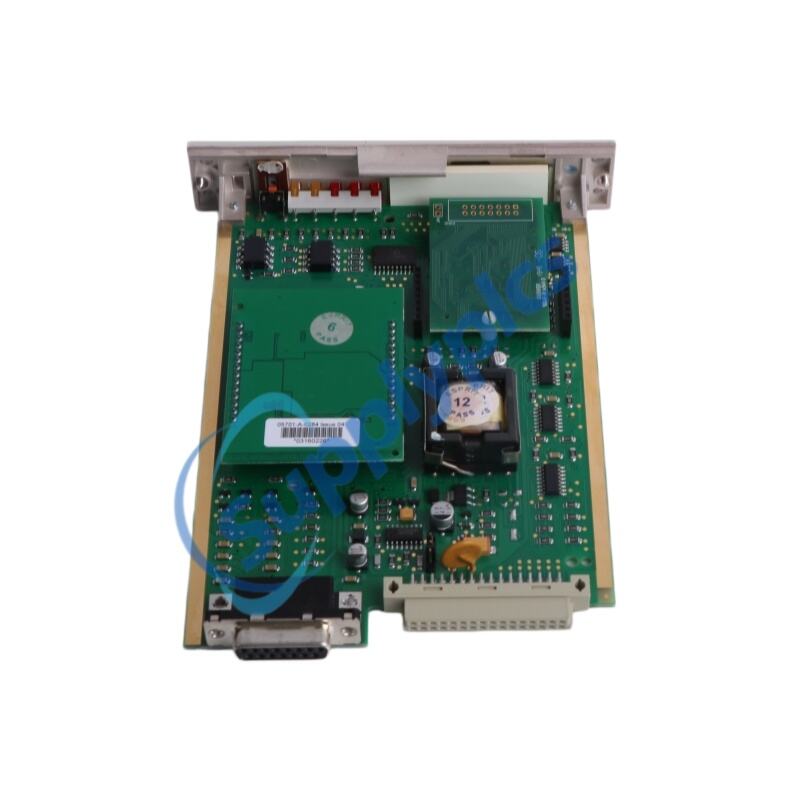

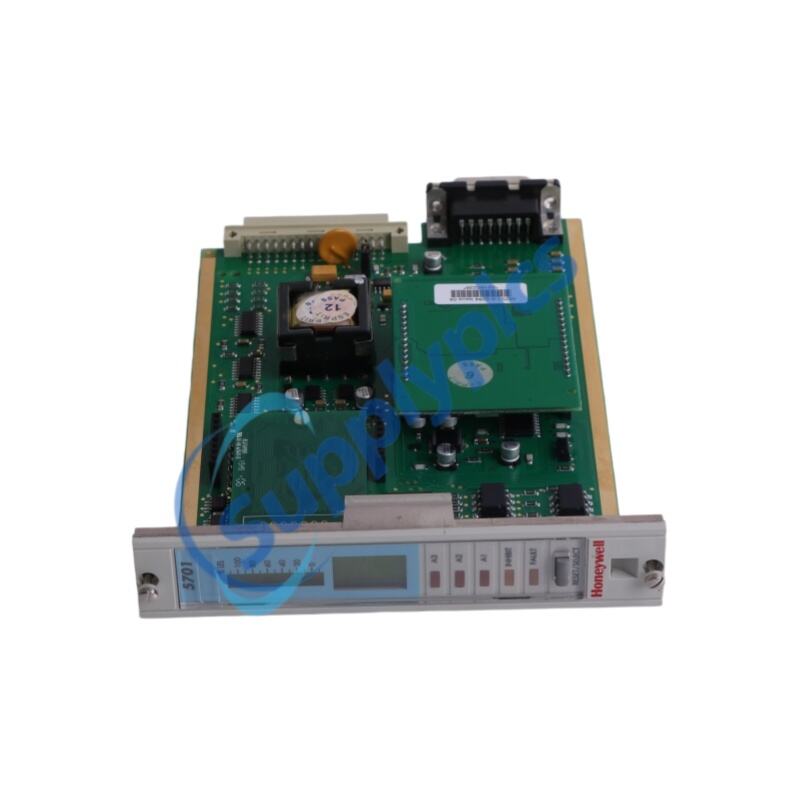

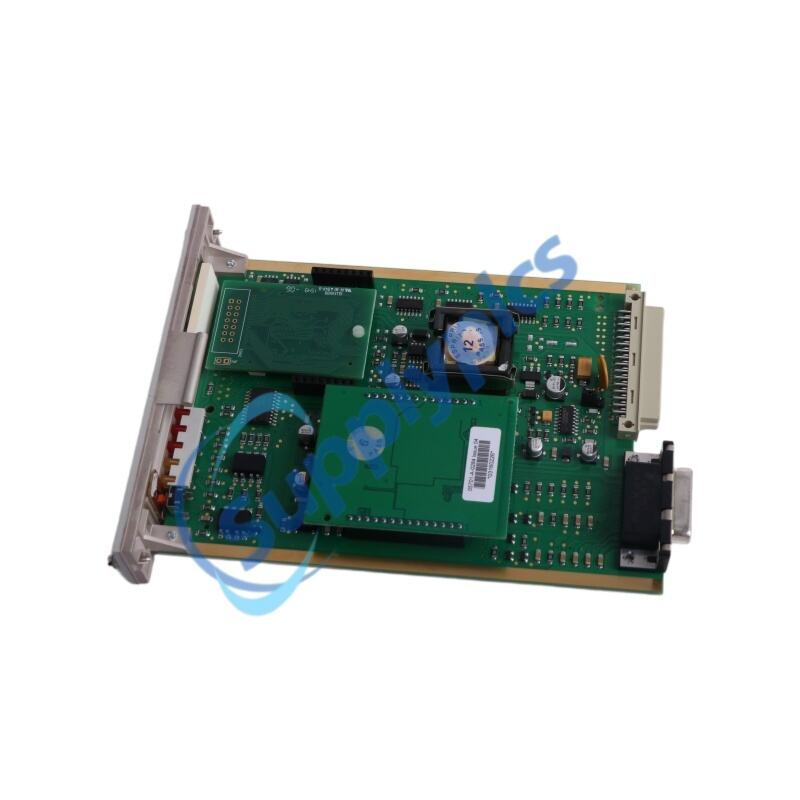

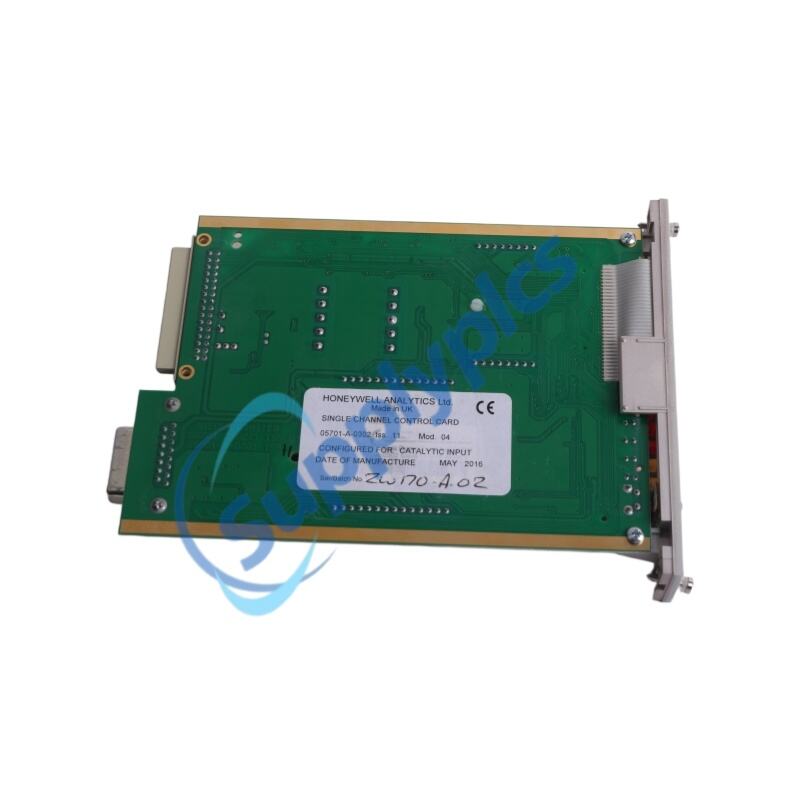

Product Name:Single Channel Control Card Catalytic
Brand Name:Honeywell
Model Number:05701-A-0302
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
05701-A-0302 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Description |
|---|---|
| Product Model | 05701-A-0302 |
| System Type | Single Channel Gas Control Card |
| Sensor Type | Catalytic gas sensor compatible |
| Channels | 1 channel |
| Power Supply | System backplane powered |
| Output Signal | Alarm + optional analog output |
| Communication | Engineering Card interface |
| Dimension (H×W×D) | Standard 3U rack module (typical) |
| Weight | Approx. 0.3–0.6 kg (typical) |
| Operating Temp | -10°C to +50°C (system dependent) |
The 05701-A-0302 Single Channel Control Card is a catalytic gas detection module designed for precise monitoring, display, and alarm control within industrial safety systems. It operates as part of the System 57 platform, delivering reliable processing for catalytic sensor inputs through an integrated microprocessor architecture.
The 05701-A-0302 works with a dedicated plug-in sensor drive module, ensuring stable signal conditioning and accurate gas level interpretation. When paired with compatible units such as the 05701-A-0284 sensor drive module, it enables continuous measurement and real-time alarm response for hazardous environments.
Within the System 57 range, the 05701-A-0302 supports configurable alarm thresholds, EEPROM-based setup storage, and optional analogue output expansion, making it suitable for flexible integration into modern gas safety and monitoring infrastructures.
Power plants: Generator gas monitoring and alarm protection systems.
Substations: Gas leakage detection and equipment safety control.
Chemical plants: Toxic gas monitoring with process automation integration.
Steel mills: High-temperature environment gas safety control.
Manufacturing: Automated line safety monitoring and alarm signaling.
Q1: What is the 05701-A-0302 used for?
A1: It is used for catalytic gas detection and alarm control in industrial safety systems.
Q2: Does the 05701-A-0302 support sensor signal processing?
A2: Yes, it processes catalytic sensor inputs via a dedicated drive module.
Q3: Can the control card trigger alarms automatically?
A3: Yes, it compares gas levels with preset limits and activates alarms.
Q4: Is the system configurable?
A4: Yes, configuration settings are stored in EEPROM and can be adjusted via engineering tools.
Q5: Does it support analog output options?
A5: Yes, an optional analog output module can be added for remote signal monitoring.
| Number | Describe |
|---|---|
| 05701-A-0283 | 4–20mA Sensor Drive Module for System 57, used for conditioning standard industrial sensor signals and providing stable signal conversion for control and monitoring applications. |
| 05701-A-0284 | Catalytic Sensor Drive Module designed for gas detection systems, providing sensor excitation, signal conditioning, and accurate catalytic sensor interface processing. |
| 05701-A-0301 | Single Channel Control Card (4–20mA type) for System 57, enabling gas signal processing, display, alarm management, and configurable control functions. |
| 05701-A-0351 | System 57 Control Card platform module used for single channel control architecture, supporting flexible configuration and integration within gas detection systems. |
| 05701-A-0328 | Triple SPCO Relay Card for System 57, providing three single-pole changeover relay outputs for alarm and control signal switching. |
| 05701-A-0327 | Double SPCO Relay Card designed for System 57 systems, offering two single-pole changeover relay outputs for control and alarm applications. |
| 05701-A-0326 | Field Interface Card for System 57, providing signal routing and connection interface between control cards and external field devices. |
| 05701-A-0329 | Triple DPCO Relay Card used in System 57 control systems, delivering three double-pole changeover relay outputs for advanced switching functions. |
| 05701-A-0302 | Catalytic Single Channel Control Card for gas detection, enabling catalytic sensor signal processing, alarm activation, and system monitoring functions. |
| 05701-C-0390 | Interconnecting Cable used in System 57 architecture for reliable signal and power transmission between modules and control cards. |
| 05701-A-0365 | Blanking Panel used for unused slots in System 57 racks, ensuring protection, airflow management, and system enclosure safety. |
