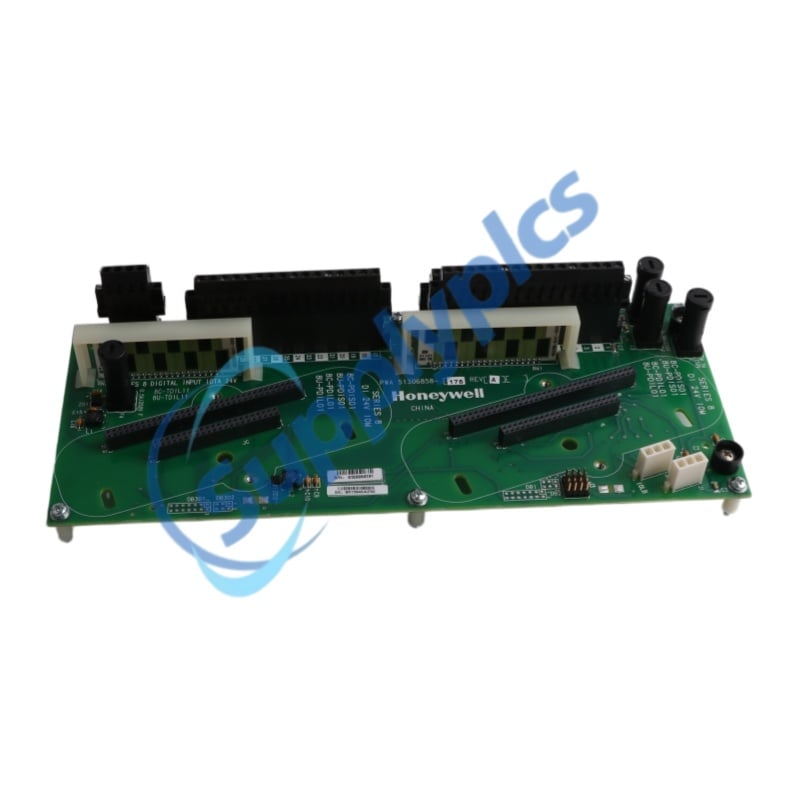

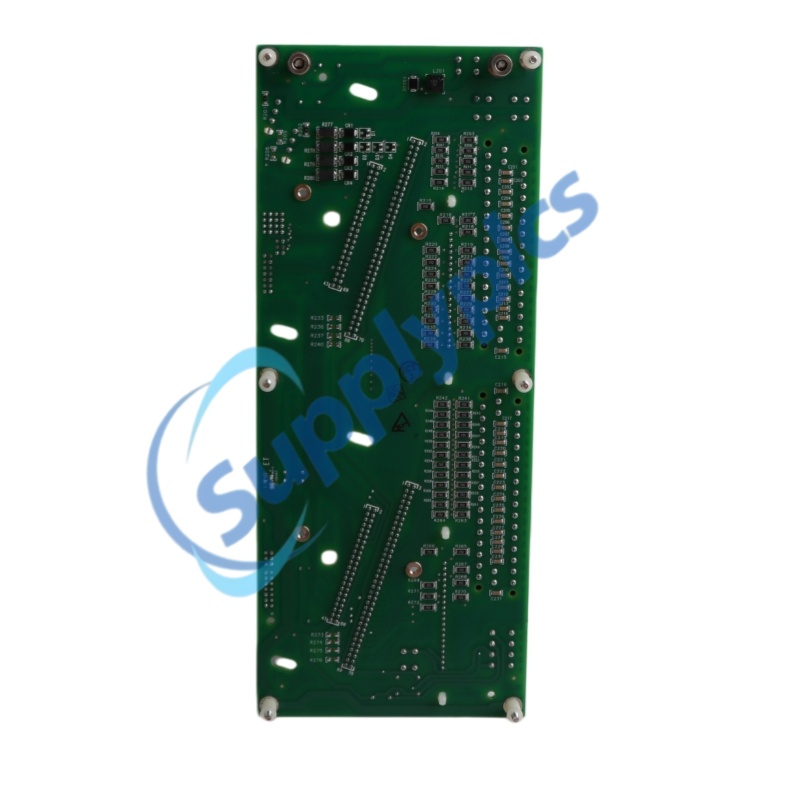

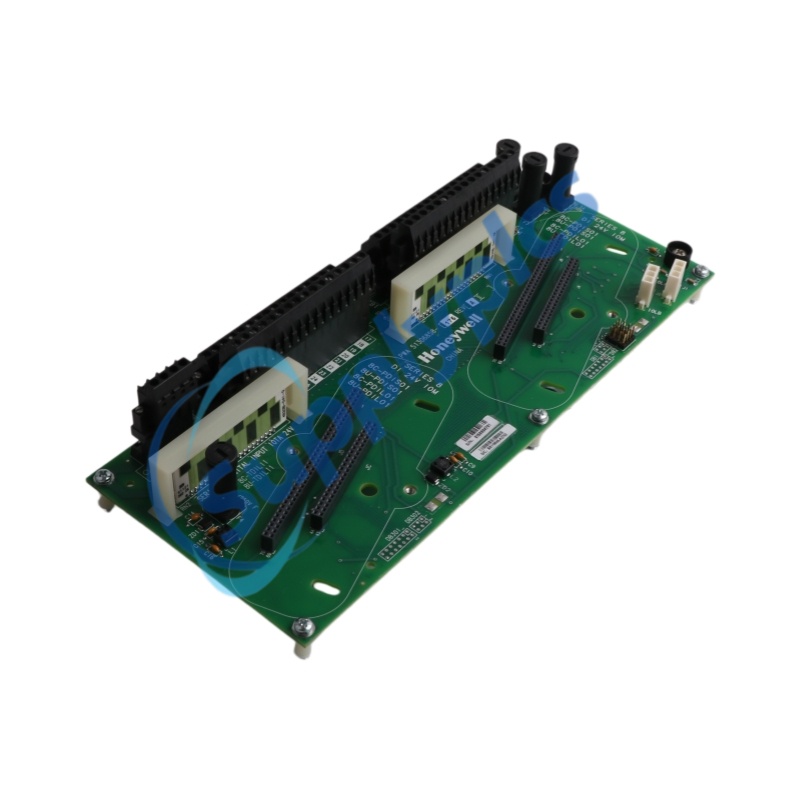

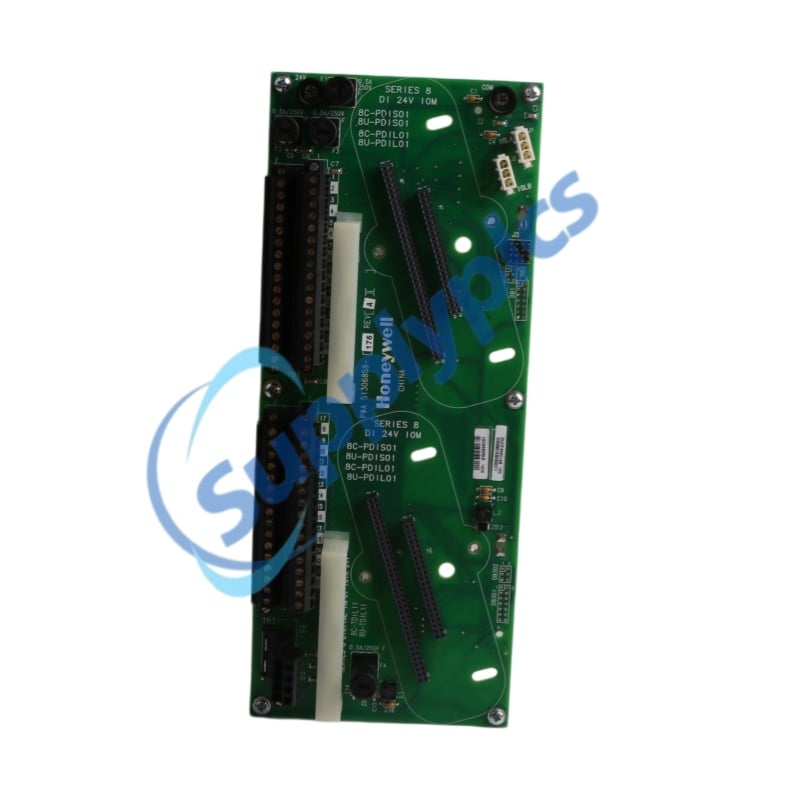

Product Name:digital input IOTA
Brand Name:Honeywell
Model Number:8C-TDIL11 51306858-175
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
8C-TDIL11 51306858-175 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model |
8C-TDIL11 51306858-175 |
|
Input Channels |
32 |
|
Rated Voltage |
24 VDC |
|
Operating Range |
18–30 VDC |
|
SOE Resolution |
1 ms |
|
Scan Modes |
20 ms / 5 ms / SOE mode |
|
Isolation |
Up to 1500 VAC RMS optical |
|
Input Impedance |
4.2 KΩ |
|
Response Delay |
5 ms ±20% |
|
Dimension (W×H×D) |
29.5x12x7cm |
|
Weight |
0.46kg |
|
Mounting Type |
Modular IOTA-based system |
The 8C-TDIL11 51306858-175 is a high-performance 32-channel industrial input solution designed for precise event-driven signal acquisition in advanced control systems. It supports 24VDC discrete inputs with 1ms resolution time-stamping, enabling accurate Sequence of Events (SOE) recording for critical process monitoring and fault analysis. The module is engineered for high reliability in demanding industrial environments.
As part of Honeywell’s PlantCruise Series 8 ecosystem, it works seamlessly with related platforms such as 8C-PDIS01 and 8C-TDIL01, ensuring flexible system integration. Its optical isolation and redundant-ready architecture improve operational safety and signal integrity.
Designed for scalability and harsh environments, the module provides stable performance, fast response scanning modes, and advanced diagnostics, making it ideal for mission-critical automation applications.
Q1: What is the main function of 8C-TDIL11?
A1: It records 24VDC digital input signals with high-precision time stamping for Sequence of Events monitoring.
Q2: What is SOE resolution?
A2: It supports 1ms resolution for accurate event sequencing.
Q3: Does it support redundancy?
A3: Yes, it supports redundant IOTA configurations for high availability systems.
Q4: What industries use this module?
A4: It is widely used in power plants, substations, chemical plants, and manufacturing industries.
Q5: What makes it suitable for harsh environments?
A5: It uses optical isolation and robust diagnostics for stable operation in high-noise conditions.
| Number | Description |
|---|---|
| 8C-TDIL11 | Sequence of Events Digital Input IOTA, coated, 32-channel, redundant-ready |
| 8U-TDIL11 | Uncoated SOE Digital Input IOTA for standard industrial environments |
| 8C-PDIS01 | SOE Digital Input module, coated version for PlantCruise Series 8 |
| 8U-PDIS01 | SOE Digital Input module, uncoated version |
| 8C-TDIL01 | Non-redundant SOE IOTA 9-inch coated version |
| 8U-TDIL01 | Non-redundant SOE IOTA 9-inch uncoated version |
