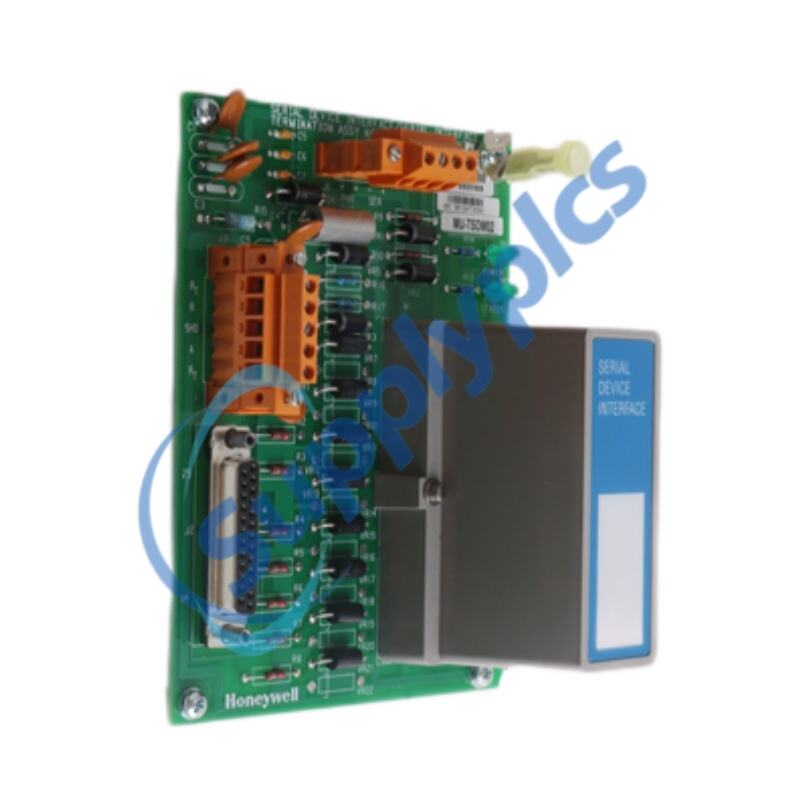

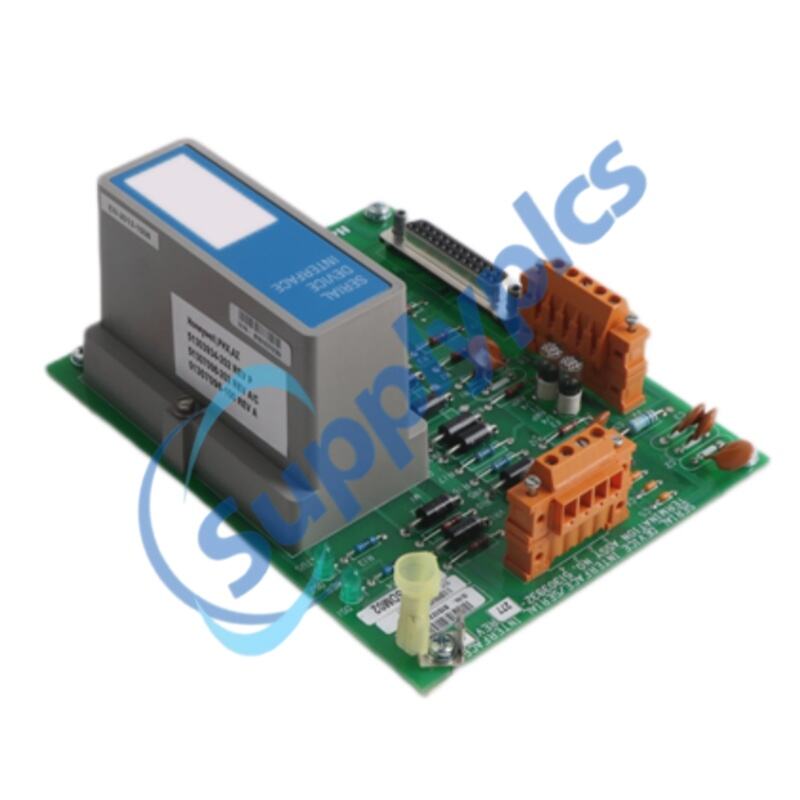

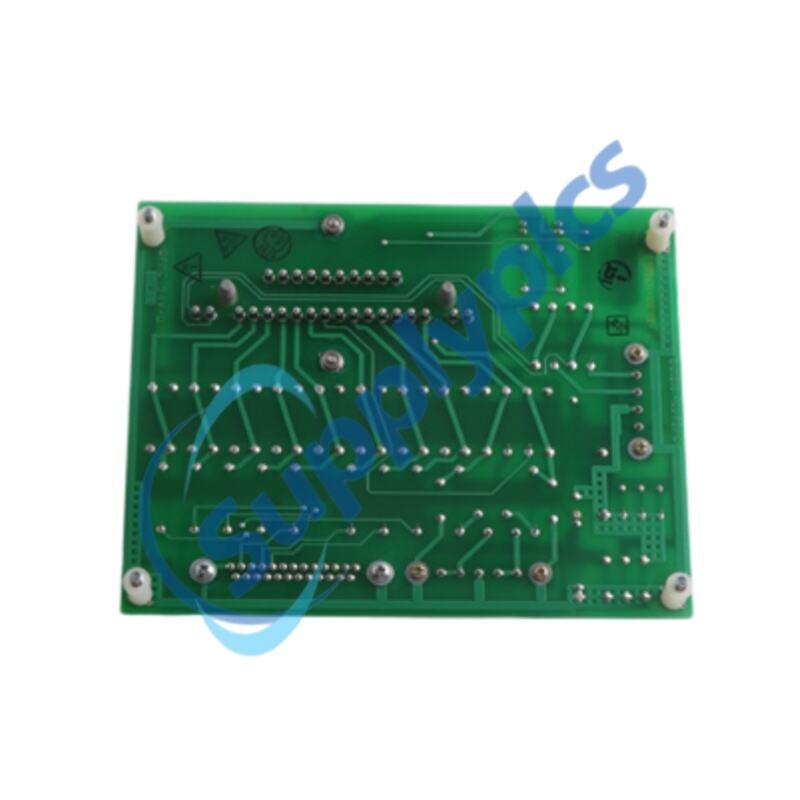

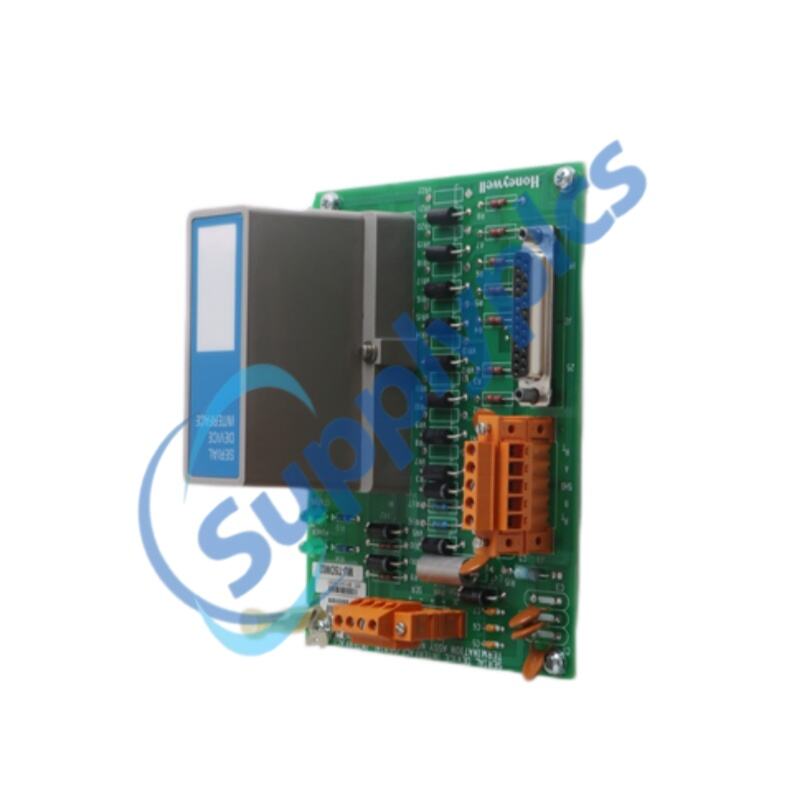

Product Name: Serial Device Interface
Brand Name:Honeywell
Model Number:MU-TSDM02 51303932-277
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
MU-TSDM02 51303932-277 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Specification |
|
Model Number |
MU-TSDM02 51303932-277 |
|
Product Type |
Serial Device Interface FTA |
|
Communication Interface |
EIA-422 / EIA-485 |
|
Protocol Support |
Modbus-compatible serial communication |
|
Channels |
1 |
|
Connected Devices |
Up to 4 MU-MASX02 stations |
|
I/O Processor |
MU-PSDX02 |
|
Power Adapter |
MU-TLPA02 |
|
Connector Type |
5-terminal compression |
|
Communication Mode |
Multi-drop (RS-485) |
|
Dimension |
185 × 100 × 65 mm |
|
Weight |
0.42 kg |
TheMU-TSDM02 51303932-277Serial Device Interface Field Termination Assembly is designed for reliable integration of industrial control and monitoring devices within Honeywell HPM architectures. It operates through the MU-PSDX02 I/O processor and MU-TLPA02 power adapter, ensuring stable and efficient communication between field equipment and control systems.
Built with an advanced firmware-driven architecture, theMU-TSDM02 51303932-277supports EIA-422/485 serial communication, enabling multi-device connectivity for distributed automation environments. It is optimized for applications requiring robust data exchange, including manual/auto station control and process interface integration.
As part of the Honeywell High-Performance Process Manager ecosystem, theMU-TSDM02 51303932-277delivers reliable multidrop communication, flexible configuration options, and industrial-grade signal termination performance, making it suitable for complex process control networks.
Q1 A1 What is MU-TSDM02 51303932-277 used for?
A1 It is used as a Serial Device Interface FTA for connecting multiple field devices in Honeywell control systems.
Q2 A1 How many devices can MU-TSDM02 support?
A1 It can connect up to four MU-MASX02 devices in a multidrop configuration.
Q3 A1 Which communication standard does it use?
A1 It uses EIA-422/485 serial communication for industrial networking.
Q4 A1 Is MU-TSDM02 compatible with Modbus systems?
A1 Yes, it supports Modbus-compatible serial communication protocols.
Q5 A1 What system does it work with?
A5 It works with Honeywell MU-PSDX02 I/O processor and MU-TLPA02 power adapter.
| Number | Description |
|---|---|
| MU-TSDT02 | SDI FTA—Toledo Scale Cell |
| MU-TSDM02 | SDI FTA—Manual/Auto Station |
| MU-TSDU02 | SDI FTA—UDC6000 |
| MU-MASX02 | Manual/Auto Station |
| MU-TSIA12 | SI FTA—Allen-Bradley |
| MU-TSIM12 | SI FTA—Modbus |
| MU-TLPA02 | Power Adapter (LLMux, SDI, SI FTAs) |
| MU-GAIH12/82 | Galvanically Isolated HLAI FTA |
| MU-GAIH13/83 | Galvanically Isolated HLAI/STI FTA |
| MU-GAIH14/84 | Galvanically Isolated HLAI/STI FTA |
| MU-GAIH22/92 | Galvanically Isolated HLAI FTA |
| MU-GAOX02/72 | Galvanically Isolated AO FTA |
| MU-GAOX12/82 | Galvanically Isolated AO FTA |
| MU-GDID12/82 | Galvanically Isolated 24 Vdc DI FTA |
| MU-GDID13/83 | Galvanically Isolated 24 Vdc DI FTA |
| MU-GDOD12/82 | Galvanically Isolated 24 Vdc DO FTA |
| MU-GDOL12/82 | Galvanically Isolated 24 Vdc DO FTA |
| MU-GLFD02 | Combiner Panel |
| MU-GMAR02 | Marshalling Panel |
| MU-GPRD02 | Galvanic Isolation Power Distribution Assembly |
| MU-ILDX02 | Long Distance I/O Link Extender Cards/Couplers |
| MU-ILDX03 | Long Distance I/O Link Extender Cards/Couplers |
| MU-IOLM02 | Standard I/O Link Extender Cards/Couplers |
| MU-IOLX02 | Standard I/O Link Extender Cards/Couplers |
| MU-SMAC02 | Analog Output Standby Manual with case |
| 51401926-100 | Analog Output Standby Manual - Digital |
| MU-SMDC02 | Digital Output Standby Manual with case |
| MU-SMDX02 | Digital Output Standby Manual without case1 |
