Product Name: I/O Module
Brand Name:HONEYWELL
Model Number:TK-FXX102
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
TK-FXX102 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Description |
Value |
|
Model |
TK-FXX102 |
|
Platform |
Experion CIOM-A Series-A chassis |
|
Module Type |
Single-wide / Double-wide support |
|
Minimum Enclosure Depth |
20.3 cm (8.0 in) |
|
Minimum Chassis-to-Chassis Horizontal Distance |
Same as Power Supply Specifications |
|
Minimum Chassis-to-Chassis Vertical Distance |
20.3 cm (8.0 in) |
|
Minimum Chassis-to-Cabinet Horizontal Distance |
10.2 cm (4.0 in) |
|
Minimum Chassis-to-Cabinet Vertical Distance |
15.2 cm (6.0 in) |
|
Dimension |
48.3 x 16.9 x 14.5 cm (19.0 x 6.7 x 5.8 in) |
|
Weight |
1.45 kg (3.2 lbs) |

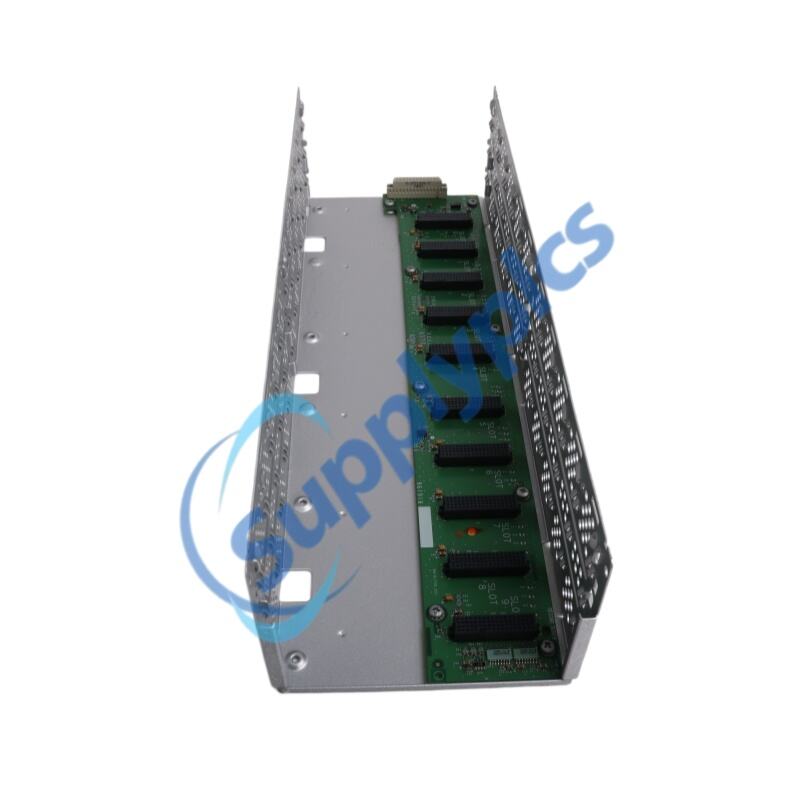

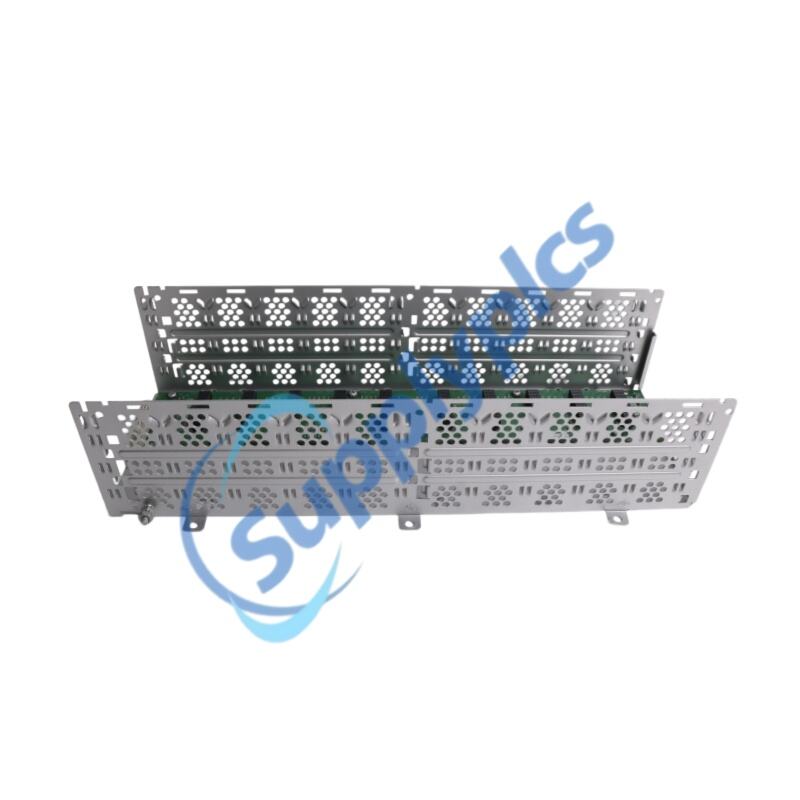

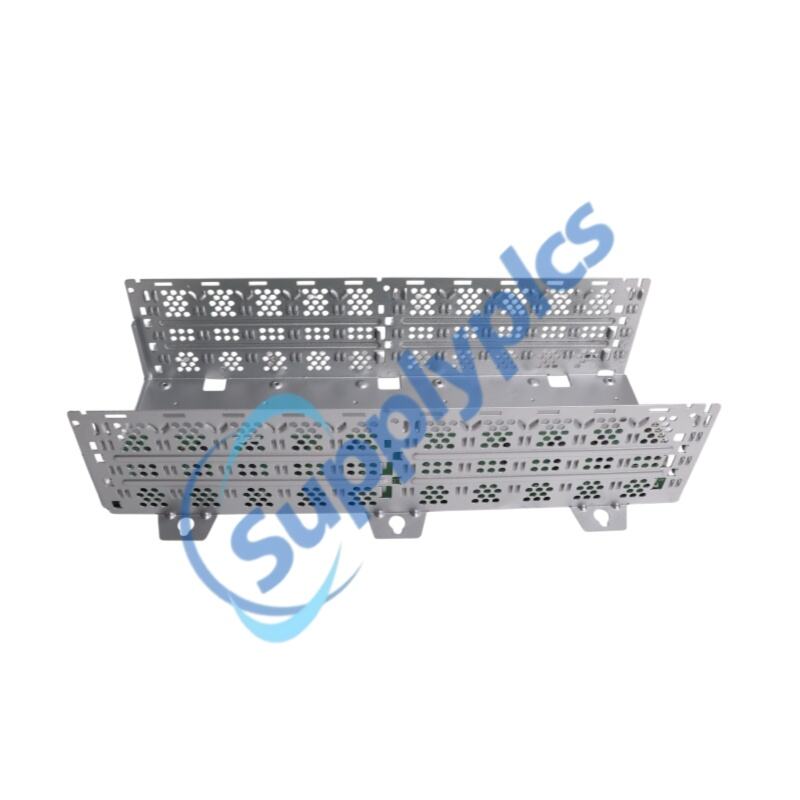

The TK-FXX102 is a Series-A chassis-based interface and I/O control module designed for distributed industrial automation systems. It operates within the Experion CIOM-A architecture, supporting seamless integration with C200E control processors, CNI communication modules, and other Series-A platform components such as TK-PRS021 and TK-PRR021.
Built for flexible chassis configurations, the TK-FXX102 supports both single-wide and double-wide module layouts across 4 to 17-slot racks. It enables stable signal routing through ControlNet-based communication, ensuring reliable data exchange between field devices and supervisory control systems.
With DIN-rail compatible installation, redundant power readiness, and support for RTP-based wiring systems, the TK-FXX102 enhances system scalability, wiring efficiency, and operational continuity in complex industrial environments.
Q1: What is TK-FXX102 used for?
A1: It is used as a chassis-based interface module for industrial I/O communication and system integration.
Q2: Does TK-FXX102 support redundancy?
A2: Yes, it supports both redundant and non-redundant power configurations.
Q3: Which control system is it compatible with?
A3: It is fully compatible with the C200E control processor and CIOM-A platform.
Q4: What communication protocol does it use?
A4: It operates on ControlNet with RG-6 coax at 5 Mbps transmission speed.
Q5: How many chassis slots are supported?
A5: It supports 4, 7, 10, 13, and 17-slot Series-A chassis systems.
| Number | Describe |
|---|---|
| 1757-CN2FF | Allen-Bradley Fieldbus Linking Device for industrial communication integration |
| TC-PCIC01 | ControlNet Interface Module for PC-based systems |
| SST-PB3-CLX | PROFIBUS Interface Module for ControlLogix communication |
| TC-PCIC01K | ControlNet Interface Card (PCI bus version) |
| TC-CCN011 | ControlNet Interface Module, Single Media |
| TC-PCIC02 | ControlNet Interface Module (PCI bus) |
| TC-CCN012 | ControlNet Interface Module, Single Media |
| TC-PGCN11 | ControlNet Gateway Module, Redundant Media |
| TC-CCN013 | ControlNet Interface Module, Single Media (HAZ rated) |
| TC-PIA081 | Analog Input Module, 8 Point HAZ |
| TC-CCN014 | ControlNet Interface Module, Single Media (Coated) |
| TC-PIB161 | Digital Input Module, 16 Point HAZ |
| TC-CCR011 | ControlNet Interface Module, Redundant Media |
| TC-PIF021 | Frequency Input Module, 2 Point HAZ |
| TC-CCR012 | ControlNet Interface Module, Redundant Media |
| TC-PIL081 | Temperature Input Module, 8 Point HAZ |
| TC-CCR013 | ControlNet Interface Module, Redundant Media |
| TC-PNX021 | C100 Control Processor Module |
| TC-CCR014 | ControlNet Interface Module, Redundant Media |
| TC-POA081 | Analog Output Module, 8 Point HAZ |
| TC-CEN011 | Ethernet Module 10/100 Mbps |
| TC-POB041 | Digital Output Module, 4 Point HAZ |
| TC-CEN021 | Ethernet Module 10/100 Mbps |
