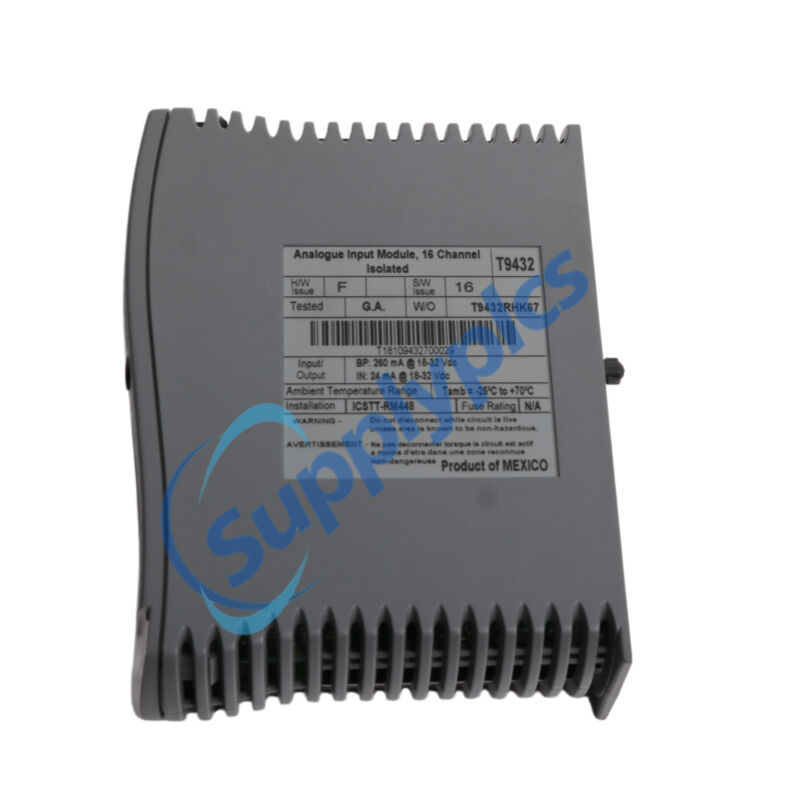

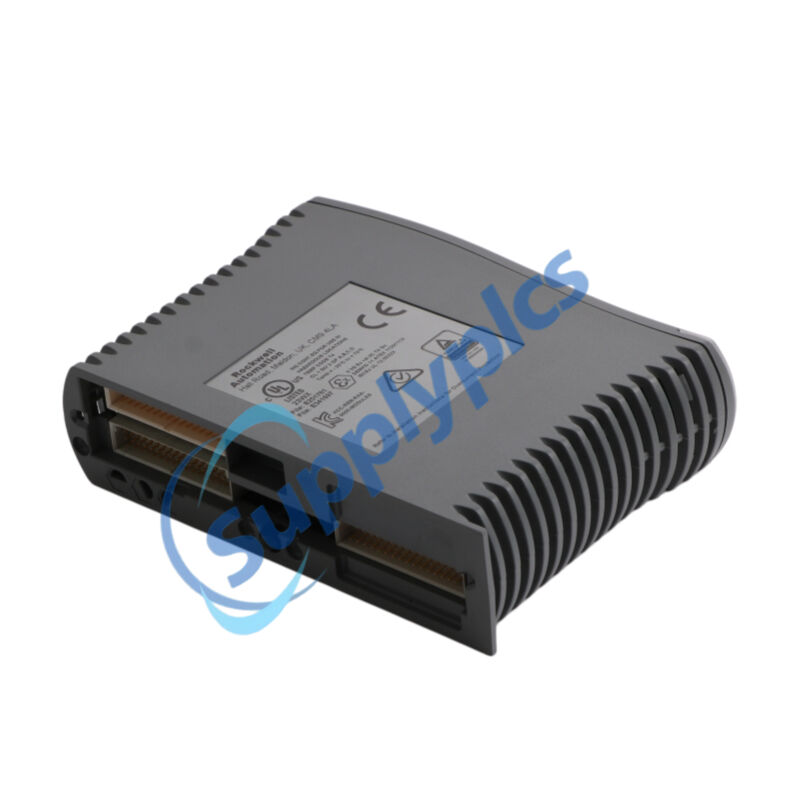

Product Name:Analog Input Module
Brand Name: ICS TRIPLEX
Model Number:T9432
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
ICS TRIPLEX |
Model Number: |
T9432 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Specification |
Details |
|
Module Type |
Isolated Analog Input Module |
|
Number of Channels |
16 isolated channels |
|
Input Type |
0–20 mA, 4–20 mA, 0–5 V, 0–10 V, ±10 V |
|
Resolution |
16-bit |
|
Accuracy |
±0.1% of Full Scale (typical) |
|
Scan Time (simplex) |
1.170 ms |
|
Scan Time (dual) |
1.965 ms |
|
Scan Time (triple) |
2.656 ms |
|
System Power Consumption |
4.0 W (max) |
|
Isolation Voltage |
500 Vdc between channels and to system |
|
Operating Temperature |
–25 °C to +70 °C (hazardous / general purpose) |
|
Storage Temperature |
–40 °C to +85 °C |
|
Certifications |

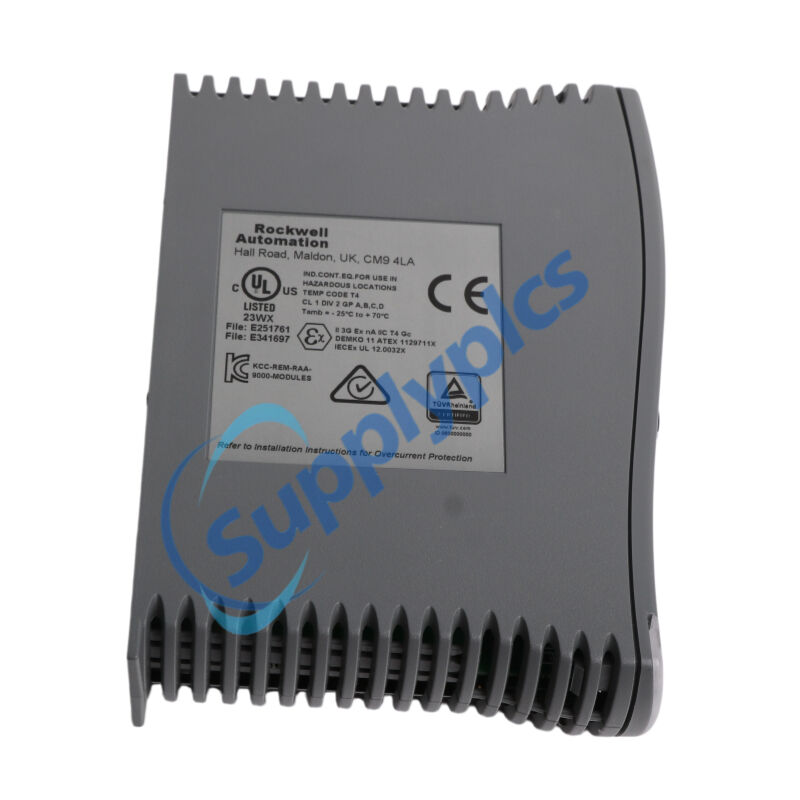

TÜV IEC 61508 SIL 3, ATEX, IECEx, UL Class I Div 2 |
|
Compatible TAs |
T9831 (simplex), T9832 (dual), T9833 (triple) |
|
Dimensions |
166 mm × 42 mm × 118 mm |
|
Weight |
0.34kg |
The ICS TRIPLEX T9432 is a high‑density 16‑channel isolated analog input module purpose‑built for the AADvance® safety controller. It acquires 4‑20 mA, 0‑10 V or other standard industrial signals and converts them into 16‑bit digital values for processing in safety‑related and critical control applications. Certified to IEC 61508 SIL 3, the T9432 supports simplex, dual and triple redundant architectures and features comprehensive online diagnostics. Every channel supplies both analog data and digital status, allowing field devices to be monitored with full fault coverage. When used with T983x termination assemblies, the ICS TRIPLEX T9432 provides a SIL‑3 ready solution for demanding process and safety environments.
Emergency Shutdown (ESD) Systems – continuous monitoring of pressure, temperature and flow for trip logic
Fire & Gas (F&G) Protection – acquisition of analog signals from flame and gas detectors
Burner Management Systems (BMS) – safe furnace/boiler control with SIL‑rated analog inputs
Critical Process Control – high‑integrity monitoring for chemical and oil & gas processes
Distributed Safety Instrumented Systems (SIS) – as a distributed node in AADvance‑based safety networks
HART‑enabled Field Devices – support for HART pass‑through for configuration and diagnostics (when used with compatible firmware)
16 isolated analog channels – fully independent loops with 500 Vdc isolation per channel
IEC 61508 SIL 3 certified – TÜV‑approved for safety instrumented functions
Scalable redundancy – operate in simplex (1oo1), dual (1oo2) or triple (2oo3) voting architectures
High resolution & accuracy – 16‑bit conversion with ±0.1% full‑scale accuracy
Comprehensive online diagnostics – field circuit monitoring with channel fault detection
Fast scan times – 1.17 ms (simplex) to 2.66 ms (triple) minimises throughput latency
Hot‑swap capability – redundant groups allow module replacement without interrupting plant operation
Field fault monitoring – detects open‑circuit, short‑circuit and out‑of‑range conditions
AADvance Workbench configuration – intuitive I/O connection editor and offline simulation
Wide operating temperature – –25 °C to +70 C (–13 °F to +158 °F) for harsh environments
Analog‑to‑digital conversion – transform 4‑20 mA, 0‑10 V or other field signals into 16‑bit integer or real values.
Field circuit diagnostics – continuously monitor each loop for open‑wire, short‑circuit or over‑range conditions and report faults to the processor.
Redundant data voting – in dual or triple groups, the module participates in 1oo2 or 2oo3 voting to maintain SIL 3 integrity even after a single failure.
Channel status reporting – transmit both the measured analog value and the per‑channel health status to the logic solver.
Galvanic isolation – provide electrical separation between field loops and the controller backplane to prevent ground‑loop interference.
Slew rate tolerance – prevent spurious channel faults under slowly ramping input signals via configurable process safety time.
Offline simulation – validate I/O configuration and application logic without connecting field hardware using the built‑in AADvance Workbench simulator.

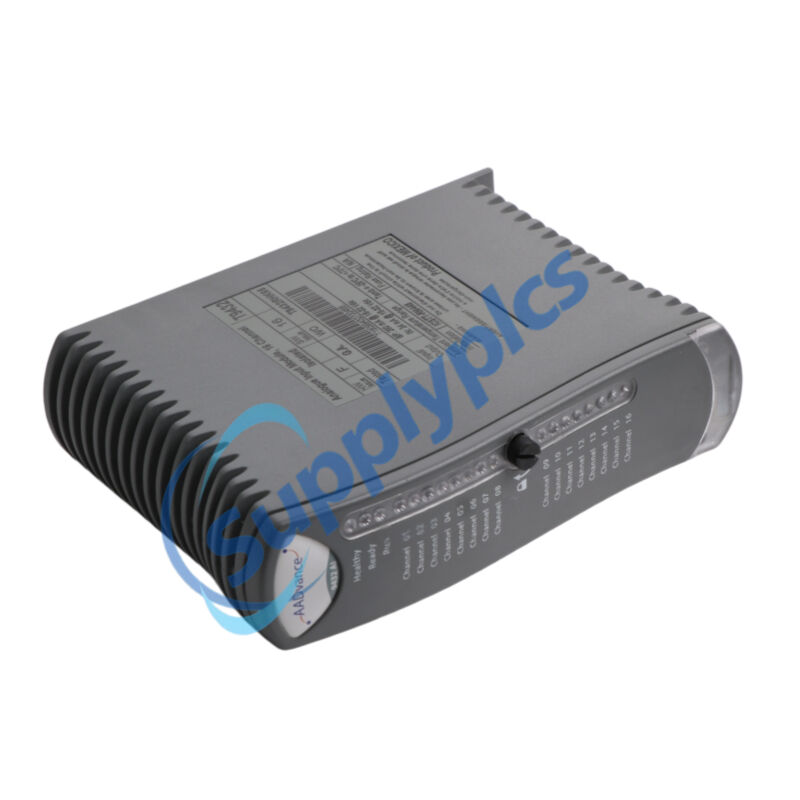

Front‑panel LED indication – show module health, run status and per‑channel fault conditions for immediate field troubleshooting.
Q1: What safety integrity level (SIL) does the T9432 support?
A1: The T9432 is TÜV certified for IEC 61508 SIL 3 when used in dual or triple redundant configurations with the AADvance controller.
Q2: Can the T9432 be used as a single module without redundancy?
A2: Yes. The T9432 supports simplex (1oo1), dual (1oo2) and triple (2oo3) architectures. For SIL 3 applications, dual or triple groups are required.
Q3: What input signal types does the T9432 accept?
A3: The T9432 accepts 0‑20 mA, 4‑20 mA, 0‑5 V and 0‑10 V. Accuracy is ±0.1% full scale, and resolution is 16 bits.
Q4: Can I replace a faulty T9432 while the system remains powered?
A4: Yes. When installed in a dual or triple redundant group, the T9432 supports hot‑swap replacement without interrupting control of the other channels.
Q5: Which termination assembly works with the T9432?
A5: The T9432 mates with T9831 (simplex), T9832 (dual) and T9833 (triple) termination assemblies. Coding pegs prevent incorrect module‑TA pairing.
