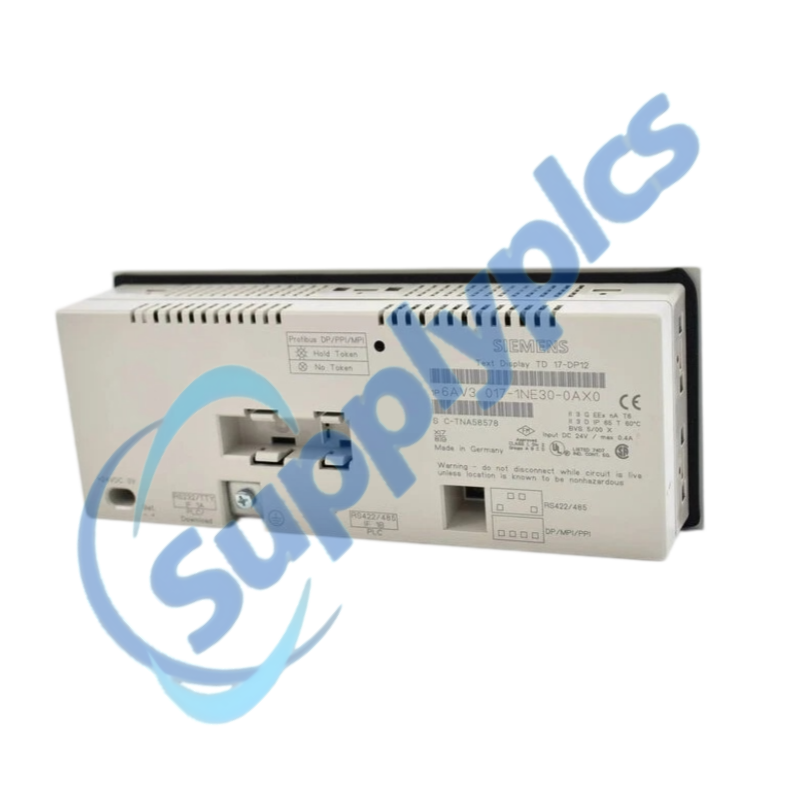

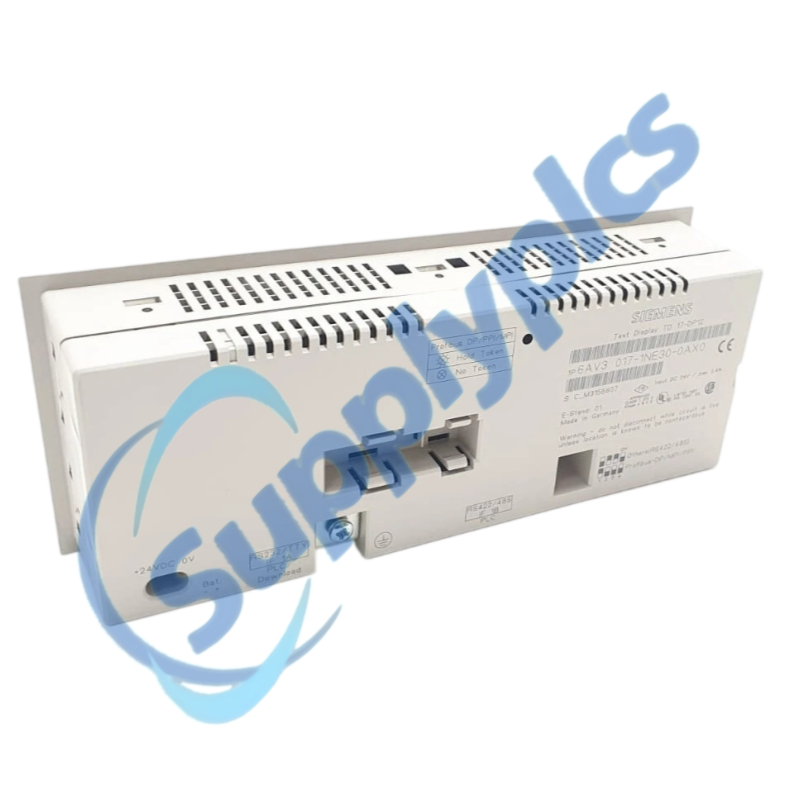

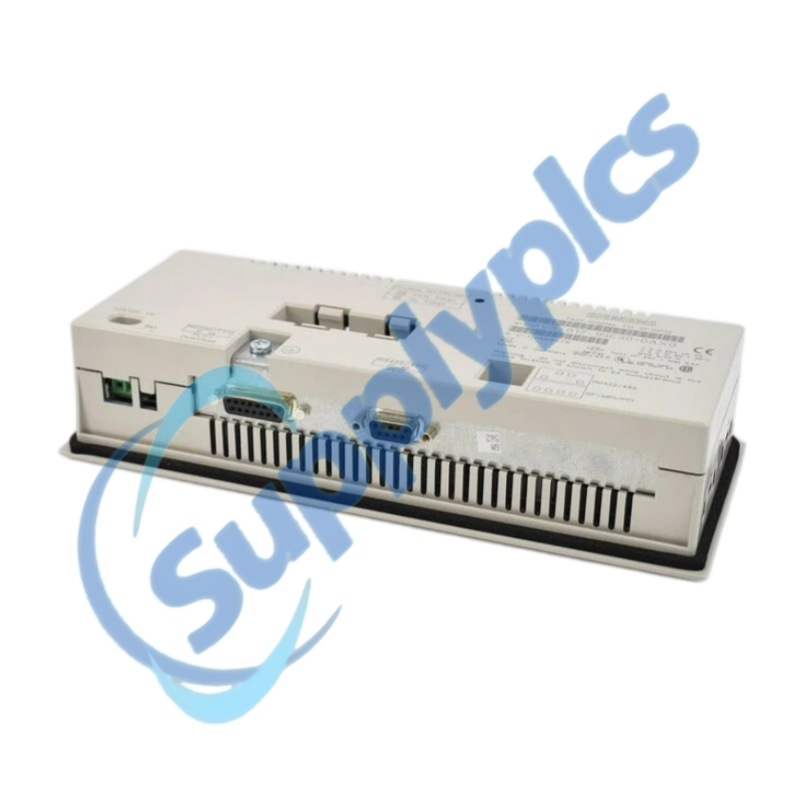

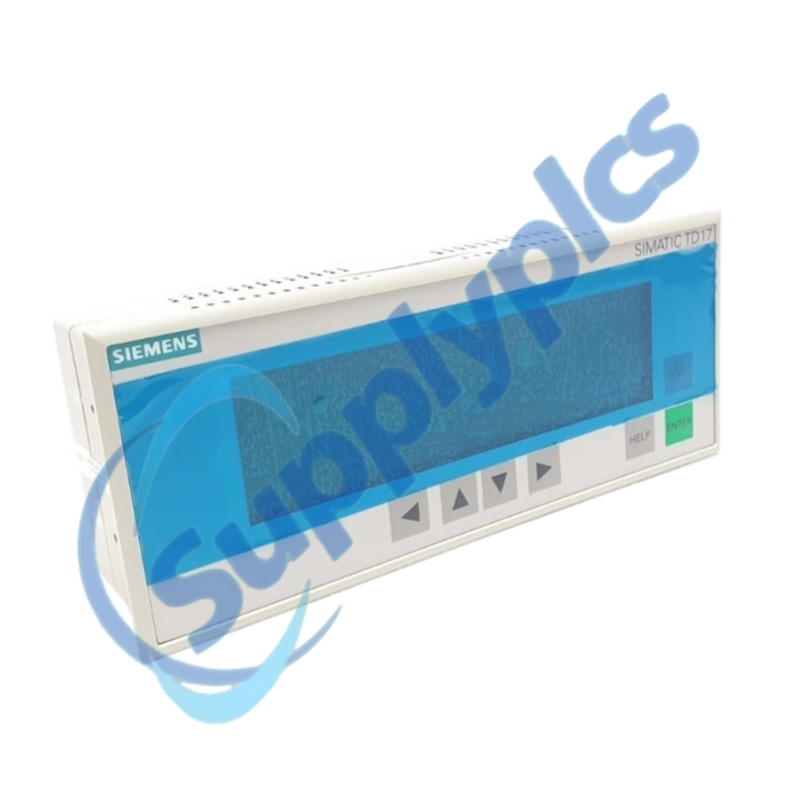

Siemens 6AV3017-1NE30-0AX0 SIMATIC TD17 Text Display

Siemens 6AV3017-1NE30-0AX0 SIMATIC TD17 Text Display

Product Name: SIMATIC TD17 Text Display

Brand Name: Siemens

Model Number: 6AV3017-1NE30-0AX0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp: +86 18020776782

Email: [email protected]

Appurtenance:

siemens 6av3017 1ne30 0ax0 simatic td17 text display-1

Overview
Description
System Integration
Specifications
Upgrade Recommendations
Commercial Term
Contact info
FAQ
Other Products
Recommended Products

Legacy text-based HMI for SIMATIC and PROFIBUS-DP12 installations

The TD17 provides an LED-backlit LC text display with 4 × 20 or 8 × 40 character presentation and communication options for SIMATIC S5, S7, M7, 505 and PROFIBUS-DP12 systems.

Legacy-system check: This is an end-of-life spare. Confirm the exact operator project, controller connection, communication driver, mounting cutout and available backup before purchase.

Description

The TD17 was designed for message display, operator input and text-based visualization in legacy automation systems. The installed configuration determines languages, message behavior, password levels and controller data exchange.

A successful replacement depends on project compatibility and a recoverable ProTool or ProTool/Lite configuration. The hardware should not be ordered only from its appearance or product family name.

System Integration

Commission the display together with the original controller and network configuration.

Driver match

Confirm the configured controller driver and interface before loading or replacing the project.

DP settings

For PROFIBUS-DP12 installations, record the station address, baud rate and connector termination state.

Functional test

Test messages, acknowledgments, keys, passwords, language selection and process values before production release.

Specifications

Product type designation

SIMATIC TD17 text display

Order number

6AV3017-1NE30-0AX0

Display

LC display with LED backlighting

Text presentation

4 × 20 or 8 × 40 characters

Controller families

SIMATIC S5, S7, M7 and 505

Network option

PROFIBUS-DP12

Operating voltage

24 V DC

User memory

128 kB

Interfaces

TTY, RS232, RS422 and RS485

Packaging dimensions

26.7 × 14.9 × 7.4 cm

Net weight

Approximately 0.694 kg

Lifecycle

End of product lifecycle

Upgrade Recommendations

Treat any successor decision as a migration project, not a direct cosmetic swap.

Project recovery

Secure the latest configuration files, text lists, recipes, passwords and communication parameters before removing the working unit.

Successor review

Siemens lists 6AV3017-1NE30-0AX1 as a successor reference, but hardware, firmware and project conversion still require confirmation.

Mechanical check

Verify the panel cutout, fixing arrangement, depth and cable access before accepting any alternative HMI.

Commercial Term

Quotation

Current price and availability

Payment

T/T or agreed terms

Lead time

Confirmed with quotation

Shipping

DHL, FedEx, UPS or agreed freight

Warranty

12 months

Contact info

CONTACT

Jim Pei

[email protected]

+86 180 2077 6782

FAQ

How should I verify that 6AV3017-1NE30-0AX0 can replace the installed text display?

Match the full order number, display format, controller family, communication driver, interface wiring, PROFIBUS parameters, panel cutout and available project backup. Do not rely on the TD17 name alone.

What should I back up before removing a working 6AV3017-1NE30-0AX0?

Secure the ProTool or ProTool/Lite project, text and message lists, passwords, recipe data if used, interface parameters and controller-side data-area settings. Photograph every connector and label before disconnection.

Why can 6AV3017-1NE30-0AX0 show text but no live process values after replacement?

Check that the correct project was loaded and that the selected driver, station address, baud rate and controller data areas match the original system. Review communication system messages before changing hardware.

What should I check if 6AV3017-1NE30-0AX0 does not join a PROFIBUS-DP12 network?

Verify the DP address, baud rate, connector termination, cable shielding and controller configuration. Confirm that the correct TD17 interface variant and project settings are being used.

How should I troubleshoot dim backlighting or unreliable keys on 6AV3017-1NE30-0AX0?

Check the 24 V DC supply under load, connector seating, cabinet temperature and contamination around the front keys. If the fault changes with vibration or warm-up time, record the pattern before repair or replacement.

What should I include in a spare-parts request for 6AV3017-1NE30-0AX0?

Provide the complete order number, existing firmware and project information, controller type, communication method, panel-cutout dimensions and clear nameplate and connector photos. State whether a tested used or refurbished spare is acceptable.
