Configurable analog and digital I/O module with HART, channel diagnostics and terminal-block-dependent redundancy.
Sales |
Jim Pei |
Email |
|
Phone/Whatsapp |
|
Model Number
|
6DL1133-6EW00-0EH1
|
|
Rated supply voltage
|
24 V DC
|
|
Permitted supply range
|
19.2–28.8 V DC
|
|
Rated current without sensor supply
|
80 mA
|
|
Maximum current without sensor supply
|
90 mA
|
|
Typical power loss without sensor supply
|
4.5 W
|
|
Sensor supply outputs
|
16
|
|
Minimum sensor supply voltage
|
18.2 V
|
|
Sensor supply current per channel, maximum
|
0.5 A
|
|
Sensor supply current per module, maximum
|
2 A
|
|
Digital inputs
|
16, parameterizable
|
|
Digital outputs
|
16, parameterizable
|
|
Analog current inputs
|
16, parameterizable
|
|
Input current ranges
|
0–10 / 0–20 / 4–20 mA; 4–20 mA HART
|
|
Analog resolution
|
16 bit including sign; 15 bit for 0–10 mA at 60 Hz suppression
|
|
Current input resistance
|
250 Ω
|
|
Current input destruction limit
|
30 mA
|
|
Basic current error at 25 °C
|
±0.1% of input range
|
|
Operational current error
|
±0.5% of input range
|
|
Linearity error
|
±0.01% of input range
|
|
Temperature error
|
±0.005%/K of input range
|
|
Input crosstalk, minimum
|
60 dB
|
|
Repeat accuracy at 25 °C
|
±0.05% of input range
|
|
Digital signal 0 voltage
|
-30 to +5 V
|
|
Digital signal 1 voltage
|
+11 to +30 V
|
|
Signal 1 input current, typical
|
2.5 mA
|
|
Counters, maximum
|
8
|
|
Counting frequency, maximum
|
5 kHz
|
|
Counter width
|
32 bit, unsigned
|
|
Output resistive current, maximum
|
0.5 A per channel
|
|
Output lamp load, maximum
|
5 W
|
|
Horizontal operating temperature
|
-40 to +70 °C; observe derating
|
|
Vertical operating temperature
|
-40 to +60 °C; observe derating
|
|
Minimum Order Quantity
|
1 Piece
|
|
Price
|
Contact for Jim
|
|
Packaging Details
|
Original new Factory Sealed
|
|
Delivery Time
|
3–7 Days
|
|
Payment Terms
|
T/T
|
|
Shipping Method
|
DHL / FedEx / UPS / TNT
|
|
Supply Ability
|
In stock
|

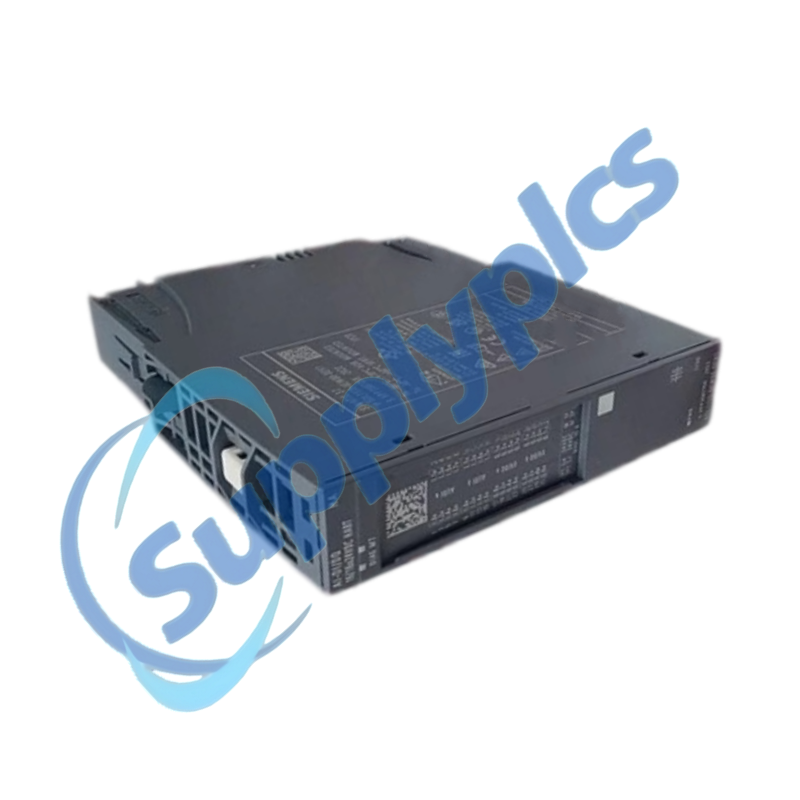

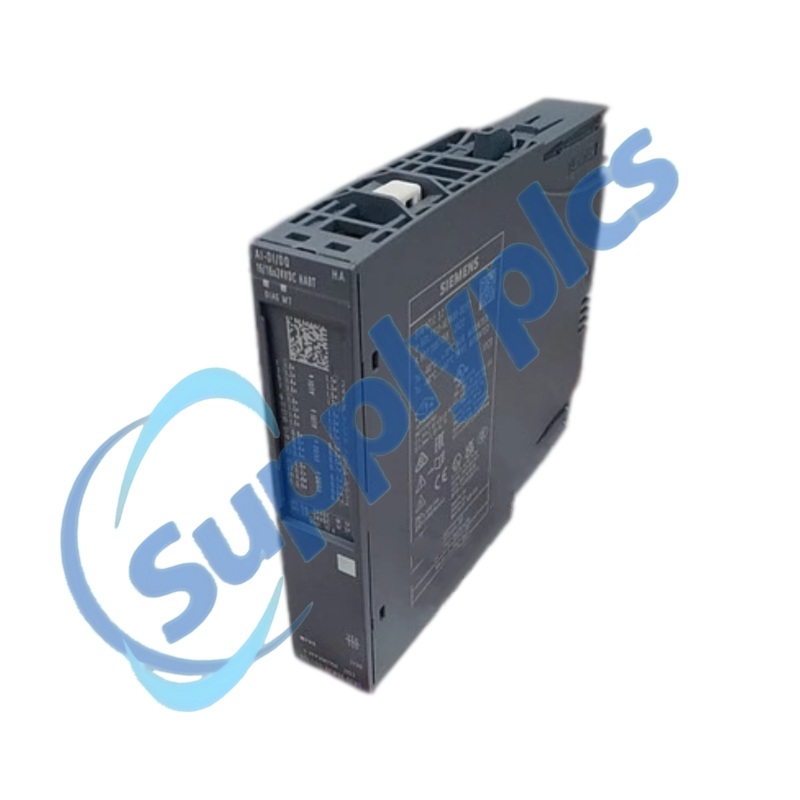

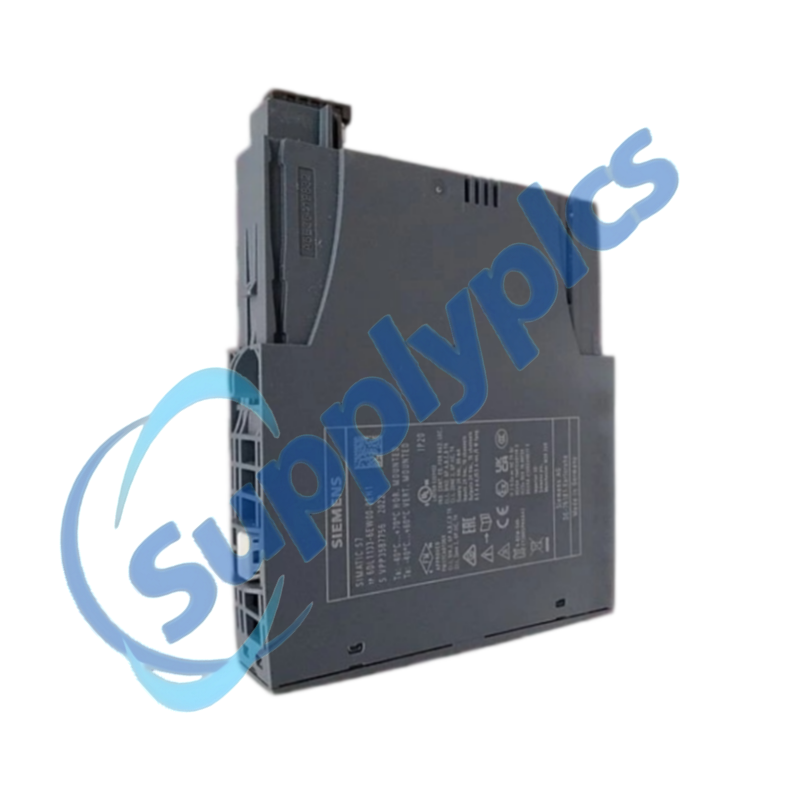

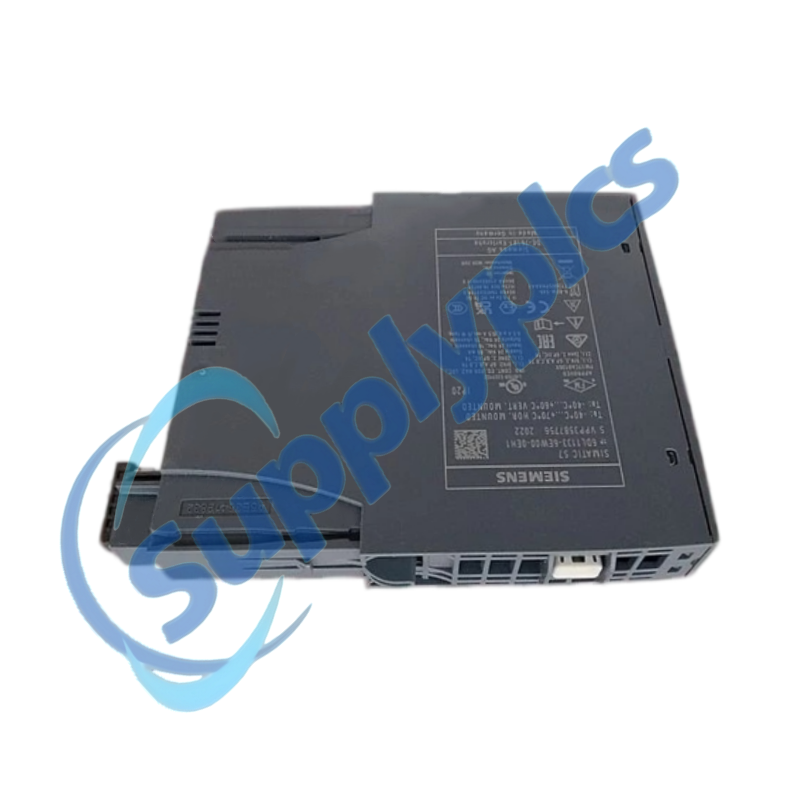

Siemens 6DL1133-6EW00-0EH1 is a configurable SIMATIC ET 200SP HA I/O module. Its channels can be assigned to the supported analog input, digital input or digital output modes. Current inputs include HART communication for suitable field instruments. Channel diagnostics report relevant wiring and measurement faults. Redundant operation depends on using the appropriate terminal block.
The 6DL1133-6EW00-0EH1 serves process installations that combine instrument measurement and discrete control signals. Configurable channels help align the station to the connected field devices. Supported reparameterization in RUN assists configuration changes within the system rules. Choose the terminal block and channel configuration together during engineering. Sensor supply loading, derating and the required system version must be checked before commissioning.
Receives supported current signals and HART data from process instruments.
Combines the supported analog and digital channel modes in an HA station.
Uses the specified terminal-block arrangement for redundant operation.
Counting and frequency — Supports the specified counter and frequency-measurement channel functions.
Online configuration — Permits supported reparameterization while the system is in RUN.
Field diagnostics — Reports channel-related faults to support instrument maintenance.
Channel use depends on parameterization and the selected operating arrangement.
The datasheet specifies TB type M1 for redundancy capability.
The listed analog ranges are current inputs; do not assume voltage-input support.
Ask for offered-unit photographs and available inspection details.
Yes. We arrange dispatch immediately after receipt of payment for confirmed stock.
Provide the terminal-block type, system version and intended channel configuration.
