SIEMENS SICOMP SMP16-SV430 POWER SUPPLY MODULE INPUT 6AR1306-0DC00-0AA0 In stock, China SIEMENS SICOMP SMP16-SV430 POWER SUPPLY MODULE INPUT 6AR1306-0DC00-0AA0 In stock Manufacturers, Suppliers, Factory

Overview

Brand Name:	SIEMENS
Model Number:	6AR1306-0DC00-0AA0
Country of Origin:	GERMANY
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model Number	6AR1306-0DC00-0AA0
Product Type	SMP16-SV430 Power Supply Module
System Compatibility	Siemens SICOMP industrial automation systems
Product Family	SICOMP SMP16
Design	Offline power supply unit (slide-in module for 19-inch subrack)
Input Voltage (nominal)	120 V / 230 V AC (switchable / selectable)
Input Voltage Range	94 – 264 V AC (operating limits via accessories) [8†L3-L4]
Input Frequency	50 / 60 Hz [7†L22]
Input Current	max. 1.3 A (at 230 V AC) / 0.7 A (at 120 V AC) [7†L22-L23]
Output Voltage 1	+15 V DC (regulated) [7†L8]
Output Voltage 2	–15 V DC (regulated) [7†L8]
Output Current (total)	1.5 A (sum of +15 V and –15 V outputs) [7†L21]
Number of Output Terminals	2 [7†L23]
Overload Protection	Continuous short-circuit protected, idle-proof [8†L44-L45]
Galvanic Isolation	2.5 kV AC (input/output) [8†L31-L32]
Efficiency (η)	80 % [8†L34]
Efficiency Rating	80 % [8†L34]
Power Rating	~36 W (< 100 W) [7†L28-L31]
Status Indicator	LED [7†L23]
Certifications	CE [7†L22]
RoHS Compliance	Not available in documentation [13†L25-L26]
Country of Origin	Germany [14†L11]
Commodity Code	85044030 [8†L42]
Net Weight	Approx. 0.52 kg – 0.54 kg (1.19 lbs) [7†L19-L20]
Mounting	Plug-in for 19-inch subrack; DIN 41494 / IEC 60297 compliant with individual locking
Dimensions (approx.)	120 mm × 100 mm × 50 mm (L×W×H) (from third-party data) [4†L5]
Storage & Transport Temperature	–25° C‭–‮+70° C (from third-party data) [8†L39]
Operating Temperature	0 °C to +50 ° C
Power Reduction	Above 50 °C, power reduction must be taken into account
Relative Humidity	≤ 95 %, non-condensing (in operation / storage)
Protection Class (EN 60529)	IP00 (open-frame module within subrack)
Lifecycle Status	PM500: Discontinued / End of Product Lifecycle; no direct replacement offered
Product Class	D (Made-to-order / customer-specified; non-reusable engineering product)
Order Number	6AR1306-0DC00-0AA0 (SMP16-SV430)

Description

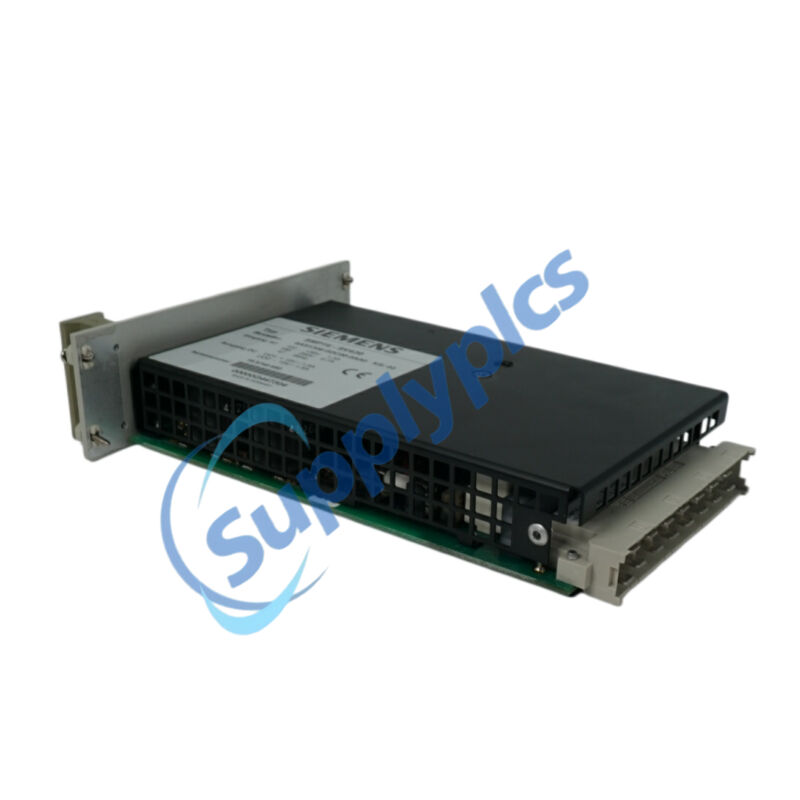

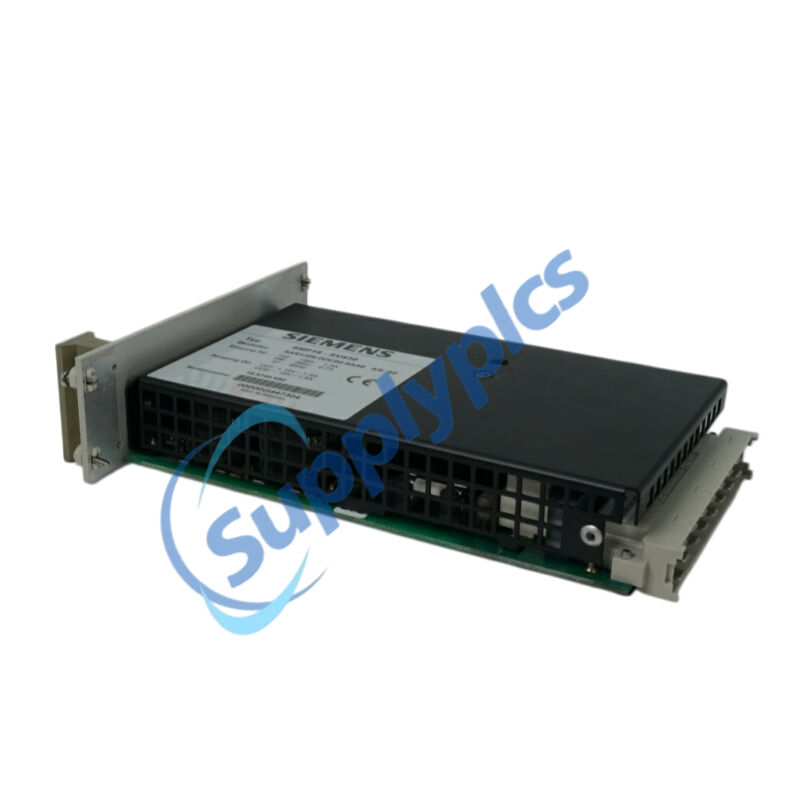

The Siemens 6AR1306-0DC00-0AA0, also known as the SICOMP SMP16‑SV430, is an industrial power supply module engineered for regulated DC conversion. The 6AR1306-0DC00-0AA0 accepts a wide‑range AC input (94 to 264 V AC at 50/60 Hz) and provides stable dual outputs: +15 V DC and –15 V DC, with a combined current capacity of 1.5 A. As a slide‑in unit for 19‑inch subracks, the 6AR1306-0DC00-0AA0 includes short‑circuit and overload protection with a continuous rating. This spare‑part 6AR1306-0DC00-0AA0 (discontinued without replacement) is available for legacy SICOMP system maintenance.

Applications

Siemens SICOMP systems requiring ±15 V DC analog supply

PLC and HMI power distribution for industrial controller racks (19‑inch slide‑in)

Analog input/output modules requiring dual‑polarity power rails

Sensor signal conditioning with symmetrical power requirements

Legacy automation system maintenance for discontinued SICOMP installations (product‑class D – engineered‑to‑order, non‑returnable, custom delivery)

Industrial control cabinets with modular plug‑in subrack architecture and IP20 front‑panel protection (from third‑party data)

Features

Offline power supply with universal input: 94 – 264 V AC (50/60 Hz) for global use

Dual symmetrical DC outputs: +15 V DC and –15 V DC, 1.5 A total current

19‑inch modular design: Slide‑in unit with individual locking for DIN subracks

Short‑circuit proof & idle‑proof output stage: Continuous protection without damage

Galvanic isolation to SELV per EN 60950, test voltage 2.5 kV AC

Efficiency of 80 % – moderate power loss for nominal output operation

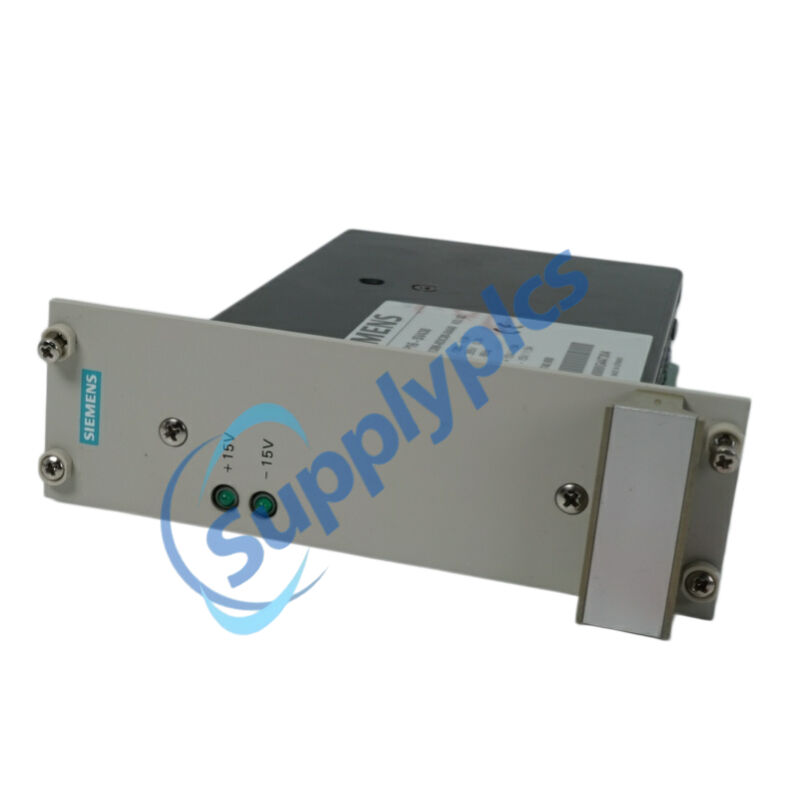

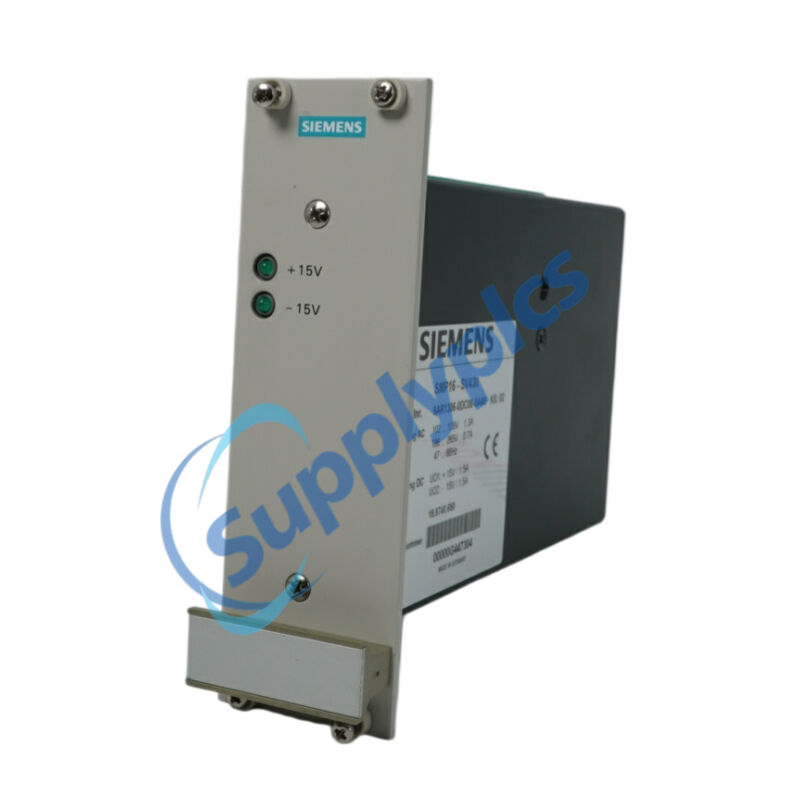

LED status indicator for operation monitoring

Low‑noise and low‑ripple design for sensitive analog loads

Soft‑start with no output overswing at switch‑on

Functions

Converts AC line power (94–264 V, 50/60 Hz) into regulated low‑voltage DC, providing an isolated +15 V and –15 V output at a total of 1.5 A.

Safely powers analog components including input/output modules, PLC cards, and sensor interfaces that require symmetrical ±15 V DC rails.

Provides overload protection with continuous short‑circuit and idle‑proof characteristics, automatically recovering after fault removal without damage to the module.

Ensures reliable start‑up performance by incorporating a soft‑start function that prevents output voltage overshoot when the module is switched on.

Facilitates rack‑based system integration as a plug‑in module conforming to DIN 41494 / IEC 60297 (19‑inch subrack format) with individual locking mechanism.

FAQ

Q1: What is the Siemens 6AR1306-0DC00-0AA0 used for?
A1: The Siemens 6AR1306-0DC00-0AA0 is a SICOMP SMP16‑SV430 power supply module providing ±15 V DC for industrial control systems and analog I/O modules.

Q2: What are the output specifications of the 6AR1306-0DC00-0AA0?
A2: The 6AR1306-0DC00-0AA0 delivers dual outputs: +15 V DC and –15 V DC, with a combined current capacity of 1.5 A.

Q3: Is the 6AR1306-0DC00-0AA0 still available from Siemens?
A3: No. Siemens has discontinued the 6AR1306-0DC00-0AA0 and offers no direct replacement product. It remains available for legacy system support through third‑party automation suppliers.

Q4: What input voltage range does the 6AR1306-0DC00-0AA0 support?
A4: The 6AR1306-0DC00-0AA0 accepts a wide AC input range from 94 V to 264 V (nominal 120 V or 230 V) at 50 or 60 Hz, making it suitable for global applications.

Q5: How should the 6AR1306-0DC00-0AA0 be installed in a control cabinet?
A5: The 6AR1306-0DC00-0AA0 is a plug‑in slide‑in module for a 19‑inch subrack (DIN 41494 compliant). Vertical mounting is required for sufficient cooling and proper convection airflow.
