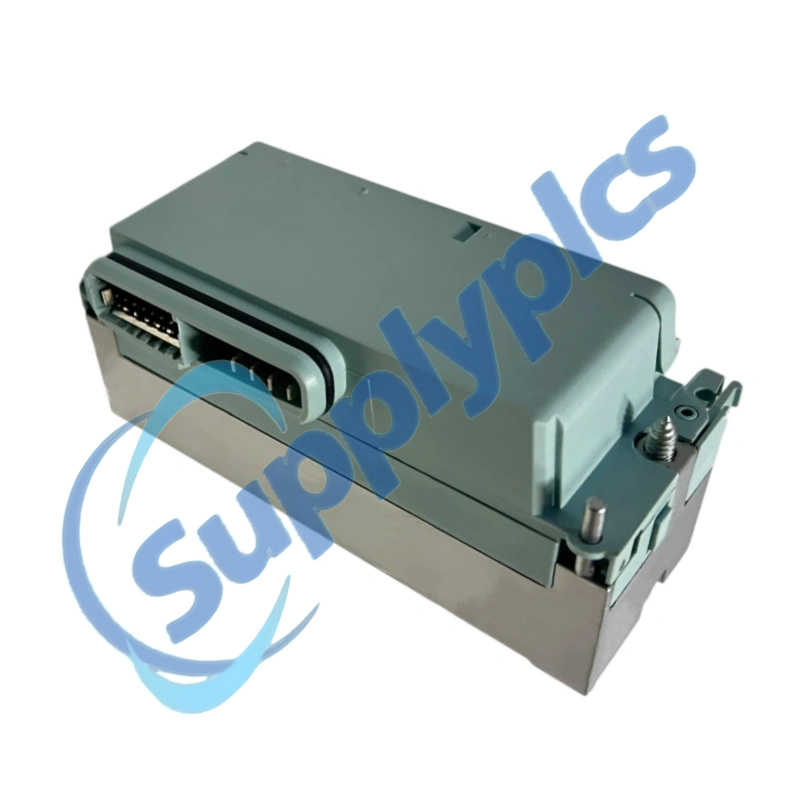

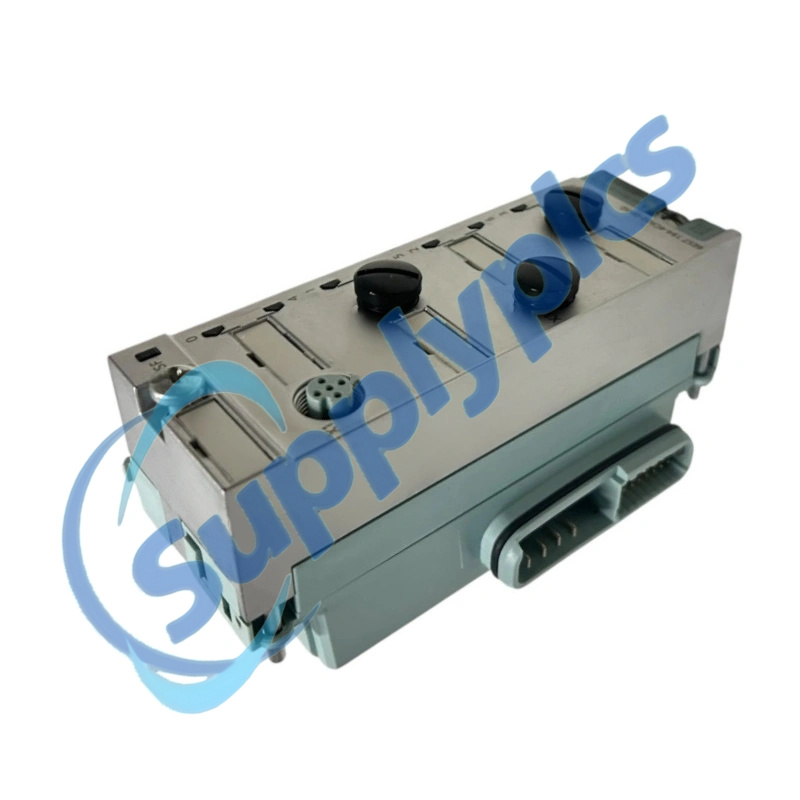

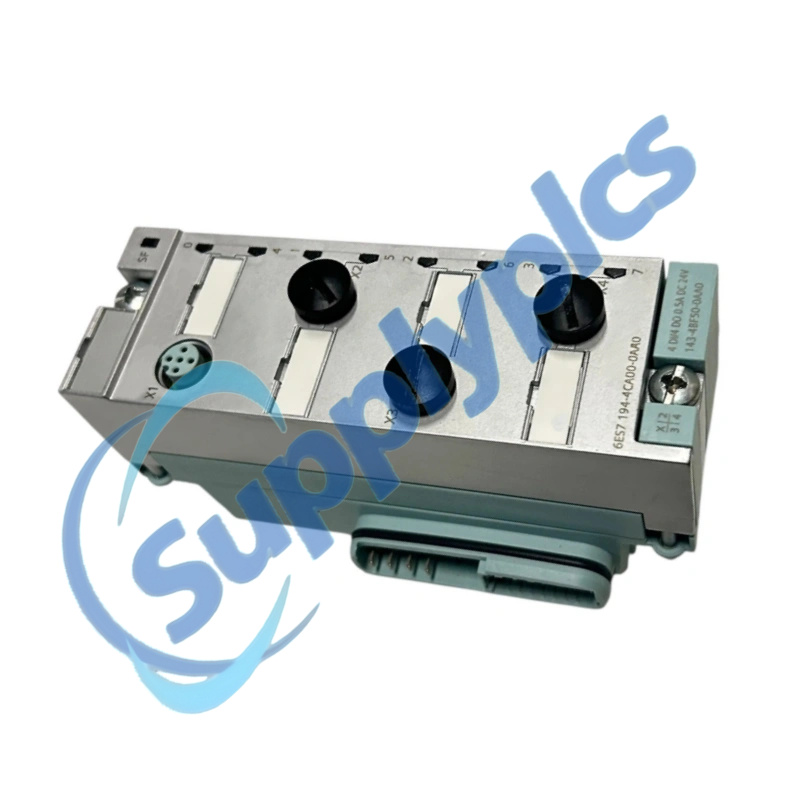

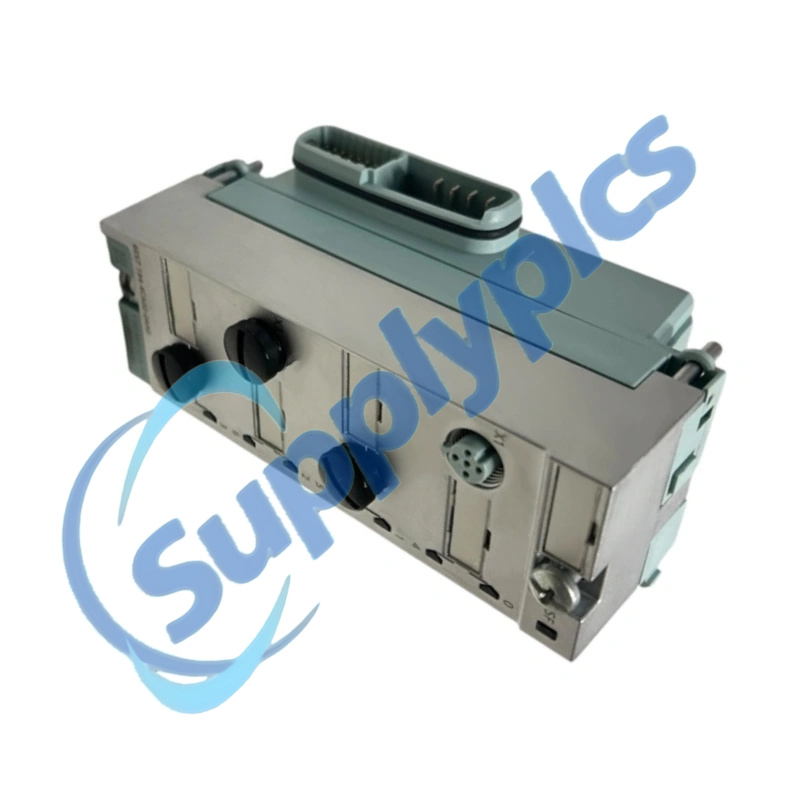

Product Name: SIMATIC DP ET 200 PRO 4DI/4DO 24VDC Electronic Module
Brand Name: Siemens
Model Number: 6ES7143-4BF50-0AA0
Place of Origin: Germany
Warranty: 12 Months
Whatsapp：+86 18020776782
Email：[email protected]
| Product Name | Siemens 6ES7143-4BF50-0AA0 SIMATIC DP ET 200 PRO 4DI/4DO 24VDC Electronic Module |
| Manufacturer | Siemens |
| Product Type | SIMATIC DP ET 200 PRO 4DI/4DO 24VDC Electronic Module |
| Part Number | 6ES7143-4BF50-0AA0 |
| Place of shipment | Xiamen, China |
| Country of origin | Germany |
| Digital Inputs | 4 × 24 V DC |
| Digital Outputs | 4 × 24 V DC, 0.5 A |
| Supply Voltage | 24 V DC |
| Load Voltage (2L+) | 24 V DC |
| Reverse Polarity Protection | Yes |
| Short-circuit Protection | Yes (Load voltage and electronic output protection) |
| Input Current (2L+) | Max. 20 mA |
| Backplane Bus Supply | 3.3 V DC |
| Backplane Bus Current | Max. 20 mA |
| Sensor Supply Output Current | Max. 1 A (up to 55 °C) |
| Typical Power Loss | 2 W |
| Input Characteristic | IEC 61131-2 Type 3 |
| Input Voltage (Signal "0") | -3 to +5 V |
| Input Voltage (Signal "1") | +11 to +30 V |
| Input Current (Signal "1") | Typical 7 mA |
| Input Delay | Max. 3 ms ("0"→"1" and "1"→"0") |
| Maximum Input Cable Length | 30 m (unshielded) |
| Output Type | Electronic Digital Output |
| Output Current | 0.5 A per channel |
| Residual Output Current | Max. 0.5 mA |
| Output Short-circuit Protection | Electronic, per channel |
| Short-circuit Response Threshold | Typical 0.7 A |
| Inductive Shutdown Voltage Limitation | Typical (2L+) −47 V |
| Lamp Load | Max. 5 W |
| Load Resistance | 48 Ω to 4 kΩ |
| Maximum Switching Frequency (Resistive Load) | 100 Hz |
| Maximum Switching Frequency (Inductive Load) | 0.5 Hz |
| Maximum Switching Frequency (Lamp Load) | 1 Hz |
| Total Output Current | Max. 2 A (all mounting positions, up to 55 °C) |
| Maximum Output Cable Length | 30 m (unshielded) |
| Supported Sensor Type | 2-wire sensor |
| Maximum Quiescent Current (2-wire Sensor) | 1.5 mA |
| Diagnostics Function | Yes |
| Diagnostic Alarm | Yes |
| LED Indicators | Green input status LEDs, Green output status LEDs |
| Dielectric Test Voltage | 707 V DC (type test) |
|
Minimum Order Quantity |
1 Piece |
|
Price |
Contact for Jim |
|
Packaging Details |
Original new Factory Sealed |
|
Delivery Time |
3–7 Days |
|
Payment Terms |
T/T |
|
Shipping Method |
DHL / FedEx / UPS / TNT |
|
Supply Ability |
In stock |
|
Sales |
|
Phone/Whatsapp |
|
Jim Pei |
Integrated Digital I/O Functionality
Combines four digital inputs and four digital outputs within a single module, reducing installation space and simplifying distributed I/O system design for industrial automation applications.
Comprehensive Diagnostic Capability
Built-in diagnostics and diagnostic alarms enable rapid fault identification, minimizing troubleshooting time and improving overall system availability.
Reliable Electronic Protection
Incorporates reverse polarity protection, electronic short-circuit protection, and overload protection to enhance operational reliability and safeguard connected field devices.
Efficient Distributed Automation Integration
Designed specifically for the SIMATIC ET 200 PRO platform, allowing seamless integration into distributed I/O systems while supporting efficient commissioning and maintenance.
Stable Industrial Signal Processing
Provides reliable acquisition of digital input signals and precise output control, ensuring consistent performance in demanding industrial operating environments.
Ideal for Machine and Process Control
Well suited for factory automation, packaging machinery, conveyor systems, material handling equipment, assembly lines, and other distributed industrial control applications.
Q1: What is the 6ES7143-4BF50-0AA0 used for?
A: The 6ES7143-4BF50-0AA0 is a distributed digital I/O electronic module used to acquire input signals and control output devices within SIMATIC ET 200 PRO automation systems.
Q2: How many input and output channels does the 6ES7143-4BF50-0AA0 provide?
A: The 6ES7143-4BF50-0AA0 provides four digital input channels and four digital output channels for reliable field-level control and signal acquisition.
Q3: Does the 6ES7143-4BF50-0AA0 support diagnostic functions?
A: Yes. The 6ES7143-4BF50-0AA0 includes integrated diagnostics and diagnostic alarm capabilities to simplify fault detection and maintenance.
Q4: Does the 6ES7143-4BF50-0AA0 include output protection?
A: Yes. The 6ES7143-4BF50-0AA0 features electronic short-circuit protection, reverse polarity protection, and output protection to improve operational safety and system reliability.
Q5: Is the 6ES7143-4BF50-0AA0 compatible with SIMATIC ET 200 PRO systems?
A: Yes. The 6ES7143-4BF50-0AA0 is specifically designed for seamless integration with SIMATIC ET 200 PRO distributed I/O platforms.
Q6: Which industrial applications are suitable for the 6ES7143-4BF50-0AA0?
A: The 6ES7143-4BF50-0AA0 is widely used in factory automation, packaging equipment, conveyor systems, assembly machinery, material handling, and other industrial applications requiring reliable distributed digital I/O control.
