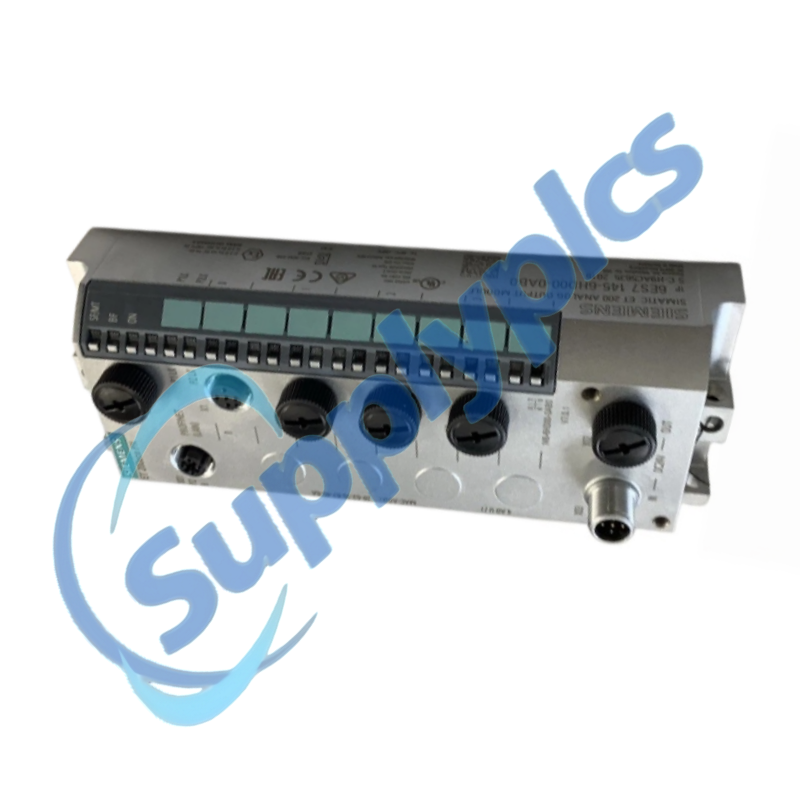

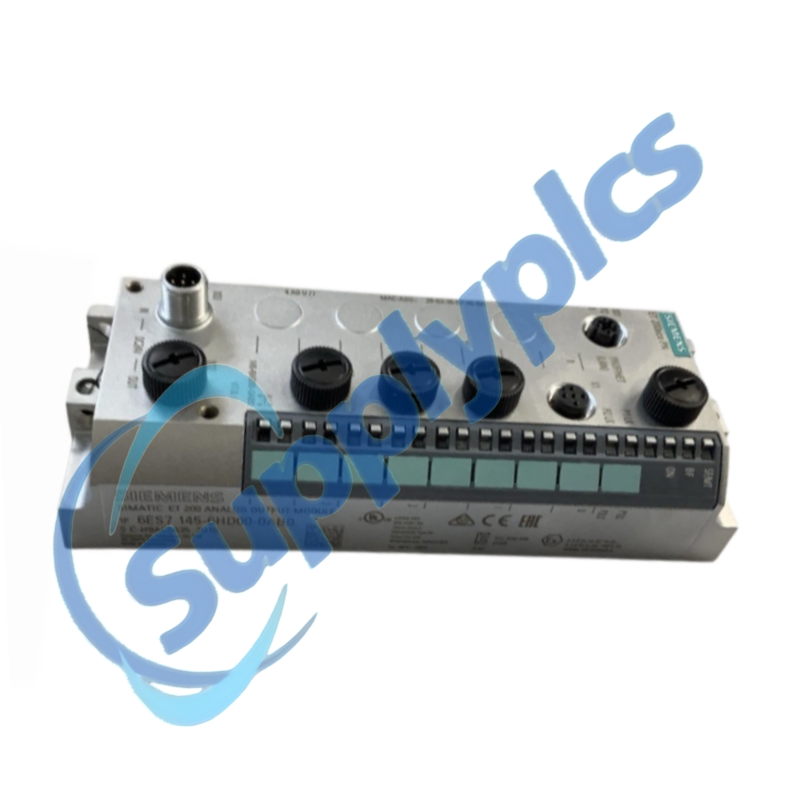

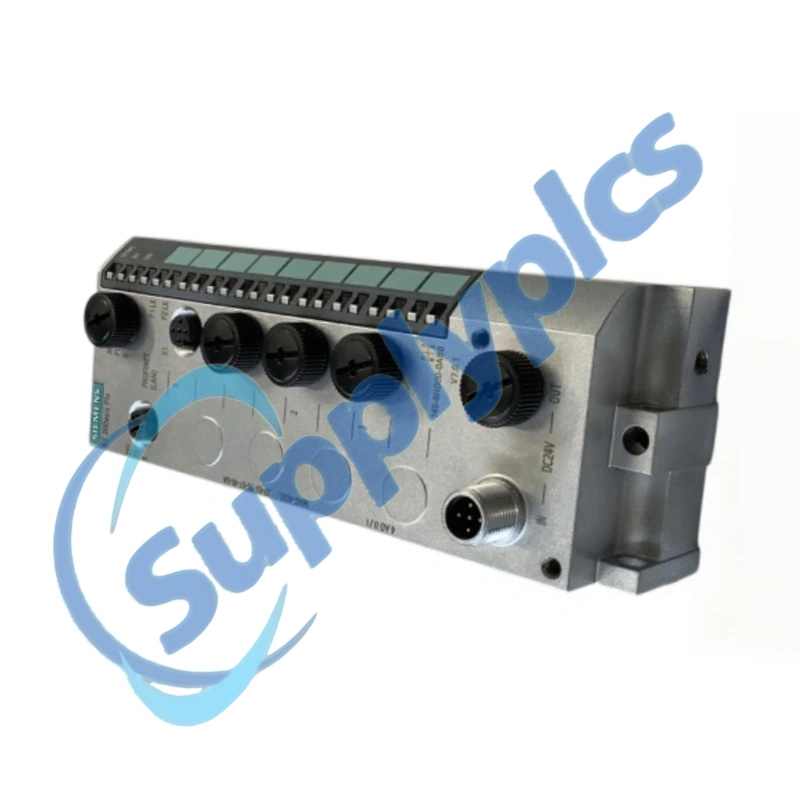

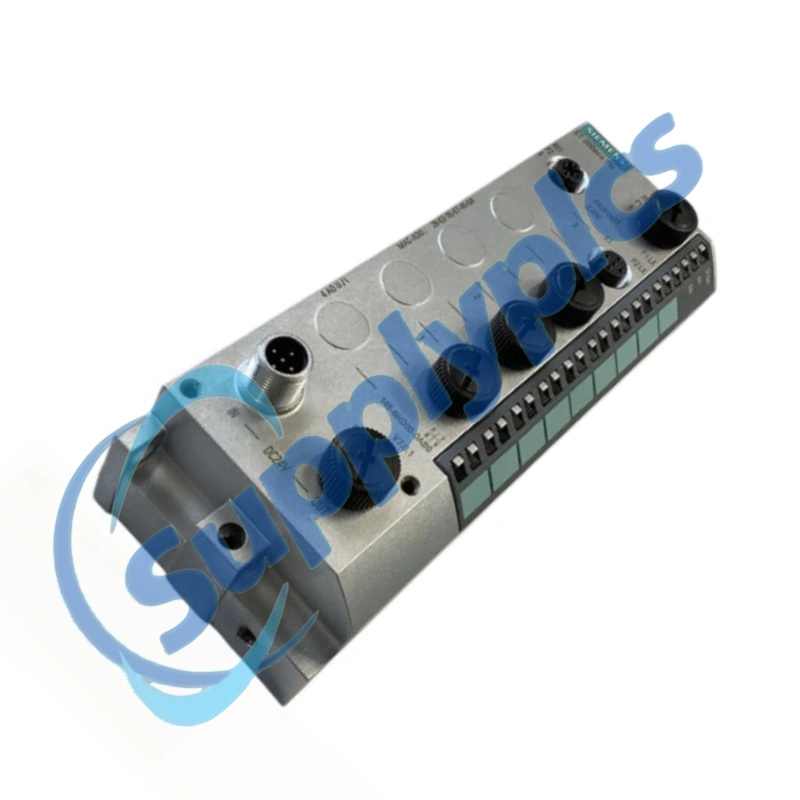

Siemens 6ES7145-6HD00-0AB0 SIMATIC ET 200eco PN Distributed Analog Output Module

Siemens 6ES7145-6HD00-0AB0 SIMATIC ET 200eco PN Distributed Analog Output Module

Product Name: SIMATIC ET 200eco PN Distributed Analog Output Module

Brand Name: Siemens

Model Number: 6ES7145-6HD00-0AB0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

siemens 6es7145 6hd00 0ab0 simatic et 200eco pn distributed analog output module-1

Overview
Specifications
Commercial Terms
Contact Us
Advantages
FAQ
Why Choose Us
Major Business
Recommended Products

Overview

The Siemens 6ES7145-6HD00-0AB0 SIMATIC ET 200eco PN Distributed Analog Output Module is a high-performance distributed analog output module designed for SIMATIC ET 200eco PN PROFINET I/O systems. It features four analog output channels, PROFINET communication at up to 100 Mbit/s, 16-bit output resolution, multiple voltage and current output ranges, and IP65/IP67 protection for reliable field-level operation. Designed to deliver precise analog signal output and seamless distributed automation, the module enhances process accuracy, simplifies field installation, and improves overall system reliability. Its compatibility with SIMATIC ET 200eco PN systems makes it an ideal solution for process automation, manufacturing, machine control, and industrial distributed I/O applications.

Specifications

Product Name	Siemens 6ES7145-6HD00-0AB0 SIMATIC ET 200eco PN Distributed Analog Output Module
Manufacturer	Siemens
Product Type	SIMATIC ET 200eco PN Analog Output Module
Part Number	6ES7145-6HD00-0AB0
Place of shipment	Xiamen, China
Country of origin	Germany
Product Type	Distributed Analog Output Module
Number of Analog Outputs	4
Connector Type	4 × M12 circular connectors (4/5-pin)
Rated Supply Voltage	24 VDC
Reverse Polarity Protection	Yes
NEC Requirement	Class 2 power supply required
Typical Current Consumption	280 mA
Actuator Outputs	4
Maximum Output Current	1 A
Short-Circuit Protection	Electronic, 1.4 A
Typical Power Loss	5.5 W
Voltage Output Ranges	0–10 V, 1–5 V, -10 to +10 V
Current Output Ranges	0–20 mA, 4–20 mA, -20 to +20 mA
Voltage Output Short-Circuit Protection	Yes
Voltage Output Short-Circuit Current	30 mA max.
Current Output No-Load Voltage	20 V max.
Voltage Output Load Impedance	≥ 1 kΩ
Voltage Output Capacitive Load	≤ 1 µF
Current Output Load Impedance	≤ 600 Ω
Current Output Inductive Load	≤ 1 mH
Maximum External Output Voltage	28.8 V continuous, 35 V for max. 500 ms
Maximum Shielded Cable Length	30 m
Analog Value Format	SIMATIC S7 format
Conversion Principle	Resistor network
Resolution	16-bit (including sign, with overrange)
Conversion Time	1 ms per channel
Output Ripple	Voltage: ±0.6 mVrms; Current: ±0.4 nArms
Linearity Error	±0.02%
Temperature Error	Voltage: ±0.001%/°C; Current: ±0.0025%/°C
Crosstalk	≥ 70 dB
Repeat Accuracy	±0.008% at 25 °C
Communication Standard	PROFINET
Transmission Method	100BASE-TX
Number of PROFINET Interfaces	1
Network Port	M12
Maximum Transmission Rate	100 Mbit/s
Permissible Potential Difference	10 Vpp AC
Isolation Test Voltage (24 V Circuits)	707 VDC
Interface Isolation Test Voltage	1500 Vrms (IEEE 802.3)
Protection Rating	IP65/IP67
Electrical Connection	4/5-pin M12 circular connectors

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Contact Us

Sales	Email	Phone/Whatsapp
Jim Pei	[email protected]	+86 18020776782

Advantages

High-Precision Analog Output
Provides four high-resolution analog output channels for accurate control of industrial actuators, drives, valves, and other analog field devices.

Flexible Output Signal Configuration
Supports multiple voltage and current output ranges, allowing easy adaptation to a wide variety of industrial control and process automation requirements.

Reliable PROFINET Communication
Integrates seamlessly into PROFINET networks, enabling efficient real-time communication and dependable data exchange within distributed automation systems.

Industrial-Grade Field Protection
Features an IP65/IP67-rated enclosure together with electronic short-circuit protection, ensuring reliable operation in harsh industrial environments.

Fast Response and Stable Performance
Offers rapid signal conversion with excellent linearity and repeatability, helping maintain precise process control and consistent system performance.

Ideal for Distributed Automation
Well suited for process automation, manufacturing, packaging equipment, water treatment, machine control, and other industrial applications requiring reliable distributed analog output control.
