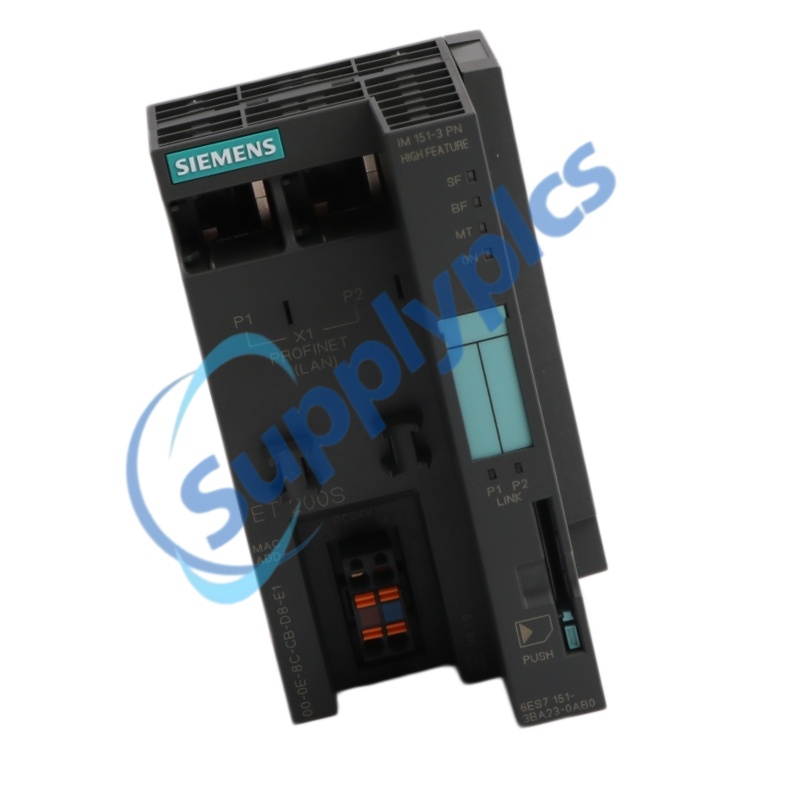

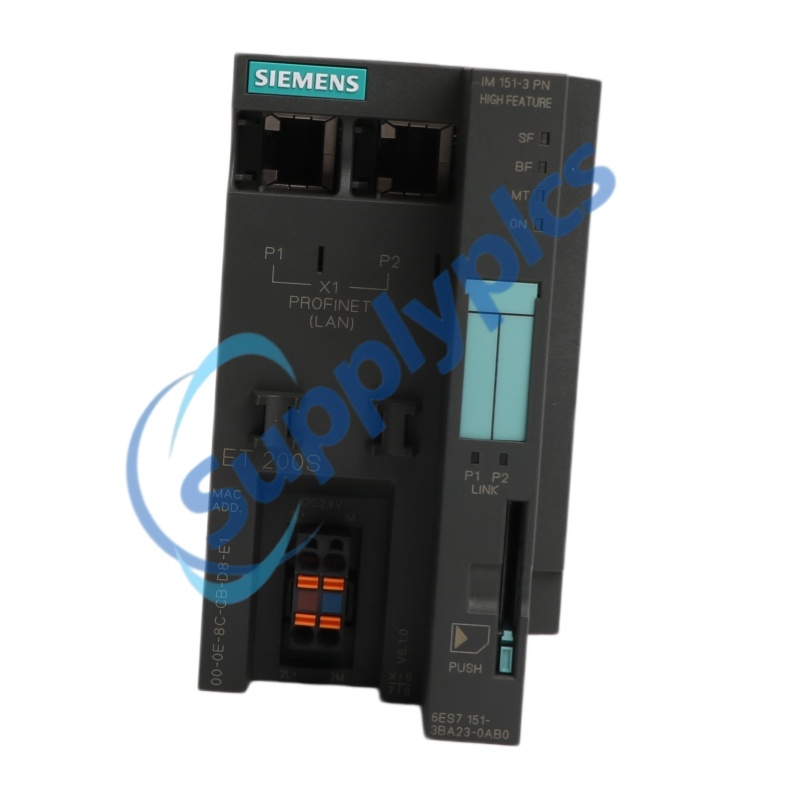

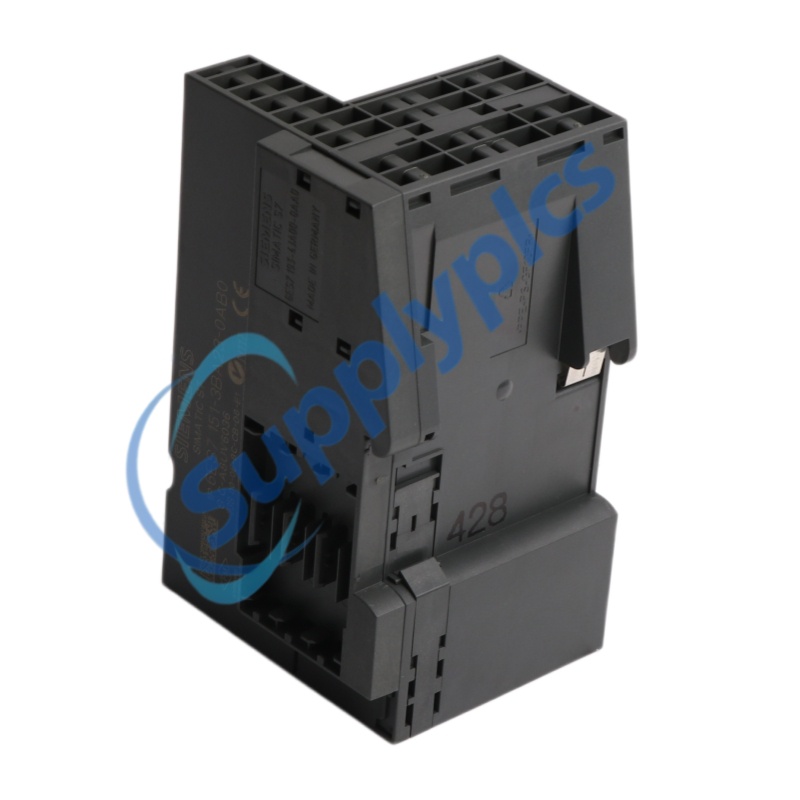

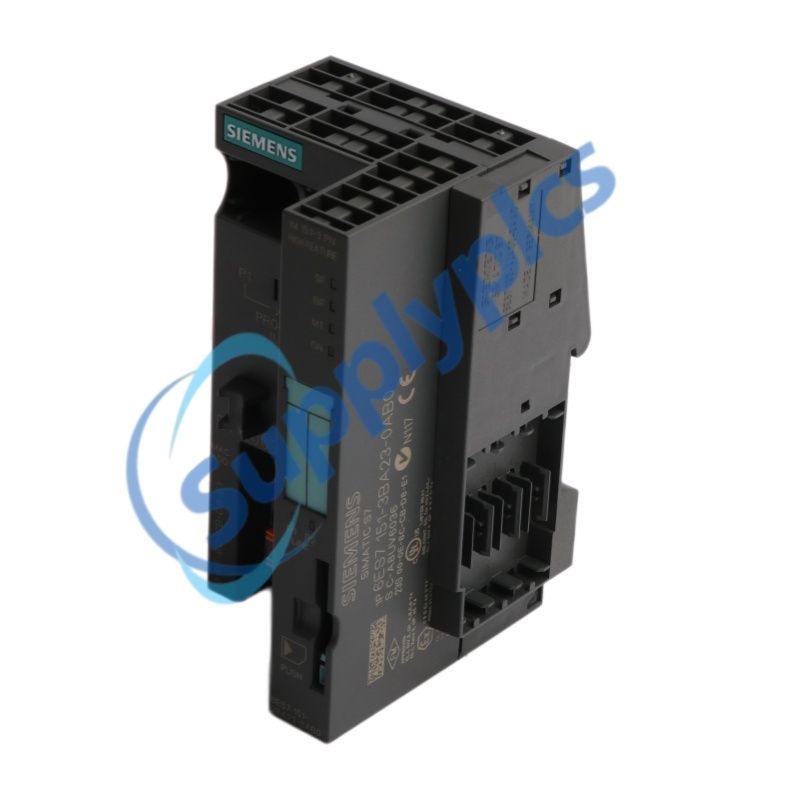

Siemens 6ES7151-3BA23-0AB0 ET 200S distributed I/O Interface module In stock

Siemens 6ES7151-3BA23-0AB0 ET 200S distributed I/O Interface module In stock

Product Name:ET 200S distributed I/O Interface module

Brand Name:Siemens

Model Number:6ES7151-3BA23-0AB0

Country of Origin:Germany

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7151-3BA23-0AB0
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Details
Product Model	6ES7151-3BA23-0AB0
Product Type	IM 151-3 PN HF Interface Module
System	SIMATIC ET 200S
Communication Protocol	PROFINET IO
Transmission Rate	up to 100 Mbit/s
I/O Capacity	up to 63 I/O modules
Interface	2 × RJ45 Ethernet ports
Power Supply	24 V DC
Power Loss	approx. 3.3 W
Input Current	max. 200 mA
Address Area	256 bytes input / 256 bytes output
Operating Temperature	0 °C to +60 °C
Dimension (W×H×D)	60 × 119.5 × 75 mm
Weight	approx. 150 g
Protection Features	MRP, IRT, diagnostics support

Description

The 6ES7151-3BA23-0AB0 is a high-feature SIMATIC DP interface module IM 151-3 PN HF designed for ET 200S distributed I/O systems, enabling fast and reliable PROFINET communication at up to 100 Mbit/s. It supports the connection of up to 63 I/O modules, providing flexible scalability for complex industrial automation architectures.

The 6ES7151-3BA23-0AB0 features dual RJ45 Ethernet ports with integrated switching capability, ensuring efficient network topology and simplified wiring. Advanced functions such as IRT, MRP media redundancy, and prioritized startup guarantee stable real-time data transmission in demanding environments.

With robust diagnostics, compact design, and high system availability, the 6ES7151-3BA23-0AB0 is ideal for modern distributed control systems requiring precision, scalability, and seamless PROFINET integration.

Applications

Power plants: Used for generator set status monitoring and relay protection.
Substations: Enable bus differential control, line protection, and switchyard signal acquisition.
Chemical plants: Integrate process automation and intrinsically safe signal monitoring systems.
Steel mills (metallurgical plants): Support control operations in high temperature and strong electromagnetic environments.
Machinery manufacturing plants: Used for automated production lines, robotics, and packaging control systems.

Features

High-feature PROFINET IO interface module for ET 200S
Dual RJ45 ports with integrated switch function
Supports up to 63 distributed I/O modules
Media redundancy (MRP) for enhanced network stability
Prioritized startup for fast system recovery
Advanced LED-based diagnostics and fault indication

Functions

Real-time PROFINET IO communication control
Distributed I/O system expansion management
Network redundancy and failover handling
System diagnostics and error monitoring
Module configuration and startup synchronization
High-speed data exchange between controllers and field devices

FAQ

Q1: What is the 6ES7151-3BA23-0AB0 used for?
A1: It is a PROFINET interface module for ET 200S distributed I/O systems.

Q2: How many I/O modules can it support?
A2: It can connect up to 63 I/O modules.

Q3: Does it support redundancy features?
A3: Yes, it supports media redundancy (MRP) for improved network reliability.

Q4: What is the communication speed?
A4: It supports PROFINET communication up to 100 Mbit/s.

Q5: What type of interfaces are included?
A5: It includes two RJ45 Ethernet ports with integrated switching.
