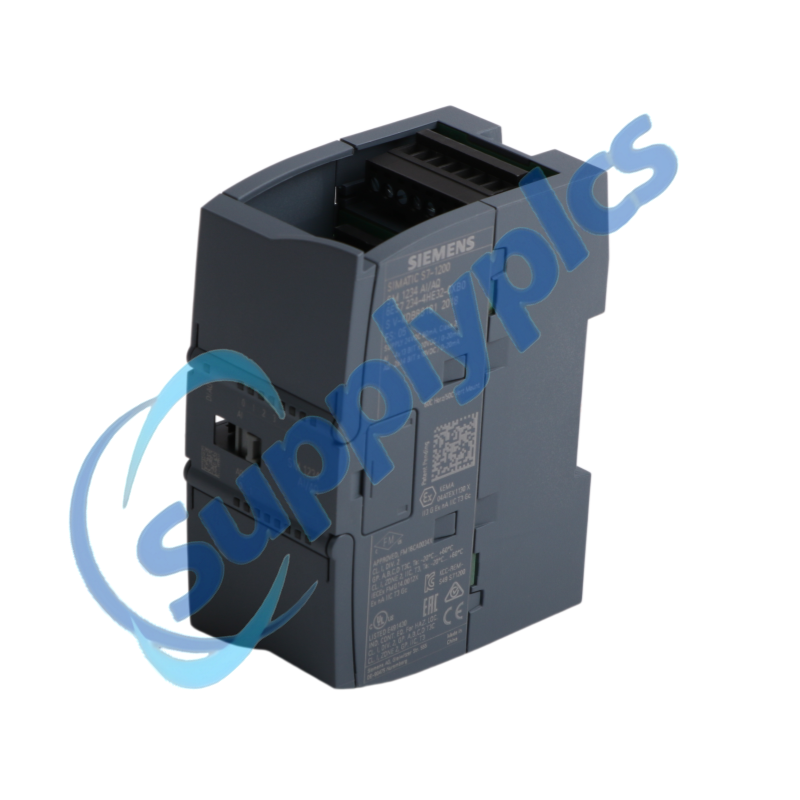

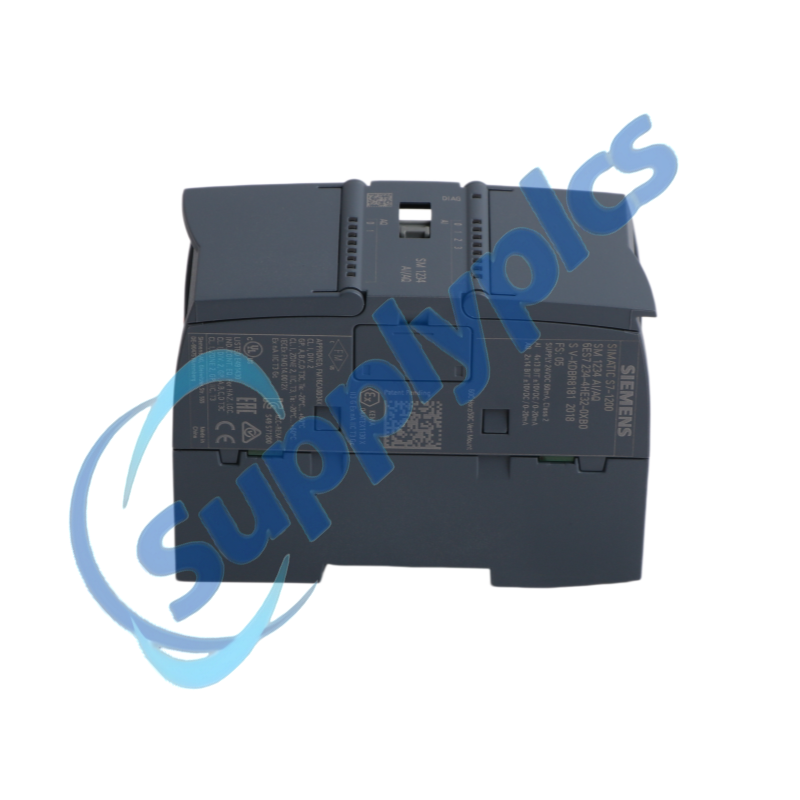

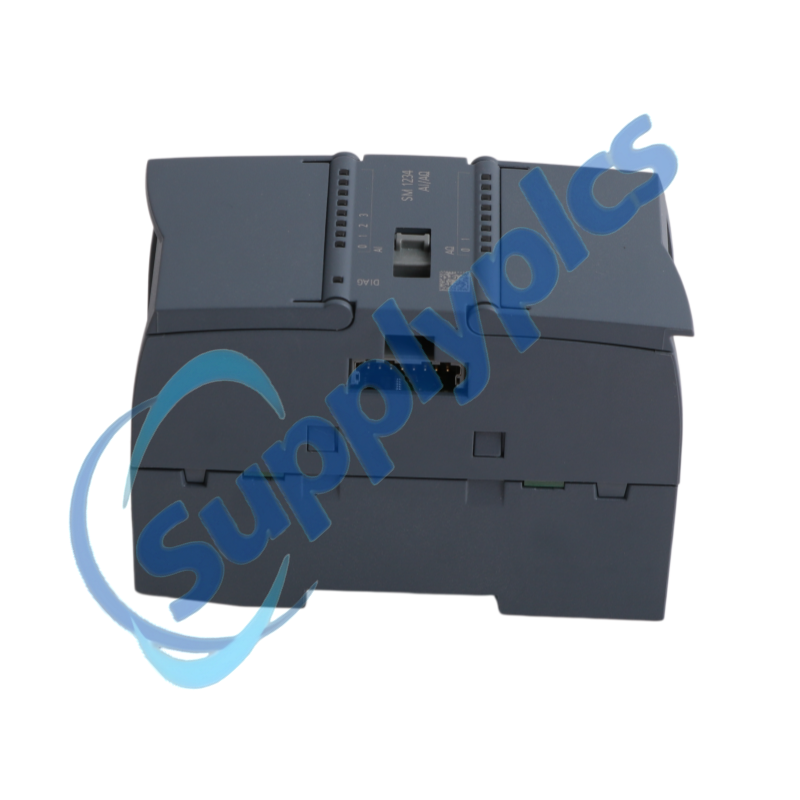

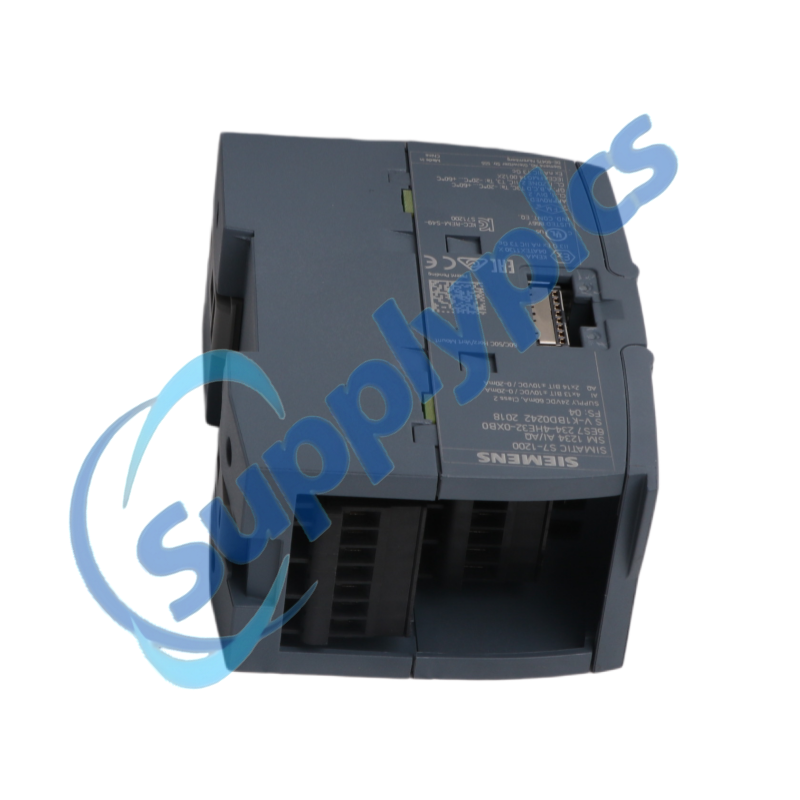

Siemens 6ES7234-4HE32-0XB0 SM 1234 Analog I/O Module

Siemens 6ES7234-4HE32-0XB0 SM 1234 Analog I/O Module

Product Name: SM 1234 Analog I/O Module

Brand Name: Siemens

Model Number: 6ES7234-4HE32-0XB0

Place of Origin: Germany

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

Overview
Functions
Features
Contact Info
Commercial Terms
Parameter
Application Scenarios
Operating Environment
Recommended Products

Overview

The Siemens 6ES7234-4HE32-0XB0 is a compact and high-precision analog I/O expansion module designed for Siemens SIMATIC S7-1200 PLC systems. The module integrates 4 differential analog inputs and 2 analog outputs, supporting both voltage and current signal processing for industrial automation and process control applications.

With high-resolution analog conversion, fast cycle times, and comprehensive diagnostic functions, the SM 1234 module provides accurate signal acquisition and reliable analog control in demanding industrial environments. Its flexible configuration options make it suitable for a wide range of measurement and control tasks.

Functions

Provides 4 differential analog input channels for voltage and current signal acquisition.
Provides 2 configurable analog output channels for voltage or current control signals.
Supports industrial analog measurements such as temperature, pressure, flow, and level monitoring.
Converts analog process signals into digital PLC data with high precision.
Outputs precise analog control signals to actuators, drives, valves, and process equipment.
Performs continuous diagnostics including wire-break and short-circuit detection.
Generates diagnostic alarms for rapid fault identification and maintenance.
Expands the analog processing capability of Siemens SIMATIC S7-1200 controllers.

Features

Integrated 4 analog inputs and 2 analog outputs in one compact module.
Differential analog inputs for enhanced noise immunity and measurement accuracy.
Input resolution:12-bit + sign (13-bit total)
Output resolution:
- Voltage output: 14-bit
- Current output: 13-bit
Supported analog input voltage ranges:
- ±10 V
- ±5 V
- ±2.5 V
Supported analog input current ranges: 0–20 mA; 4–20 mA
Supported analog output ranges:
- Voltage: -10 V to +10 V
- Current: 0–20 mA and 4–20 mA
Fast processing cycle time: 625 μs for all channels
Maximum voltage input: 35 V
Maximum current input: 40 mA
Input resistance:
- ≥9 MΩ for voltage inputs
- 280 Ω for current inputs
Output load impedance:
- Voltage output: ≥1,000 Ω
- Current output: ≤600 Ω
Comprehensive diagnostics:
- Supply voltage monitoring
- Wire-break detection
- Short-circuit detection
- Diagnostic alarm generation
LED indicators for input status, output status, and maintenance alerts.
Rated supply voltage: 24 V DC.
Typical power loss: 2 W.
Current consumption: 60 mA from 24 V DC; 80 mA from 5 V DC backplane
Manufactured in Germany for reliable industrial operation.

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Parameter

Product Name	Siemens 6ES7234-4HE32-0XB0 SM 1234 Analog I/O Module
Manufacturer	Siemens
Product Type	SM 1234 Analog I/O Module
Part Number	6ES7234-4HE32-0XB0
Estimated shipping dimensions	4.5x7.4x10cm
Weight	0.16kg
Place of shipment	Xiamen, China
Country of origin	Germany
Analog Inputs	4 (current or voltage differential)
Analog Outputs	2 (current or voltage)
Input Resolution	12 bit + sign (13-bit total)
Output Resolution	Voltage: 14 bit; Current: 13 bit
Input Voltage Ranges	±10V, ±5V, ±2.5V
Input Current Ranges	0-20mA, 4-20mA
Output Voltage Range	-10V to +10V
Output Current Ranges	0-20mA, 4-20mA
Input Destruction Limit	35V max, 40mA max
Input Resistance (voltage)	≥9 MOhm
Input Resistance (current)	280 Ω
Load Impedance (voltage out)	≥1,000 Ω
Load Impedance (current out)	≤600 Ω
Cycle Time (all channels)	625 μs
Supply Voltage	24V DC (rated)
Power Loss	2 W typ.
Current Consumption	60 mA (24V), 80 mA (5V backplane)

Application Scenarios

The Siemens 6ES7234-4HE32-0XB0 is widely used in industrial automation and process control systems, including:

Industrial process monitoring and control
Temperature, pressure, flow, and level measurement
Water and wastewater treatment systems
HVAC and environmental control systems
Chemical and pharmaceutical processing
Manufacturing automation and machine control
PID regulation and closed-loop control systems
Analog signal conversion and conditioning
Sensor and actuator interfacing applications
Energy management and utility monitoring systems

Its combination of analog input and output functionality makes it especially suitable for compact systems requiring simultaneous measurement and control operations.

Operating Environment

The Siemens 6ES7234-4HE32-0XB0 is designed for reliable operation in demanding industrial environments. It operates with a rated 24 V DC supply voltage and maintains stable performance with low power loss and efficient heat dissipation. The module supports operating temperatures from -20 °C to +60 °C in horizontal installation and from -20 °C to +50 °C in vertical installation. Storage and transportation temperatures range from -40 °C to +70 °C. Its robust construction, differential input design, and integrated diagnostic functions ensure dependable long-term operation in industrial control cabinets and automation systems exposed to electrical noise and varying environmental conditions.
