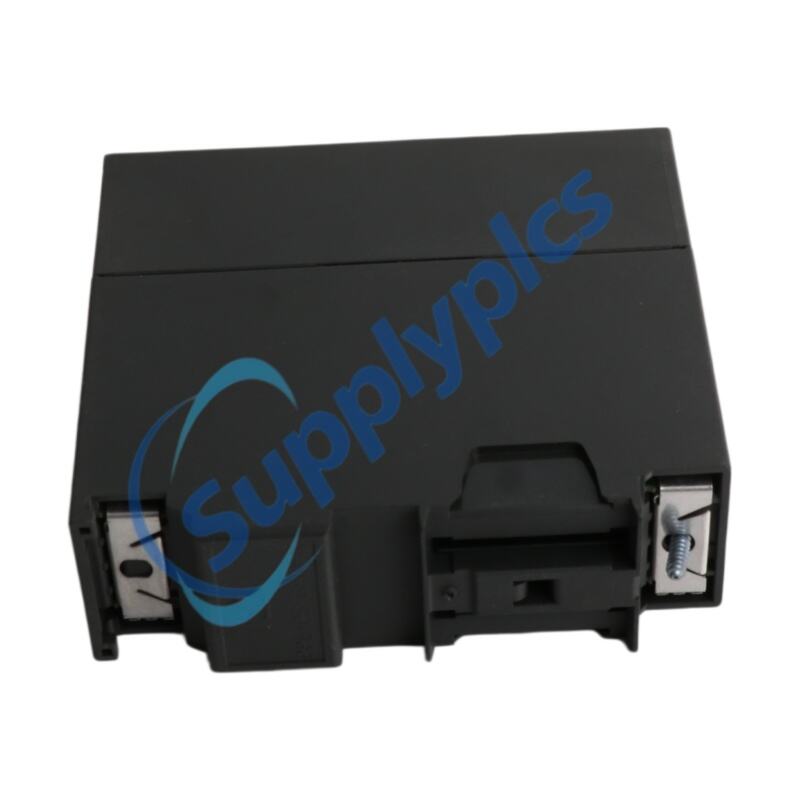

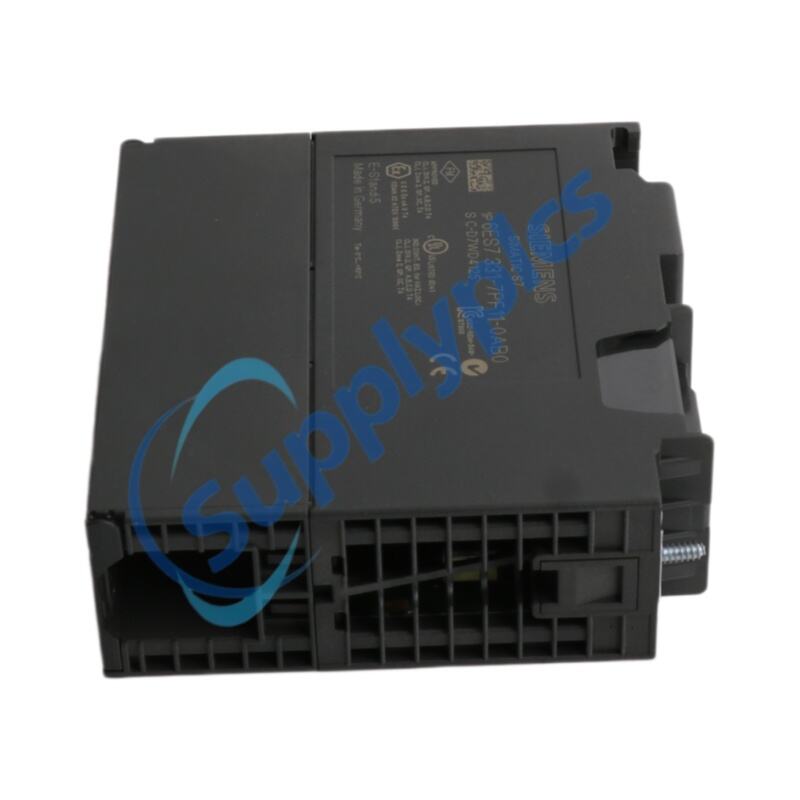

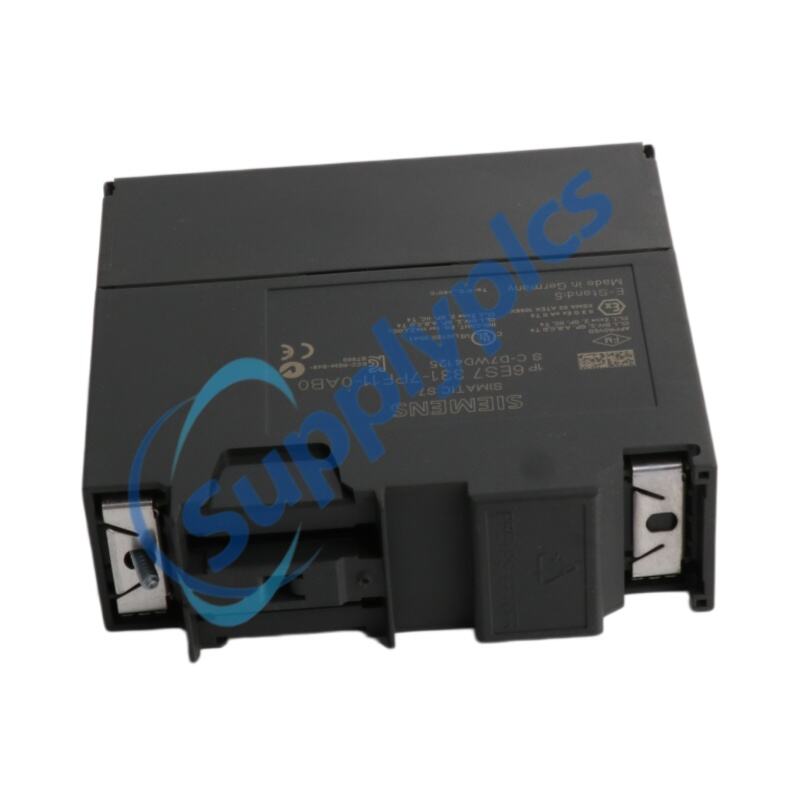

Siemens 6ES7331-7PF11-0AB0 Analog input SM 331 In stock

Siemens 6ES7331-7PF11-0AB0 Analog input SM 331 In stock

Product Name:Analog input SM 331

Brand Name:Siemens

Model Number:6ES7331-7PF11-0AB0

Country of Origin:Germany

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

siemens 6es7331 7pf11 0ab0 analog input sm 331 in stock-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Siemens
Model Number:	6ES7331-7PF11-0AB0
Country of Origin:	Germany
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Specification
Product Model	6ES7331-7PF11-0AB0
Product Type	Analog Input Module (SM 331)
PLC Platform	SIMATIC S7-300
Number of Inputs	8 Isolated Analog Inputs
Supported Sensors	Thermocouples (B, C, E, J, K, L, N, R, S, T, U, TXK/TXK-L)
Resolution	16-bit
Rated Supply Voltage	24 VDC
Input Current from L+	Max. 240 mA
Backplane Bus Current	Max. 100 mA
Power Dissipation	Typical 3 W
Temperature Compensation	Internal and External Supported
Maximum Shielded Cable Length	100 m
Diagnostics	Diagnostic Alarm, Limit Alarm, Hardware Interrupt
Isolation	Channel-to-channel and system isolation
Front Connector	40-pin
Dimensions (W × H × D)	40 × 125 × 120 mm
Weight	Approx. 272 g

Description

The 6ES7331-7PF11-0AB0 is a high-accuracy analog input module from the Siemens SIMATIC S7-300 family, engineered specifically for thermocouple-based temperature measurement applications. Featuring eight isolated input channels, the module supports a wide range of thermocouple types including B, E, J, K, L, N, R, S, T, and TXK/TXK(L), providing exceptional flexibility for industrial process monitoring.

Designed for reliable operation in demanding automation environments, the 6ES7331-7PF11-0AB0 delivers 16-bit resolution and advanced temperature compensation functions to ensure precise data acquisition. Integrated diagnostics, configurable alarms, and channel isolation contribute to enhanced system availability and measurement integrity.

As part of the SIMATIC S7-300 platform, the 6ES7331-7PF11-0AB0 works seamlessly with Siemens controllers and distributed I/O systems, making it an ideal solution for temperature-critical applications in manufacturing, energy, metallurgy, and process industries.

Applications

Power plants: Used for turbine, boiler, and generator temperature monitoring and protection systems.
Substations: Supports thermal monitoring of transformers, switchgear, and auxiliary equipment.
Chemical plants: Enables accurate process temperature measurement and control.
Steel mills: Monitors furnace, rolling mill, and heat-treatment temperatures under harsh conditions.
Machinery manufacturing plants: Provides thermal feedback for automated production equipment and industrial machinery.
Oil & gas facilities: Supports temperature acquisition in refining and pipeline systems.
Water treatment plants: Assists temperature monitoring in treatment and pumping processes.

Features

Supports 8 isolated thermocouple inputs
Compatible with multiple international thermocouple standards
High-resolution 16-bit temperature acquisition
Integrated diagnostic and alarm functions
Parameterizable temperature compensation
Excellent noise immunity and signal stability
Full channel isolation for enhanced reliability

Functions

Acquires temperature signals from thermocouples
Converts analog measurements into PLC process data
Performs internal or external cold-junction compensation
Detects sensor and wiring faults
Generates configurable diagnostic alarms
Supports precise process temperature control
Improves operational safety and measurement accuracy

FAQ

Q1: What is the primary purpose of the 6ES7331-7PF11-0AB0?
A1: It is an analog input module designed for thermocouple temperature measurement in SIMATIC S7-300 systems.

Q2: How many thermocouple channels does the module provide?
A2: The module supports eight isolated thermocouple input channels.

Q3: Which thermocouple types are supported?
A3: It supports B, C, E, J, K, L, N, R, S, T, U, and TXK/TXK(L) thermocouples.

Q4: Does the module offer temperature compensation?
A4: Yes, it supports internal, external Pt100, and compensation socket-based temperature compensation.

Q5: Is the 6ES7331-7PF11-0AB0 suitable for critical industrial applications?
A5: Yes, its high accuracy, isolation, and diagnostic capabilities make it ideal for demanding process industries.
