Model Number
|
6ES7355-1VH10-0AE0
|
|
Load supply voltage
|
24 V DC
|
|
Permissible supply range
|
20.4–28.8 V DC
|
|
Load-supply current without load
|
220 mA typical; 270 mA maximum
|
|
Backplane current at 5 V DC
|
50 mA typical; 75 mA maximum
|
|
Power loss
|
5.5 W typical; 6.9 W maximum
|
|
Closed-loop controllers
|
4
|
|
Analog input channels
|
4 AI
|
|
Digital input channels
|
8 DI
|
|
Digital output channels
|
8 DO
|
|
Digital input signal 0
|
-3 to +5 V
|
|
Digital input signal 1
|
13–30 V
|
|
Digital input current at signal 1
|
7 mA typical
|
|
Digital I/O cable length
|
1000 m shielded; 600 m unshielded maximum
|
|
Lamp switching capacity
|
5 W maximum
|
|
Output load resistance
|
240 Ω–4 kΩ
|
|
Output signal 1 voltage
|
L+ minus 2.5 V minimum
|
|
Output rated current
|
100 mA
|
|
Permissible output current at 0–60 °C
|
5–150 mA
|
|
Residual output current
|
0.5 mA maximum
|
|
Resistive-load switching frequency
|
100 Hz maximum
|
|
Inductive-load switching frequency
|
0.5 Hz maximum
|
|
Group output current up to 60 °C
|
400 mA maximum
|
|
Analog input destruction limits
|
30 V voltage input; 40 mA current input
|
|
Voltage input ranges
|
0–10 V; -1.75 to +11.75 V; ±80 mV
|
|
Voltage input resistance
|
100 kΩ for 0–10 V; 10 MΩ for ±80 mV
|
|
Current input ranges
|
0–20 mA; 0–23.5 mA; -3.5 to +23.5 mA; 4–20 mA
|
|
Current input resistance
|
50 Ω
|
|
Analog input cable length
|
200 m maximum; 50 m for ±80 mV and thermocouples
|
|
Input resolution
|
12 or 14 bit, parameterizable
|
|
Conversion time per channel
|
16.67/20 ms at 12 bit; 100 ms at 14 bit
|
|
Linearity error
|
±0.05% of input range
|
|
Temperature error
|
±0.005%/K of input range
|
|
Common-mode interference suppression
|
70 dB minimum
|
|
Isolation test voltage
|
500 V DC
|
|
Sales
Jim Pei
|
Email
|
Phone/Whatsapp
|

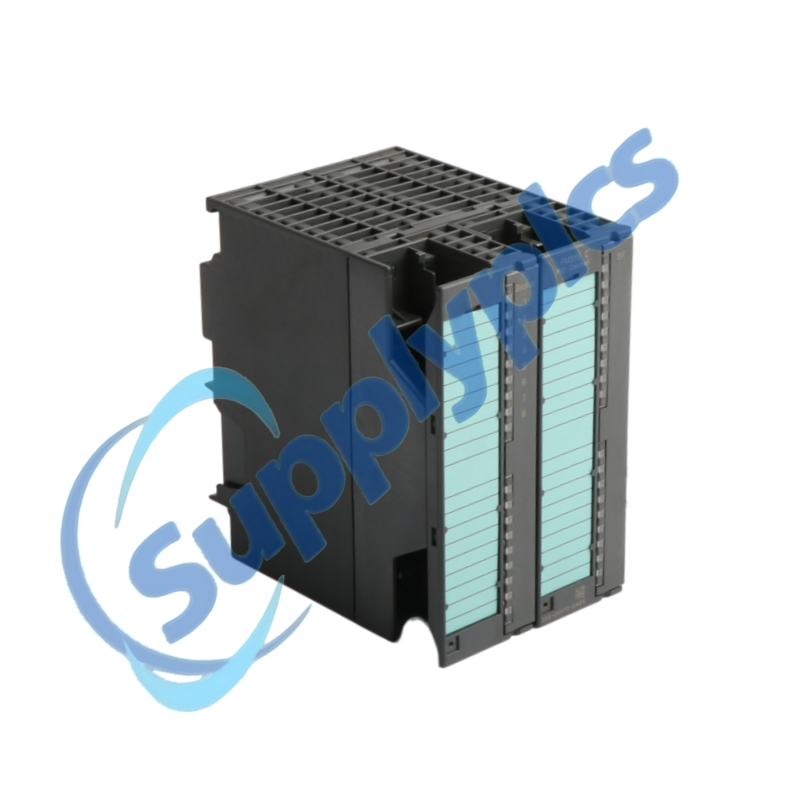

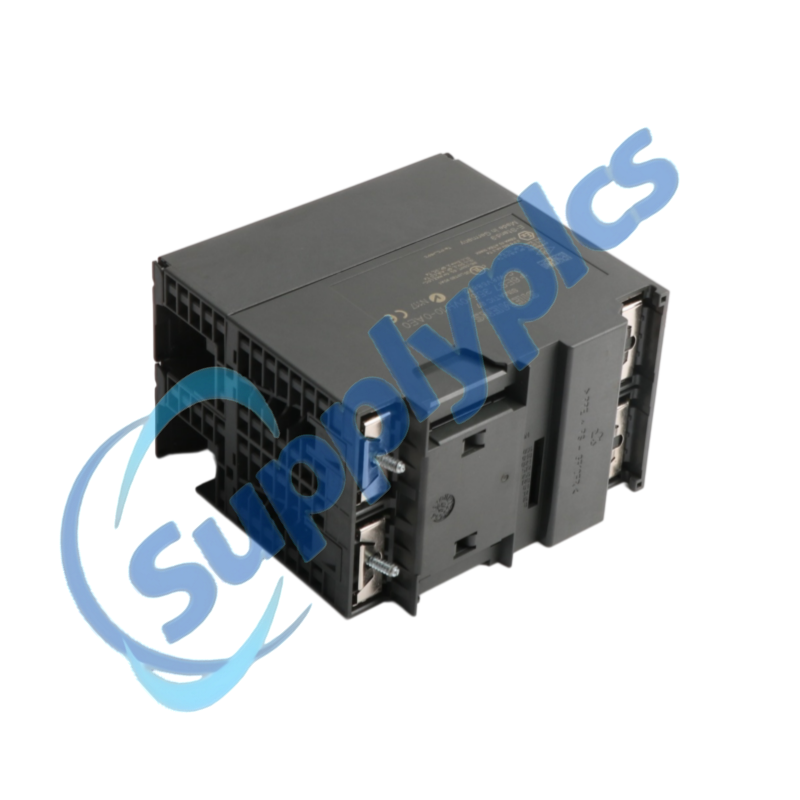

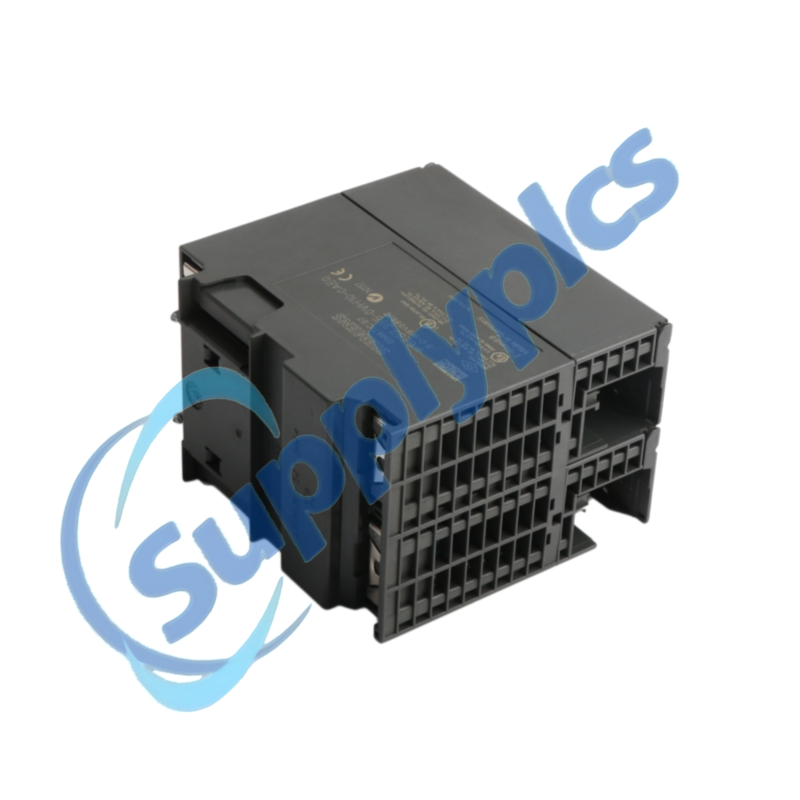

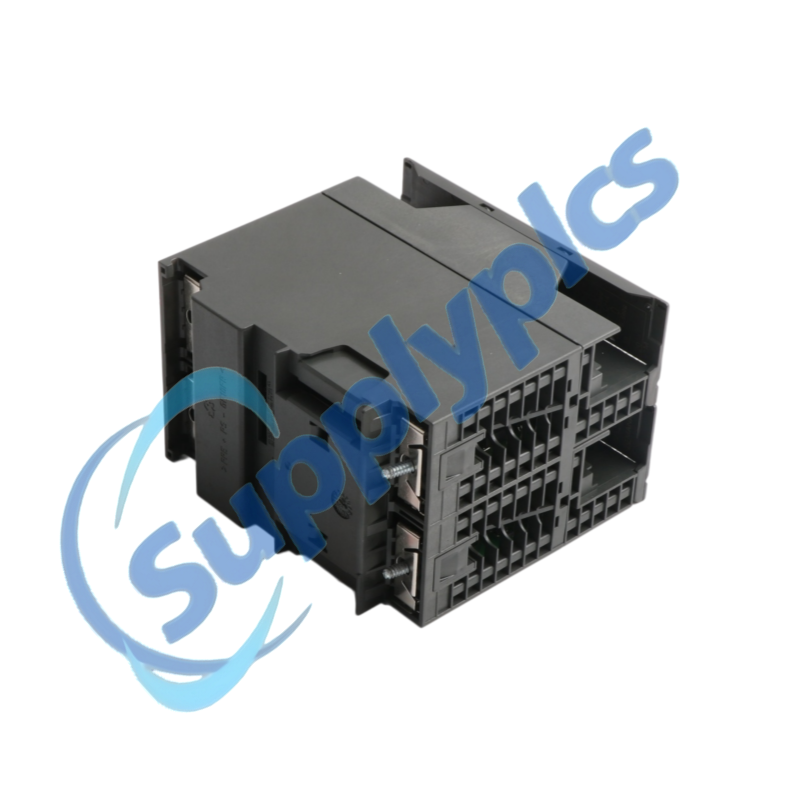

Siemens 6ES7355-1VH10-0AE0 is an FM 355 S control module for SIMATIC S7-300 systems. Four closed-loop controllers are combined with analog measurement inputs and digital process connections. The module is intended for step and pulse control. Its configurable analog inputs accept voltage, current and supported temperature sensors. This configuration integrates the measurement and switching signals needed by the control task.
The FM 355 S supports internal thermocouple temperature compensation. External compensation can be configured with a suitable resistance thermometer. Parameterizable characteristic linearization adapts supported sensor signals to the control task. Electronic short-circuit protection is provided for the digital outputs. Check the front connectors and existing control configuration when planning a replacement.
|
