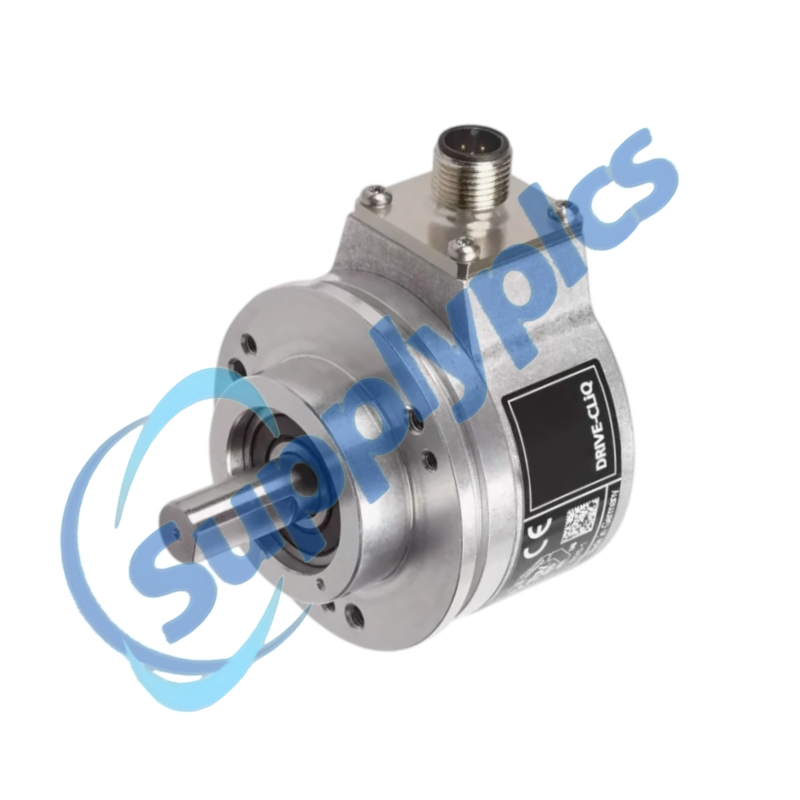

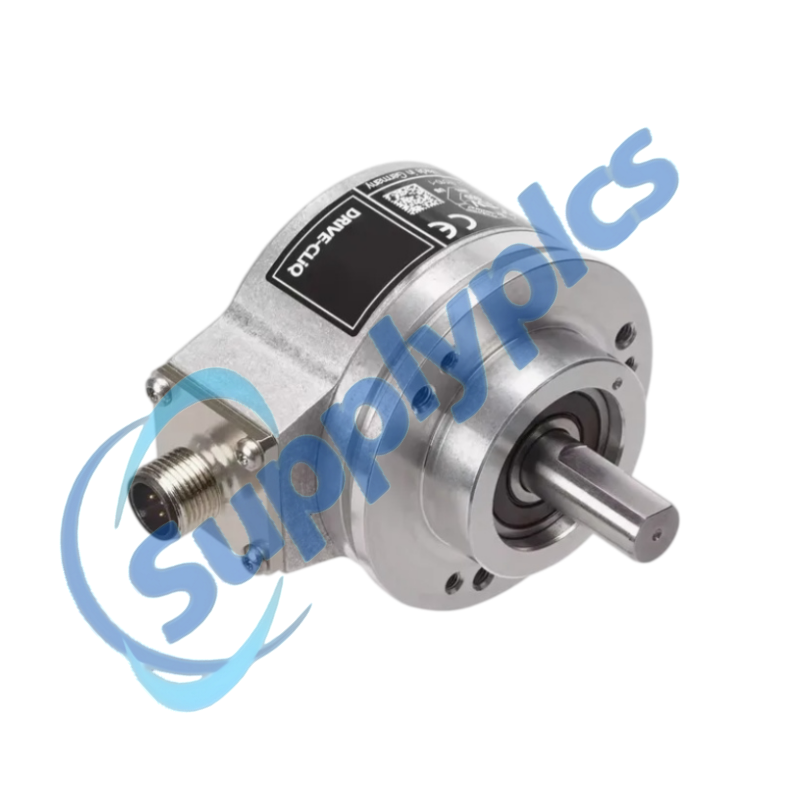

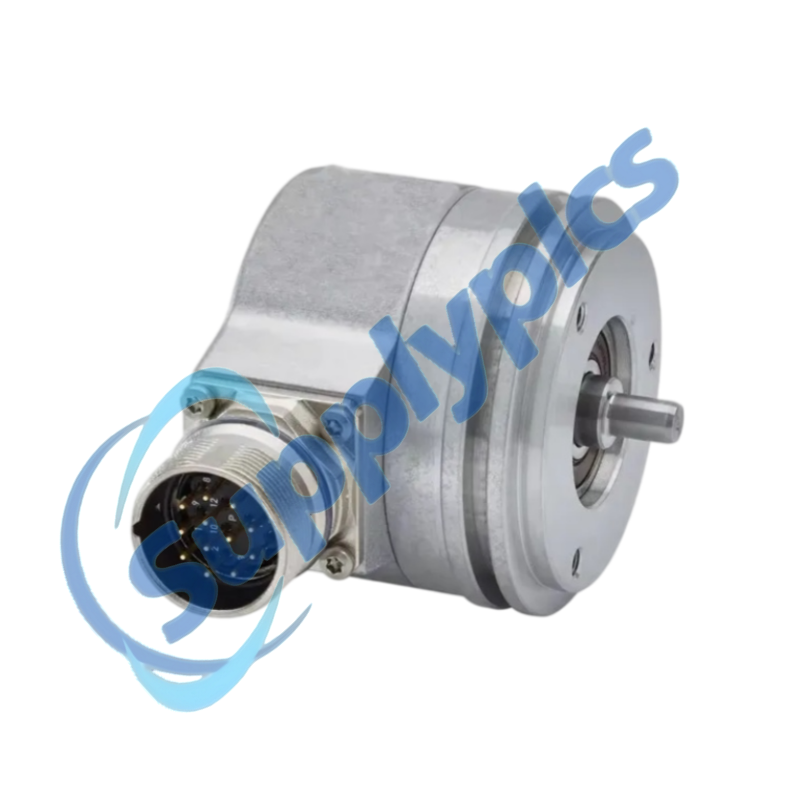

Absolute singleturn feedback encoder with DRIVE-CLiQ transmission and a 12 mm hollow-shaft configuration.
Sales |
Jim Pei |
Email |
|
Phone/Whatsapp |
|
Model Number
|
6FX2001-5WD13-1AA0
|
|
Absolute resolution
|
24 bit
|
|
Supply voltage
|
24 V DC ±20%
|
|
Approximate current consumption
|
37 mA
|
|
Feedback interface
|
DRIVE-CLiQ
|
|
Maximum cable to subsequent electronics
|
100 m
|
|
Electrical maximum speed
|
14,000 rpm
|
|
Mechanical maximum speed
|
15,000 rpm
|
|
Axial load at ≤6,000 rpm
|
40 N
|
|
Radial shaft-end load at ≤6,000 rpm
|
60 N
|
|
Axial load at >6,000 rpm
|
10 N
|
|
Radial shaft-end load at >6,000 rpm
|
20 N
|
|
Maximum angular acceleration
|
100,000 rad/s²
|
|
Vibration, 55–2,000 Hz
|
150 m/s² maximum, EN 60068-2-6
|
|
Shock, 6 ms
|
1,000 m/s² maximum, EN 60068-2-27
|
|
Operating temperature
|
-30 to +100 °C
|
|
Housing protection
|
IP67
|
|
Shaft-input protection
|
IP64
|
|
Encoder connection
|
Radial M12 DRIVE-CLiQ connector
|
|
Internal incremental track
|
2,048 S/R, 1 Vpp; encoder-internal only
|
|
Sampling code
|
Gray
|
|
Short-circuit strength
|
Provided
|
|
EMC test standards
|
DIN EN 50081 / EN 50082
|
|
Compliance markings
|
CE, cULus
|
|
Minimum Order Quantity
|
1 Piece
|
|
Price
|
Contact for Jim
|
|
Packaging Details
|
Original new Factory Sealed
|
|
Delivery Time
|
3–7 Days
|
|
Payment Terms
|
T/T
|
|
Shipping Method
|
DHL / FedEx / UPS / TNT
|
|
Supply Ability
|
In stock
|

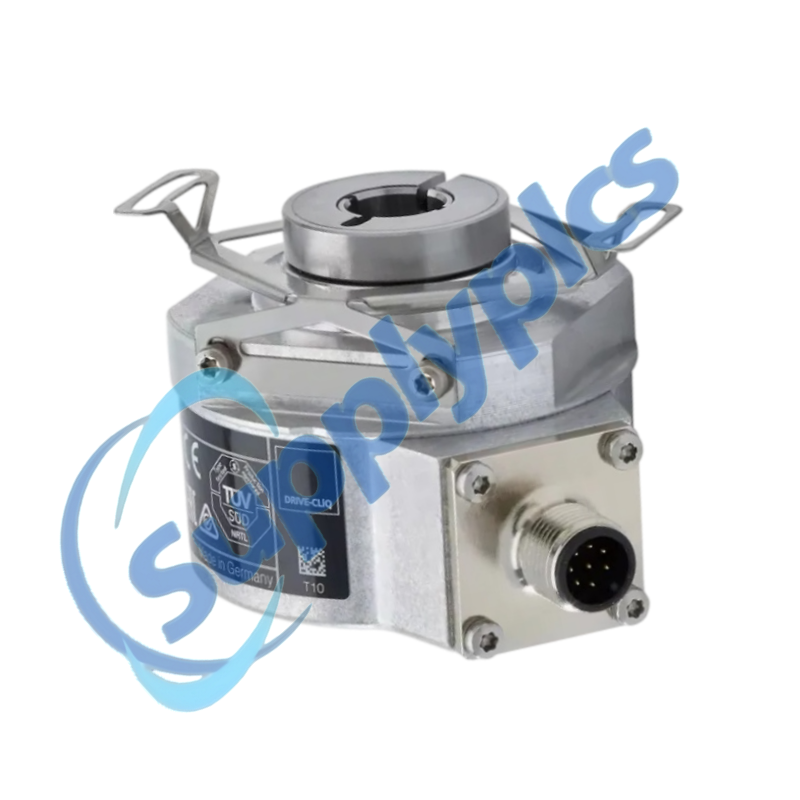

Siemens 6FX2001-5WD13-1AA0 is an absolute singleturn encoder with DRIVE-CLiQ feedback. It reports angular position through the supported digital drive interface. The specified hollow-shaft configuration suits the corresponding mechanical connection. A radial connector provides the encoder communication path. Electrical and mechanical speed limits must both be considered when selecting the application.
The 6FX2001-5WD13-1AA0 provides position feedback in compatible drive and motion systems. Its absolute singleturn measurement identifies position within one revolution. The internal incremental track is not an independently exposed general-purpose output. Check the shaft connection, drive support and cable arrangement against the installed machine. Bearing loads, temperature and protection at the shaft entry must remain within the documented conditions.
Transfers absolute angular feedback to a compatible DRIVE-CLiQ system.
Identifies shaft position within a single turn.
Connects the selected mechanical feedback arrangement to the drive electronics.
Cable planning — Use the compatible encoder connection and the specified cable-length boundary.
Mechanical loading — Review speed-dependent axial and radial load limits before installation.
Environmental matching — Consider the different enclosure and shaft-entry protection ratings.
No. This article is an absolute singleturn encoder.
No. The incremental track is described as encoder-internal; the external interface is DRIVE-CLiQ.
Yes. Electrical and mechanical maximum speeds are separate selection boundaries.
Yes. We can provide photographs and available inspection information before shipment.
Dispatch is arranged immediately after payment is received for confirmed stock.
Provide the complete encoder label and the drive and mechanical connection details.
