Booksize D-type double-axis Motor Module with internal air cooling and DRIVE-CLiQ connectivity.
Sales |
Jim Pei |
Email |
|
Phone/Whatsapp |
|
Model Number
|
6SL3120-2TE13-0AD0
|
|
DC link voltage
|
510–720 V DC
|
|
Rated input designation
|
600 V DC
|
|
Rated output voltage designation
|
3 AC 400 V
|
|
Rated output current
|
2 × 3.0 A
|
|
Base-load current IH
|
2 × 2.6 A
|
|
S6 current, 40% duty
|
2 × 4.0 A
|
|
Maximum output current
|
2 × 9.0 A
|
|
Rated output based on IN
|
2 × 1.6 kW
|
|
Rated output based on IH
|
2 × 1.4 kW
|
|
DC-link current for external connection sizing
|
7.2 A
|
|
Rated pulse frequency
|
4.00 kHz
|
|
Electronics supply
|
24 V DC -15% / +20%
|
|
Electronics current demand, maximum
|
0.90 A
|
|
DC-link busbar current capacity
|
100 A, standard bridges
|
|
24 V busbar current capacity
|
20 A
|
|
DC-link capacitance
|
220 µF
|
|
Servo output frequency, licensed condition
|
650 Hz; observe current derating and high-frequency license
|
|
V/f output frequency, licensed condition
|
600 Hz; observe current derating and high-frequency license
|
|
Vector output frequency
|
300 Hz; observe current derating
|
|
Operating temperature without derating
|
0–40 °C
|
|
Installation altitude without derating
|
1,000 m
|
|
Cooling air requirement
|
0.009 m³/s
|
|
Shielded motor cable length, maximum
|
50 m
|
|
Unshielded motor cable length, maximum
|
75 m
|
|
Motor conductor cross-section
|
2–6 mm²
|
|
PE connection
|
M5 screw
|
|
Ingress protection
|
IP20 / UL open type
|
|
Typical / maximum power loss
|
0.05 / 0.10 kW
|
|
Sound pressure at 1 m
|
60.0 dB
|
|
Safety capability
|
SIL 2; PL d; Category 3
|
|
Compliance
|
CE, cULus
|
|
Minimum Order Quantity
|
1 Piece
|
|
Price
|
Contact for Jim
|
|
Packaging Details
|
Original new Factory Sealed
|
|
Delivery Time
|
3–7 Days
|
|
Payment Terms
|
T/T
|
|
Shipping Method
|
DHL / FedEx / UPS / TNT
|
|
Supply Ability
|
In stock
|

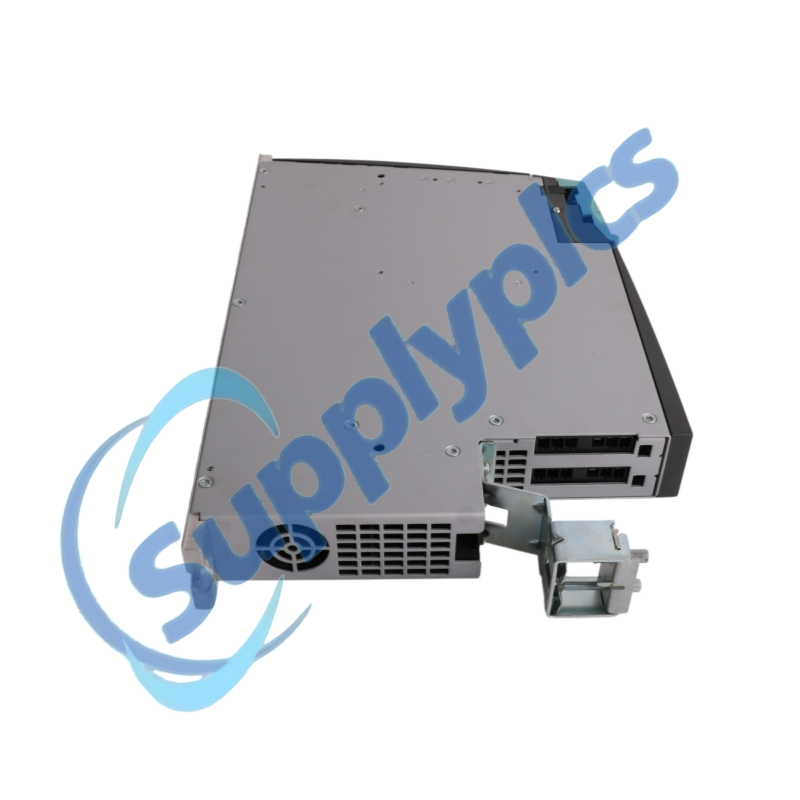

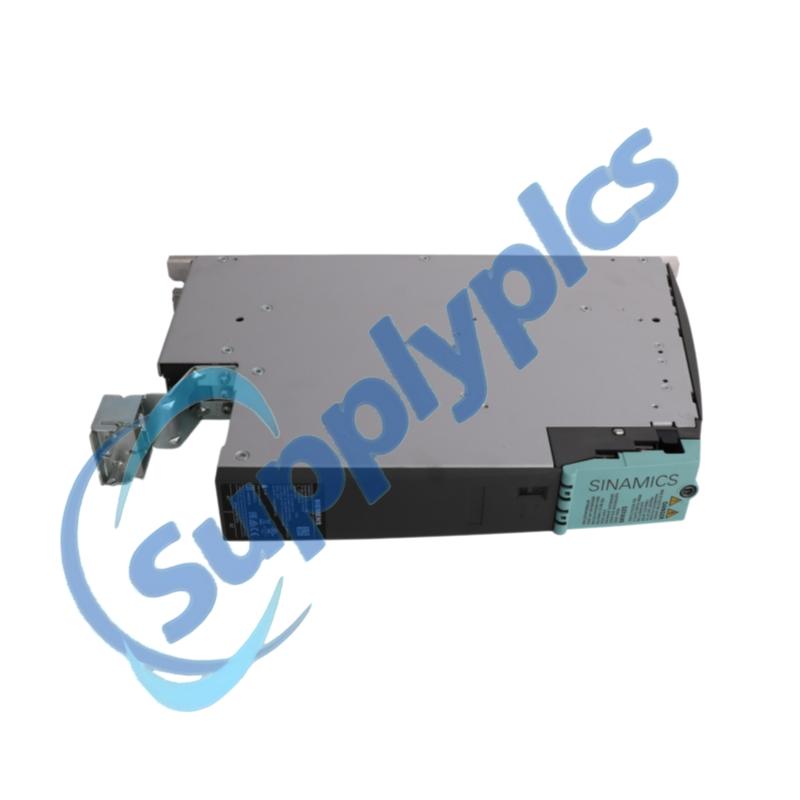

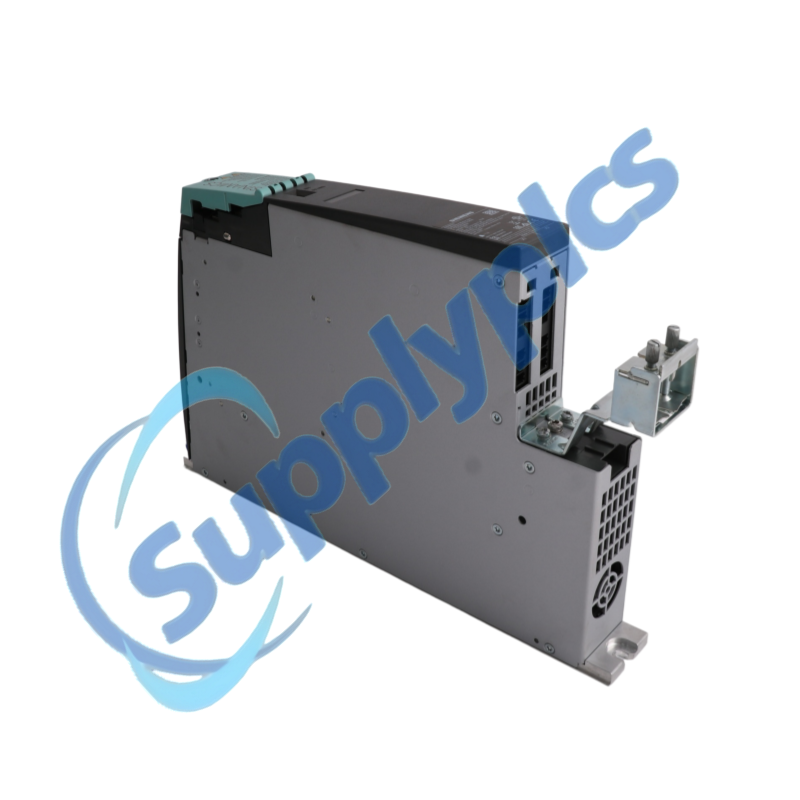

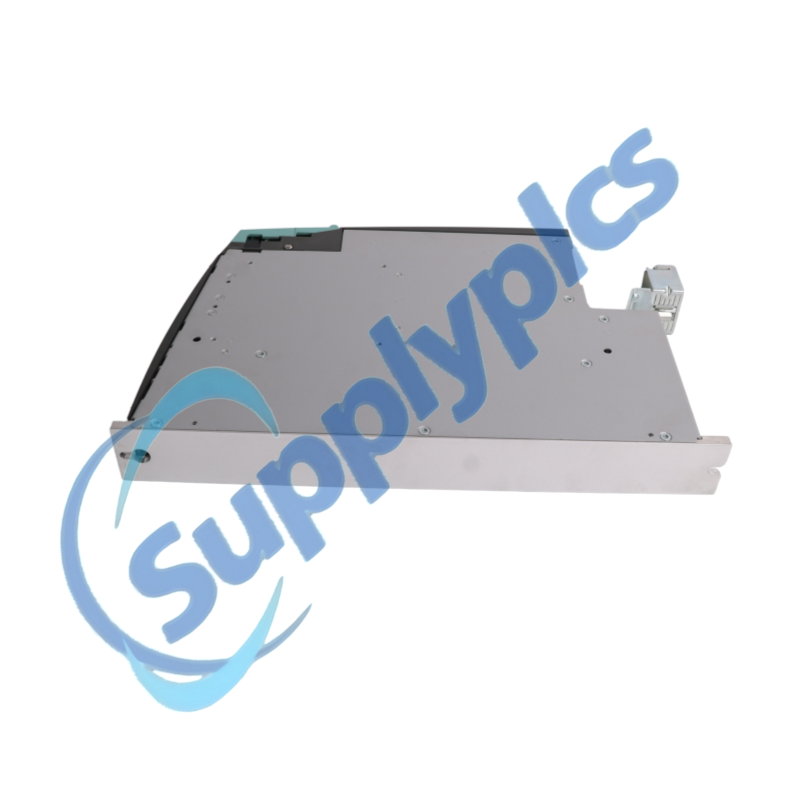

Siemens 6SL3120-2TE13-0AD0 is the SINAMICS S120 Double Motor Module in booksize D-type construction. It supplies two motor channels from a shared DC link. The rated output is designed for a pair of compact drive axes. Internal air cooling removes heat through the integrated ventilation arrangement. DRIVE-CLiQ links the power module to the compatible drive control system.
The 6SL3120-2TE13-0AD0 fits modular motion architectures that separate drive control from motor power conversion. Its optimized pulse patterns support the intended SINAMICS drive arrangement. Extended Safety Integrated functions depend on the complete system configuration. Select the control unit, motor connections and commissioning data for the actual machine. Frequency limits, licensing and current derating must be considered together during drive selection.
Supplies two motor axes within a compatible SINAMICS S120 drive group.
Shares the DC link with the selected modular drive arrangement.
Exchanges drive information through the DRIVE-CLiQ system connection.
Cooling design — Maintain the required cooling airflow in the electrical enclosure.
Safety commissioning — Configure supported safety functions as part of the complete drive system.
Cable selection — Match shielded motor cable length and conductor size to the selected installation.
No. It is a Double Motor Module for a correctly configured SINAMICS S120 drive system.
The Motor Module and control unit are separate components; confirm the quoted scope.
No. High-frequency operation can require a license and current derating.
We can provide offered-unit photographs and available inspection details for your review.
Confirmed stock is arranged for dispatch immediately after payment.
Send the installed module label, control unit details and required condition.
