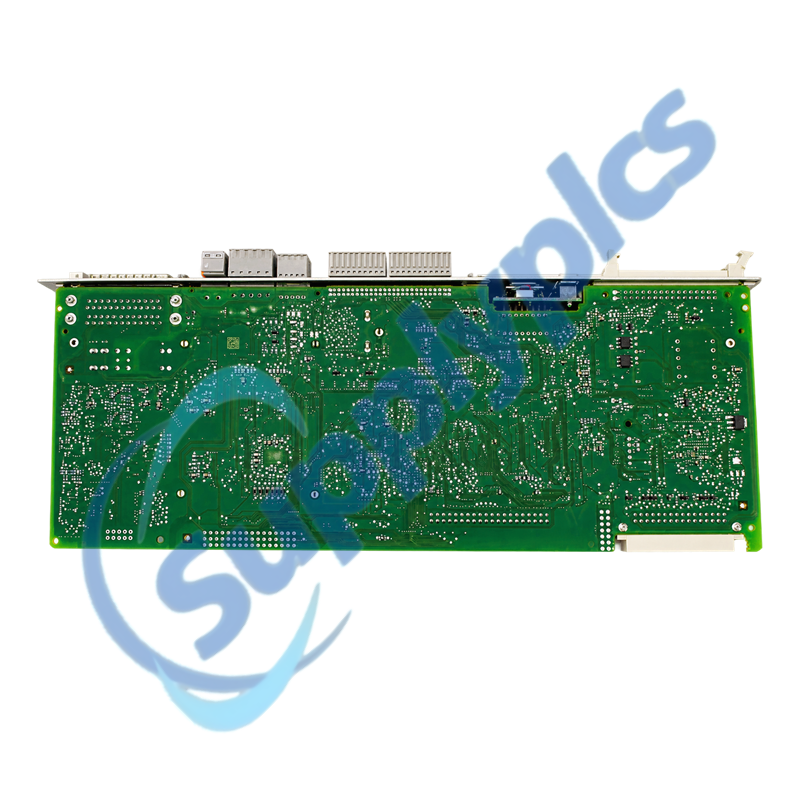

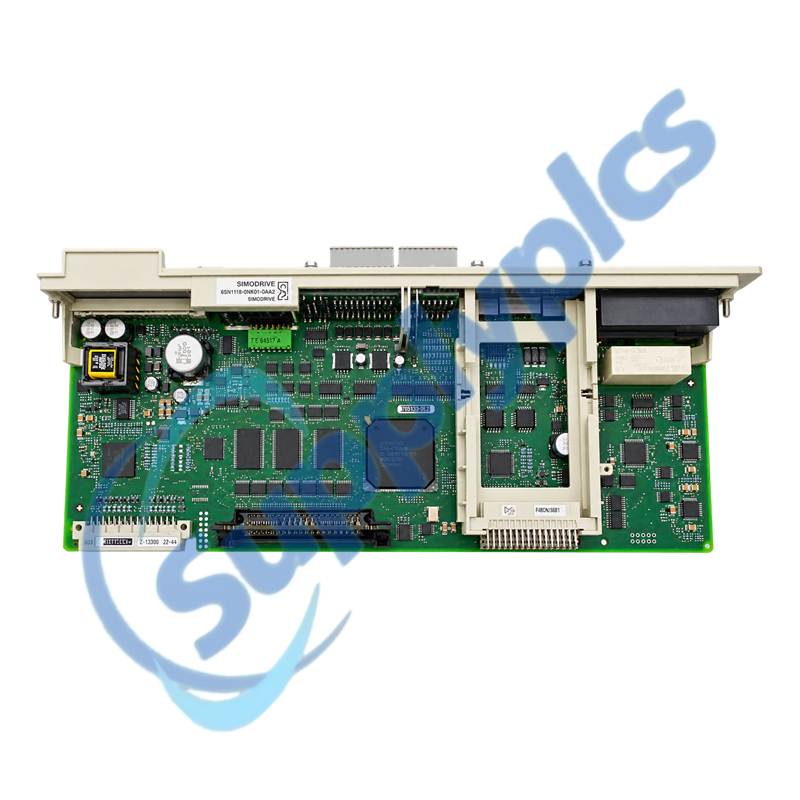

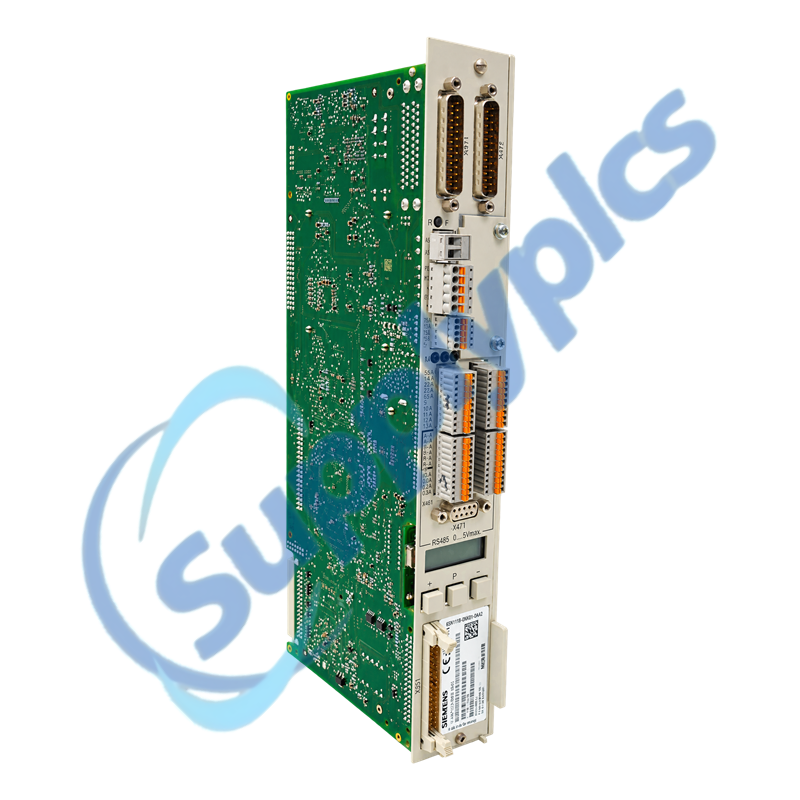

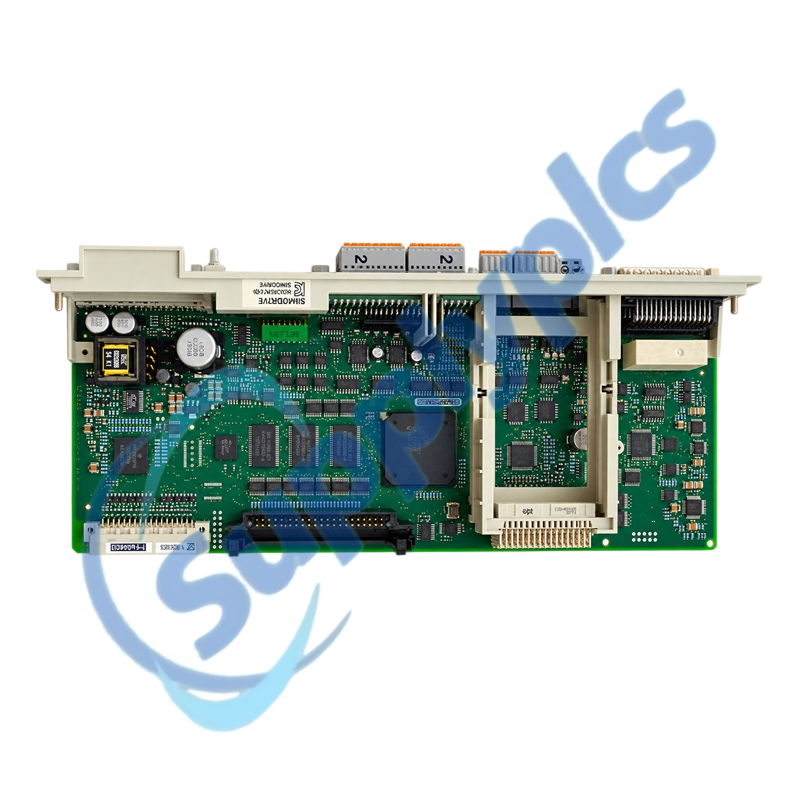

Siemens 6SN1118-0NK01-0AA2 SIMODRIVE 611 Universal HRS2 Two-Axis Resolver Control Board

Product Name: SIMODRIVE 611 Universal HRS2 Two-Axis Resolver Control Board
Brand Name: Siemens
Model Number: 6SN1118-0NK01-0AA2
Place of Origin: Germany
Warranty: 12 Months
Whatsapp: +86 18020776782
Appurtenance:
  • Overview
  • System Compatibility
  • Specifications
  • Installation & Setup
  • Commercial Term
  • Contact info
  • FAQ
  • Other Products
  • Recommended Products
Two-axis resolver feedback and speed/torque setpoint control for established SIMODRIVE 611 drive systems
The Siemens SIMODRIVE 611 universal HRS2 control board provides two-axis control with resolver feedback and speed or torque setpoint functions. It is a configurable spare component for installed SIMODRIVE 611 drive groups and can be expanded with approved option modules.
Drive-system check: Confirm the full 6SN1118-0NK01-0AA2 order number, HRS2 hardware, resolver type and resolution, software release, power module, option board, connector pinout, motor data and complete drive-parameter backup before replacement.

System Compatibility

6SN1118-0NK01-0AA2 is a SIMODRIVE 611 universal two-axis control-loop board for resolver-based motors. Siemens identifies it as a spare part for speed or torque setpoint control, expandable by compatible option modules.
This board is not a stand-alone drive. Successful service replacement requires the matching SIMODRIVE 611 power section, resolver feedback, firmware and parameter set. Preserve both axes, option-module data and all connector assignments before removal.
The control board must match the installed SIMODRIVE 611 hardware, motors, feedback and software release.
Drive group
Record the power module, infeed, bus arrangement, motor types and whether both axes are populated.
Resolver feedback
Confirm resolver type, wiring, pole data, resolution setting and feedback connector for each axis.
Options and firmware
Identify the option board, hardware revision, software release and any machine-specific enable or setpoint interface.

Specifications

Product type designation
SIMODRIVE 611 universal HRS2 control board
Order number
6SN1118-0NK01-0AA2
Axis configuration
Two-axis control-loop board
Feedback type
Resolver
Control mode
Speed or torque setpoint
Product role
Control board for SIMODRIVE 611 universal drive group
Expansion
Supports compatible option modules
Configuration method
SIMODRIVE 611 parameters and SimoCom U service workflow
Lifecycle status
Spare part / product cancellation
Official product weight
Approximately 0.57 kg
Installation requirement
Qualified installation in the matching SIMODRIVE 611 power module
Critical service asset
Validated parameter and commissioning backup for both axes

Installation & Setup

Parameter recovery and controlled axis testing are required before the machine can return to production.
Backup both axes
Save parameters, motor data, limits, controller settings, diagnostics and option-module assignments for drive A and drive B.
Connector control
Label every connector, resolver cable and setpoint or enable signal before removing the installed control board.
Safe acceptance
Check axis direction, feedback polarity, current limits, speed control, torque response and machine interlocks at reduced risk.

Commercial Term

Quotation
Current price and availability
Payment
T/T or agreed terms
Lead time
Confirmed with quotation
Shipping
DHL, FedEx, UPS or agreed freight
Warranty
12 months

Contact info

FAQ

Q1
How should I verify that 6SN1118-0NK01-0AA2 matches my SIMODRIVE 611 drive group?
Compare the complete order number, HRS2 hardware and software release, two-axis requirement, power module, resolver type, option board, motor data and every connector assignment.
Q2
What should I back up before replacing 6SN1118-0NK01-0AA2?
Save the complete parameter set for both axes, motor and resolver data, controller gains, current and speed limits, option-module settings, active faults and commissioning records. Photograph all connectors before removal.
Q3
Why can one axis connected to 6SN1118-0NK01-0AA2 remain disabled after replacement?
Check the axis enable chain, option-module assignment, motor and resolver parameters, connector seating and active faults. Compare drive A and drive B settings with the validated backup before attempting movement.
Q4
What should I inspect when 6SN1118-0NK01-0AA2 reports a resolver or feedback fault?
Verify resolver supply and continuity, connector pinout, shield and grounding, feedback cable condition, resolver type and resolution setting. Do not interchange the two axis feedback connectors.
Q5
How should I commission 6SN1118-0NK01-0AA2 after restoring the parameter set?
Use the machine safety procedure, test one axis at a time at reduced speed and torque, confirm direction and feedback polarity, then verify current limits, control response, interlocks and all machine modes.
Q6
Which information should I provide when requesting 6SN1118-0NK01-0AA2 as a spare?
Provide the full order number, hardware and software release, power-module number, motor and resolver data for both axes, option-board type, parameter-backup status, active fault codes and clear label photos.
