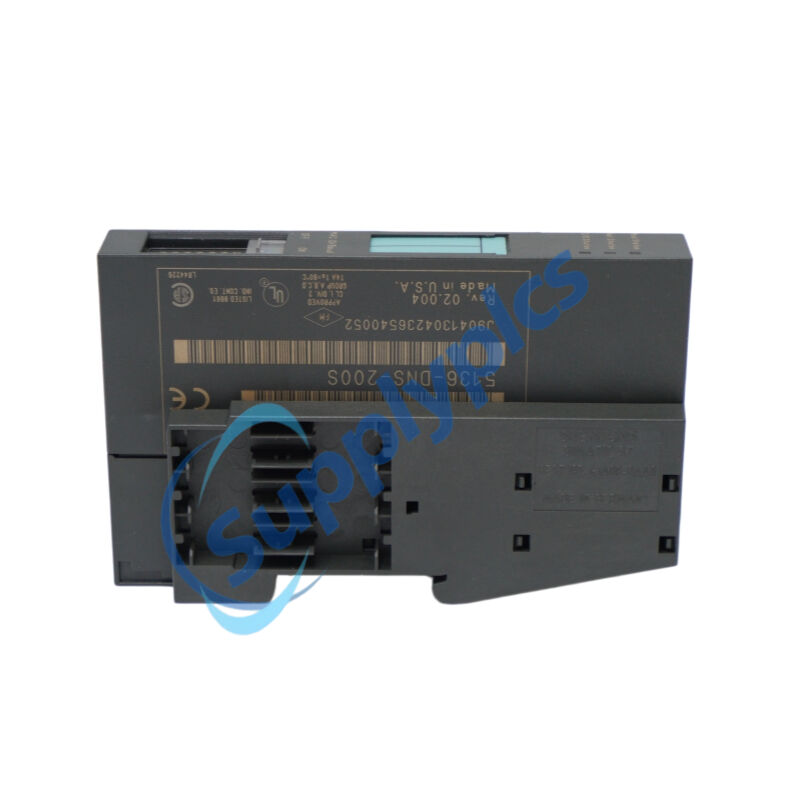

Product Name:DeviceNet Slave Adapter
Brand Name: SIEMENS
Model Number:5136-DNS-200S
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
5136-DNS-200S |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
5136-DNS-200S |
|
Product Type |
DeviceNet Slave Adapter (Communication Module) |
|
System Compatibility |
Siemens SIMATIC ET 200S Distributed I/O System (IP20) |
|
DeviceNet Standard |
Complies with Volume I & II, Release 2.0 |
|
Device Profile |
Group 2 Only Server (non-UCMM-capable) |
|
Communication Protocol |
DeviceNet |
|
Supported Baud Rates |
125 kbps, 250 kbps, 500 kbps (DIP switch configurable) |
|
Node Address (MAC ID) |
0 to 63 (DIP switch configurable) |
|
I/O Connections |
Poll, Strobe, Cyclic, Change-of-State (COS) |
|
Fragmented I/O Size |
Max. 244 bytes input / 244 bytes output |
|
Fragmented Explicit Messaging |
Supported |
|
Configuration Consistency Value (CCV) |
Supported |
|
Heartbeat & Shutdown Messages |
Supported |
|
Expansion Modules Supported |
Max. 63 modules (power modules, I/O modules, motor starters) |
|
Maximum Bus Length |
1 m (per ET 200S station) |
|
Parameter Length |
Max. 244 bytes |
|
Address Space (Input/Output) |
Max. 244 bytes input / 244 bytes output |
|
Power Supply (24 VDC Terminals) |
24 V DC Class 2 (SELV) |
|
Voltage Range |
19.2 to 28.8 V DC |
|
Current Consumption (Adapter only) |
Max. 125 mA @ 24 V DC |
|
Current Consumption (with all 63 modules) |
Max. 250 mA @ 24 V DC |
|
Power Dissipation of the Interface Module |
Typ. 3.8 W |
|
Inrush Current I²t |
0.5 A²s |
|
Reverse Polarity Protection |
Yes |
|
Isolation |
Between DeviceNet and electronic components (Yes)；Between backplane bus and electronics (No) |
|
Insulation Tested With |
500 V DC |
|
Degree of Protection |
IP20 |
|
Mounting |
Horizontal on 35 mm standard rail |
|
Installation Position |
Horizontal (preferred) |
|
Operating Temperature |
0°C to +60°C (horizontal) / 0°C to +40°C (vertical) |
|
Storage / Transport Temp |
–40°C to +70°C |
|
Relative Humidity |
Max. 95% (non-condensing) |
|
Dimensions (W x H x D) |
45 mm × 119.5 mm × 75 mm |
|
Weight |
Approx. 0.15 kg (5.29 oz) |
|
Certifications |
CE, UL, cUL, FM, GL, ABS, BV, DNV, LRS, Class NK (varies by module) |
|
Standards |
IEC 61131-2, EN 55011 (Class A), EN 50082-2 |
|
Electrical Fast Transient/Burst |
2 kV (supply/signal lines) to IEC 61000-4-4 |
|
Electrostatic Discharge |
8 kV (air discharge) / 6 kV (contact discharge) to IEC 61000-4-2 |
|
Vibration (Operation) |
0.15 mm amplitude (10 to 58 Hz) / 2g (58 to 150 Hz) |
|
Atmospheric Pressure (Operation) |
1080 to 795 hPa (altitude –1000 to 2000 m) |
|
Country of Origin |
Germany (assembly) / USA (design) |
|
Lifecycle Status |
Discontinued; replaced by newer DeviceNet interface modules |

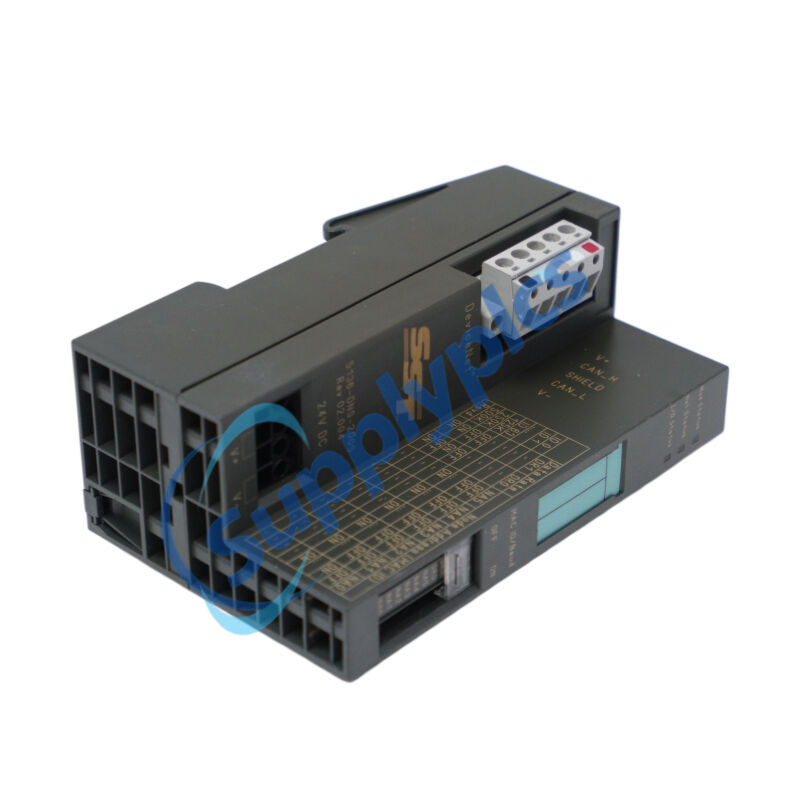

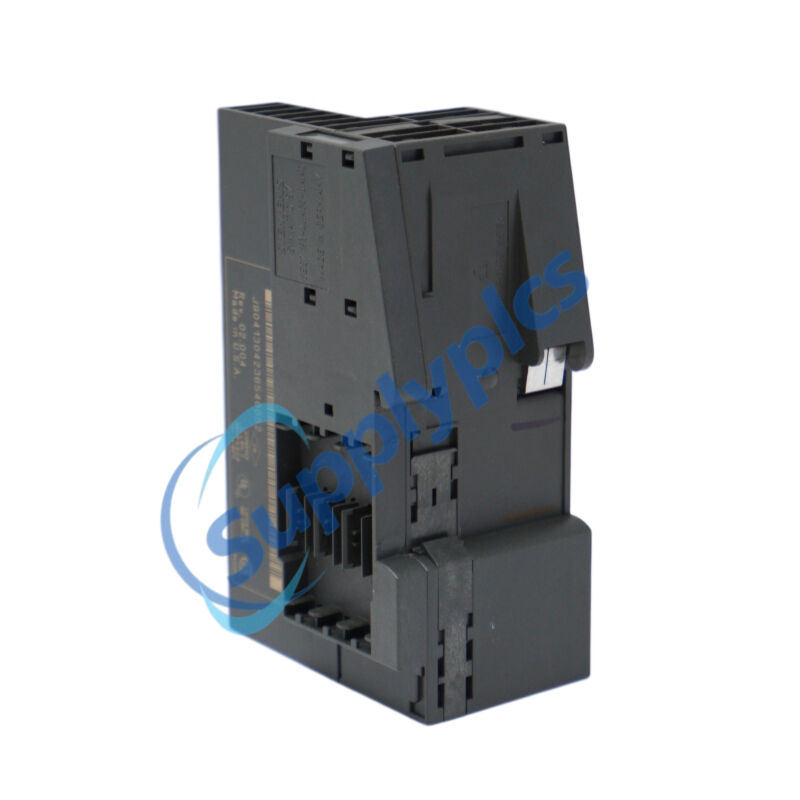

The Siemens 5136-DNS-200S is a communications adapter designed for the SIMATIC ET 200S distributed I/O system. Serving as a DeviceNet slave, the 5136-DNS-200S provides connectivity between a DeviceNet network and Siemens ET 200S expansion modules. Developed with licensed technology from Siemens by SST (Woodhead), this module acts as a Gateway 2 only server, supporting standard baud rates of 125, 250, and 500 kbaud. The 5136-DNS-200S supports poll, strobe, cyclic, and change-of-state (COS) I/O connections, making it ideal for integrating Siemens I/O into DeviceNet-based control systems. The 24‑pin plug‑on connector (female) offers high‑density connectivity for 16 digital input and 16 digital output signals, utilizing 1.5 m shielded sensor/actuator cables.
Factory automation – Assembly lines, packaging systems, material handling and robotics.
Process control – Integration of field devices in chemical, pharmaceutical, oil and gas plants.
Water and wastewater treatment – Monitoring pump stations, valve control and sensor networks.
Building automation – Management of HVAC, lighting and access control over DeviceNet.
Food and beverage processing – Clean‑in‑place (CIP) systems, filling lines and quality control.
Power generation – Monitoring turbine systems, generator protection and auxiliary equipment.
Legacy system integration – Retrofitting Siemens SIMATIC S7‑300/400 controllers into DeviceNet plants.
Modular design with compact 45 mm width for space‑efficient installation.
Flexible DeviceNet communication with configurable baud rates (125/250/500 kbps) via DIP switches.
Fast, deterministic performance – Supports poll, strobe, cyclic and change‑of‑state (COS) I/O connections with fragmented I/O up to 244 bytes.
Hot‑swap capability – Replace ET 200S I/O modules without powering down the station during operation (subject to parameter assignment).
Easy commissioning – Auto‑Config mode simplifies start‑up; User‑Config mode via DNS‑200S Configuration Tool provides advanced diagnostics and expanded functionality.

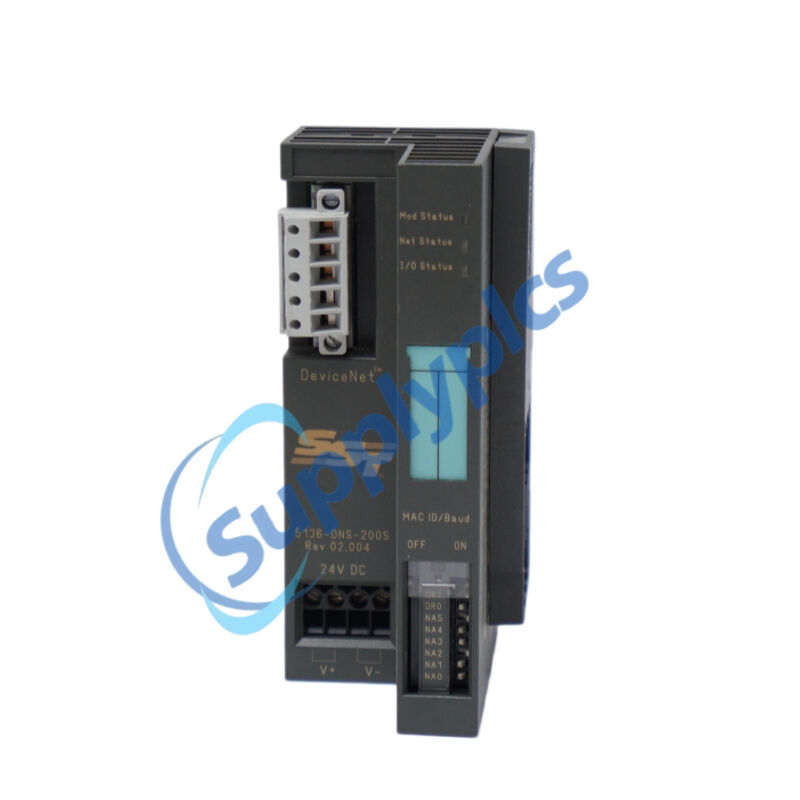

Built‑in diagnostic LEDs – Module Status (MS), Network Status (NS) and I/O Status (I/O) LEDs enable rapid troubleshooting.
IP20 protection for use in industrial control cabinets.
Wide temperature range – Operates reliably from 0 °C to +60 °C (horizontal mounting).
Provides a DeviceNet slave interface for the entire ET 200S station, allowing DeviceNet masters to access all connected I/O modules.
Prepares data from all ET 200S expansion modules for transmission over the DeviceNet network while supplying the backplane bus.
Supports Explicit Messaging for configuration and parameterization, as well as I/O Messaging (polled, strobed, cyclic and change‑of‑state) for real‑time data transfer.
Enables parameter assignment of the ET 200S I/O modules via the DNS‑200S Configuration Tool, with configuration data stored in non‑volatile memory on the module.
Provides diagnostic capabilities through adapter and slot objects, reporting configuration faults, expansion module errors and I/O channel status.
Allows module grouping for more efficient use of address space and reduced data transfer on the DeviceNet network.
Q1: What is the Siemens 5136-DNS-200S?
A1: The 5136-DNS-200S is a DeviceNet slave adapter that connects Siemens ET 200S distributed I/O systems to a DeviceNet fieldbus network, acting as a gateway for all connected I/O modules.
Q2: Can I configure the 5136-DNS-200S without software?
A2: Yes. The 5136-DNS-200S supports an Auto‑Config mode where it self‑configures based on the installed ET 200S modules. For advanced features and diagnostics, use the DNS‑200S Configuration Tool.
Q3: Is the 5136-DNS-200S still in production?
A3: Siemens has phased out the 5136-DNS-200S. However, it remains widely available as new old stock or refurbished units from specialized automation component suppliers.
Q4: What do the LEDs on the 5136-DNS-200S indicate?
A4: The 5136-DNS-200S provides three status LEDs: MS (Module Status) – indicates module health; NS (Network Status) – indicates DeviceNet communications state; I/O (I/O Status) – indicates input/output module fault conditions.
Q5: How does the 5136-DNS-200S handle a potential group power failure?
A5: If an I/O status fault occurs (e.g., a power module loses load voltage) and the I/O Status Byte feature is enabled, the 5136-DNS-200S flags the fault in its I/O Status Byte. The master should then ignore input data from the affected potential group; no output data is transferred to that group.
