Product Name:Logic Module
Brand Name: SIEMENS
Model Number:6ED1052-1FB00-0BA8
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6ED1052-1FB00-0BA8 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |

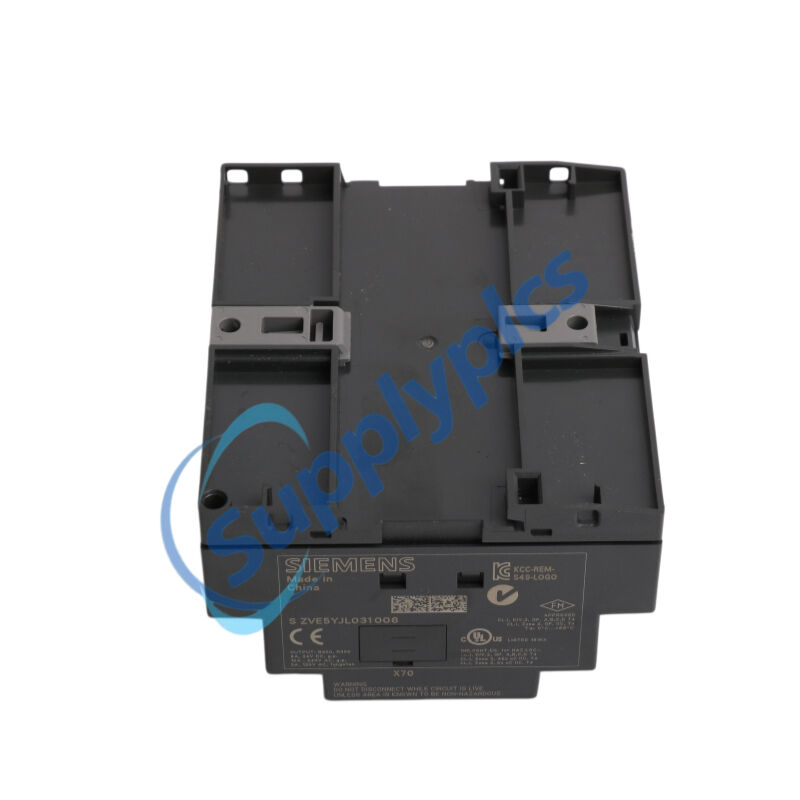

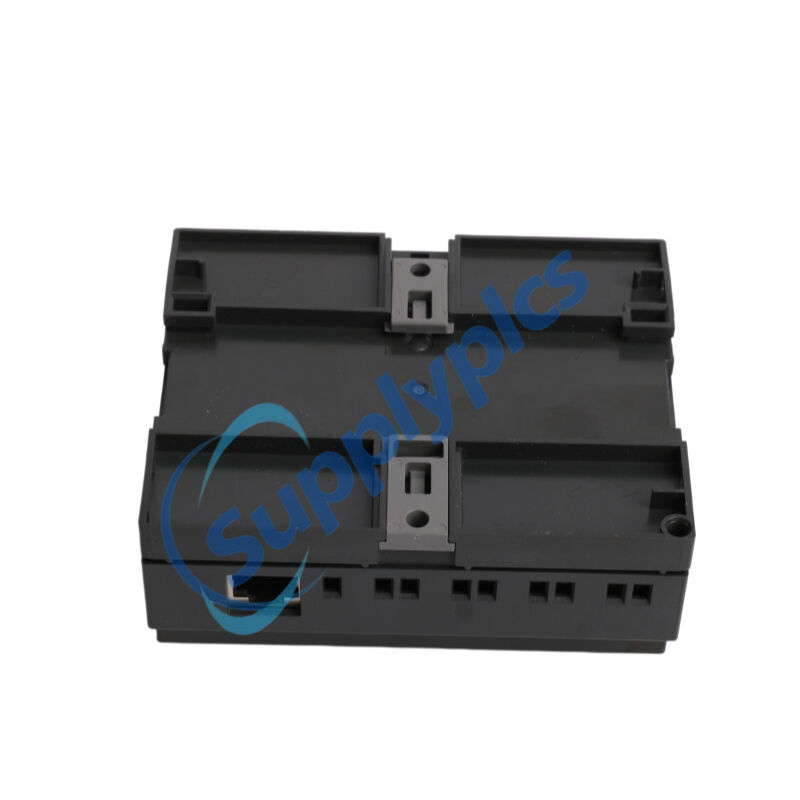

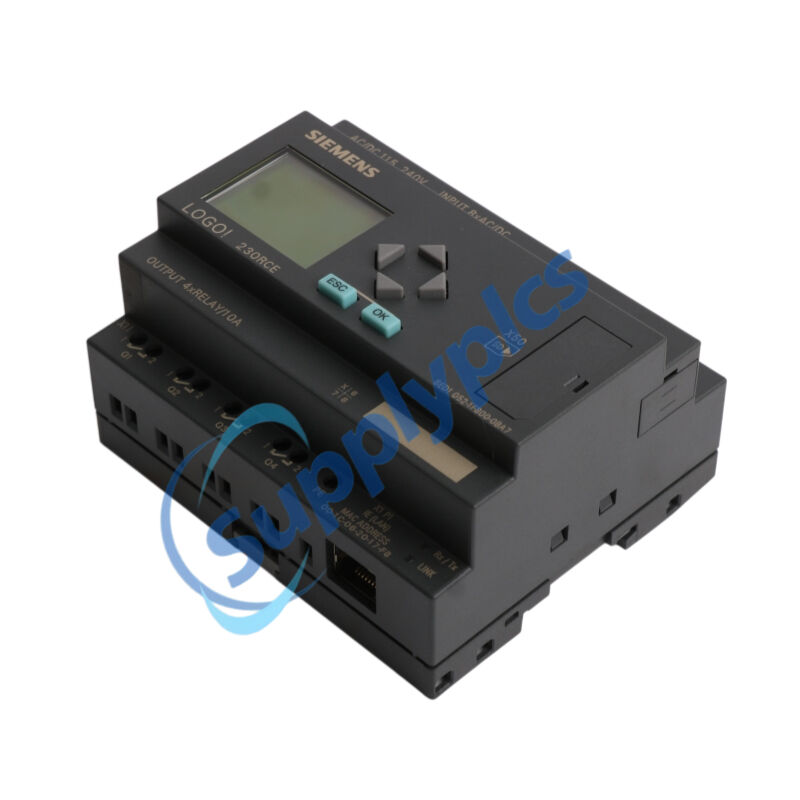

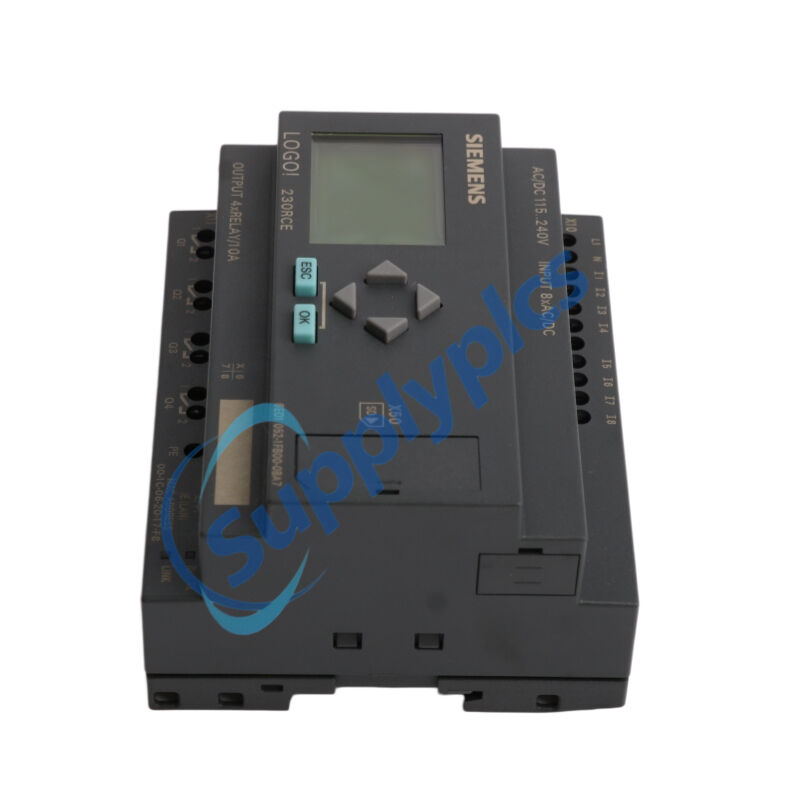

The Siemens 6ED1052-1FB00-0BA8 is a compact LOGO! 230RCE logic module with an integrated display and Ethernet connectivity. Designed for 115/230 V AC/DC systems, the Siemens 6ED1052-1FB00-0BA8 provides eight digital inputs (four usable as 0–10 V analog inputs) and four 10 A relay outputs. With 400‑block memory, a built‑in web server, and microSD data logging, the Siemens 6ED1052-1FB00-0BA8 delivers powerful yet user‑friendly automation for building, industrial, and IoT applications. Its successor, the 6ED1052-1FB08-0BA0, offers user‑defined web pages.
Building automation (stairway lighting, outdoor lighting, sun blinds, shutters, shop window lighting, HVAC control)
Gate and door control (factory gates, automatic door systems, garage automation)
Industrial automation (small machine control, conveyor belt systems, packaging equipment)
Pump and irrigation systems (service water pumps, rainwater harvesting systems, irrigation control)
Remote monitoring and control (via integrated web server and Ethernet networking)
Elevator safety: speed sensor comparison and slip detection
General automation: replaces traditional relay‑based and timer‑based control panels
400‑block memory for medium to complex automation logic
8 digital inputs, 4 of which are configurable as 0–10 V analog inputs (DC models)
4 relay outputs with 10 A switching capacity (resistive load) and 3 A (inductive load)
Integrated display with backlight (4 lines × 12 characters, 3 configurable backlight colors)
Integrated Ethernet port (RJ45) for seamless network integration and communication with LOGO!, SIMATIC controllers, SIMATIC panels, and PC
Integrated web server for remote monitoring and control via browser
Standard microSD card slot (FAT32 format) supporting data logging (up to 20,000 records) and program storage
Expandable with digital (DM8/DM16), analog (AM2), and communication modules (CM) up to 24 DI, 20 DO, 8 AI, and 8 AO
Real‑time clock with automatic DST adjustment and 480‑hour power reserve
Password protection and program copy protection via microSD card
EN 55011 Limit Class B certification permits installation in residential and light commercial environments
RoHS compliant with environmental product declaration
Timer functions: On‑delay, Off‑delay, Retentive on‑delay, On/Off‑delay, Weekly timer, Yearly timer, Pulse generator, Asynchronous pulse generator, Stairway lighting switch (DIN 18015‑2 compliant)
Counter functions: Up/down counter (high‑speed up to 5 kHz on DC models), Hours counter, Threshold trigger
Analog functions: Analog comparator, Analog threshold trigger, Analog amplifier, Analog differential trigger, Analog watchdog
Basic logic: AND, OR, XOR, NOT, NAND, NOR, edge evaluation
Special functions: Latching relay, Pulse relay, Shift register, Softkey (softkey), Message text display, PI controller, Ramp function, Analog multiplexer, PWM function
Programming: PC‑based programming via LOGO! Soft Comfort (FBD/LAD, drag‑and‑drop, offline simulation) or pre‑programmed memory module
Ethernet communication: Peer‑to‑peer networking with up to nine LOGO! devices, communication with SIMATIC controllers, SIMATIC panels, and PC
Remote monitoring: Integrated web server with real‑time status visualization
Data logging: Automatic recording of process data to internal memory or microSD card (up to 20,000 records, CSV‑compatible)
Built‑in EEPROM for non‑volatile program and parameter storage
64‑bit memory flags (including restart bit memory) for flexible data handling
Q1: What is the Siemens 6ED1052-1FB00-0BA8 used for?
A1: A compact logic module for small to medium automation tasks such as building lighting control, gate automation, pump sequencing, and machine control.
Q2: Is the Siemens 6ED1052-1FB00-0BA8 still available?
A2: No, this product has been discontinued since October 2019. The successor is 6ED1052-1FB08-0BA0 with user‑defined web pages and improved features.
Q3: Does the 6ED1052-1FB00-0BA8 support Modbus TCP?
A3: Yes, but only on later hardware revisions (FS04–FS06) with firmware version V1.81.01 or higher. Early LOGO! 8.0 units (FS01–FS03) do not support Modbus TCP.
Q4: Can the Siemens 6ED1052-1FB00-0BA8 be expanded?
A4: Yes, it is modularly expandable with digital (DM8/DM16) and analog (AM2) modules, supporting up to 24 DI, 20 DO, 8 AI, and 8 AO.
Q5: What software is required to program the Siemens 6ED1052-1FB00-0BA8?
A5: LOGO! Soft Comfort V8 or higher (supports FBD and LAD programming, offline simulation, and online testing).
