Product Name:PM16 Process Module
Brand Name: SIEMENS
Model Number:6DD1600-0AF0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DD1600-0AF0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |

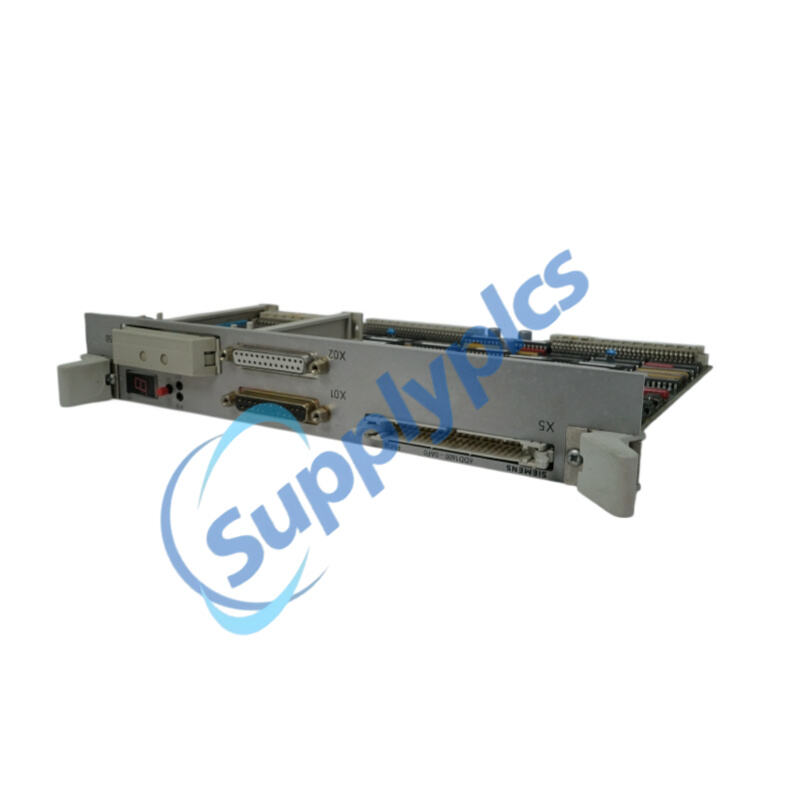

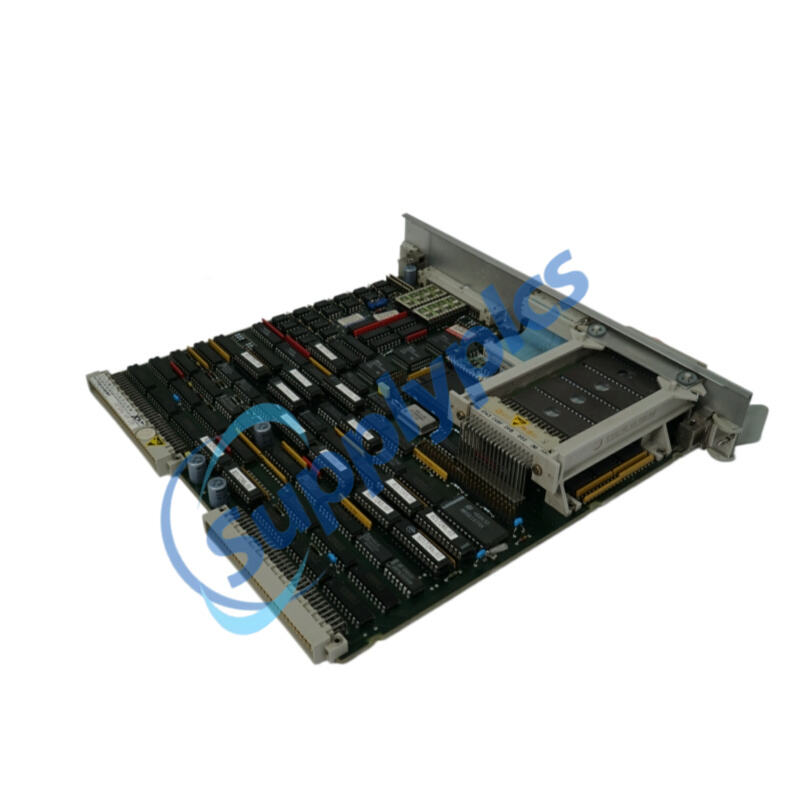

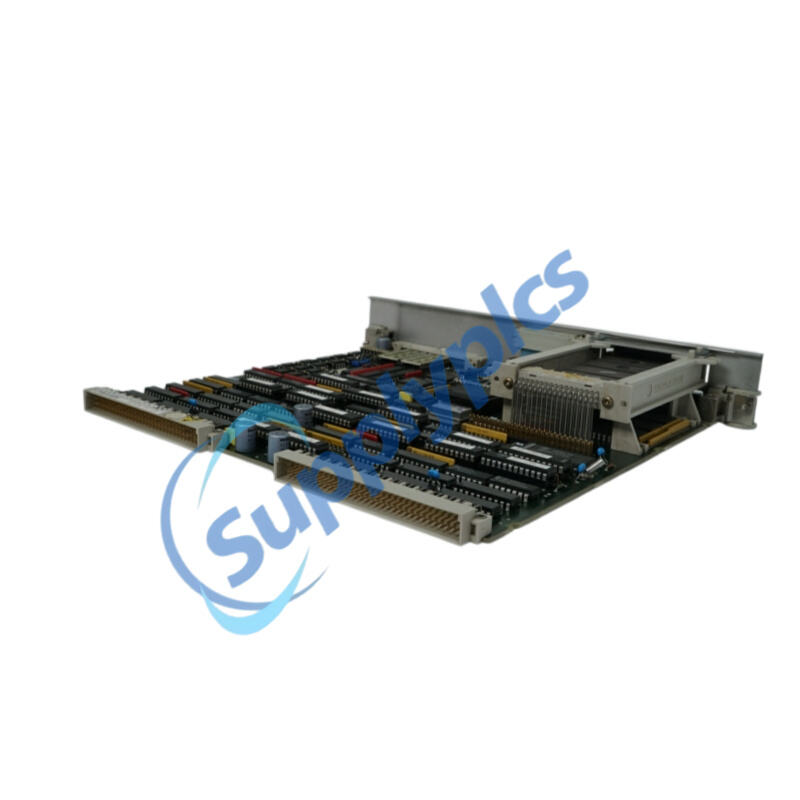

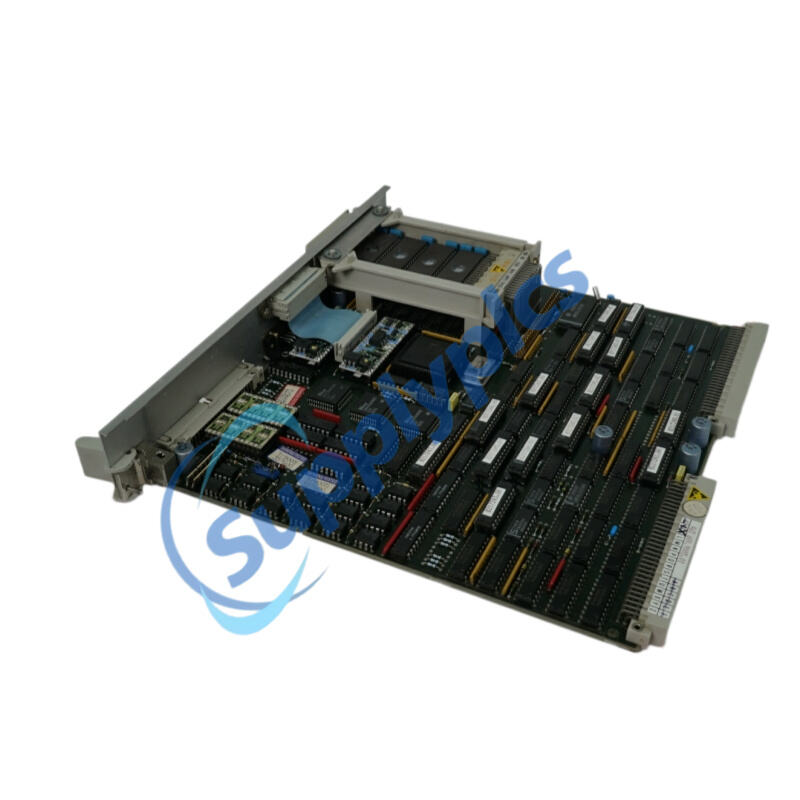

The Siemens 6DD1600-0AF0 is a high-performance 16-bit processor module for the SIMADYN D system. It utilizes a powerful 16 MHz 80C186 CPU to handle complex automation tasks above the drive level, such as closed-loop control and complex calculations. Designed with flexibility in mind, the Siemens 6DD1600-0AF0 supports both L-Bus and C-Bus architectures and features a real-time operating system ensuring precise fixed cycle times as low as 1ms.
Drive Systems: Coordinating torque shells and high-end speed regulation.
Heavy Industries: Controlling rolling mills and turbine governors.
General Process Automation: Chemical processing and power generation.
Test Benches: High-speed data acquisition for servo-hydraulic test rigs.
Infrastructure: Water/wastewater treatment and building automation.
Process Monitoring: Includes hardware watchdog (monitors system bus access, addressing errors) and software watchdog checks.
Diagnostic Utilities: 7-segment display for processor number/error codes, plus a 50-pin diagnostic connector for logic analyzers.
I/O Flexibility: 16 digital inputs (software-defined as interrupt inputs) and 16 digital outputs for high-speed data exchange.
Field Communication: Dual serial interfaces support RS232, 20mA (TTY), and RS485 for higher-level computer links or programming units
The 6DD1600-0AF0 runs technological control programs under an RTOS, enabling cyclic and interrupt-driven tasks. It handles system bus communication, binary signal processing, and real-time clock management. The module ensures operational safety by initiating a Non-Maskable Interrupt (NMI) upon detecting internal faults, attempting to resolve issues without disrupting critical processes.
Q1: What processor is used on the Siemens 6DD1600-0AF0 PM16 board?
A1: The 6DD1600-0AF0 module is built around a CMOS 16-bit Intel 80C186 microprocessor running at a clock speed of 16 MHz.
Q2: Can the 6DD1600-0AF0 handle real-time closed-loop control tasks?
A2: Yes. The module runs the SIMADYN D real-time operating system, guaranteeing interrupt-controlled fixed cycle times of >=1ms, making it highly reliable for closed-loop control and regulation duties.
Q3: Is the Siemens 6DD1600-0AF0 compatible with modern PG/PC programming units?
A3: Yes, the two serial interfaces (X01, X02) allow connection to programming units like the PG 675, 685, or 750 via TTY or RS232 protocols for configuration and diagnostics.
Q4: How do I interpret the display on the front panel of the PM16?
A4: During start-up, the 7-segment display shows a dash (-). In normal operation, it displays the configured processor number. If a fault occurs, it will flash an error code; you can press the S1 key to activate the HEX supervisor for diagnostics.
Q5: Is this product discontinued and what is the lifecycle status of the 6DD1600-0AF0?
A5: Yes, according to official lifecycle data, this product reached its "End of Lifecycle" effective October 1st, 2017, and has been discontinued by Siemens without a direct replacement (Product deleted without replacement).
