Product Name:ANALOG OUTPUT MODULE
Brand Name: SIEMENS
Model Number:6DD1642-0BC0
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DD1642-0BC0 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Item |
Details |
|
Manufacturer |
Siemens |
|
Product Series |
SIMADYN D |
|
Product Type |
Analog Output Module |
|
Model Number |
6DD1642-0BC0 |
|
Functional Designation |
EA12 8AO Output Module |
|
Number of Outputs |
8 Analog Outputs |
|
Output Signal Range |
-10 V to +10 V |
|
Resolution |
14-bit (≈1 mV accuracy) |
|
Output Load Capacity |
Up to 10 mA per channel |
|
Short-Circuit Protection |
Up to 120 seconds |
|
Connector Type |
20-pin ribbon connector (X5) |
|
Test Interface |
2.3 mm front test sockets |
|
Bus System |
SIMADYN D L-bus |
|
Module Width |
1 1/3 SPS |
|
Weight |
Approx. 0.5 kg |
|
Operating Temperature |
0 to 55 °C |
|
Storage Temperature |
-40 to +70 °C |
|
Protection Class |
IP00 |
|
System Compatibility |
SIMADYN D drive control system |
|
Product Status |
Discontinued / legacy module |
|
Dimensions |
2x26.1x26.1cm |
|
Weight |
0.38kg |

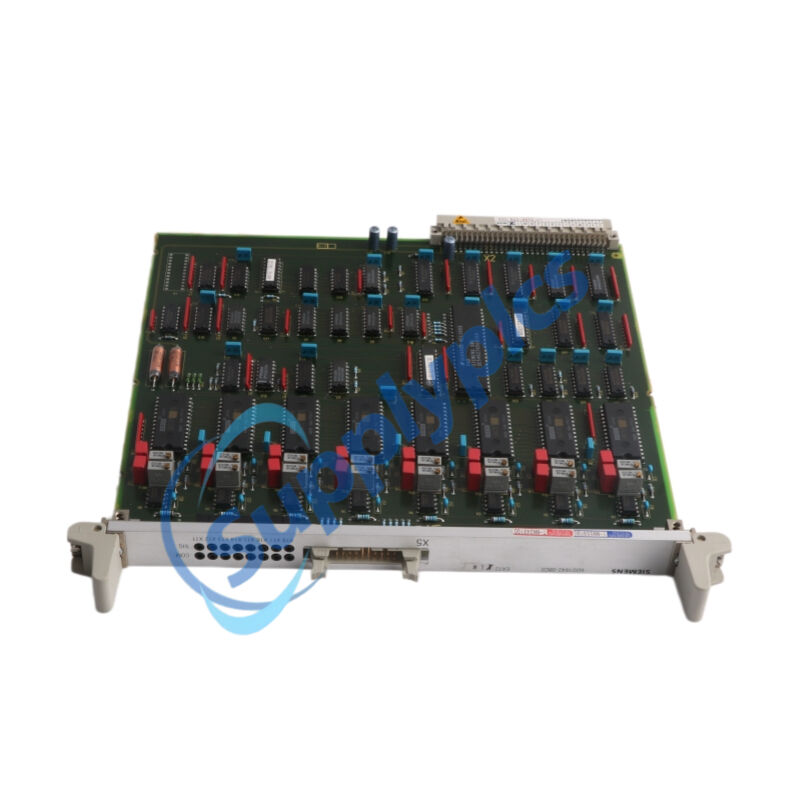

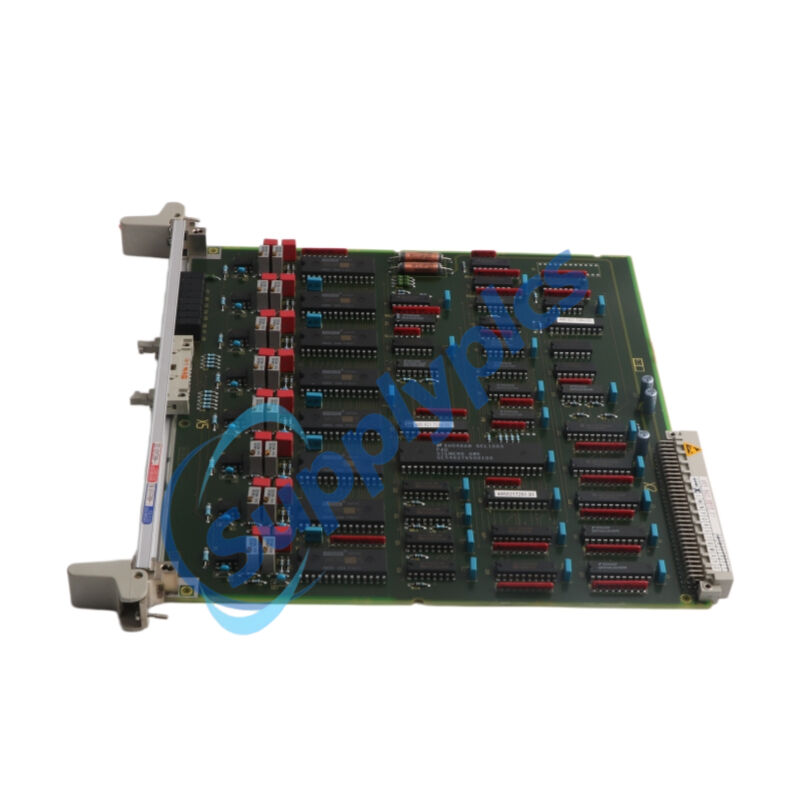

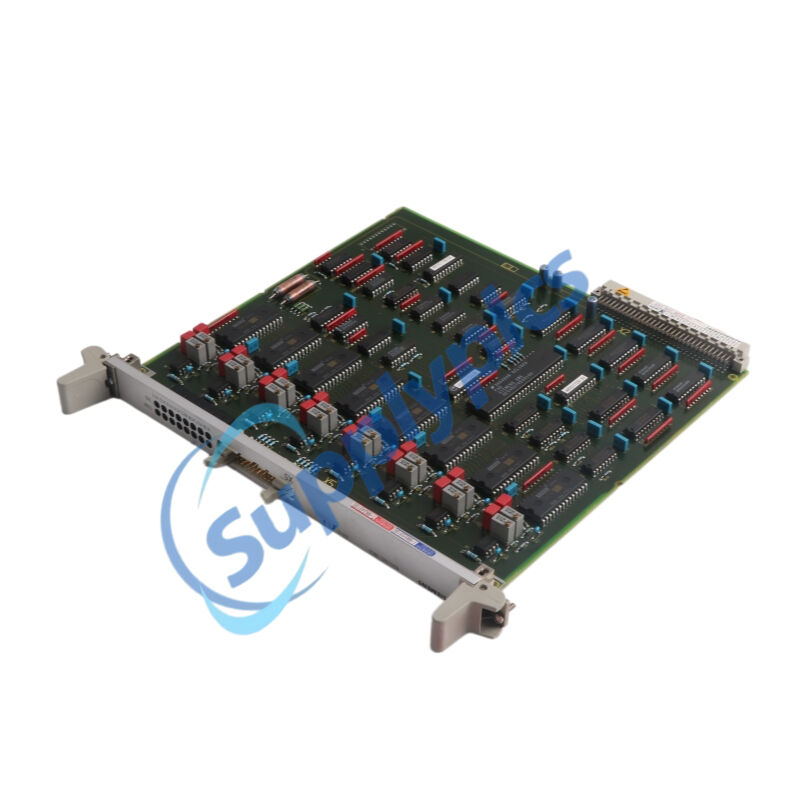

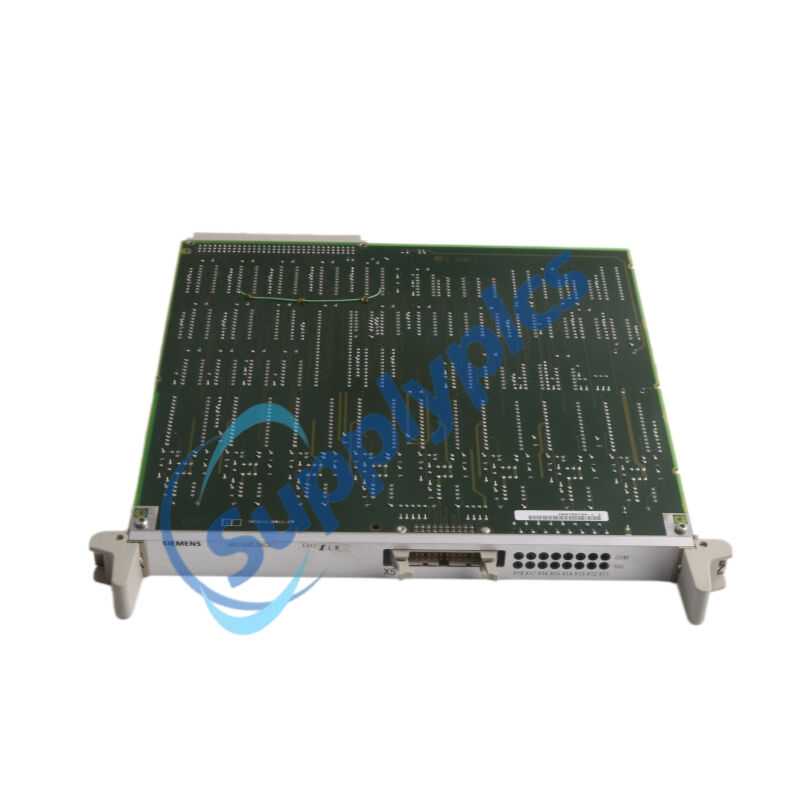

The SIEMENS 6DD1642-0BC0, also known as the EA12 Analog Output Module, is designed for the SIMADYN D and SIMATIC TDC automated systems. This module provides eight high-precision analog output channels for controlling actuators, valves, and frequency converters in demanding industrial fields. Operating within a -10V to +10V range, the 6DD1642-0BC0 offers 14-bit resolution (1mV accuracy) and is short-circuit protected. The EA12 module is a critical component for ensuring stable and accurate signal conversion in heavy industry and power generation applications.
Drive Control Systems: Multi-motor coordination in rolling mills, paper machines, and textile production lines
Process Automation: Valve positioning, flow regulation, and temperature control loops in chemical processing
Power Generation: Controlling turbine governor systems and excitation regulators in thermal and hydroelectric plants
Test Benches: Providing stimulus signals for component validation in R&D facilities
Variable Speed Drives: Speed reference signals for AC/DC motor drives in pumping stations and compressors
8 Independent Analog Output Channels with individual D/A converters
High Precision: 14-bit resolution (1mV) for precise control loops
Integrated Diagnostics: Programmable address decoder with module identification
Robust Protection: Short-circuit proof for up to 120 seconds and comprehensive overload monitoring
Dual Connectivity: 20-way ribbon cable (X5) plus 8 test socket pairs (2.3mm) for startup measurement
Galvanic Isolation: Electrical isolation between outputs and backplane bus to block interference
Field Configurable Output Scaling: Output format for individual channels adjustable with a multiplication factor
Converts digital processor commands into precise analog voltage signals (-10V to +10V) for field devices
Distributes 8 simultaneous analog control signals to actuators, valves or variable frequency drives
Performs real-time closed-loop signal conditioning for industrial equipment or process control systems
Assigns addresses automatically via a programmable decoder depending on the physical slot
Provides measurement access via 2.3mm test sockets to monitor output performance during startup
Q1: How many analog outputs does the 6DD1642-0BC0 provide?
A1: The 6DD1642-0BC0 EA12 module provides 8 analog output channels, each with its own D/A converter.
Q2: What is the output voltage range and resolution?
A2: It outputs -10V to +10V with 14-bit resolution, meaning 1mV accuracy.
Q3: Can the outputs tolerate a short circuit?
A3: Yes, the outputs are short-circuit proof for up to 120 seconds.
Q4: How do I connect measuring equipment?
A4: Use the 8 double test sockets (2.3mm diameter) on the front panel for signal and ground access during startup.
Q5: Is the 6DD1642-0BC0 compatible with SIMATIC TDC?
A5: Yes, the 6DD1642-0BC0 is an EA12 analog output module designed for SIMADYN D and also compatible with the SIMATIC TDC system.
