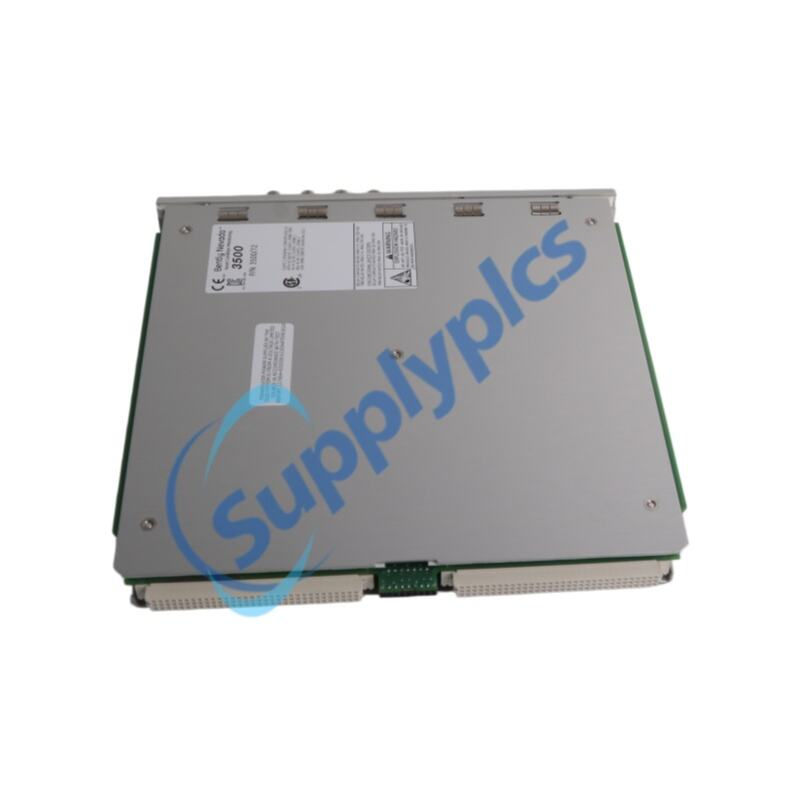

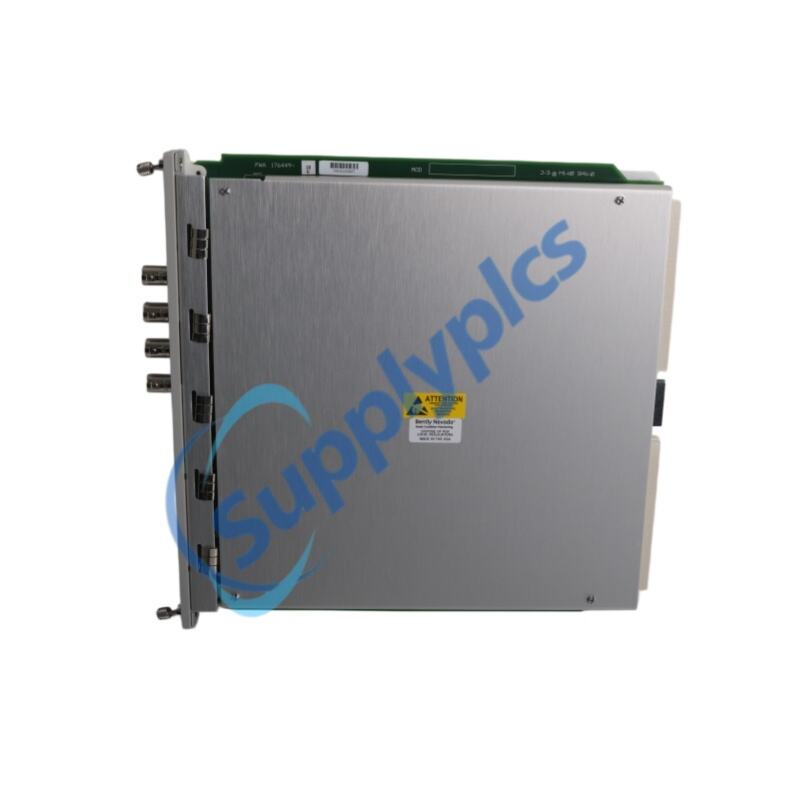

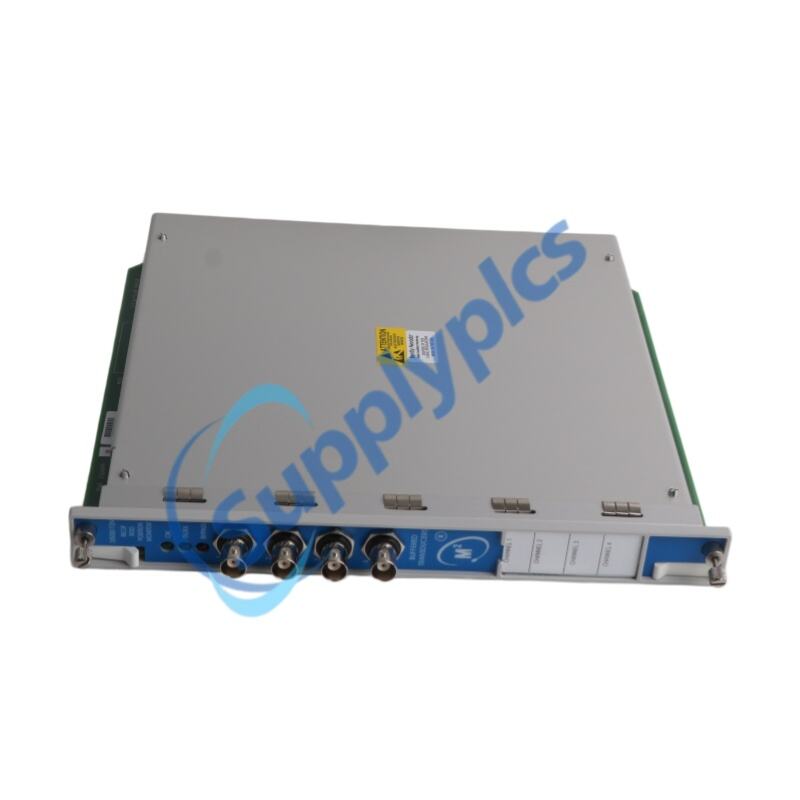

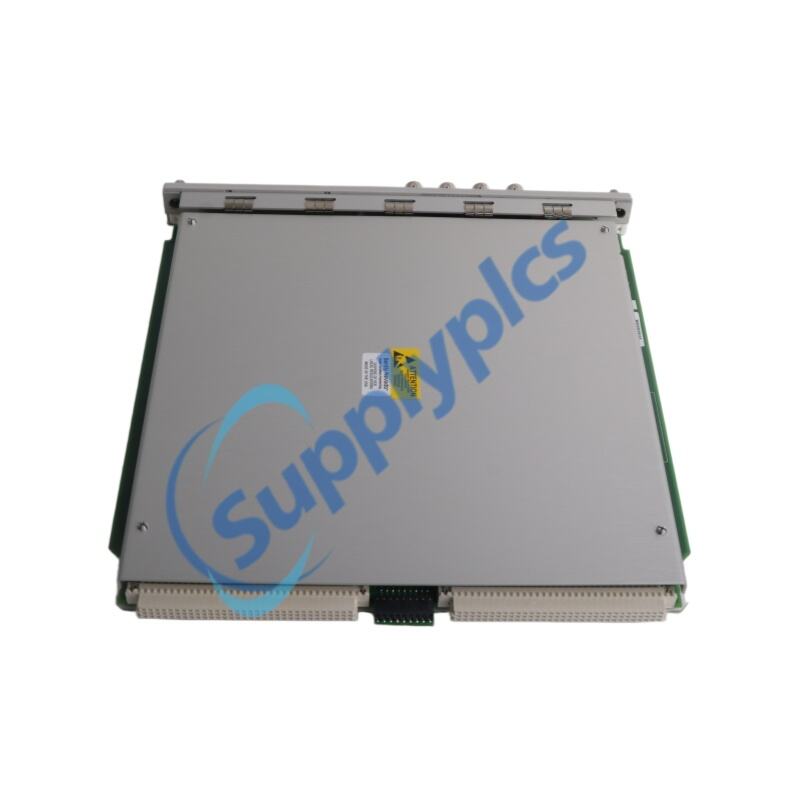

Product Name:Recip Rod Position Monitor
Brand Name:Bently Nevada
Model Number:3500/72M 176449-08
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Bently Nevada |
Model Number: |
3500/72M 176449-08 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
| Item | Details |
|---|---|
| Product Model | 3500/72M 176449-08 |
| Channels | 4-channel input |
| Input Type | Proximity transducer signals |
| Input Impedance | 10 kΩ |
| Power Consumption | 7.7 W (nominal) |
| Dimensions | 241.3 × 24.4 × 241.8 mm |
| I/O Module Size | 241.3 × 24.4 × 99.1 mm |
| Weight (Monitor) | 0.91 kg |
| Weight (I/O Module) | 0.20–0.46 kg |
| Operating Temp | -30°C to +65°C |
The3500/72M 176449-08Rod Position Monitor is a four-channel monitoring solution designed for reciprocating compressor protection and performance analysis. It works with Bently Nevada approved proximity transducers, including systems likeBently Nevada 3300 XLseries, to deliver accurate dynamic and static rod position measurements in industrial environments.
Each channel of the3500/72M 176449-08processes incoming signals into multiple calculated parameters such as rod position, rod drop, and hyper-compressor metrics. The module continuously compares real-time values with configurable alarm thresholds to support early fault detection and machinery safeguarding.
Integrated with theBently Nevada 3500/72Mplatform, this monitor provides reliable data for API 618 compliant compressor systems, enabling improved operational safety, condition monitoring, and maintenance decision-making in critical rotating equipment applications.
Q1: What is the main purpose of 3500/72M 176449-08?
A1: It is used for monitoring rod position and protecting reciprocating compressors.
Q2: What signals does the 3500/72M support?
A2: It accepts input from Bently Nevada approved proximity transducers.
Q3: How many channels does this monitor have?
A3: The3500/72M 176449-08supports four independent input channels.
Q4: Is it suitable for API 618 applications?
A4: Yes, it is designed to meet API 618 compressor monitoring requirements.
Q5: What parameters can it measure?
A5: It measures rod position, rod drop, and hyper-compressor performance data
| Number | Describe |
|---|---|
| 176449-08 | 3500/72M Recip Rod Position Monitor |
| 140471-01 | I/O Module with Internal Terminations |
| 00580434 | Internal I/O Module connector header Euro Style, 8-pin, green (Used with 140471-01) |
| 140482-01 | I/O Module with External Terminations |
| 135489-01 | I/O Module with Internal Barriers and Internal Terminations |
| 00580441 | Internal I/O Module connector header Euro Style, 3-pin, green (Used with 135489-01 and 140471-01) |
| 00502133 | Internal I/O Module connector header Euro Style, 12-pin, blue (Used with 135489-01) |
| 146479-01 | 3500/72M Recip Rod Position Monitor User Manual |
| 166M4363 | Connector header Push-in-spring type (Alternative for 00580441) |
| 166M2389 | Connector header Push-in-spring type (Alternative for 00580434) |
| 166M2388 | Connector header Push-in-spring type (Alternative for 00580432) |
