Product Name:MEMORY SUBMODULE
Brand Name: SIEMENS
Model Number:6DD1610-0AG1
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
6DD1610-0AG1 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Parameter |
Specification |
|
Model Number |
6DD1610-0AG1 |
|
Product Type |
MS41 Memory Submodule |
|
System Compatibility |
Siemens SIMADYN D |
|
Architecture |
16-bit |
|
Memory Type |
EPROM + EEPROM |
|
Memory Capacity |
512 KB EPROM + 2 KB EEPROM |
|
Slot Configuration |
1 × 28-pin / 4 × 32-pin |
|
Access Time (EPROM) |
70 ns |
|
Access Time (EEPROM) |
300 ns |
|
Write Cycle (EEPROM) |
≤ 2 ms |
|
Power Supply |
DC 24V (±5%) |
|
Dimensions (W×H×D) |
63 × 118 × 19 mm (2.48 × 4.65 × 0.75 in) |
|
Net Weight |
0.092 kg (3.24 oz) |
|
Programming |
SIMADYN D Parallel Programmer required |
|
Operating Temp. |
0°C – +60°C (32°F – 140°F) |
|
Storage Temp. |
–40°C – +70°C (–40°F – 158°F) |
|
RoHS Compliance |
Not RoHS-compliant |
|
Lifecycle Status |
Discontinued (since October 1, 2017) |
|
Product Class |
D (Engineered-to-order / nonreusable) |

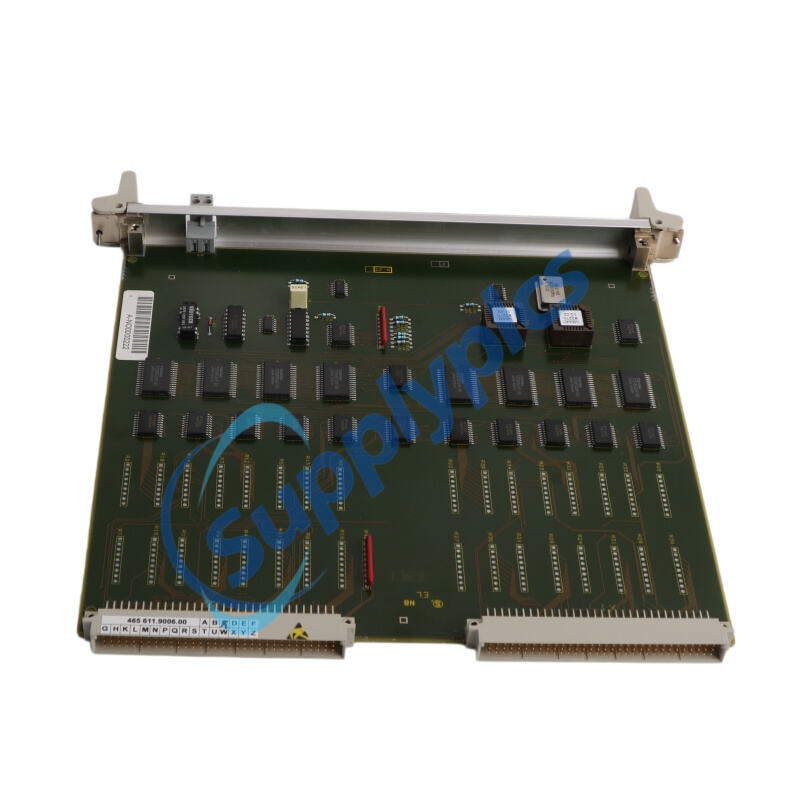

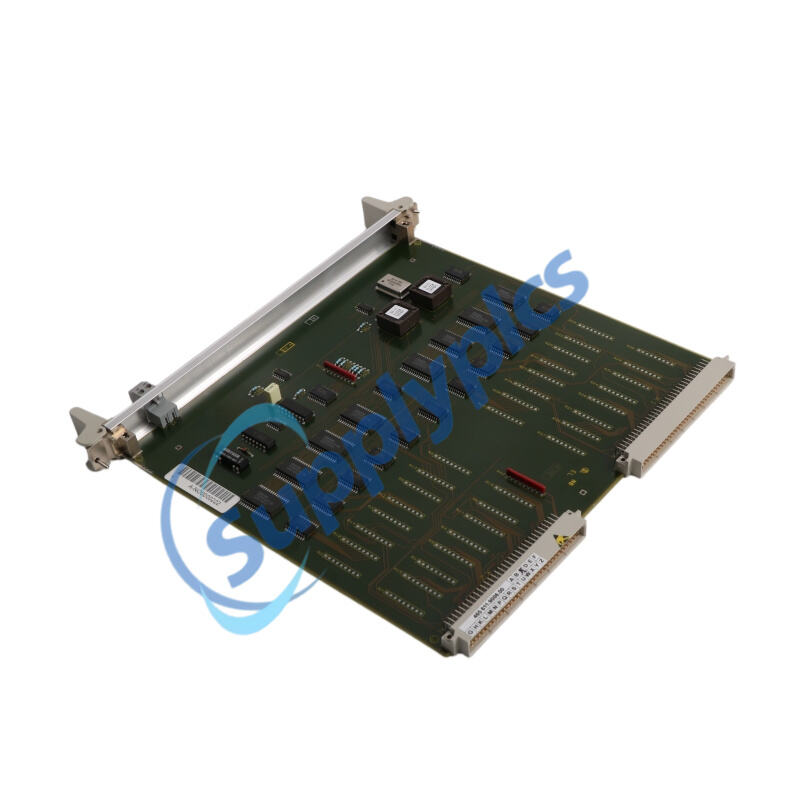

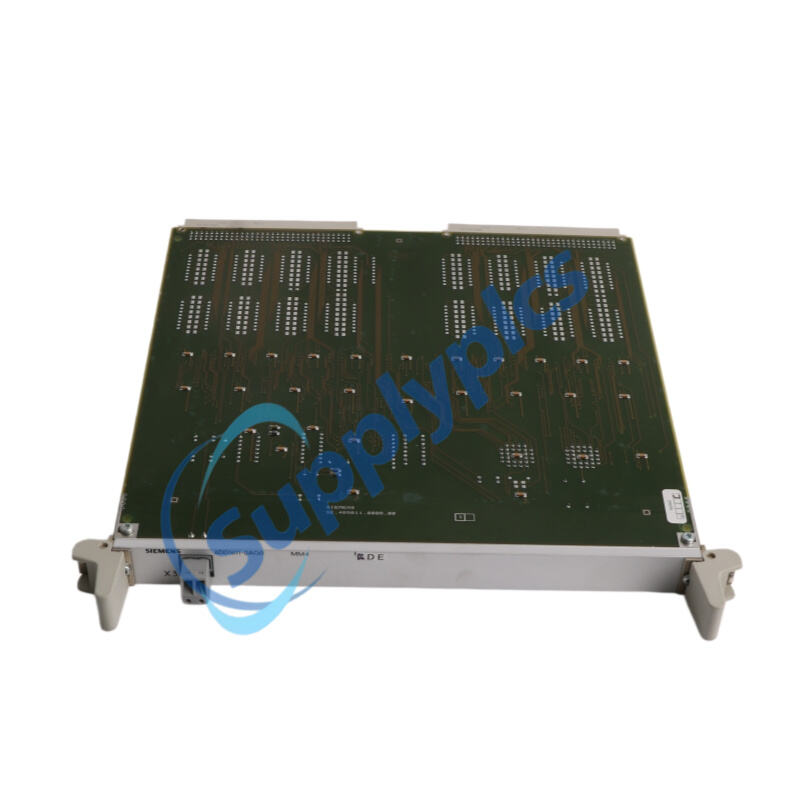

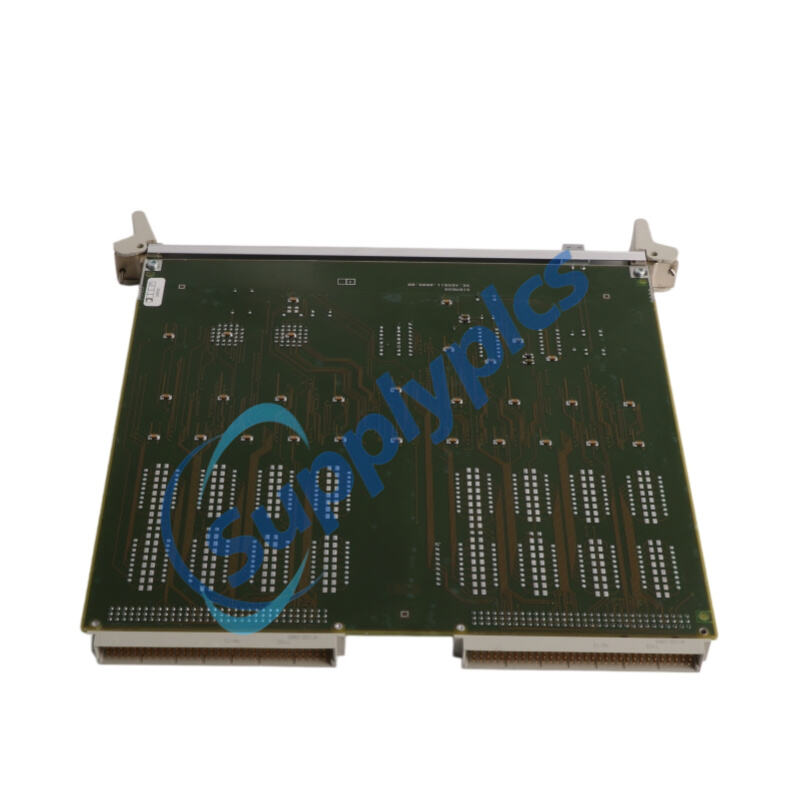

The Siemens 6DD1610-0AG1 is an MS41 memory submodule engineered for the SIMADYN D digital control platform. This 6DD1610-0AG1 board contains one 28-pin and four 32‑pin slots, storing operating system machine code and user programs within its 512 KB EPROM, while retaining adjustable parameters in a 2 KB EEPROM. As a discontinued spare part, the 6DD1610-0AG1 remains available through specialized automation suppliers for legacy system maintenance and field upgrades.
Turbine control systems programming, storage, and management
Drive control architectures (rolling mills, printing presses, continuous process lines)
Power generation installations for turbine logic and parameter retention
Process automation (chemical manufacturing, food processing, pharmaceutical)
Legacy system upgrades extending operational life without full controller replacement
16‑bit memory architecture with 512 KB EPROM program storage
Supplementary 2 KB EEPROM for adjustable operating parameters
Dual memory technology ensuring non‑volatile data retention without power
Configurable slot design accommodating various EPROM densities
Compact PCB form factor for space‑sensitive installations
Full compatibility with SIMADYN D processor board subrack mounting
Stores the operating system machine code and configured user program in EPROM.
Retains adjustable control parameters (e.g., PID gains, setpoints) in EEPROM.
Maintains stored data even during power interruptions.
Interfaces with the SIMADYN D system via a 48‑pin plug connector.
Requires a SIMADYN D Parallel Programmer for initialization and programming.
Q1: What is the storage capacity of the Siemens 6DD1610-0AG1?
A1: The 6DD1610-0AG1 provides 512 KB of EPROM for program storage and 2 KB of EEPROM for adjustable operating parameters.
Q2: How do I program the 6DD1610-0AG1 memory submodule?
A2: Programming requires a SIMADYN D Parallel Programmer and standard SIMADYN D development tools for EPROM code loading.
Q3: Is the 6DD1610-0AG1 still available as a new part?
A3: Siemens discontinued the 6DD1610-0AG1 on October 1, 2017. However, replacement units remain available through industrial automation spare parts suppliers.
Q4: Is the 6DD1610-0AG1 interchangeable with MS‑33 or MS‑4 modules?
A4: No. The 6DD1610-0AG1 (MS41) is not interchangeable with older MS‑33 or MS‑4 memory submodules due to architectural differences.
Q5: What are the physical dimensions of the 6DD1610-0AG1?
A5: The 6DD1610-0AG1 measures 63 mm × 118 mm × 19 mm (width × height × depth) and weighs approximately 0.092 kg.
