SIEMENS · SIMATIC ET 200SP
6ES7155-6AR00-0AN0
IM 155-6 PN Basic PROFINET Interface Module
|
STATION CAPACITY
12 I/O
2 integrated RJ45 ports
|
|
Included: server module · Successor: 6ES7155-6AR01-0AN0
|
PN |
OFFICIAL PRODUCT OVERVIEW

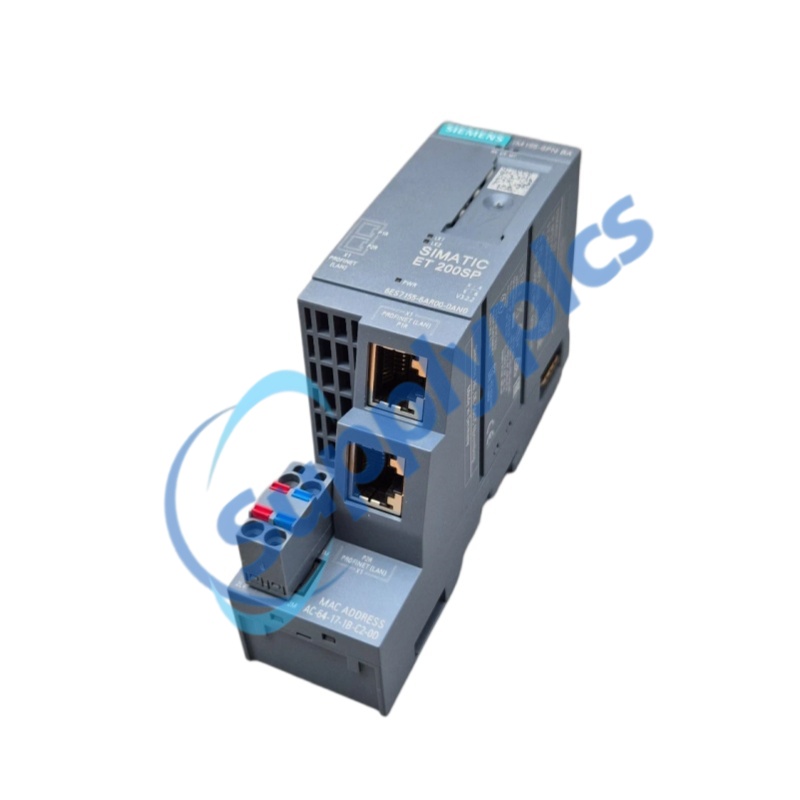

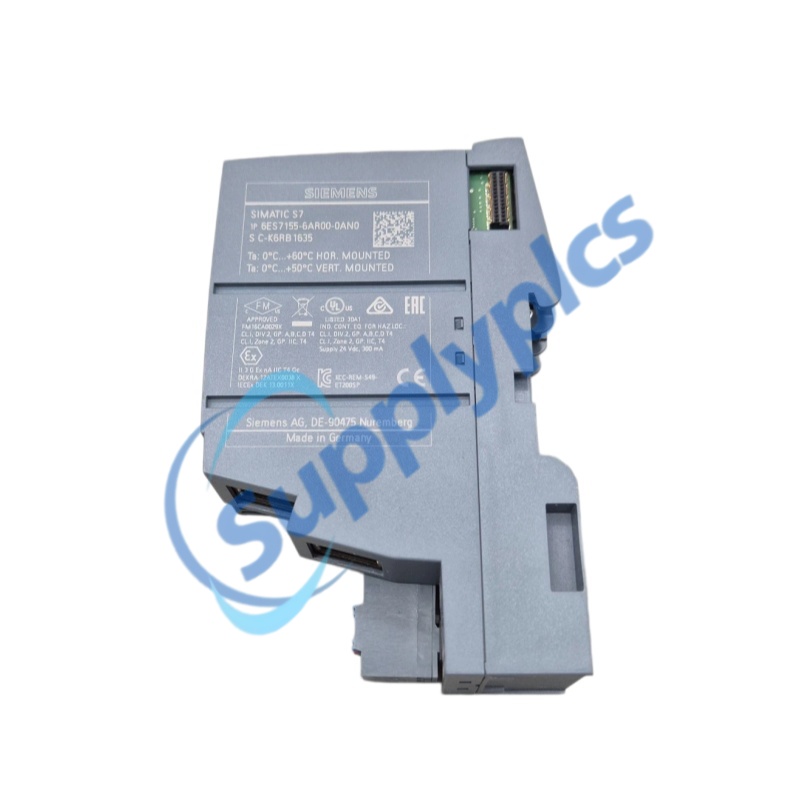

IM 155-6 PN Basic for compact ET 200SP stations
The SIMATIC ET 200SP 6ES7155-6AR00-0AN0 connects a distributed ET 200SP station to a PROFINET IO controller. It supports up to 12 ET 200SP I/O modules and provides two integrated RJ45 ports with switch functionality. The server module is included. Siemens lists this article as phase-out and identifies 6ES7155-6AR01-0AN0 as the successor, so project compatibility and migration requirements should be checked before quotation. |
|
Product type
|
IM 155-6 PN BA
|
|
Maximum I/O modules
|
12 ET 200SP modules
|
|
Supply voltage
|
24 V DC; permissible range 19.2–28.8 V
|
|
Current / power loss
|
Maximum 300 mA; typical power loss 1.8 W
|
|
Voltage interruption
|
Buffering time 5 ms
|
|
Address space
|
Up to 32 bytes per module; station maximum 32 bytes
|
|
Net weight
|
0.156 kg
|
|
PROFINET
1 interface
2 ports with integrated switch
|

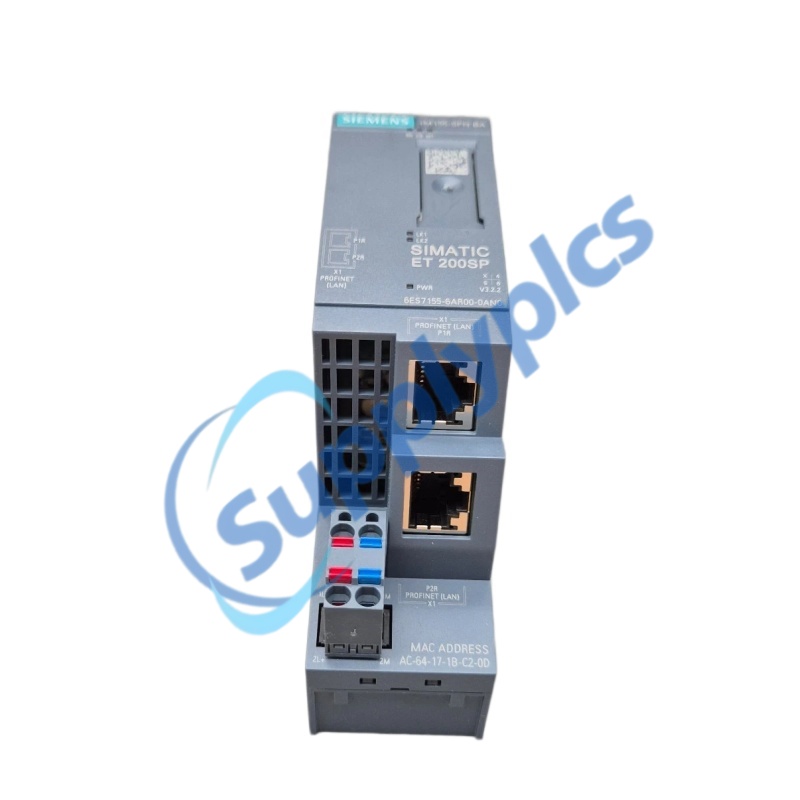

PHYSICAL CONNECTION
2 × RJ45
Integrated sockets
|
ENGINEERING
TIA Portal V13 SP1+
STEP 7 V5.5 SP4+ · GSDML V2.31
|
|
Service data: Firmware update is supported. Identification and maintenance functions I&M0 to I&M3 are available. Single hot swapping is supported within the limits stated by Siemens.
|
|
BUILT-IN PROTECTION
Supply safeguards
Reverse-polarity and short-circuit protection are specified by Siemens.
|
ENVIRONMENT CHECK
Verify the cabinet design
Operating temperature, altitude, EMC, installation position and enclosure requirements must be checked against the current Siemens data sheet and the planned station configuration.
|
|
BEFORE INSTALLATION
Five-point station check
01 Keep the ET 200SP station within 12 I/O modules
02 Confirm compatible BaseUnits and I/O modules 03 Verify the 24 V DC supply and PROFINET topology 04 Match TIA Portal, STEP 7 or GSDML project support 05 Review successor migration before replacement |
INCLUDED ITEM
Server module
Siemens states that the server module is included with 6ES7155-6AR00-0AN0. Confirm the full station bill of materials before ordering.
|
|
ORDER VERIFICATION
Match the installed station
ARTICLE NO. Confirm 6ES7155-6AR00-0AN0
HARDWARE Functional status from FS04 PROJECT TIA / STEP 7 / GSDML version STATION Existing module list and topology MIGRATION Check successor 6ES7155-6AR01-0AN0 |
|
Inventory
|
Confirm before quotation
|
|
Unit condition
|
New, used or refurbished status is subject to verification
|
|
Photos
|
Current overall and nameplate photos available on request
|
|
Test scope
|
Available on request and stated in the quotation
|
|
Warranty / dispatch
|
Subject to the selected unit and written quotation
|
|
Payment / response
|
Available methods and quotation timing confirmed before order
|
|
Transaction trust
|
Company and transaction documents available on request
|
|
