SIEMENS SIMATIC S7-1500 6ES7521-1BH00-0AB0 DI 16x24 V DC HF Digital Input Module | Original New

SIEMENS SIMATIC S7-1500 6ES7521-1BH00-0AB0 DI 16x24 V DC HF Digital Input Module | Original New

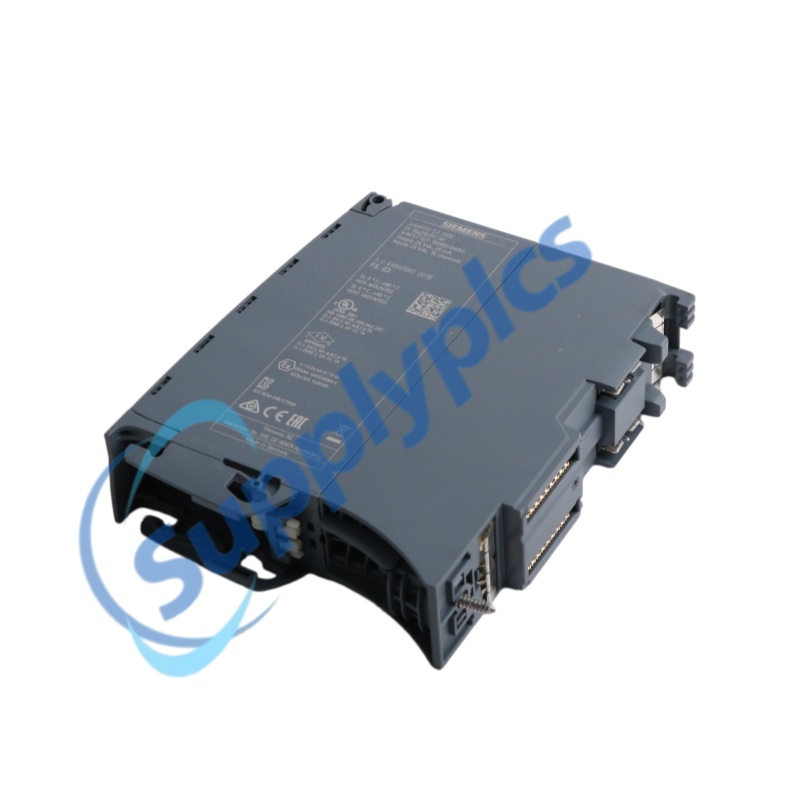

SIEMENS · SIMATIC S7-1500 6ES7521-1BH00-0AB0 DI 16x24 V DC HF Digital Input Module	HIGH FEATURE INPUT 16 DI 24 V DC · Type 3
Official description: Digital input module DI 16x24 V DC HF; 16 channels in one group; two inputs can be used as counters; diagnostics and hardware interrupts; front connector ordered separately. Order check: Confirm the front connector, channel configuration and engineering version before ordering. Email Inquiry WhatsApp [email protected] \| +86 18159889985

Overview
Applications
Technical Data
Interfaces
Environment
Selection
Availability
Models
FAQ & Quote
Recommended Products

OFFICIAL PRODUCT OVERVIEW

SM 521 high-feature digital input module

This S7-1500 signal module acquires 16 digital 24 V DC input signals. Siemens specifies parameterizable input delay, diagnostics, hardware interrupts and two counter-capable inputs.

Channels	16 digital inputs
Input groups	1 group of 16
Input standard	IEC 61131 Type 3
Counter inputs	Up to 2

Applications

FUNCTION AND APPLICATION

Fast, diagnosable input acquisition

Use the module where an S7-1500 station needs dense 24 V DC input acquisition with channel diagnostics, hardware interrupts or two integrated counter channels.

• Machine status and limit-switch signals

• Event-driven inputs with hardware interrupts

• Counter functions up to two channels

Technical Data

Official Technical Data

Product type	DI 16x24VDC HF
Rated voltage	24 V DC
Permissible supply	19.2 to 28.8 V DC
Input delay	0.05 to 20 ms, parameterizable
Counter function	2 inputs, up to 6 kHz, 32-bit
Diagnostics	Diagnostic alarms and hardware interrupts
Engineering	TIA Portal V13 SP1 or higher per Siemens data
Firmware	V2.2.0

Interfaces

CONSTRUCTION

16 channels
35 mm class

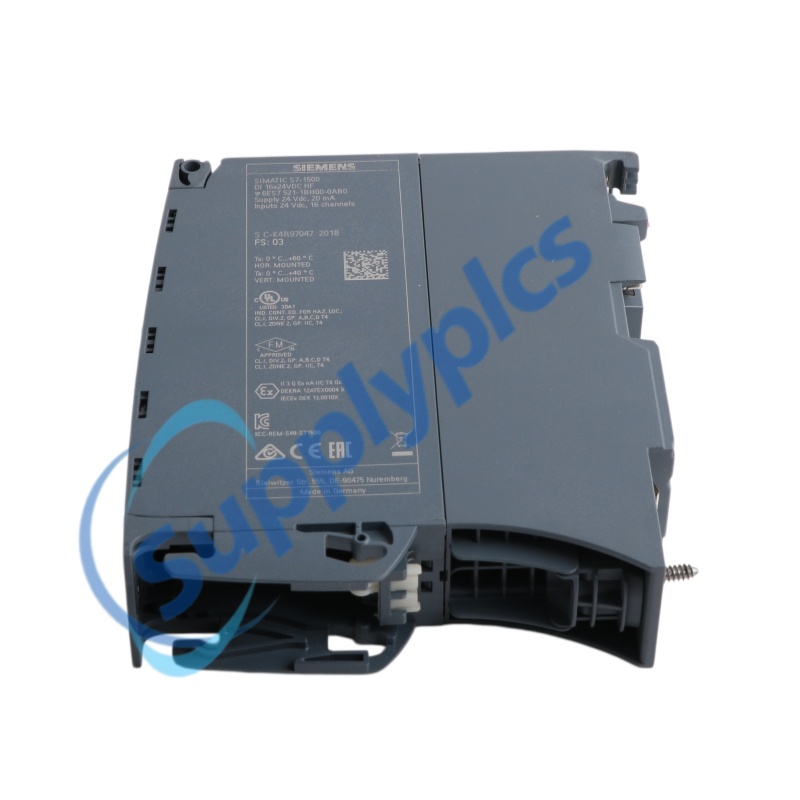

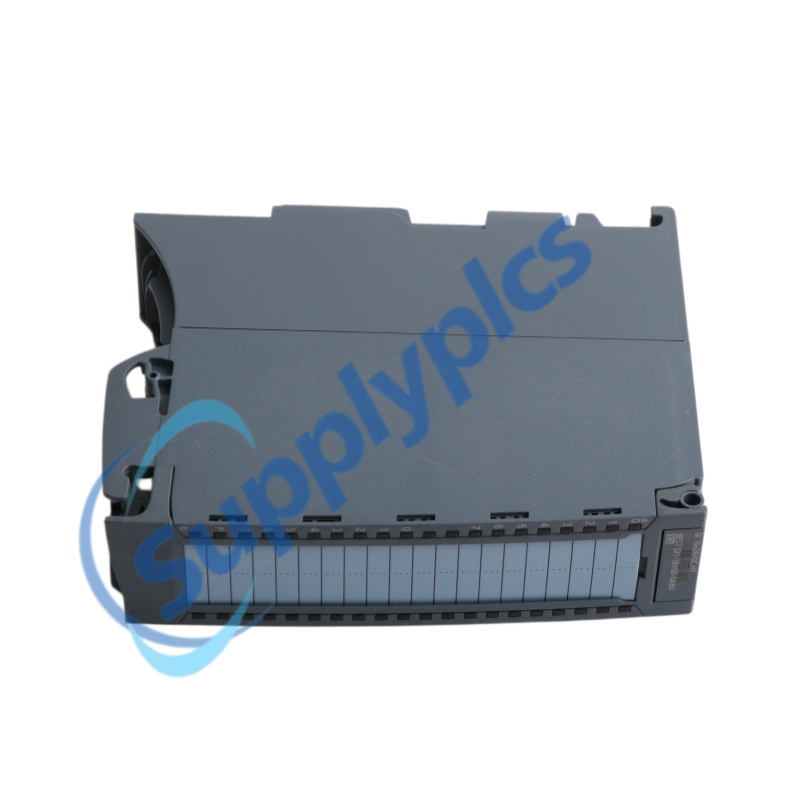

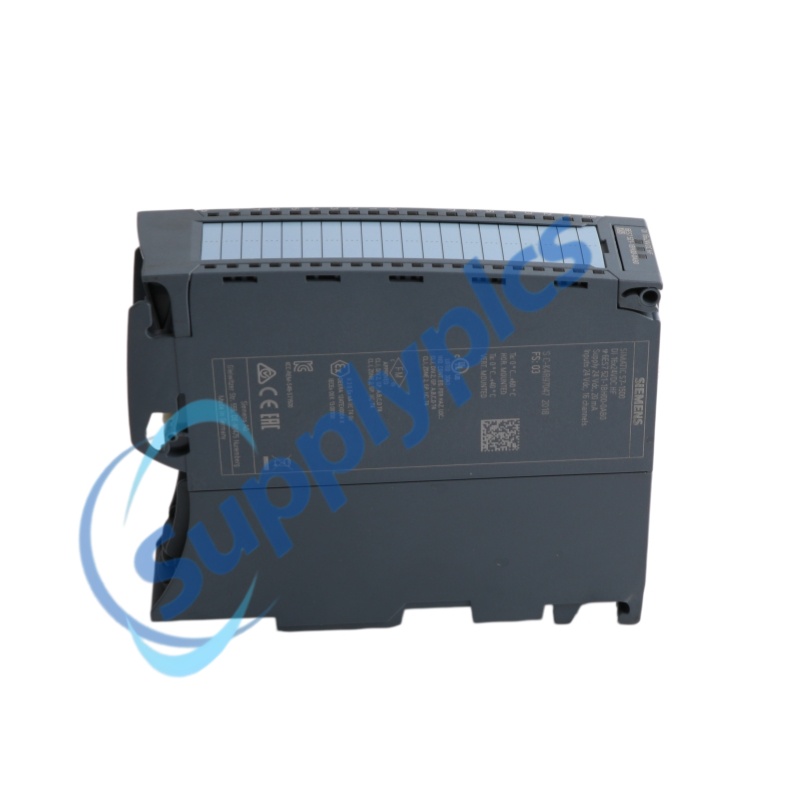

Connection and module details

• Front connector is ordered separately

• Screw-terminal or push-in front connector options

• I&M0 to I&M3 identification data

• Isochronous operation supported

Environment

Protection and Operating Limits

Protection	Installation in the S7-1500 system; cabinet conditions apply
Shielded cable	Confirm application-specific cable design
Diagnostics LEDs	RUN, ERROR, power and channel indications
Safety use	Not a fail-safe input module

Selection

BEFORE INSTALLATION

Match the front connector and project

• Confirm complete article number 6ES7521-1BH00-0AB0

• Select the correct screw or push-in front connector

• Check TIA Portal and CPU firmware compatibility

• Verify counter and interrupt requirements

VERIFICATION CHECKLIST

Confirm before quotation

□ Complete Siemens article number	□ Counter channel requirement
□ Existing S7-1500 CPU and rack	□ Hardware-interrupt assignment
□ Front connector type	□ Field voltage and sensor type
□ Required input delay	□ Current overall and nameplate photo
