Product Name:Voltage Input Module
Brand Name: SIEMENS
Model Number:39VIMCCN
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
SIEMENS |
Model Number: |
39VIMCCN |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Specification |
Details |
|
Manufacturer |
Siemens |
|
Model Number |
39VIMCCN |
|
Alternate Part Numbers |
A5E00282175/07, 16171-126/3, 16171-126/6, 39VIM-CCN |
|
Product Type |
Voltage Input Module (VIM) |
|
System Compatibility |
APACS+, QUADLOG |
|
Number of Channels |
|
|
Input Signal Types |
|
|
Power Consumption |
|
|
Accuracy |
|
|
Response Time |
|
|
Operating Temperature |
|
|
Storage Temperature |
|
|
Enclosure Protection |
|
|
Weight |
|
|
Dimensions (mm) |
|
|
LED Indicators |
OK LED for status/error diagnosis |
|
Certifications |
CE, UL, CSA |

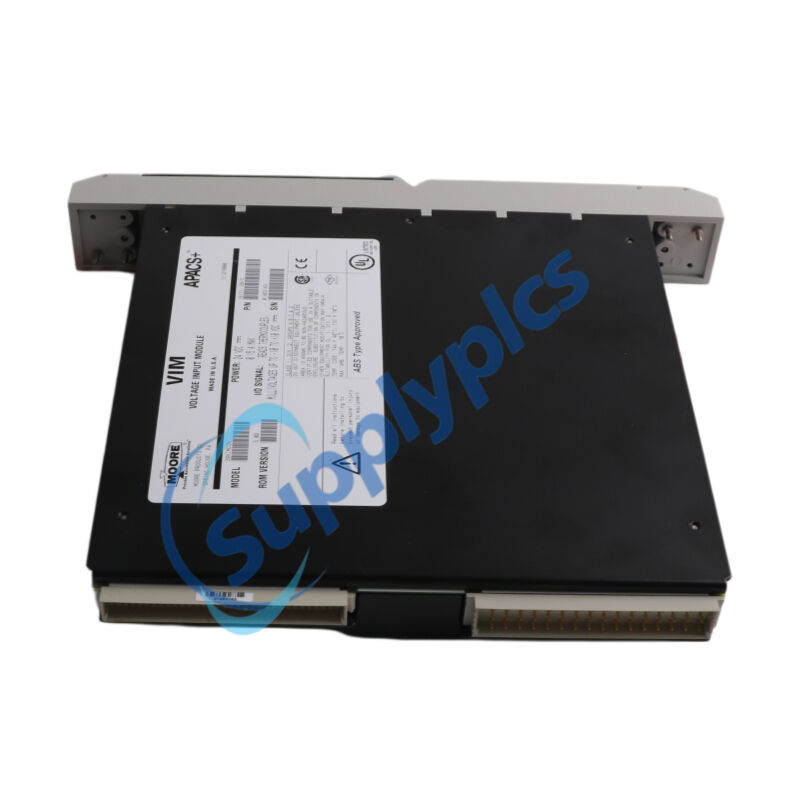

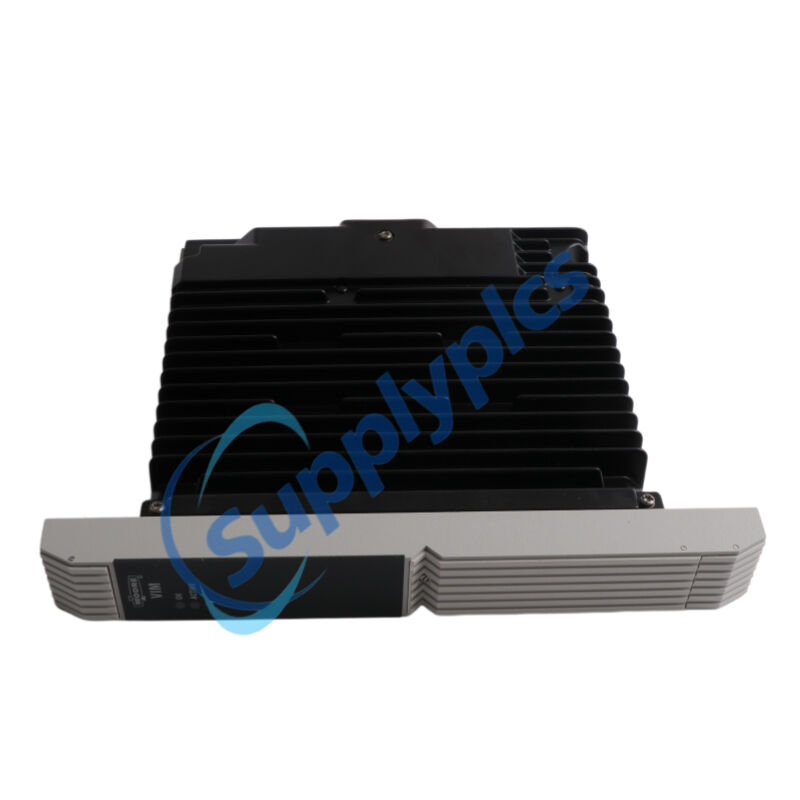

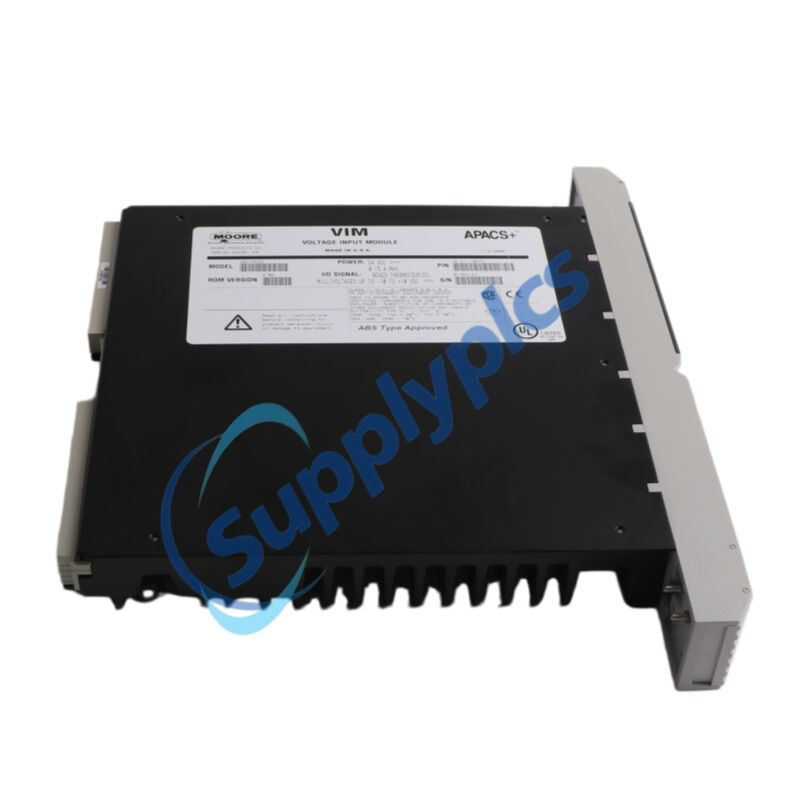

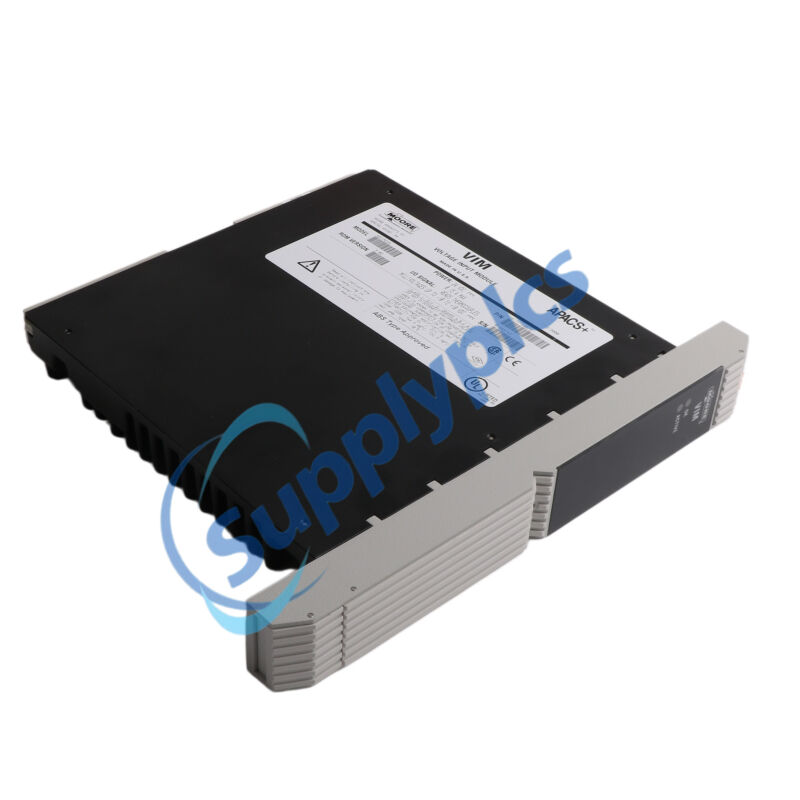

The Siemens 39VIMCCN is a high‑precision Voltage Input Module engineered for the APACS+ process control and QUADLOG safety systems. It processes 16 configurable channels accepting voltage or thermocouple signals, ensuring accurate data acquisition. With rapid ≤1ms response, wide input ranges, and robust industrial‑grade construction, the Siemens 39VIMCCN delivers reliable performance in demanding automation environments. Its intelligent, microprocessor‑based design simplifies integration and supports legacy system extensions.
Process control systems (chemical, pharmaceutical, oil & gas)
Safety instrumented systems (SIS) with QUADLOG integration
Legacy APACS+ expansions and upgrades
Industrial data acquisition
Manufacturing automation lines
Power generation monitoring
Food & beverage processing
16 universal input channels for voltage or thermocouple signals
Intelligent, microprocessor‑based design
Each channel electrically isolated from CPU, IOBUS, and ground
High accuracy up to ±0.1% with fast ≤1ms response
Wide operating temperature range (-25°C to +70°C)
Flexible power input (10–30V DC)
IP20/IP65 protection options for harsh environments
LED indicators for real‑time diagnostics
CE, UL, and CSA certified
Interfaces thermocouple and voltage input signals to the APACS+ control module‘s IOBUS
Converts analog voltage signals into digital values for further processing
Provides electrical isolation to protect against field faults and interference
Enables each channel to be independently configured as voltage or thermocouple input
Supports redundant system configurations with shared thermocouple wiring
Delivers real‑time signal status via OK LED annunciation
Facilitates integration with QUADLOG safety controllers
Q1: Is the Siemens 39VIMCCN compatible with my existing APACS+ system?
A1: Yes. The Siemens 39VIMCCN is fully compatible with APACS+ process control systems and QUADLOG safety controllers, allowing seamless integration without requiring a full system migration.
Q2: Does the 39VIMCCN support thermocouple inputs?
A2: Yes. The Siemens 39VIMCCN provides 16 configurable channels, each capable of accepting either voltage or thermocouple input signals, offering flexible application options.
Q3: What voltage ranges can the 39VIMCCN handle?
A3: It supports multiple DC input ranges, including 0–24V DC, 12–30V DC, and 0–60V DC, ensuring broad compatibility with diverse field devices and sensors.
Q4: Is the 39VIMCCN still in production?
A4: The product lifecycle is currently listed as active, with Siemens providing sustaining engineering and continued support for APACS+ components, including the Siemens 39VIMCCN.
Q5: How do I check the operational status of the 39VIMCCN?
A5: The module features an OK LED that serves as the primary error indicator, performing self‑diagnostics such as ROM and RAM tests upon startup and during operation.
