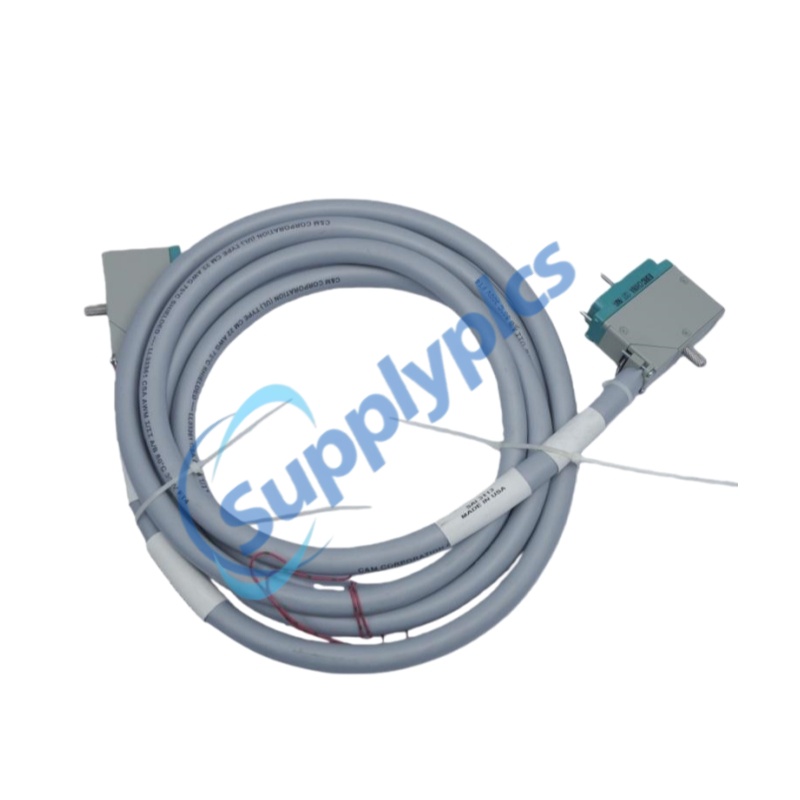

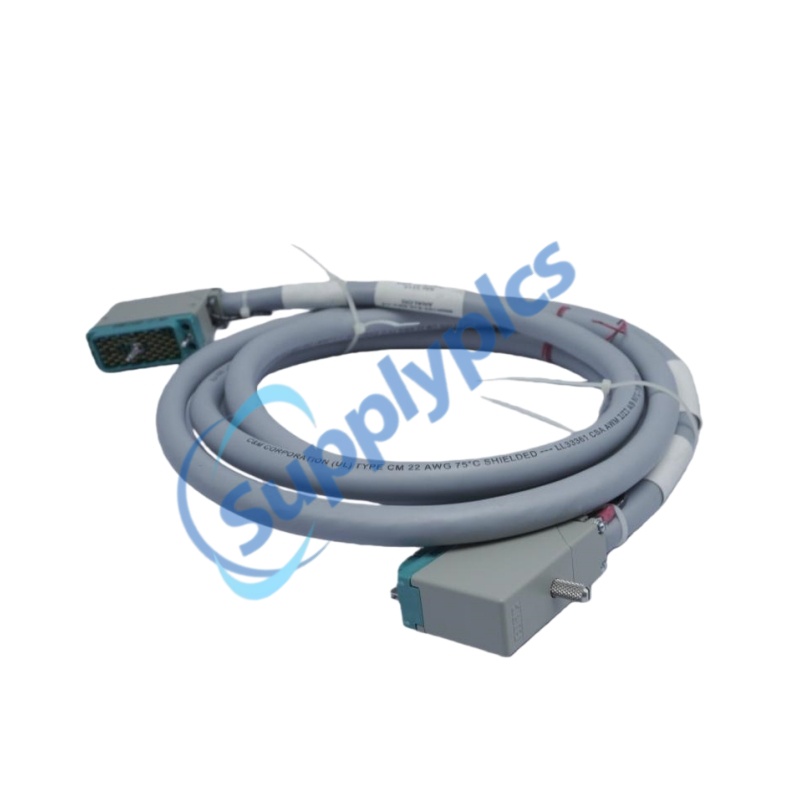

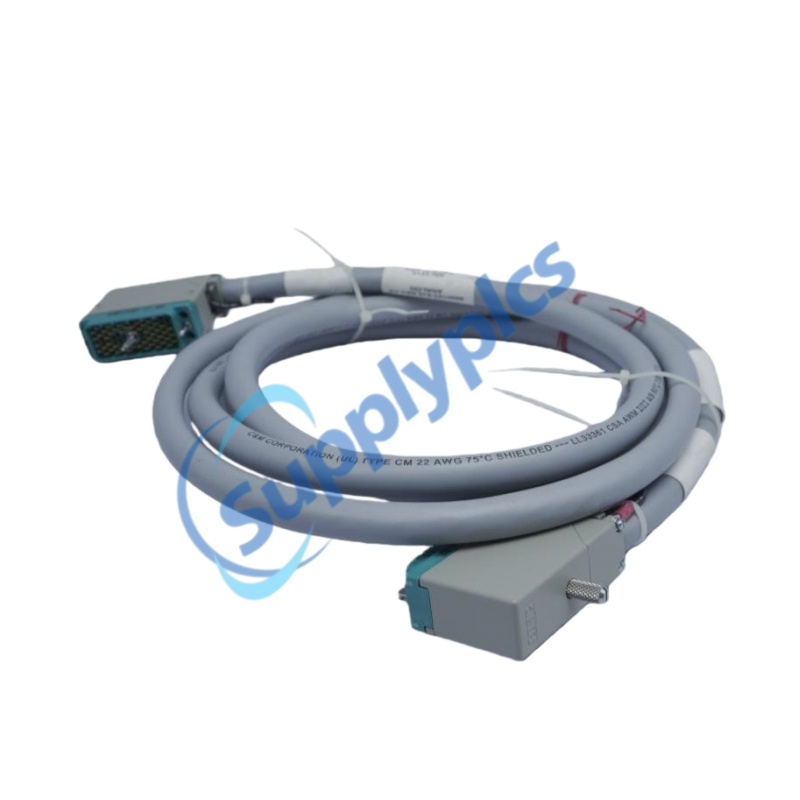

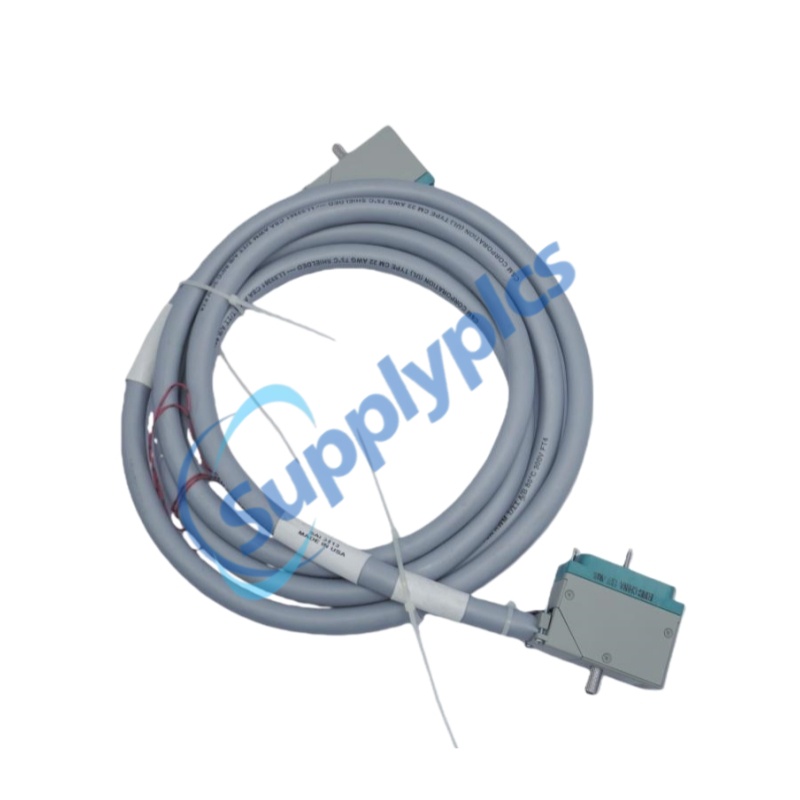

Product Name:External Termination Cable Assembly
Brand Name: TRICONEX
Model Number:4000188-320
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
TRICONEX |
Model Number: |
4000188-320 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Model Number |
4000188-320 |
|
Manufacturer |
Invensys / Triconex |
|
Product Type |
External Termination Cable / Interface Cable |
|
Connector Type |
56-pin connector (chassis end); fannedout leads or termination panel connector (field end) |
|
Cable Type |
Shielded, multi-conductor interface cable |
|
Compatibility |
Triconex Tricon v9–v11 TMR systems |
|
Compatible Modules |
3625C, 3625AC, 3664C I/O modules, and other TMR I/O modules |
|
Application |
External termination for Triconex I/O modules |
|
Flame Test Rating |
FT4 (vertical flame test) |
|
Cable Length |
20 feet (approx. 6.1 meters) |
|
Weight |
Approx. 0.4 kg (0.9 lbs) |
The 4000188-320 is a shielded external termination cable engineered by Invensys Triconex for Triple-Modular Redundant (TMR) safety systems. This 4000188-320 cable provides a critical physical interface between Triconex I/O modules (e.g., 3625C, 3625AC, 3664C) and external termination panels (ETPs). The 4000188-320 facilitates secure, high-integrity signal transmission between the Tricon chassis backplane and field wiring, enabling reliable connectivity in safety-instrumented systems.
Signal Interface: The 4000188-320 cable transmits discrete and analog I/O signals between the Tricon controller's backplane and the field termination panel, enabling the control system to interface with field devices such as sensors, switches, and actuators.
TMR Architecture Support: Designed for Triconex's TMR architecture, the cable ensures that signals are distributed to all three isolated channels, maintaining system integrity and fault tolerance.
Shielded Construction: The cable's shielding protects against electromagnetic interference (EMI) and radio-frequency interference (RFI), ensuring signal integrity in harsh industrial environments.
Shielded Multi-Conductor Design: Provides robust protection against electrical noise and ensures reliable signal transmission in industrial environments.
High Durability: Engineered to withstand harsh industrial conditions, including temperature extremes, moisture, and vibration.
Secure Connectivity: Equipped with a 56-pin connector for a reliable connection to the Tricon chassis backplane, ensuring stable signal transmission.
FT4 Flame Test Rating: Meets flame test standards for use in cable trays, enhancing safety in industrial installations.
Hot‑Spare Compatibility: Supports online module replacement in Triconex systems without process interruption.
Chassis Compatibility: The 4000188-320 connects Triconex I/O modules to external termination panels (ETPs) in Main, Expansion, or RXM Chassis.
Module Compatibility: Used with TMR digital and analog I/O modules, including models 3625C, 3625AC, and 3664C.
Field Termination: The cable connects to standard or basic termination panels, enabling remote marshaling of field wiring up to 99 feet (30 meters) from the Tricon chassis.
Installation: The cable connects to the chassis backplane via a 56-pin connector and to the termination panel via fanned-out leads or a panel connector. It is available in FT4 (90-degree) and Z (zero-degree) configurations.
Q1: What is the primary function of the 4000188-320 cable?
A1: The 4000188-320 is an external termination cable that connects Triconex I/O modules to field termination panels, enabling signal transmission between the Tricon controller and field devices.
Q2: Which Triconex modules are compatible with the 4000188-320?
A2: It is compatible with TMR I/O modules such as 3625C, 3625AC, and 3664C.
Q3: What is the length of the 4000188-320 cable?
A3: The cable is 20 feet (approx. 6.1 meters) long.
Q4: Is the 4000188-320 cable shielded?
A4: Yes, it features shielded multi-conductor construction to protect against electromagnetic interference.
Q5: Can the 4000188-320 be used in hazardous locations?
A5: Yes, when installed with appropriate non-incendive termination panels, it is suitable for use in Class I, Division 2 hazardous locations.
