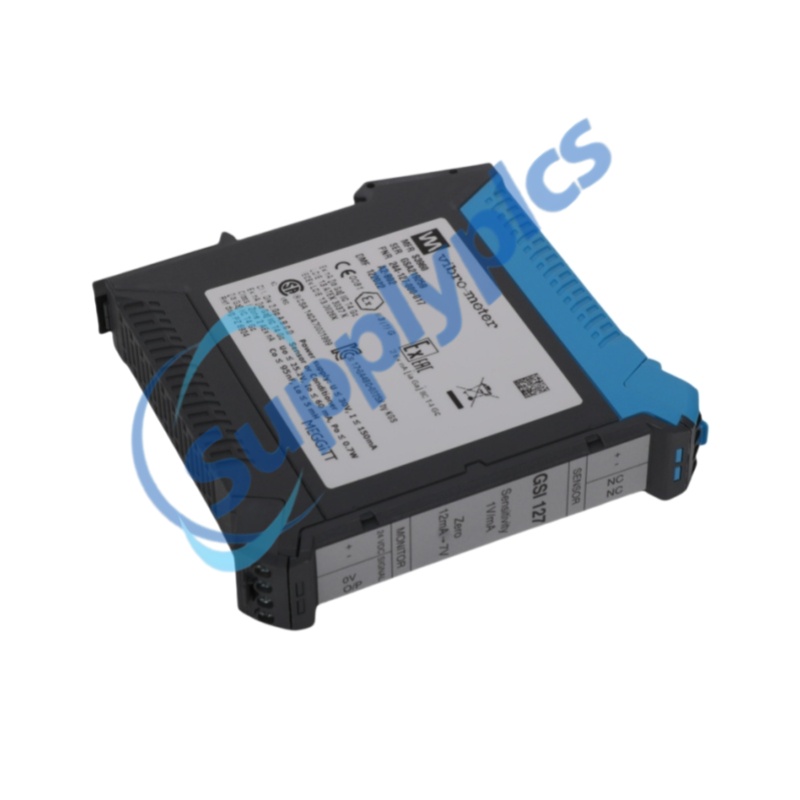

Vibro-Meter S3960 AC46286 144-201-000-222 high-performance galvanic separation solution In stock

Vibro-Meter S3960 AC46286 144-201-000-222 high-performance galvanic separation solution In stock

Product Name:galvanic separation solution

Brand Name:Vibro-Meter

Model Number:S3960 AC46286 144-201-000-222

Country of Origin:Switzerland

Warranty:12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

vibro meter s3960 ac46286 144 201 000 222 high performance galvanic separation solution in stock-1

Overview
Contact for quotation
Specifications
Description
Applications
Features
Functions
FAQ
Spares
Recommended Products

Overview

Brand Name:	Vibro-Meter
Model Number:	S3960 AC46286 144-201-000-222
Country of Origin:	Switzerland
Packaging Details:	Original new Factory Sealed
Delivery Time:	in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Item	Value
Model	S3960 AC46286 144-201-000-222
Product type	Galvanic separation unit
Input voltage	18–30 VDC
Isolation (sensor/monitor)	4 kVRMS
Power/output isolation	50 VRMS
Frequency bandwidth	DC to 20 kHz
Mounting	TH35 DIN rail
Housing material	PA66 GF30
Operating temperature	0 to 70°C
Weight	~140 g
Dimensions	114 × 22.5 × 117 mm

Description

The S3960 AC46286 144-201-000-222 is a high-performance galvanic separation solution from the vibro-meter® measurement system family, designed for reliable signal isolation in industrial vibration monitoring chains. It is commonly associated with the GSI127 galvanic separation unit, supporting both current and voltage signal transmission with stable accuracy and long-distance capability.

The GSI127 S3960 AC46286 144-201-000-222 ensures robust 4 kVRMS isolation between sensor and monitoring sides, effectively eliminating ground loop interference and reducing electrical noise in harsh environments. Its architecture supports IEPE-compatible sensors and various vibro-meter® signal conditioners.

Engineered for safety-critical applications, the GSI127 AC46286 144-201-000-222 delivers stable signal conditioning performance, DIN-rail installation convenience, and Ex-certified protection for hazardous area deployments.

Applications

Power plants: generator vibration monitoring and relay protection
Substations: bus protection and signal acquisition
Chemical plants: intrinsically safe automation control
Steel mills: high-EMI equipment monitoring
Machinery manufacturing: automated line and robotics control

Features

Provides 4 kVRMS galvanic isolation between the sensor side and monitoring system, ensuring reliable signal integrity and enhanced equipment protection.
Supports both current-output and voltage-output measurement chains, offering flexible integration with various industrial monitoring systems.
Compatible with IEPE vibration sensors, proximity systems, charge amplifiers, and signal conditioners used in rotating machinery monitoring.
Features a floating output design, eliminating the need for additional external isolation power supplies in many applications.
Delivers excellent ground-loop elimination and frame-voltage rejection, significantly reducing unwanted electrical interference.
Designed with DIN-rail mounting capability and removable screw-terminal connectors for quick installation and maintenance.
Available in Ex-certified versions for hazardous and potentially explosive industrial environments.

Functions

Isolates monitoring equipment from field sensors to prevent electrical faults from propagating through the measurement chain.
Converts and transfers vibration monitoring signals over long cable distances while maintaining measurement accuracy.
Reduces common-mode noise, ground potential differences, and electromagnetic interference affecting critical monitoring systems.
Supplies operating power to connected sensors, signal conditioners, and vibration monitoring devices.
Acts as a safety barrier interface for installations requiring intrinsic safety and hazardous-area compliance.
Maintains signal quality between field instrumentation and control systems in turbine, compressor, motor, and pump applications.
Supports reliable acquisition of vibration, displacement, velocity, pressure, and condition-monitoring signals.

FAQ

Q1: What is the S3960 AC46286 144-201-000-222 used for?
A1: It is used for galvanic isolation in vibration and sensor signal transmission systems.

Q2: Is the GSI127 compatible with IEPE sensors?
A2: Yes, it supports standard IEPE vibration sensors used in industrial monitoring.

Q3: What level of isolation does it provide?
A3: It provides up to 4 kVRMS isolation between sensor and monitoring sides.

Q4: Can it be used in hazardous areas?
A4: Yes, Ex-certified versions are suitable for explosive atmospheres.

Q5: How is it installed?
A5: It is mounted on a standard TH35 DIN rail with removable screw terminals.
