Product Name: 2-fold Converter digital/analog safety related
Brand Name: HIMA
Model Number: F6705
Country of Origin:GERMANY
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
HIMA |
Model Number: |
F6705 |
Country of Origin: |
GERMANY |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
Supply Ability: |
in stock |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Value / Description |
|
Manufacturer |
HIMA |
|
Model Number |
F6705 |
|
Product Type |
2-channel safety-related digital-to-analog (D/A) converter module |
|
Output Signal |
0/4 … 20 mA (configurable) |
|
Output Channels |
|
|
Resolution |
|
|
Safety Integrity |
|
|
Burden (Source Mode) |
|
|
Burden (Sink Mode) |
|
|
Basic Error |
|
|
Operating Error |
|
|
Source Voltage (Sink Mode) |
|
|
Electric Strength |
|
|
Power Consumption |
|
|
Space Requirement |
4 TE |
|
Maximum Line Length |
1000 m (subject to burden) |
|
Dimensions |
2.1x19.1x12.9cm |
|
Weight |
0.18kg |

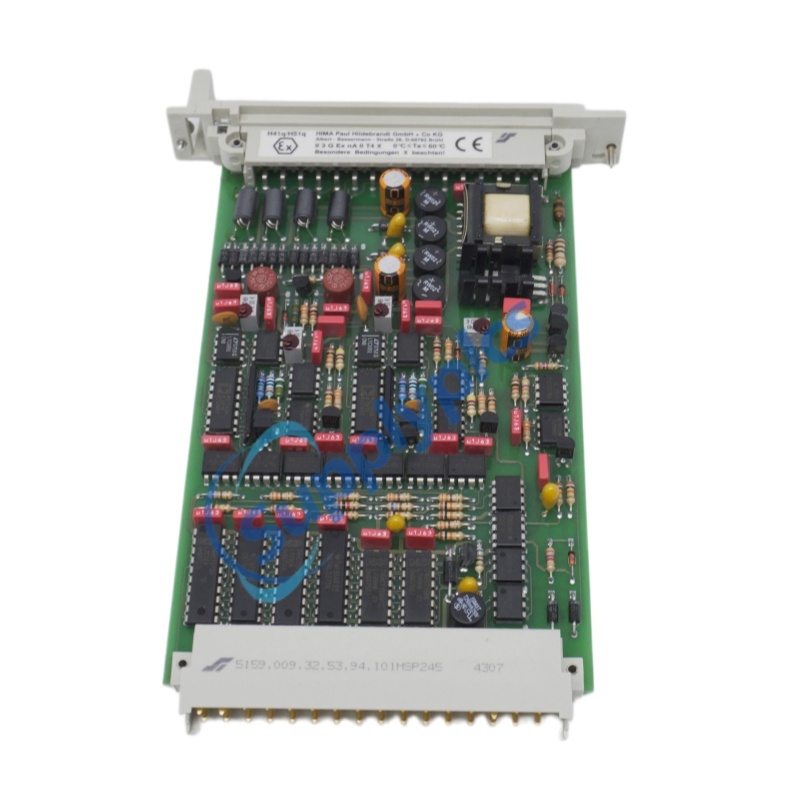

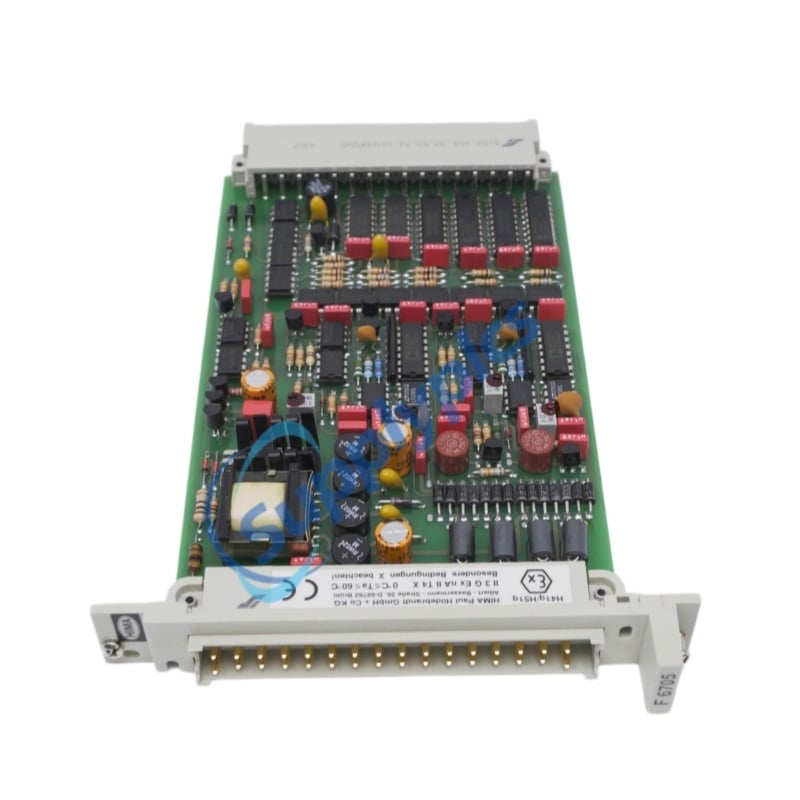

The HIMA F6705 is a 2-channel safety-related D/A converter module designed for precise analog output in critical control loops . Certified for SIL 3 per IEC 61508, the F6705 supports 0/4–20 mA signals with 12-bit resolution and features integrated safety shutdown . The HIMA F6705 supports both source and sink mode, offers redundant current connection for high availability, and performs automatic self-tests including D/A linearity, cross-talk, and safety shutdown verification
SIL 3 safety certification: Suitable for AK 1 … 6 requirement class applications
Automatic self-testing: Continuous diagnostics during operation verify D/A linearity, cross-talk, and shutdown functionality
Redundant current connection: Supports parallel channels for increased availability
Bipolar output capability: Enables ±20 mA output for sign-sensitive control
Galvanic isolation: Individual channel isolation protects against ground loops and faults
Source/sink configurability: Adaptable to various field device requirements
Unused channel termination: Jumpers prevent error messages
Converts digital control commands to precise analog current signals (0/4–20 mA) for actuators
Continuously performs self-tests including D/A linearity, cross-talk, and safety shutdown to ensure integrity
Provides two galvanically isolated output channels in source or sink mode
Supports redundant connection where each channel supplies half the total current to the load
Enables bipolar current output via dual-module configuration
Q1: What is the HIMA F6705?
A1: The F6705 is a 2-channel safety-related digital-to-analog converter module for 0/4–20 mA outputs.
Q2: What safety certification does the F6705 have?
A2: The F6705 is certified for SIL 3 according to IEC 61508 .
Q3: What is the resolution of the HIMA F6705?
A3: The F6705 provides 12-bit resolution with 4095 steps from 0 to 20 mA .
Q4: Does the F6705 support redundant connections?
A4: Yes, the F6705 supports redundant current connection where each channel contributes half the total current .
Q5: How do I terminate unused channels on the F6705?
A5: Unused channels must be terminated with jumpers (b6–b8 for channel 1; b22–b24 for channel 2) .
