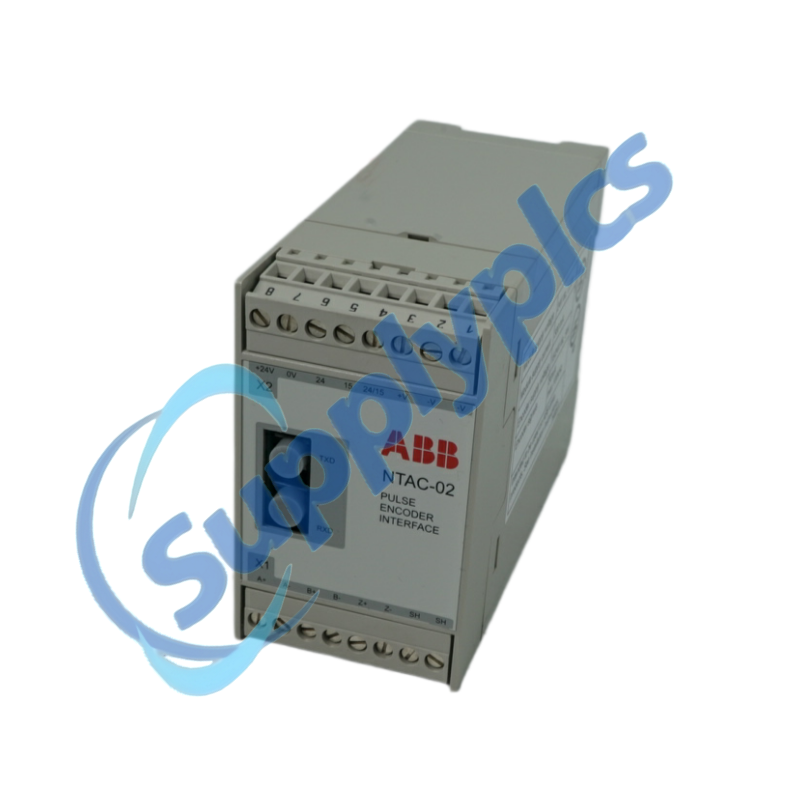

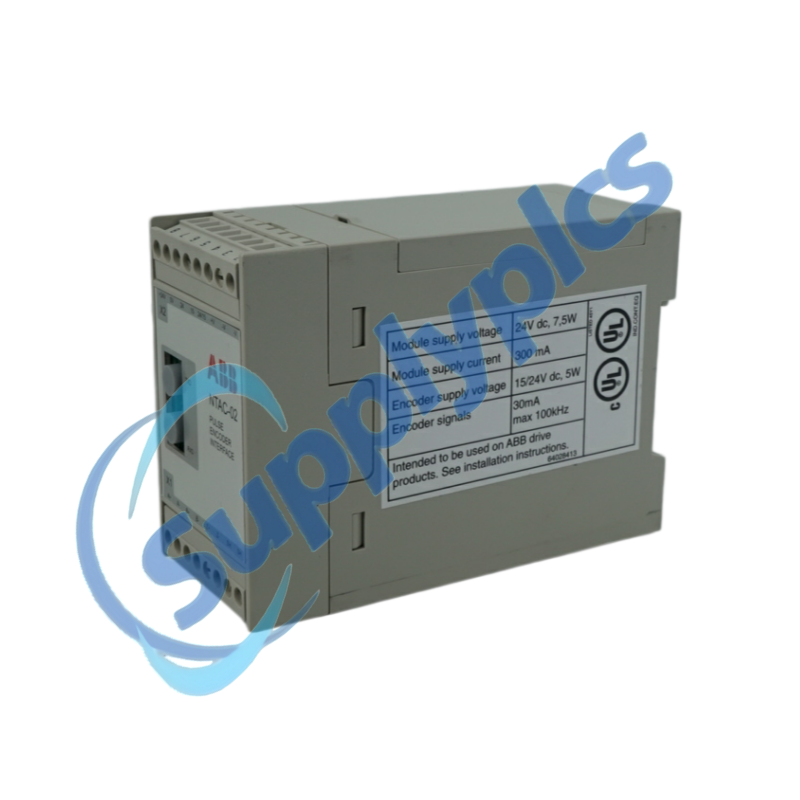

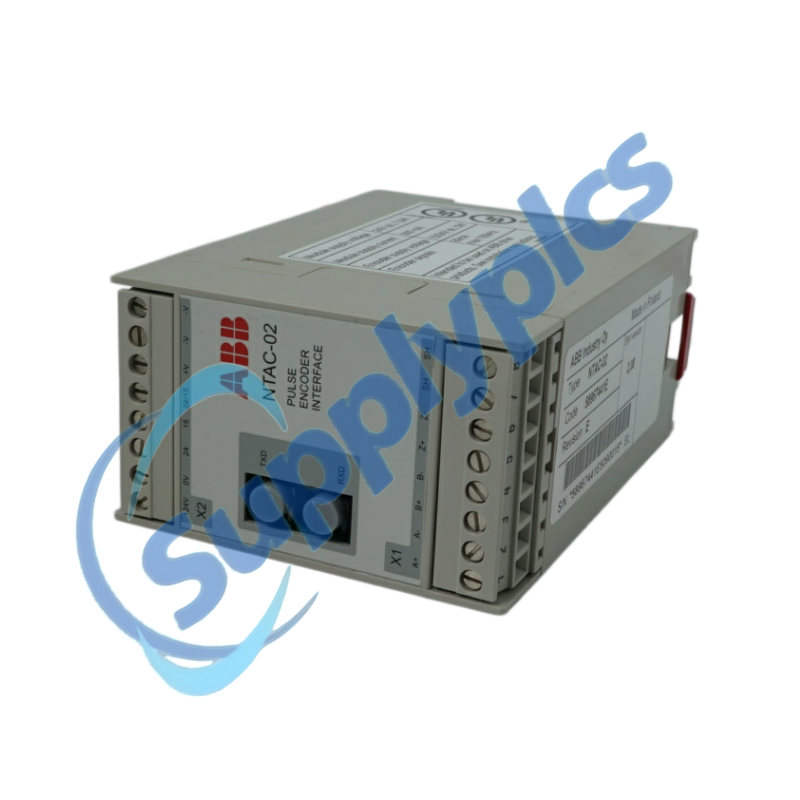

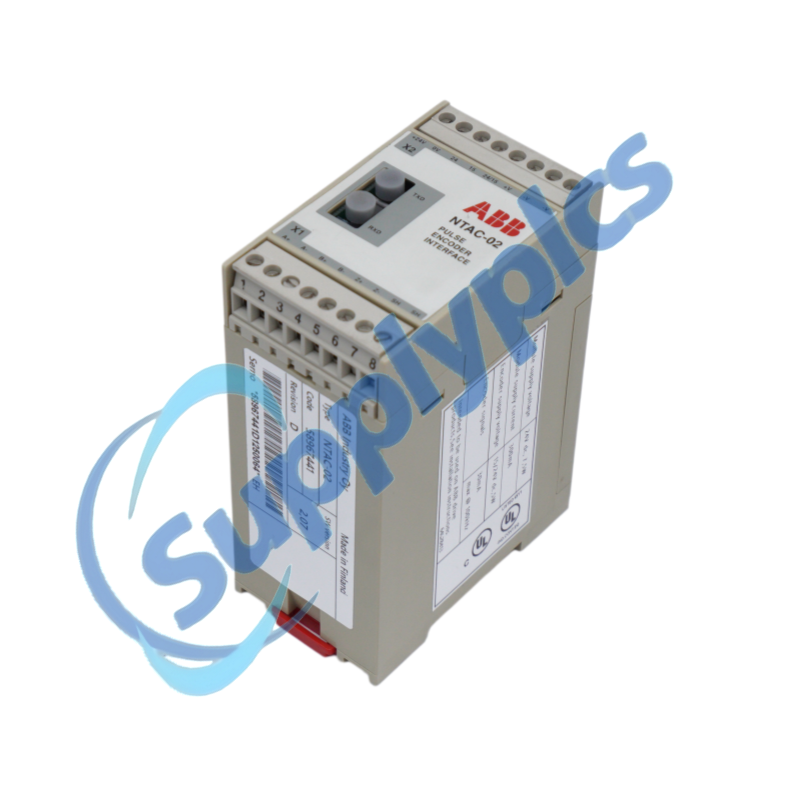

ABB NTAC-02 Pulse Encoder Interface Module

ABB NTAC-02 Pulse Encoder Interface Module

Product Name: Pulse Encoder Interface Module

Brand Name: ABB

Model Number: NTAC-02

Place of Origin: SWEDEN

Warranty: 12 Months

Whatsapp：+86 18020776782

Email：[email protected]

Appurtenance:

abb ntac 02 pulse encoder interface module-1

Overview
Commercial Terms
Description
Functions
Specifications
Advantage
Performance & Efficiency
Installation & Integration
Recommended Products

Contact Info

Sales	Email	Whatsapp
Jim Pei	[email protected]	+86 18020776782

Commercial Terms

Minimum Order Quantity	1 Piece
Price	Contact for Jim
Packaging Details	Original new Factory Sealed
Delivery Time	3–7 Days
Payment Terms	T/T
Shipping Method	DHL / FedEx / UPS / TNT
Supply Ability	In stock

Description

The ABB NTAC-02 is a high-performance pulse encoder interface module designed for ACS600 frequency converter systems, enabling precise speed and position feedback in industrial drive applications. Housed in a compact IP20-rated plastic enclosure, it is intended for installation inside standard industrial control cabinets, where it provides reliable signal acquisition and processing for motion control and drive regulation tasks.

The module supports DIN rail mounting and is equipped with two Phoenix Contact MVBSTW 2.5/8-ST-5.08 terminal blocks for encoder and power connections, accommodating wire sizes from 0.5 to 2.5 mm² for flexible and secure wiring. It also features seven DIP switches for node address configuration (default value 16), enabling easy setup in multi-module network environments. Communication with the ACS600 drive is achieved via a dedicated HP universal optical transmitter and receiver interface, ensuring stable and interference-resistant signal transmission.

Functions

Converts encoder signals into processed speed and position feedback for ACS600 drive systems.
Supports high-precision motion control through real-time speed and position measurement.
Processes A/B phase signals with 90° electrical phase shift for direction detection.
Handles Z-channel reference pulses (1 pulse per revolution) for accurate positioning.
Enables multi-node communication through configurable DIP switch addressing.
Provides electrical isolation between encoder power/ground and control system.
Supports high-speed signal processing up to 100 kHz encoder frequency.
Ensures stable communication between encoder systems and ABB ACS600 drives.

Specifications

Product Name	ABB NTAC-02 Pulse Encoder Interface Module
Manufacturer	ABB
Product Type	Pulse Encoder Interface Module
Part Number	NTAC-02
Weight	0.22kg
Estimated shipping dimensions	4.5x10.5x7.5cm
Place of shipment	Xiamen, China
Country of origin	SWEDEN
Protection rating	IP20
Mounting	Standard DIN rail
Hardware settings	7 DIP switches for node address, default 16
Optical connectors	Transmitter and receiver (HP universal connector) for ACS600 connection
Terminal blocks	2 × Phoenix Contact MVBSTW 2,5/8-ST-5,08 for encoder and power, wire 0.5–2.5 mm²
Maximum encoder signal frequency	100 kHz
Logic level thresholds (15 V supply)	“1” > 7.6 V, “0” < 5 V
Logic level thresholds (24 V supply)	“1” > 12.2 V, “0” < 8 V
Speed feedback resolution	0.00305 % (15-bit)
Encoder isolation	Power and ground isolated
Channels A/B phase difference	90° electrical Channel Z: 1 pulse per revolution for
Channel Z	1 pulse per revolution for positioning
Current consumption	max 250 mA (typical) at 24 V DC
Material approval	UL/CSA certified
Fast transient immunity (IEC 801-4)	4 kV / 5–50 ns
Electromagnetic emissions	EN 55022 compliant

Advantage

High-resolution feedback with 15-bit precision (0.00305%) for accurate speed control.
Robust industrial design with IP20 protection for cabinet installation environments.
Flexible DIN rail mounting simplifies integration into control panels.
Optical communication interface enhances noise immunity and signal stability.
Configurable node addressing supports scalable multi-module systems.
Electrical isolation reduces signal interference and improves system reliability.
UL/CSA certification ensures compliance with international safety standards.
Compact plastic housing reduces installation space requirements.
Reliable operation in industrial drive and automation environments.
Low power consumption (max 250 mA at 24 V DC) minimizes system load.

Performance & Efficiency

Provides high-speed encoder signal processing up to 100 kHz.
Delivers precise motion feedback with 15-bit resolution for fine speed control.
Maintains accurate signal interpretation under varying voltage conditions (15 V / 24 V logic thresholds).
Ensures stable operation through electrical isolation of encoder power and ground circuits.
Supports fast transient immunity up to 4 kV (5–50 ns), improving resilience against industrial electrical disturbances.
Complies with EN 55022 electromagnetic emission standards, minimizing interference with nearby equipment.
Enhances drive system efficiency through accurate real-time feedback control.
Improves system stability in high-dynamic motor control applications.

Installation & Integration

The ABB NTAC-02 is designed for straightforward installation on standard DIN rails within industrial control cabinets. Encoder and power wiring is handled via two Phoenix Contact terminal blocks, allowing secure and organized connections for reliable field integration. The module communicates with ABB ACS600 frequency converters through an HP universal optical connector, ensuring robust and interference-free data transmission.

System configuration is simplified through seven DIP switches, enabling easy node address setup for multi-device environments. With its compact IP20-rated housing and isolated encoder interface design, the NTAC-02 integrates efficiently into existing drive systems while maintaining high signal integrity and installation flexibility in complex industrial automation architectures.
