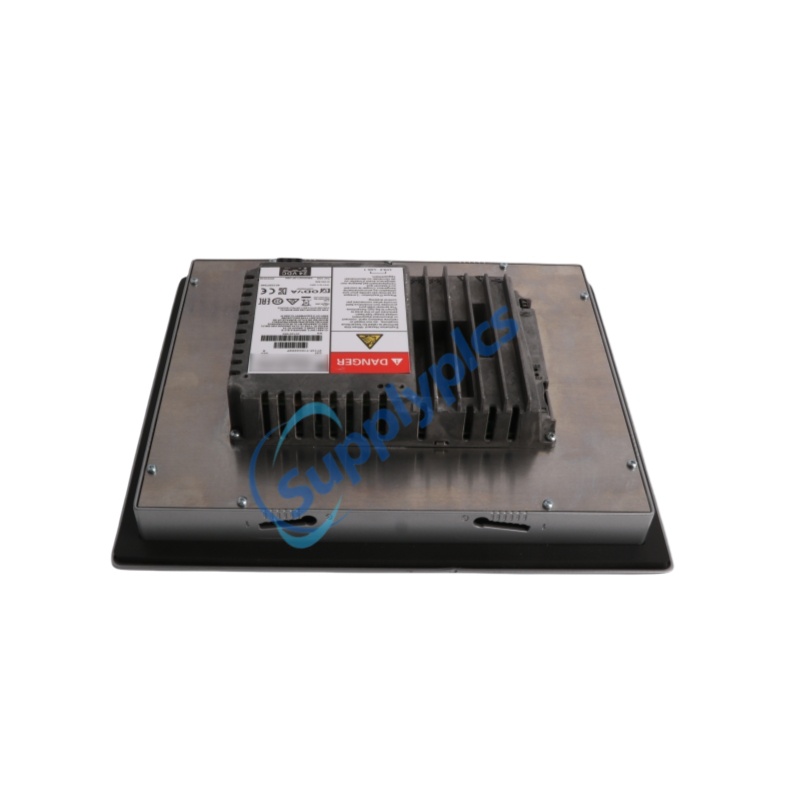

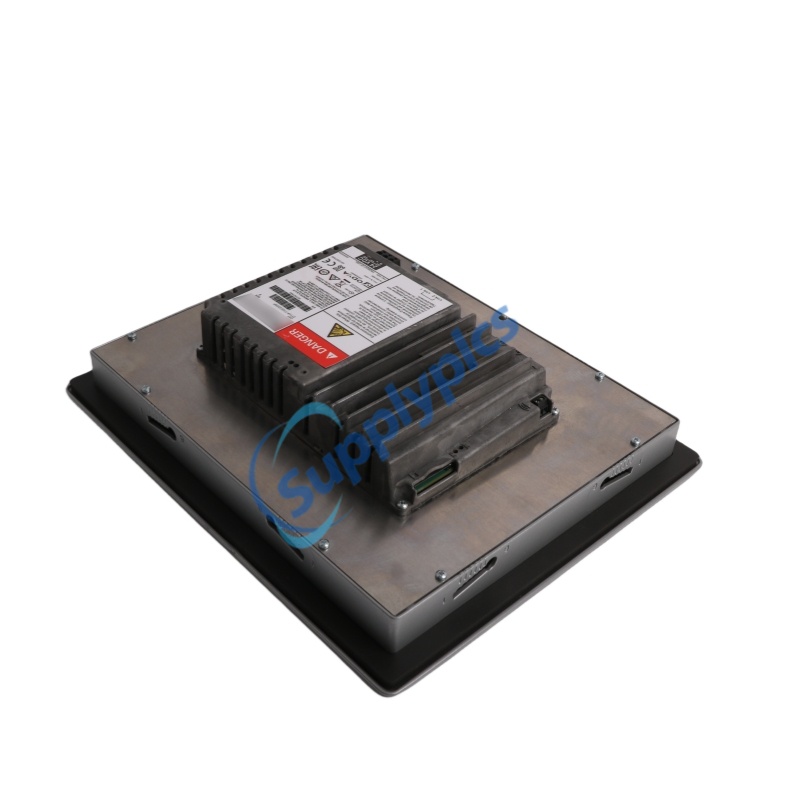

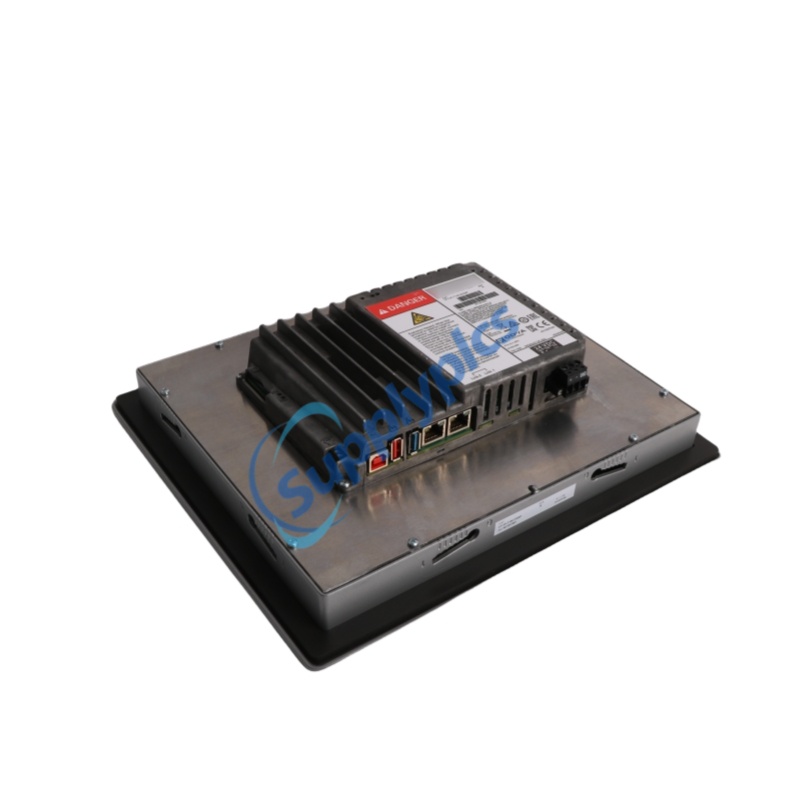

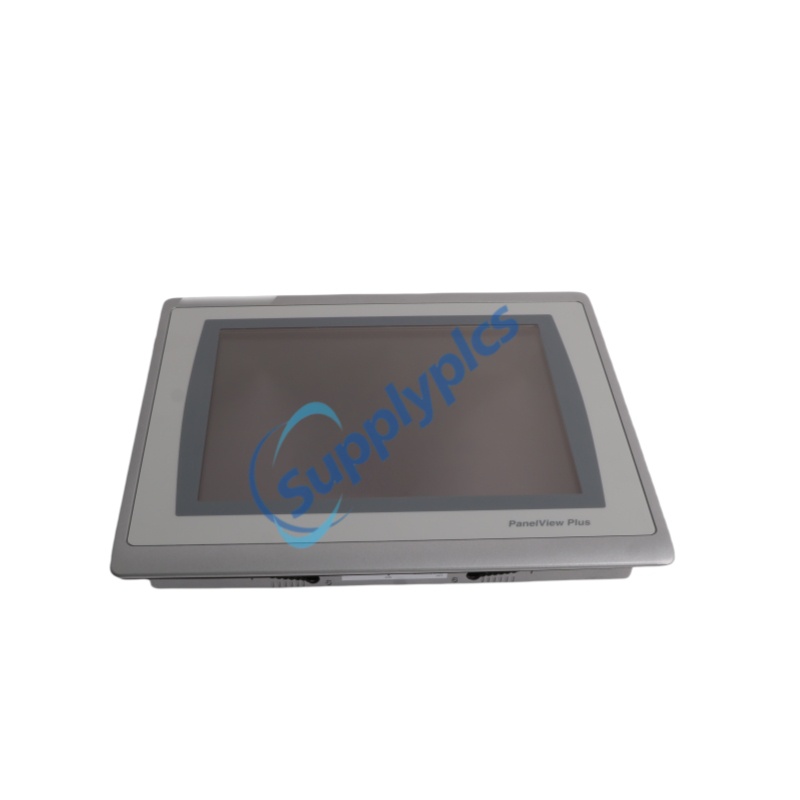

Allen Bradley 2711P PanelView Plus 7 Performance Terminals 2711P-T10C22D9P Original new

Allen Bradley 2711P PanelView Plus 7 Performance Terminals 2711P-T10C22D9P Original new

Product Name: PanelView Plus 7 Performance Terminals

Brand Name: Allen Bradley

Model Number:2711P-T10C22D9P

Country of Origin:USA

Warranty: 12 Months

Whatsapp：+86 18159889985

Email：[email protected]

Appurtenance:

allen bradley 2711p panelview plus 7 performance terminals 2711p t10c22d9p original new-1

Overview
Contact for quotation
Specifications
Description
Features
High-Resolution Measurement
Environment and Certification
FAQ
Recommended Products

Overview

Brand Name:	Allen Bradley
Model Number:	2711P-T10C22D9P
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Part Number	2711P-T10C22D9P
Manufacturer	Allen-Bradley / Rockwell Automation
Product Family	PanelView Plus 7 Performance
Display Size	10.4-inch
Display Type	TFT Color (Active Matrix)
Resolution	800 x 600 SVGA, 18-bit color
Backlight	CCFL, 50,000 hours minimum life
Brightness	300 nits
Operator Input	Analog Resistive Touchscreen
Touchscreen Rating	1 million presses, 100 grams actuation force
Memory	512 MB RAM, 512 MB storage; 80 MB user memory
Communication Ports	(2) Ethernet; (3) USB; (1) RS232
Network Topology	DLR, Linear, Star
Ethernet Ports	10/100Base-T, Auto-MDI/MDI-X
Input Voltage	18-30 V DC
Power Consumption	50 W max
Dimensions (H x W x D)	297 x 252 x 69.6 mm (11.7 x 9.9 x 2.7 in.)
Weight	Approx. 2.28 kg (5.03 lb)
Front Protection	IP66, NEMA 4X
Operating Temperature	0 to 55 °C
Storage Temperature	-25 to +70 °C
Relative Humidity	5–95% non-condensing
Operating System	Windows 10 IoT (or Windows CE 6.0)
Certifications	UL, CE, CSA, ATEX Zone 2/22
Software Compatibility	FactoryTalk View Machine Edition
Mounting	Panel mount
Status Indicators	Power, Fault, Ethernet link/activity

Description

The 2711P-T10C22D9P is a PanelView Plus 7 Performance graphic terminal from Allen‑Bradley, engineered for demanding industrial HMI applications. This 2711P-T10C22D9P model features a 10.4‑inch TFT color display with 800 x 600 SVGA resolution and an analog resistive touchscreen. Powered by an external 18‑30V DC supply, the 2711P-T10C22D9P provides 512 MB RAM, 512 MB storage, and versatile connectivity including dual Ethernet ports with DLR support and USB ports. The 2711P-T10C22D9P offers an IP66‑rated front panel for reliable performance in harsh environments.

Features

High‑Performance HMI: 10.4‑inch TFT color display with 800 x 600 SVGA resolution and 18‑bit color graphics for clear visualization .
Robust Touchscreen: Analog resistive touch rated for 1 million actuations at 100 grams force.
Ample Memory: 512 MB RAM and 512 MB storage (80 MB user memory) for complex applications.
Versatile Connectivity: Dual Ethernet ports supporting DLR, linear, or star topologies; 3 USB ports; and an RS232 port.
Flexible Networking: EtherNet/IP protocol support for seamless integration with ControlLogix and CompactLogix controllers.
Remote Access: VNC connectivity for remote monitoring and control.
Data Management: SD card slot for quick application copying and restoration.
Advanced Software Features: Email and text notification capabilities, RDP client for thin client terminals, and video playback support.
Hygienic Options: Stainless steel 304 bezel option available for hygienic applications.

High-Resolution Measurement

The 2711P-T10C22D9P delivers precise visual performance with an 800 x 600 SVGA resolution and 18‑bit color depth, ensuring clear and accurate display of process data, alarms, and machine status . The 10.4‑inch TFT active matrix display provides a wide viewing area of 211 x 158 mm, with 300 nits brightness for excellent readability even in well‑lit industrial environments . The display supports 262,144 colors, enabling detailed and nuanced graphical representations of complex HMI screens. This high‑resolution capability allows operators to monitor and control processes with precision, reducing the risk of misinterpretation and enhancing overall operational efficiency.

Environment and Certification

Parameter	Specification
Front Panel Protection	IP66 (dust-tight and protected against powerful water jets)
Enclosure Rating	NEMA 4X (corrosion protection)
Operating Temperature	0 to 55 °C (32 to 131 °F)
Storage Temperature	-25 to +70 °C (-13 to 158 °F)
Relative Humidity	5 to 95% non-condensing
Certifications	UL, CE, CSA, ATEX Zone 2/22, EAC
Standards Compliance	IEC, NEMA
Shock & Vibration	Designed for harsh industrial environments
Chemical Resistance	Compatible with protective overlays for hygienic applications (consult standards)

FAQ

Q1: What type of display does the 2711P-T10C22D9P have?
A1: The 2711P-T10C22D9P features a 10.4‑inch TFT color active matrix display with 800 x 600 SVGA resolution and 18‑bit color.

Q2: What communication ports are available on the 2711P-T10C22D9P?
A2: The 2711P-T10C22D9P includes dual Ethernet ports, three USB ports, and one RS232 port.

Q3: What is the front panel protection rating of the 2711P-T10C22D9P?
A3: The front panel is rated IP66 (dust-tight and protected against powerful water jets) and NEMA 4X.

Q4: What operating system does the 2711P-T10C22D9P run?
A4: The 2711P-T10C22D9P runs Windows 10 IoT (with some models using Windows CE 6.0).

Q5: What is the memory capacity of the 2711P-T10C22D9P?
A5: The 2711P-T10C22D9P has 512 MB RAM and 512 MB storage, with approximately 80 MB of nonvolatile user memory.
