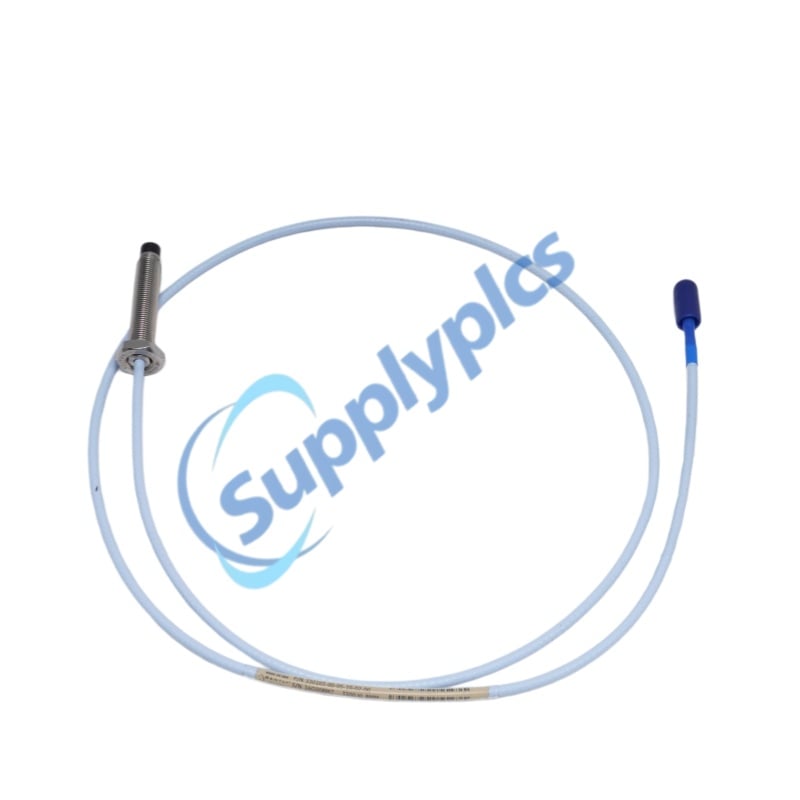

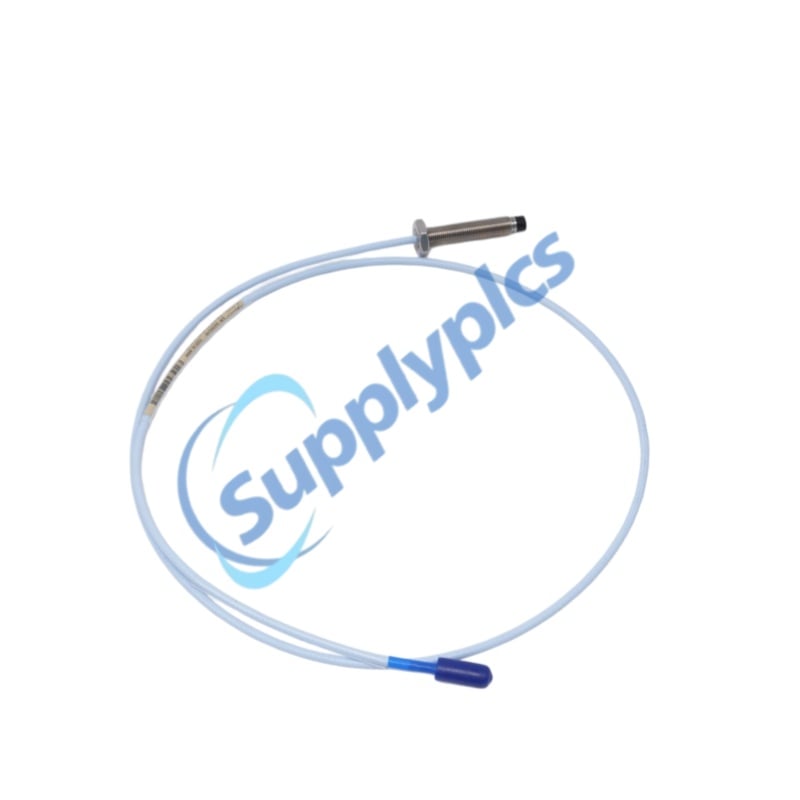

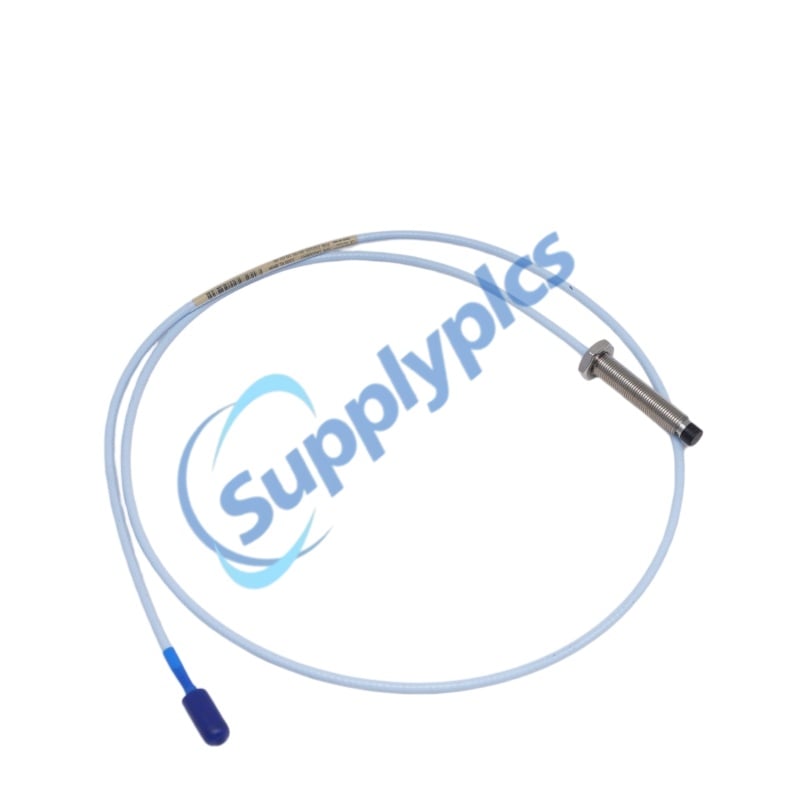

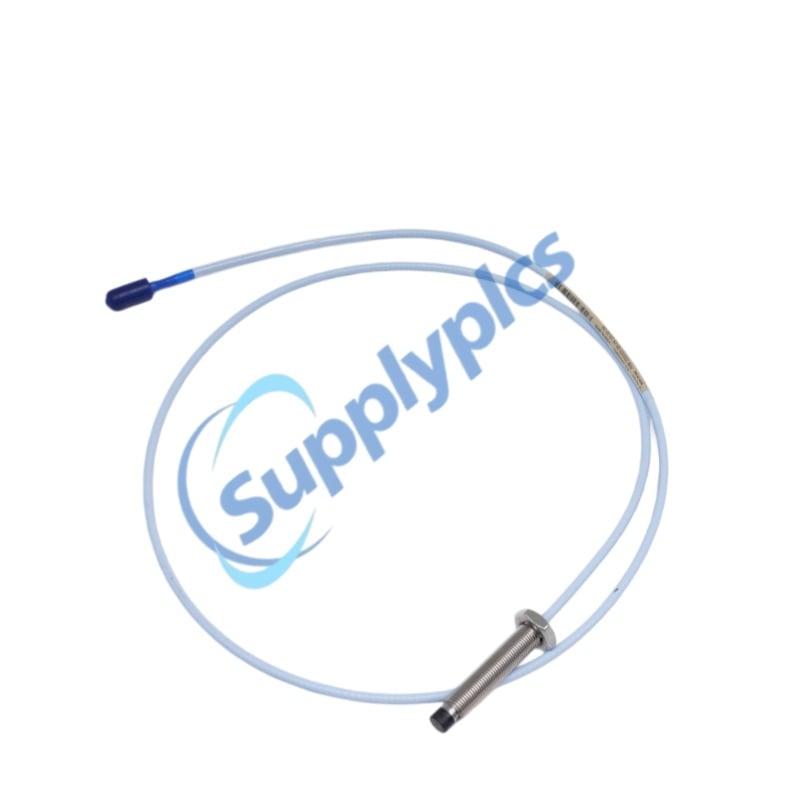

Product Name:3300 XL 8 mm Proximity Probes
Brand Name: BENTLY NEVADA
Model Number:330103-00-05-10-02-00
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330103-00-05-10-02-00 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
330103-00-05-10-02-00 |
|
Manufacturer |
Bently Nevada (Baker Hughes) |
|
Probe Diameter |
8 mm |
|
Thread Type |
3/8-24 UNF |
|
Unthreaded Length |
0.0 inches (Option 00) |
|
Overall Case Length |
0.5 inches (Option 05) |
|
Total Cable Length |
1.0 metre (Option 10) |
|
Connector Type |
Miniature coaxial ClickLoc™ connector (Option 02) |
|
Probe Tip Material |
Polyphenylene sulfide (PPS) |
|
Probe Case Material |
AISI 303/304 stainless steel |
|
Operating Temperature |
-51°C to +177°C (-60°F to +350°F) |
|
Linear Range |
|
|
Scale Factor |
|
|
Recommended Gap |
1.27 mm (50 mils) @ -9 VDC |
|
API Compliance |
API 670 Standard |
The 330103-00-05-10-02-00 is an 8 mm proximity probe from the Bently Nevada 3300 XL series , engineered for non‑contacting vibration and position measurement in rotating machinery . This 330103-00-05-10-02-00 probe employs the eddy current principle to generate a voltage output proportional to the distance between the probe tip and a conductive target . With an 80 mil linear range and 7.87 V/mm scale factor, the 330103-00-05-10-02-00 delivers high‑accuracy displacement data for critical equipment monitoring .
Vibration monitoring on steam and gas turbines, compressors, and pumps
Axial thrust position and shaft radial position measurement
Keyphasor reference and speed measurements on fluid‑film bearing machines
Condition monitoring in power generation, oil & gas, and water treatment facilities
Predictive maintenance and fault detection (imbalance, misalignment, bearing wear)
Drop‑in Compatibility: Fully interchangeable with other 3300 XL and non‑XL 3300 series 5 mm and 8 mm probes, eliminating the need for bench calibration
API 670 Compliance: Meets the rigorous American Petroleum Institute Standard 670 (4th Edition) for proximity transducer systems, ensuring reliable, high‑performance measurement
Enhanced Durability: Molded PPS probe tip and AISI 303/304 SST case provide resistance to chemical and physical damage, suitable for harsh industrial environments
Interchangeable System: Probes, extension cables, and Proximitor sensors are fully interchangeable when total electrical lengths match, allowing flexible spares management
Advanced Signal Integrity: Gold‑plated ClickLoc connectors offer finger‑tight, corrosion‑resistant connections that prevent loosening and ensure reliable signal transmission
Operating Temperature (Probe):-51°C to +177°C (-60°F to +350°F)
Relative Humidity:<3% change in ASF after 56 days at 93% RH (IEC 60068‑2‑3)
Probe Pressure Seal:Viton® O‑ring designed for differential pressure sealing
Hazardous Area Approvals:cNRTLus (ia, nA/ec), ATEX/IECEx (ia, nA/ec)
EMC:EN 61000‑6‑2 (Immunity), EN 61000‑6‑4 (Emissions)
RoHS:EU RoHS Directive 2011/65/EU compliant
Maritime Approvals:2019 Rules for Conditions of Classification (Part 1)
|
141078 |
3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual. |
|
175751 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
176467 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
330181 |
3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications. |
|
02120015 |
Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet. |
|
138492-01 |
Replacement panel-mount mounting pad. |
|
138493-01 |
Replacement DIN-mount mounting pad. |
|
148722-01 |
3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring. |
|
04310310 |
3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]). |
|
03200006 |
Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine. |
|
40113-02 |
Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
|
136536-01 |
Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors. |
|
40180-02 |
Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables. |
|
03839410 |
75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors. |
|
03839420 |
75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment. |
|
04301007 |
3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
04301008 |
M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
330153-01 |
3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape. |
|
330153-09 |
3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape. |
|
163356 |
Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case. |
