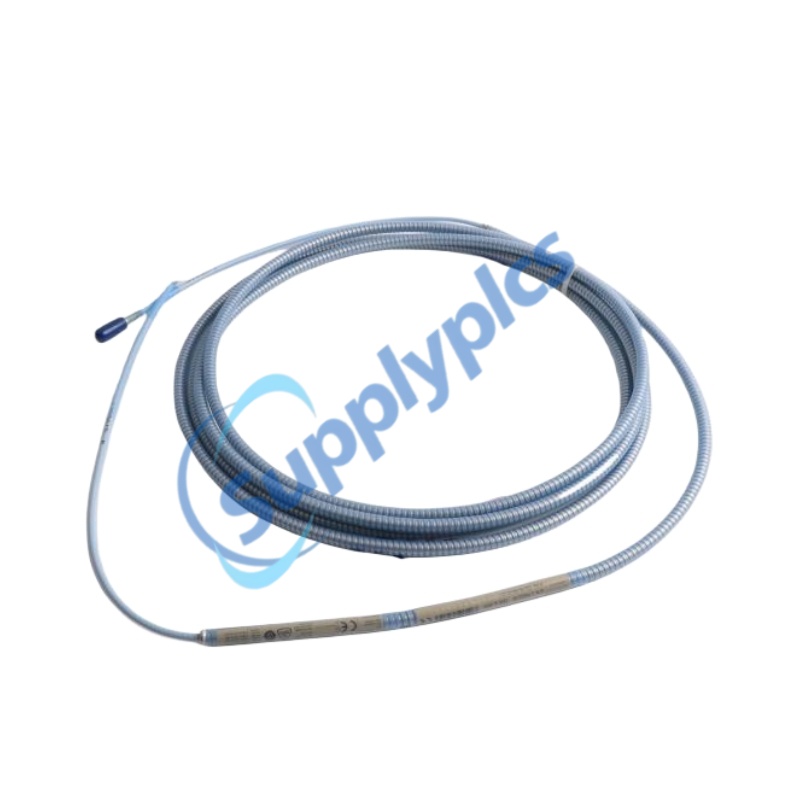

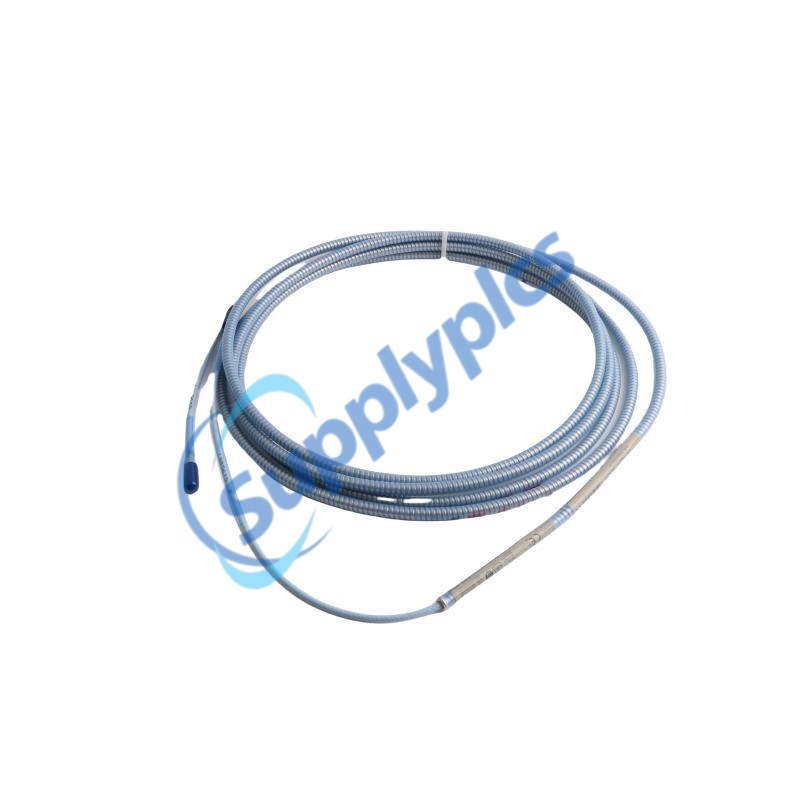

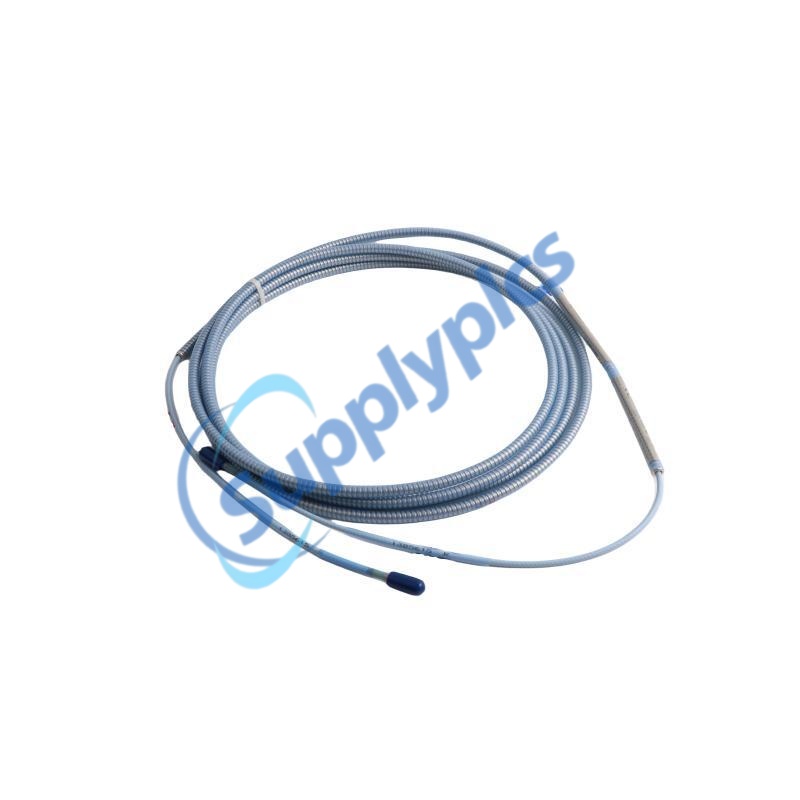

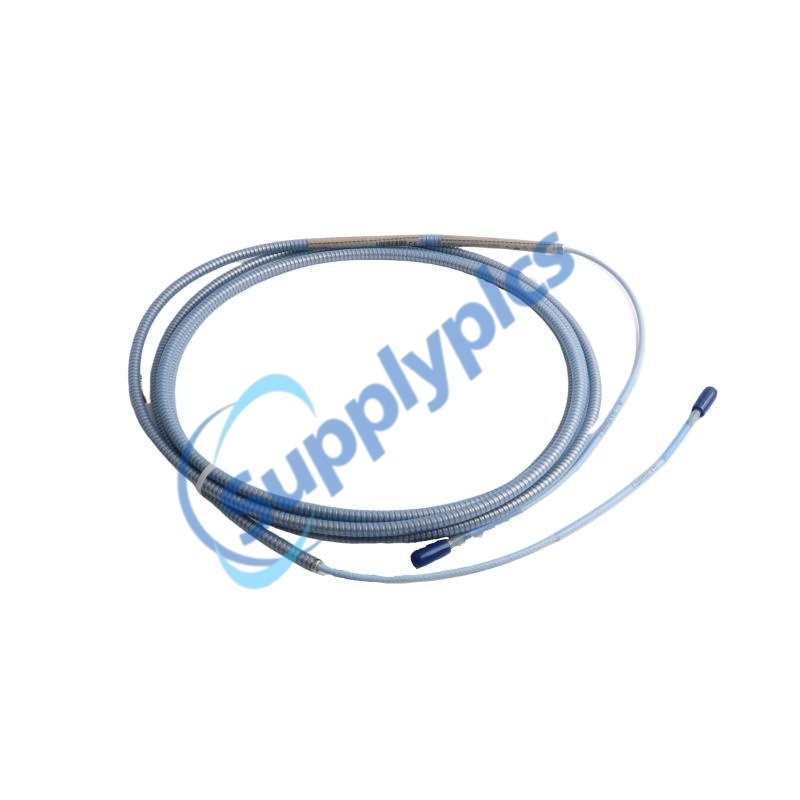

Product Name:3300 XL Extended Temperature Range (ETR) Extension Cable
Brand Name: BENTLY NEVADA
Model Number:330190-040-01-05
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330190-040-01-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
330190-040-01-05 |
|
Manufacturer |
Bently Nevada (Baker Hughes) |
|
Product Type |
3300 XL Extended Temperature Range (ETR) Extension Cable |
|
Cable Length |
4.0 meters (13.1 feet) |
|
Cable Construction |
Armored (stainless steel braid) |
|
Impedance |
75Ω triaxial |
|
Capacitance |
69.9 pF/m (21.3 pF/ft) |
|
Center Conductor Resistance |
0.88 Ω ± 0.13 |
|
Outer Conductor Resistance |
0.26 Ω ± 0.05 |
|
Cable Temperature Range |
-52°C to +260°C (-62°F to +500°F) |
|
Minimum Bend Radius |
25.4 mm (1.0 in) |
|
Connector Type |
Goldplated ClickLoc |
|
Agency Approvals |
CSA, ATEX, IECEx (Option 05) |
|
Hazardous Area Classification |
Class I, Division 1, Groups A-D; Ex ia IIC T4 Ga |
The 330190-040-01-05 is a 4‑meter armored extension cable from the Bently Nevada 3300 XL Extended Temperature Range (ETR) series . This 330190-040-01-05 cable connects the 8 mm proximity probe to the Proximitor sensor, maintaining system impedance for accurate vibration and position measurement . The 330190-040-01-05 features a stainless steel armored jacket and extended temperature rating up to 260°C, enabling operation in high‑temperature and physically demanding environments .
Vibration and position monitoring on gas and steam turbines in high‑temperature zones
Machinery protection in oil refineries and chemical processing plants
Offshore platforms and marine propulsion systems
Mining equipment and high‑vibration industrial machinery
Hazardous area installations requiring ATEX/IECEx certification
Extended Temperature Range: Rated from -52°C to +260°C, designed for applications exceeding standard cable limits (177°C)
Stainless Steel Armoring: Provides crush resistance and mechanical protection in physically demanding environments
Gold‑Plated ClickLoc Connectors: Finger‑tight connectors with positive locking; no special tools required for installation
Multi‑Agency Certifications: CSA, ATEX, and IECEx approved for hazardous locations (Class I, Division 1, Groups A-D)
System Interchangeability: Fully compatible with 3300 XL probes and Proximitor sensors; no bench calibration required
Low Capacitance Design: 69.9 pF/m ensures signal integrity over extended cable runs
Provides the electrical extension between the proximity probe and the Proximitor sensor
Maintains the specified 75Ω system impedance to preserve measurement accuracy
Transmits the eddy current signal from the probe tip to the Proximitor for linearization
Protects the signal path from electromagnetic interference via triaxial shielding
Enables system length matching (probe cable + extension cable must equal Proximitor system length)
Provides physical protection with armored jacket in high‑abuse and high‑temperature zones
|
141078 |
3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual. |
|
175751 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
176467 |
3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.) |
|
330181 |
3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications. |
|
02120015 |
Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet. |
|
138492-01 |
Replacement panel-mount mounting pad. |
|
138493-01 |
Replacement DIN-mount mounting pad. |
|
148722-01 |
3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring. |
|
04310310 |
3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]). |
|
03200006 |
Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine. |
|
40113-02 |
Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools. |
|
136536-01 |
Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors. |
|
40180-02 |
Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables. |
|
03839410 |
75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors. |
|
03839420 |
75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment. |
|
04301007 |
3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
04301008 |
M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire. |
|
330153-01 |
3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape. |
|
330153-09 |
3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape. |
|
163356 |
Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case. |
