Product Name:input/output termination assembly
Brand Name:Honeywell
Model Number:8C-TAIDB1 51307133-175
Country of Origin: USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Honeywell |
Model Number: |
8C-TAIDB1 51307133-175 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Product Model |
8C-TAIDB1 51307133-175 |
|
Product Type |
Redundant Analog Input IOTA |
|
Compatible Module |
8C-PAIH54 |
|
Supported Signals |
High-level Analog & HART Inputs |
|
Input Channels |
16 Channels |
|
Redundancy Support |
Yes |
|
IOTA Size |
12 in (304 mm) |
|
Power Supply |
24 VDC |
|
Mounting Type |
Vertical Cabinet Mount |
|
Coating Type |
Conformal Coated |
|
Signal Type |
Single-ended / Differential |
|
Operating Environment |
Industrial Harsh Environment |
|
Dimensions |
29.5x12x7.5cm |
|
Weight |
0.38kg |
|
Protection Feature |
Short-circuit protected design |

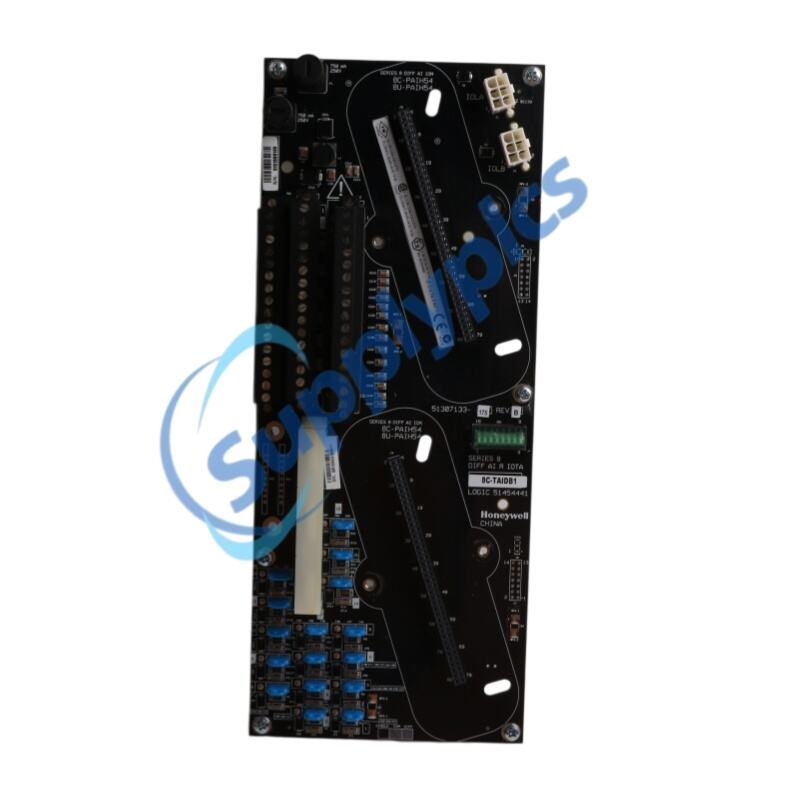

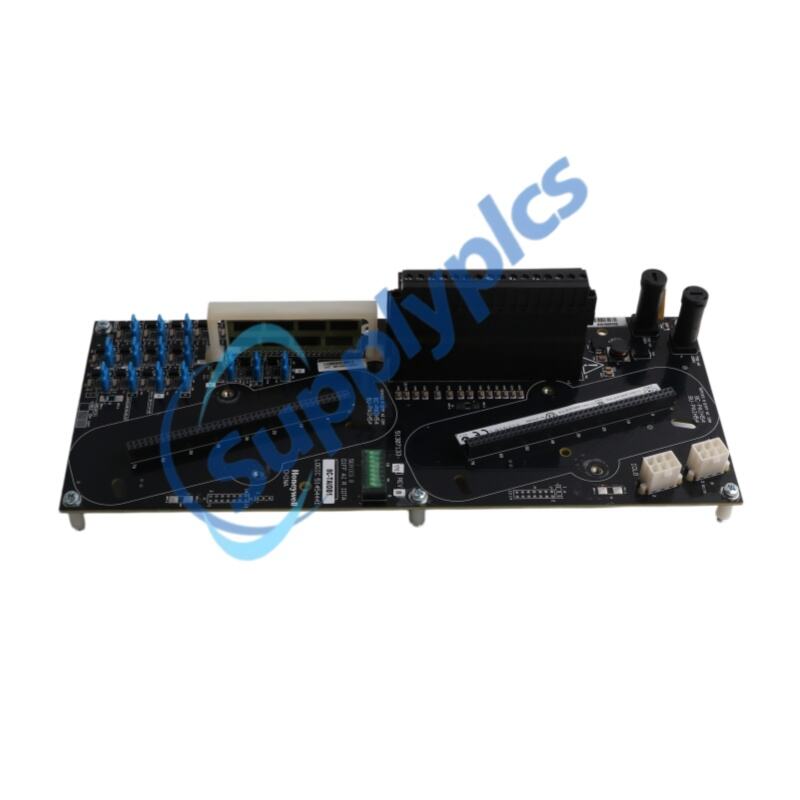

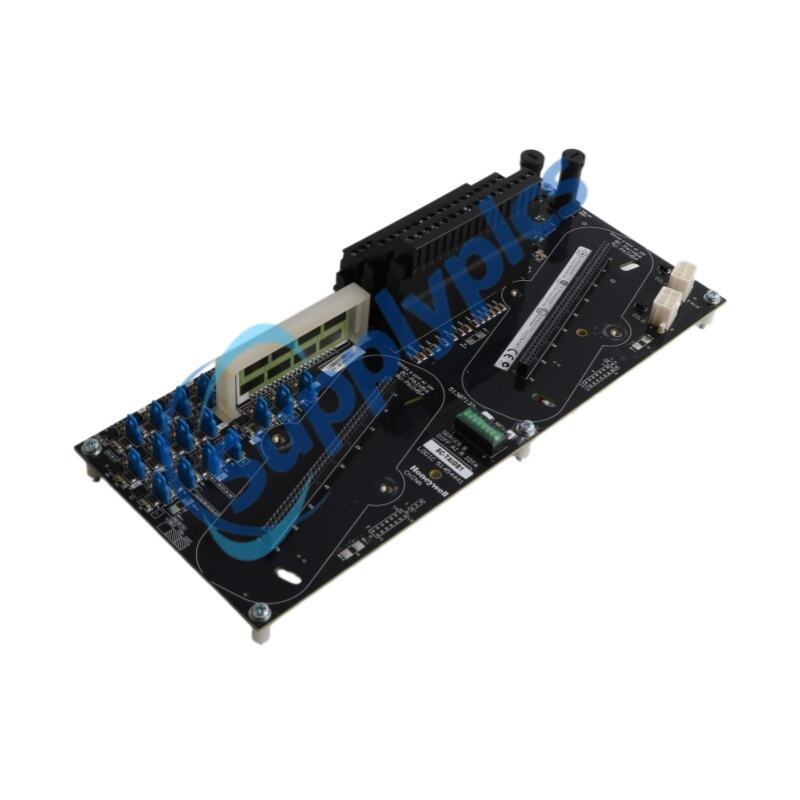

8C-TAIDB1 51307133-175 is a redundant Analog Input IOTA module designed for Honeywell Series 8 and PlantCruise by Experion control systems. Engineered for high-reliability industrial automation environments, the module supports redundant analog input architectures while simplifying field wiring, maintenance, and cabinet integration. It is commonly paired with 8C-PAIH54 and other Series 8 analog input modules to deliver stable HART and high-level analog signal acquisition.
The compact 12-inch redundant IOTA structure of 8C-TAIDB1 improves cabinet density while maintaining excellent thermal management and signal isolation performance. Its conformal-coated construction provides enhanced protection against moisture, dust, vibration, and corrosive atmospheres, making it suitable for continuous industrial process operation in demanding environments.
Widely deployed in power generation, oil & gas, petrochemical, and manufacturing industries, 8C-TAIDB1 51307133-175 helps optimize process control reliability, improve system availability, and reduce overall installation and maintenance costs within modern DCS platforms.
Q1: What is the function of 8C-TAIDB1 51307133-175?
A1: It is a redundant Analog Input IOTA module used for high-level analog and HART signal integration in Honeywell control systems.
Q2: Which module works with 8C-TAIDB1?
A2: The module is commonly used together with the 8C-PAIH54 Analog Input with HART module.
Q3: Does 8C-TAIDB1 support redundancy?
A3: Yes, it is specifically designed for redundant I/O configurations to improve system reliability.
Q4: Is the module suitable for harsh industrial environments?
A4: Yes, the conformal-coated design protects the electronics from moisture, dust, and corrosive conditions.
Q5: What industries commonly use 8C-TAIDB1 51307133-175?
A5: It is widely used in power generation, oil & gas, petrochemical processing, manufacturing, and industrial automation systems.
| Number (I/O Module Coated) | Description |
|---|---|
| 8C-PAIH54 | High-level AI HART, Differential |
| 8C-TAIDA1 | AI IOTA |
| 8C-TAIDB1 | AI IOTA Redundant |
| 8C-PAIHA1 | High-level AI HART, Single-ended |
| 8C-PAINA1 | High-level AI w/o HART, Single-ended |
| 8C-TAIXA1 | AI IOTA |
| 8C-TAIXB1 | AI IOTA Redundant |
| 8C-PAIMA1 | Low-level AI – RTD & TC |
| 8C-TAIMA1 | Low-level AI IOTA |
| 8C-PAOHA1 | Analog Output HART |
| 8C-PAONA1 | Analog Output w/o HART |
| 8C-TAOXA1 | AO IOTA |
| 8C-TAOXB1 | AO IOTA Redundant |
| 8C-PDILA1 | Digital Input 24V |
| 8C-PDISA1 | Digital Input Sequence of Events |
| 8C-PDIPA1 | Digital Input 24V Pulse Accumulation |
| 8C-TDILA1 | DI 24V IOTA |
| 8C-TDILB1 | DI 24V IOTA Redundant |
| 8C-PDODA1 | DO 24V Bussed Out |
| 8C-TDODA1 | DO 24V Bussed IOTA |
| 8C-TDODB1 | DO 24V Bussed IOTA Redundant |
| 8C-SDOX01 | DO Relay Extension |
