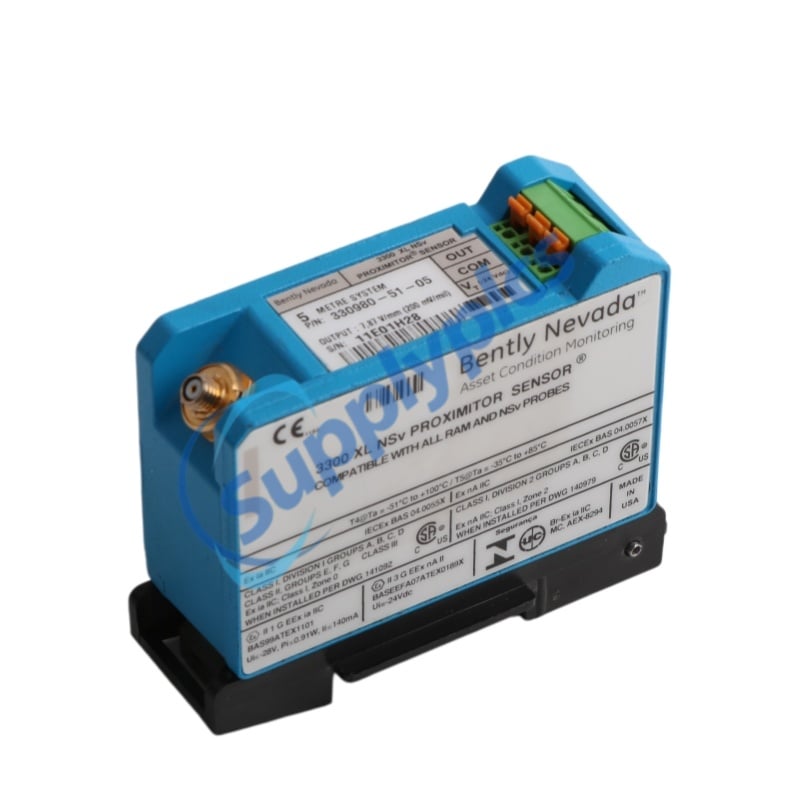

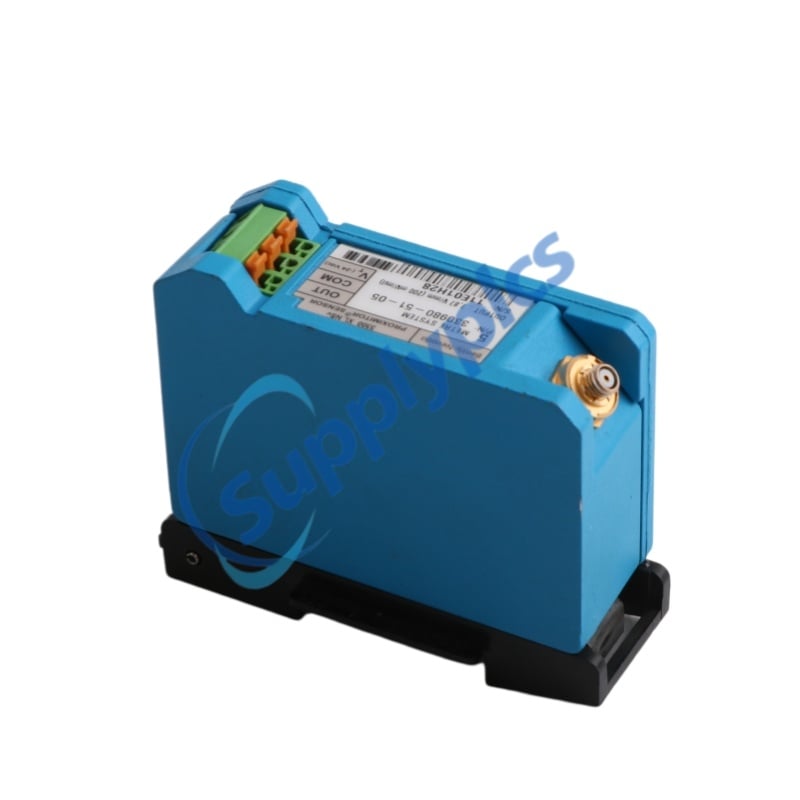

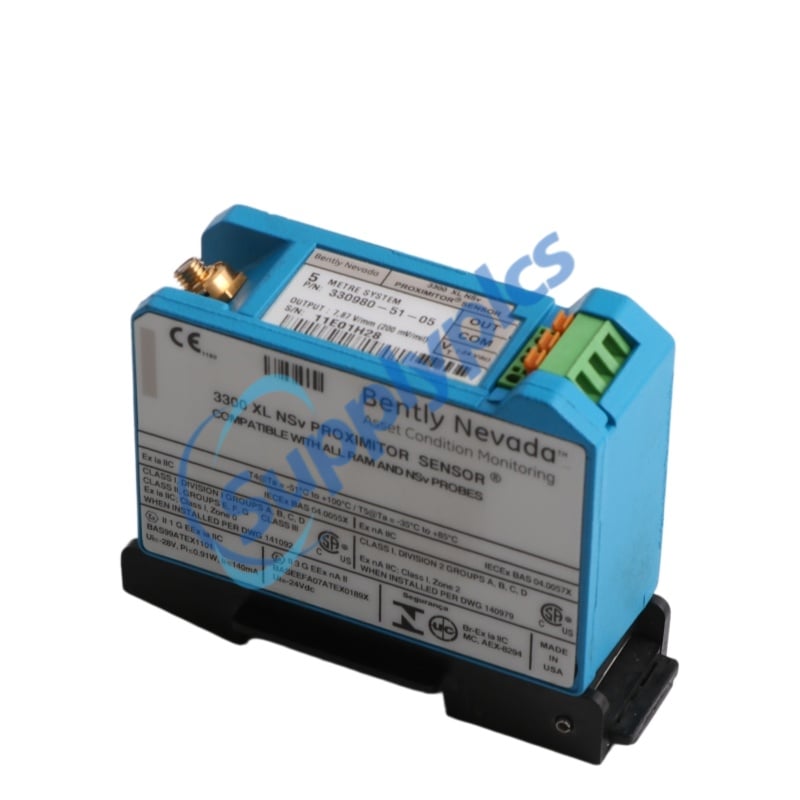

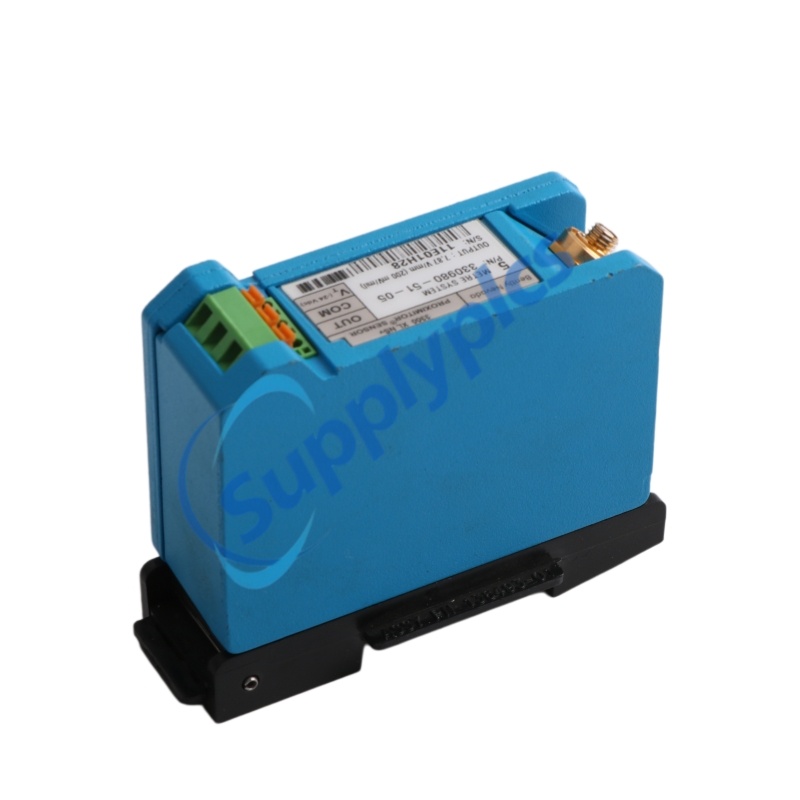

Product Name:3300 XL NSv Proximitor Sensor
Brand Name: BENTLY NEVADA
Model Number:330980-51-05
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
BENTLY NEVADA |
Model Number: |
330980-51-05 |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Specification |
|
Part Number |
|
|
Manufacturer |
|
|
Product Type |
|
|
System Length |
|
|
Mounting Option |
|
|
Scale Factor |
|
|
Linear Range |
|
|
Recommended Gap |
|
|
Frequency Response |
|
|
Input Power |
|
|
Probe Temperature Range |
|
|
Proximitor Temperature Range |
|
|
Connector Type |
|
|
Agency Approval |
|
|
Output Signal |
4-20 mA or 0-10 V (configurable) |

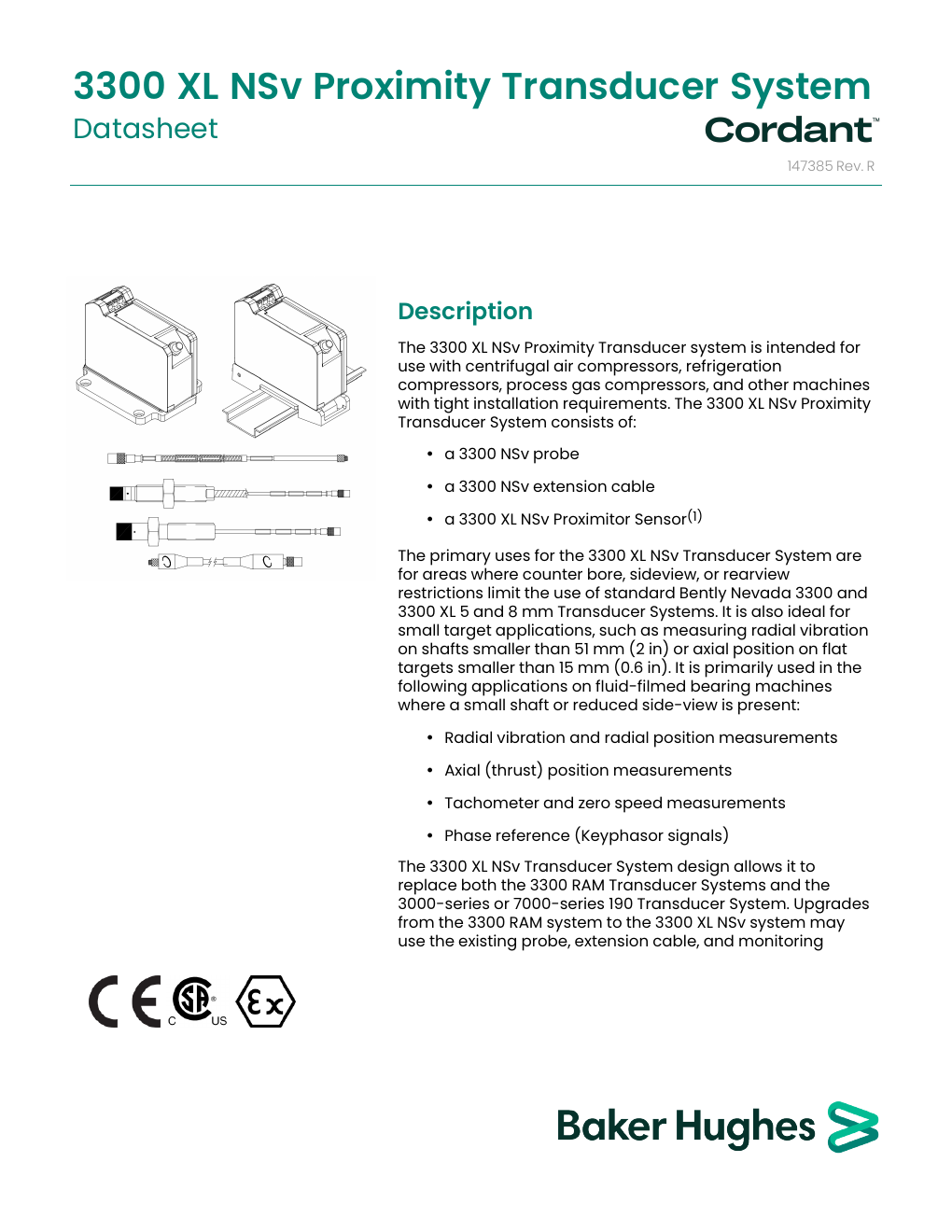

The 330980-51-05 is a 3300 XL NSv Proximitor Sensor from Bently Nevada, serving as the signal conditioning component for the 3300 XL NSv proximity transducer system . This 330980-51-05 is factory-configured for a 5.0-meter system with DIN rail mounting and carries multiple hazardous area approvals . The 330980-51-05 converts the probe's eddy current signal into a linear voltage output proportional to shaft displacement . Its "Narrow Side View" (NSv) design optimizes performance in tight installations where counterbore, sideview, or rearview restrictions limit standard 5 mm and 8 mm proximity probes .
Radial vibration and position measurements on centrifugal air compressors, refrigeration compressors, and process gas compressors
Axial (thrust) position measurements on shafts smaller than 51 mm (2 in) in diameter
Small target applications, such as flat targets smaller than 15 mm (0.6 in)
Upgrading 3300 RAM and 3000/7000 series transducer systems
Narrow Side View (NSv) Design: Designed for tight installations where standard 5 mm and 8 mm proximity probes cannot be used
DIN Rail Mounting: Compact, thin-profile design for high-density DIN rail installations
Enhanced RFI/EMI Immunity: Achieves CE mark approvals without special mounting considerations
SpringLoc Terminal Strips: No special tools required, enabling faster and more robust field wiring connections
System Interchangeability: Fully compatible with 3300 RAM and 3300 NSv probes and extension cables
Multiple Agency Approvals: Certified for use in hazardous area installations
Converts the proximity probe's eddy current signal into a linear DC voltage output proportional to the gap between the probe tip and the conductive target
Provides a scale factor of 7.87 V/mm (200 mV/mil) over a 1.5 mm (60 mil) linear range
Accepts input from non-contacting 3300 RAM or 3300 NSv proximity probes and extension cables
Filters and conditions the signal for transmission to the monitoring system via 0.2 to 1.5 mm² (16 to 24 AWG) field wiring up to 305 meters (1,000 feet) long
Maintains system accuracy and interchangeability without requiring bench calibration of individual components
Provides signal conditioning for radial vibration, axial position, and speed measurements
Q1: What does the part number 330980-51-05 signify?
A1: 330980 = 3300 XL NSv Proximitor Sensor; 51 = 5.0 meter system length with DIN mount; 05 = multiple hazardous area approvals .
Q2: What is the linear range of the 330980-51-05?
A2: The 3300 XL NSv system has a linear range of 1.5 mm (60 mils), from approximately 0.25 mm to 1.75 mm (10 to 70 mils) .
Q3: What is the recommended probe gap setting for the 330980-51-05?
A3: The recommended gap setting is 1.0 mm (40 mils) from the target surface .
Q4: Is the 330980-51-05 compatible with the 3300 RAM extension cables?
A4: Yes, the NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300 RAM proximity probe and extension cable .
Q5: What is the operating temperature range of the 330980-51-05?
A5: The Proximitor Sensor operates from -52°C to +100°C, while the probe operates from -52°C to +177°C .
