Product Name: Gate Driver Board
Brand Name: Allen Bradley
Model Number:1336-BDB-SP30D
Country of Origin:USA
Warranty: 12 Months
Whatsapp：+86 18159889985
Email：[email protected]
Brand Name: |
Allen Bradley |
Model Number: |
1336-BDB-SP30D |
Country of Origin: |
USA |
Packaging Details: |
Original new Factory Sealed |
Delivery Time: |
Delivery time in stock |
Payment Terms: |
T/T |
|
Sales Manager: |
Stella |
|
Send an email: |
|
|
Contact in Whatsapp: |
|
Parameter |
Details |
|
Product Name |
1336-BDB-SP30D |
|
Product Type |
Gate Drive PCB (Spare Part) |
|
Series Compatibility |
Allen-Bradley 1336 Series (1336 Plus / Plus II / Impact) |
|
Function |
IGBT Gate Drive Control |
|
Installation |
Internal drive mounting |
|
Application Voltage |
Typically 460V class drives |
|
Frame Compatibility |
Large frame drives (e.g., D Frame) |
|
Condition |
Spare / Replacement module |
|
Manufacturer |
Rockwell Automation |
|
Dimensions(approx.) |
260 × 260 × 50 mm |
|
Weight |
1.52kg |

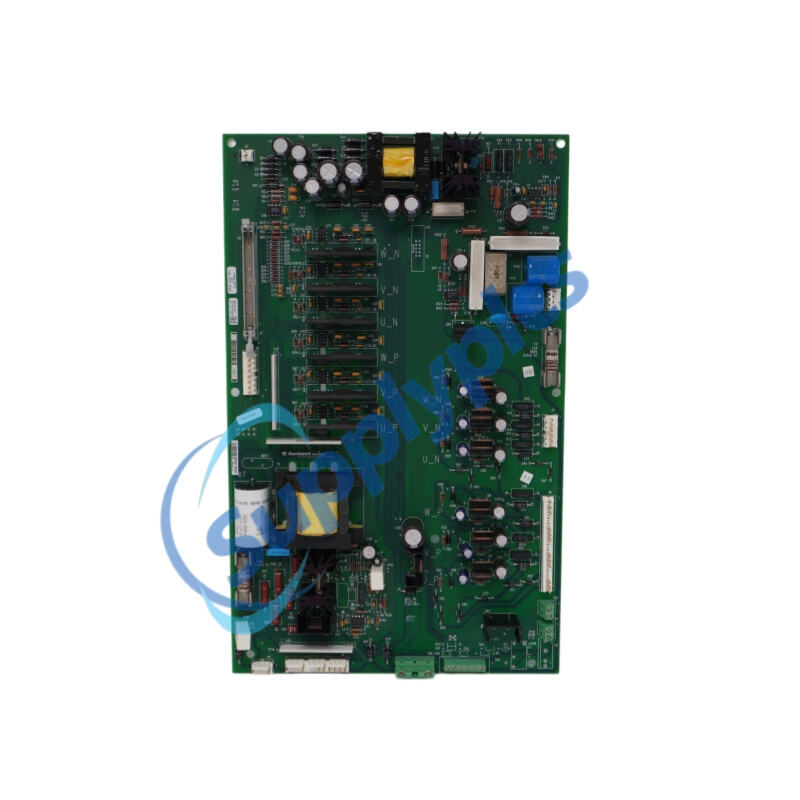

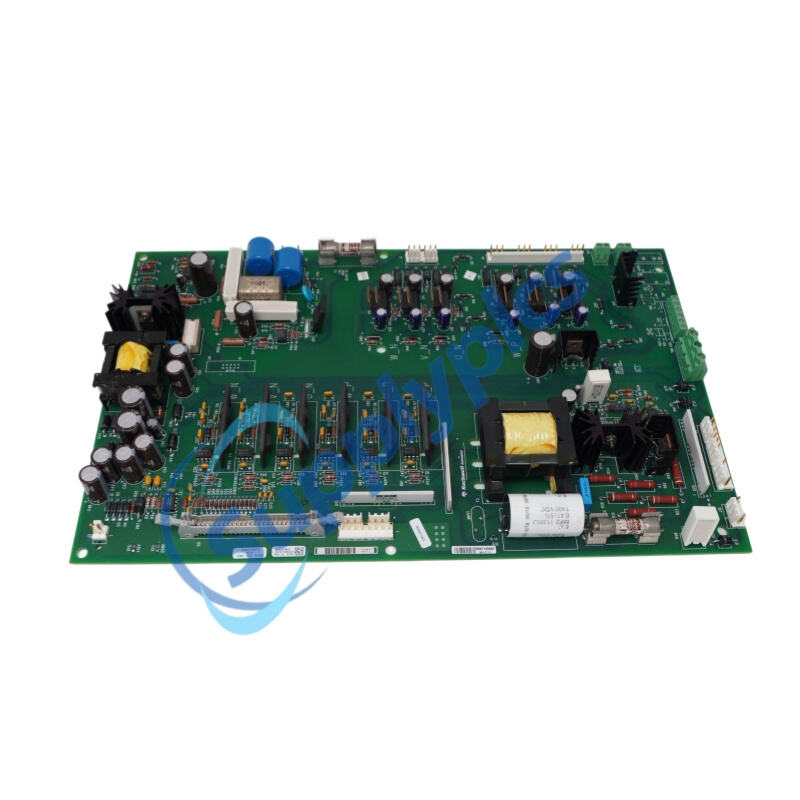

1336-BDB-SP30D is a gate drive PCB designed for use in the Allen-Bradley 1336 series AC drives manufactured by Rockwell Automation. The 1336-BDB-SP30D plays a critical role in controlling IGBT switching operations, ensuring stable and efficient motor drive performance. As a replacement board, 1336-BDB-SP30D is widely used to maintain and extend the lifecycle of legacy 1336 Plus and 1336 Impact drives.
Industrial motor speed control systems
Conveyor and material handling systems
Pumps and fan control applications
Manufacturing automation lines
Legacy drive system maintenance and repair
Dedicated IGBT gate drive control circuitry
High reliability for industrial environments
Designed for seamless integration with 1336 drives
Supports stable switching and reduced electrical stress
Ideal for retrofit and maintenance purposes
Generates gate signals for power semiconductors
Controls switching timing and drive pulses
Ensures efficient motor drive operation
Protects drive components through controlled switching
Maintains overall drive system stability
Q1: What is the function of 1336-BDB-SP30D?
A1: The 1336-BDB-SP30D controls IGBT switching signals inside 1336 series AC drives.
Q2: Which drives are compatible with 1336-BDB-SP30D?
A2: It is compatible with Allen-Bradley 1336 Plus, Plus II, and Impact drives.
Q3: Is 1336-BDB-SP30D a complete drive?
A3: No, 1336-BDB-SP30D is an internal PCB spare part, not a standalone drive.
Q4: Can 1336-BDB-SP30D replace faulty gate boards?
A4: Yes, it is commonly used as a replacement for damaged or aging gate drive boards.
Q5: Is 1336-BDB-SP30D still in production?
A5: It is generally considered obsolete but remains widely available in aftermarket and refurbished markets.
