Bently Nevada Cables

Overview

Brand Name:	BENTLY NEVADA
Model Number:	330130-085-12-05
Country of Origin:	USA
Packaging Details:	Original new Factory Sealed
Delivery Time:	Delivery time in stock
Payment Terms:	T/T

Contact for quotation

Sales Manager:	Stella
Send an email:	[email protected]
Contact in Whatsapp:	+86 18159889985

Specifications

Parameter	Specification
Model	330130-085-12-05
Manufacturer	Bently Nevada (Baker Hughes)
Product Family	3300 XL Standard Extension Cable
Cable Length (Option AAA)	085 = 8.5 metres (27.9 feet)
Connector Protector & Cable Option (Option BB)	12 = FluidLoc cable with connector protector
Agency Approval (Option CC)	05 = CSA, ATEX, IECEx Approvals
Cable Type	75Ω triaxial, FEP insulated
Armor	Flexible AISI 302/304 stainless steel with FEP outer jacket
Connector Type	Gold-plated brass ClickLoc (male)
Connector Material	Gold-plated brass or gold-plated beryllium copper
Center Conductor DC Resistance	1.87 ± 0.28 Ω (at 8.5 m)
Outer Conductor DC Resistance	0.56 ± 0.11 Ω (at 8.5 m)
Cable Capacitance	69.9 pF/m (21.3 pF/ft) typical
Minimum Cable Bend Radius	25.4 mm (1.0 in)
Extension Cable Temperature Range	–51°C to +177°C (–60°F to +350°F)
Weight	34 g/m (0.4 oz/ft) standard; 103 g/m (1.5 oz/ft) armored
System Compatibility	3300 5mm Probes and 3300 XL Proximitor Sensors
Certifications	CE Mark; ATEX, IECEx, CSA (with option 05)

Description

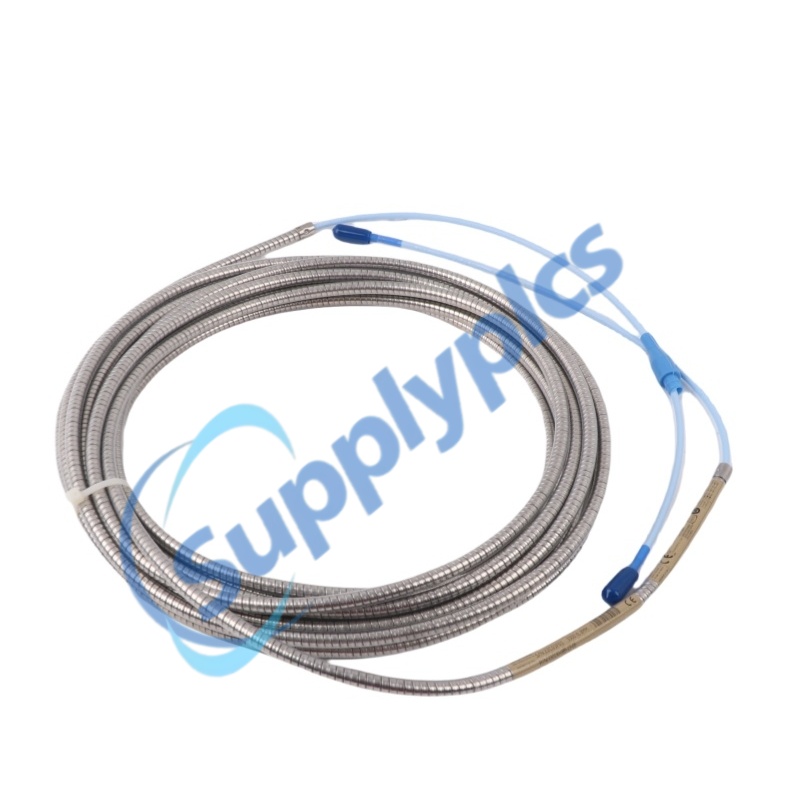

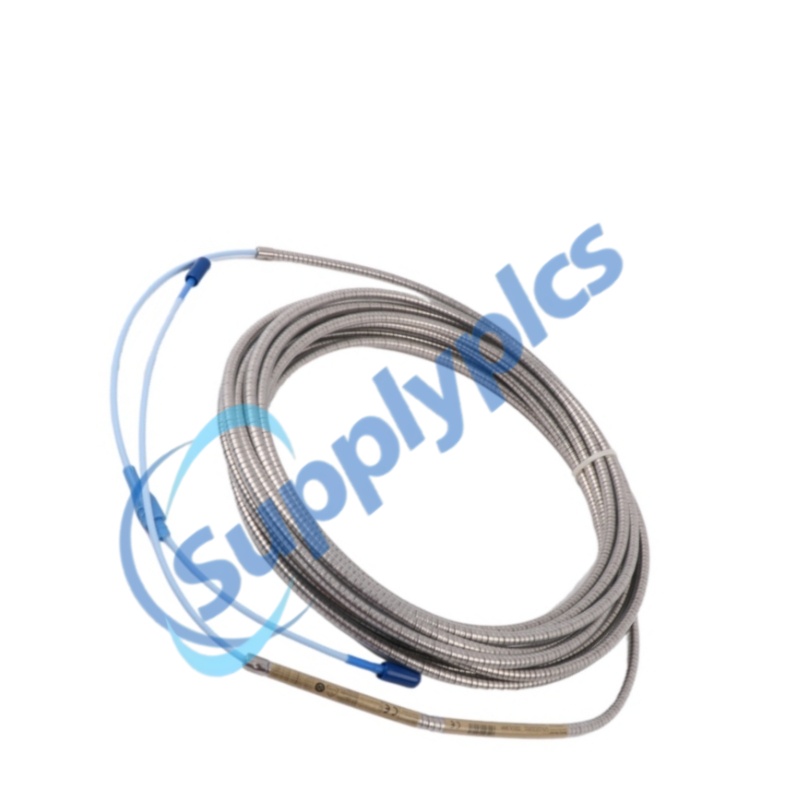

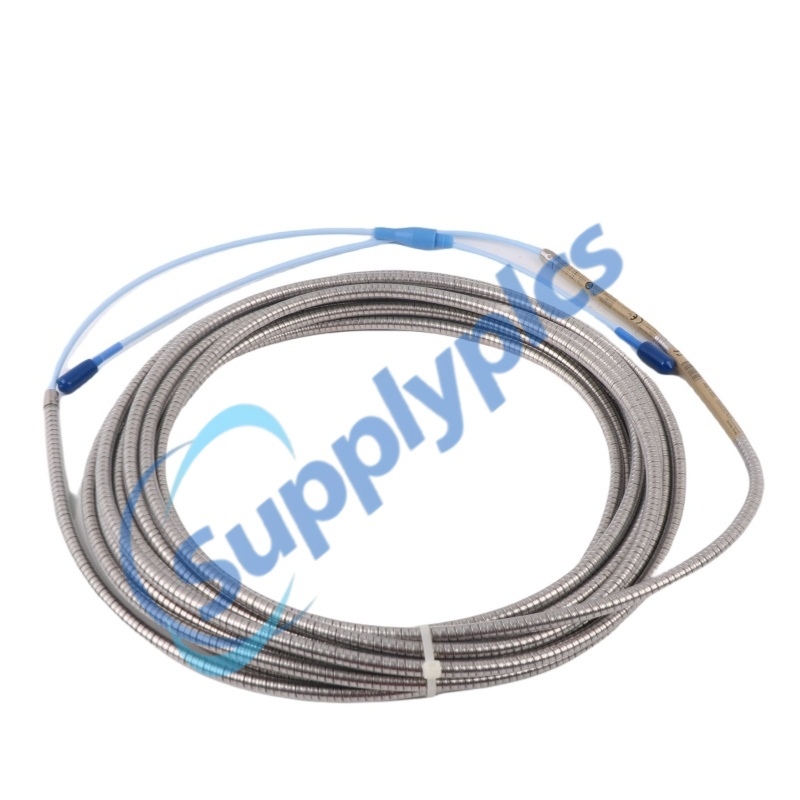

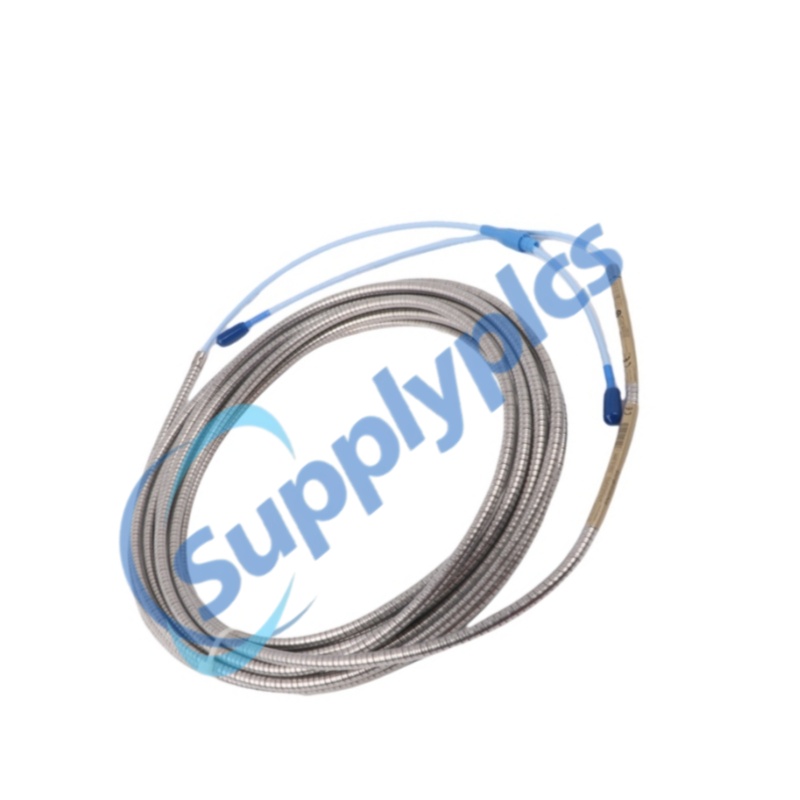

The 330130-085-12-05 is a high-performance 8.5-metre extension cable from Bently Nevada's 3300 XL series, engineered to interconnect 3300 5mm proximity probes with 3300 XL Proximitor Sensors. The 330130-085-12-05 features 75Ω triaxial construction with FEP insulation and flexible stainless steel armor, terminated with corrosion-resistant gold-plated ClickLoc connectors. The 330130-085-12-05 incorporates FluidLoc cable technology to prevent oil and liquid migration through the cable interior, while the integrated connector protectors provide enhanced environmental sealing. When combined with a 3300 5mm probe and Proximitor Sensor, the 330130-085-12-05 completes a fully interchangeable transducer system requiring no individual component matching.

Functions

System Interconnection: Provides electrical and mechanical connection between 3300 5mm probes and 3300 XL Proximitor Sensors
Signal Transmission: Carries the eddy current excitation signal and returns the modulated output voltage
Fluid Sealing: FluidLoc construction prevents oil and process liquids from leaking through the cable interior
Environmental Protection: Integrated connector protectors shield the connection point from contaminants and moisture
System Length Matching: When combined with probe length, equals the Proximitor Sensor's total calibrated system length
Hazardous Area Operation: Certified for installation in ATEX, IECEx, and CSA classified locations

Benefits

Complete Interchangeability: Eliminates the need for individual component matching or bench calibration, reducing installation time and complexity
Superior Corrosion Resistance: Gold-plated ClickLoc connectors resist corrosion and require only finger-tight installation
Positive Locking Mechanism: Engineered connectors audibly "click" when properly seated and resist loosening from vibration
Fluid Migration Prevention: FluidLoc cable option stops oil and other liquids from leaking out of the machine through the cable's interior
Enhanced Environmental Protection: Connector protectors provide increased protection against moisture, dirt, and contaminants
Tool-Free Installation: ClickLoc connectors require no special tools for installation or removal
Robust Mechanical Design: Stainless steel armor with FEP jacket delivers exceptional durability in harsh industrial environments

Applications

Fluid-Film Bearing Machines: Vibration and position measurement on turbines, compressors, and large rotating equipment
Keyphasor Measurement: Phase reference and speed sensing for machinery protection systems
Tachometer and Over-Speed Systems: Speed measurement for critical over-speed protection applications
Thrust Position Monitoring: Axial position measurement between thrust bearing pads
Pump and Motor Protection: Radial vibration monitoring on pumps and electric motors
Generator Bearing Monitoring: Shaft vibration and position measurement in power generation equipment
Hazardous Area Installations: ATEX/IECEx/CSA classified locations with appropriate certifications

Accessories

141078	3300 XL 8 mm and 3300 5 mm Proximity Transducer System Manual.
175751	3300 XL Multi-Purpose Stainless Steel Housing. 12”x12”x6”. Can hold up to 8 Proximitor Sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. (Available with ATEX Zone 0 and Zone 1 certifications.)
176467	3300 XL Multi-Purpose Stainless Steel Housing. 12”x8”x6”. Can hold up to 4 3300XL Proximitor Sensors in both DIN-mount and panel-mount configurations. (Available with ATEX Zone 0 and Zone 1 certifications.)
330181	3300 XL Multi-Purpose Stainless Steel Housing. 13”x9.5”x7”. Can hold up to 8 Proximitor sensors in a DIN-mount configuration or 6 Proximitor Sensors in a panelmount configuration. Primarily used by customers requiring hazardous area approvals fro their installations. Available with ATEX Zone 0 and Zone 1 and North American Division 1 and Division 2 certifications.
02120015	Bulk field wire. 1.0 mm2 (18 AWG), 3 conductor, twisted, shielded cable with drain wire. Specify length in feet.
138492-01	Replacement panel-mount mounting pad.
138493-01	Replacement DIN-mount mounting pad.
148722-01	3300 XL test plug. The 3300 XL Test Plug contains 3 small test pins attached to 3 color-coded 1-meter wires, each terminated in a banana plug. The 3-pin adapter plugs into the test pin holes on 3300 XL-style Proximitor sensors. You can use this test plug to check the performance of the Proximitor sensor from the test pin holes in the terminal strip without removing the field wiring.
04310310	3300 XL Proximitor Sensor panelmount screw. One 6-32 UNC thread forming mounting screw. Four screws are required for each Proximitor sensor. (Screws supplied standard with Proximitor housings [3300 XL panel-mount option]).
03200006	Silicone self-fusing tape. A 9.1- meter (10-yard) roll of silicone tape to protect connectors. This tape is easy to install and provides excellent electrical isolation and protection from the environment. We do not recommend using this tape inside the casing of the machine.
40113-02	Connector Protector Kit. Connector Protector Kit for 3300 XL 8 mm probes and extension cables, including connector protectors and installation tools.
136536-01	Connector protector adapter. This allows you to use connector protector installation tools manufactured prior to 1998 with 75Ω ClickLoc connectors.
40180-02	Connector protectors. Package contains 10 pairs of connector protectors for 3300 XL 8 mm probes and extension cables.
03839410	75Ω triaxial male connector protector. Male connector protectors install onto the extension cable and attach to the female connector protector on the probe, providing environmental protection of connectors.
03839420	75Ω triaxial female connector protector. Female connector protectors install onto the probe lead and attach to the male connector protector on the extension cable, providing environmental protection of connectors. You can also place the connector protector onto the extension cable to slide over the connection to the Proximitor sensor to protect that connection from the environment.
04301007	3/8-24 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire.
04301008	M10 x 1 probe lock nut with safety wire holes. Single probe lock nut with 2 holes drilled through the nut in order to secure the lock nut in place with safety wire.
330153-01	3300 XL connector kit. Used on 3300 XL 8 mm probes and extension cables. Contains 1 pair each of male and female ClickLoc connectors, 2 colorcoded sleeves, 2 pieces of slit FEP tubing, and 1 strip of silicone tape.
330153-09	3300 XL ETR Connector Kit. Used on ETR 3300 XL 8mm probes and 3300 ETR XL extension cables. Contains one pair of male and female ClickLoc connectors, two color-coded sleeves, two pieces of high temperature slit FEP tubing, and one strip of silicon tape.
163356	Connector Crimp Tool Kit. Includes 1 set of multiconnector inserts and connector installation instructions. Compatible only with 330153 connector kits or with probes shipped in 2003 or later with ClickLoc connectors uninstalled. Supplied with carrying case.
